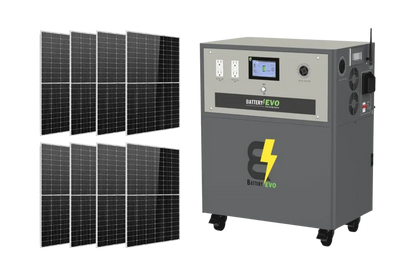

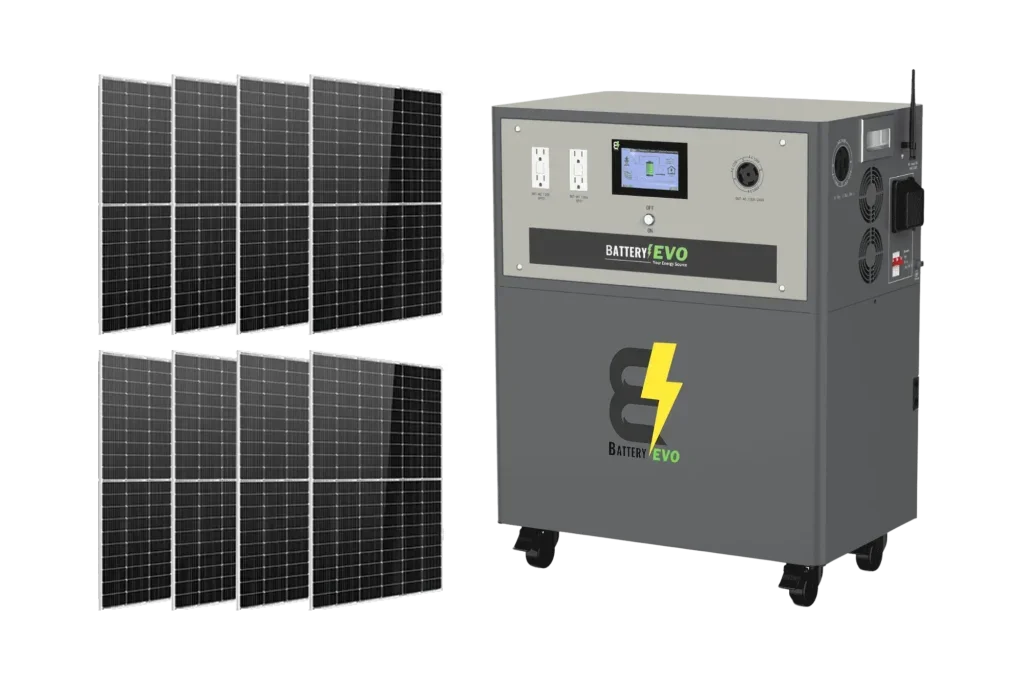

WALRUS G3 12K INV. 22 kWh with Solar Accessories Kit

WALRUS G3 12K INV. 22 kWh with Solar Accessories Kit

The BatteryEVO 22kWh WALRUS G3 is a compact, high-performance storage system with a built-in 12.5k inverter, perfect for home or light commercial energy setups. Its reduced footprint allows for flexible placement in smaller spaces. Designed for modern users, the system supports efficient energy backup and management.

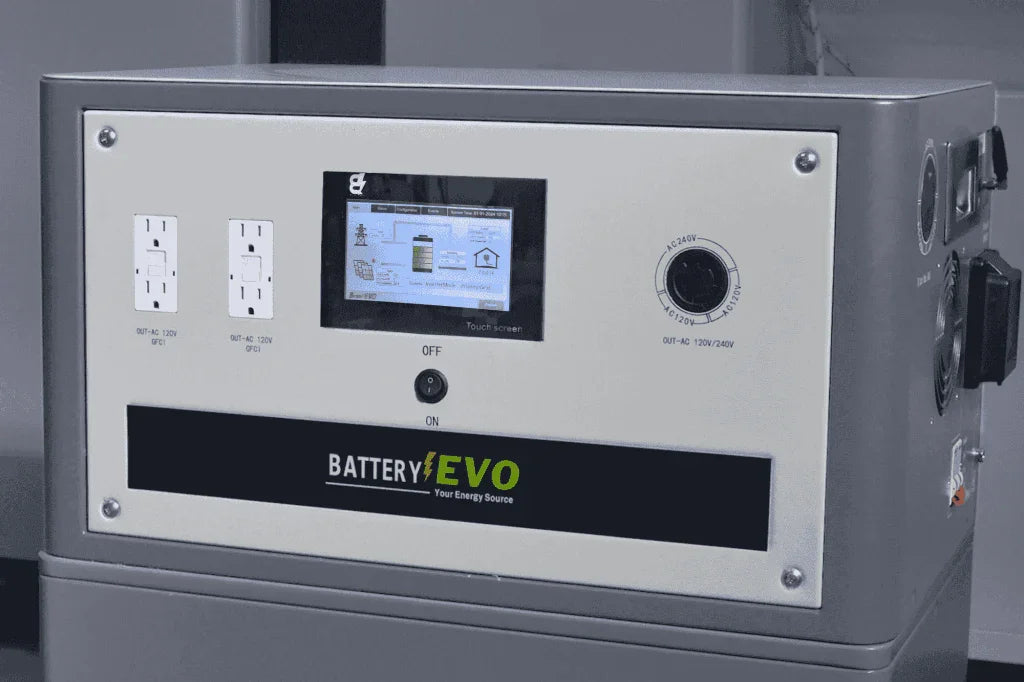

➤ Color touchscreen for real-time system monitoring
➤ Built-in wheels for easy mobility
➤ AC110/220V dual voltage support
➤ 10-year warranty batteries

Included in this bundle:

• 1.WALRUS G3 12K INV. 22 kWh AC110/220V 72N-S (x1)
• 2.PV to BE175 Cable-S (x1)
• 3.50 Amp 10 Ft RV Extension Cable-S (x2)
• 4.550W Solar Panel-S (x8)

• SKU:K0300
• System Voltage:AC110/220V
• Nominal Voltage:66V
• Chemistry:NMC
• kWh Capacity:22 kWh
• Ah Capacity:330Ah
• Charging Voltage:73V - 74.7V
• Max Charge Voltage:75.6V
• Operating Voltage Range:54V - 74.7V
• Suggested Low Voltage Cutoff:54V - 60V
• Cell Configuration:18S2P
• Max Continuous Discharge Current:250A
• Max Continuous Power:12.5kVA
• Max Discharge Peak Current:300A
• Max Charge Current:250A
• MPPT Charge Controller:5500W
• Charge Temperature Range:'-20°C (-7°F) / 55°C (131°F)
• Discharge Temperature Range:'-20°C (-4°F) / 55°C (131°F)
• Optimal Discharge Temperature Range:15°C (59°F) / 35°C (95°F)
• Storage Temperature Range:'-5°C (23°F) / 35°C (95°F) (Max 6 Months)
• Weight:394lbs (178.7kg)
• Depth:15.4in (391mm)
• Width:24.41in (620mm)
• Height:35.06in (890.5mm)
• Safety Features:Fuse (300A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections)
