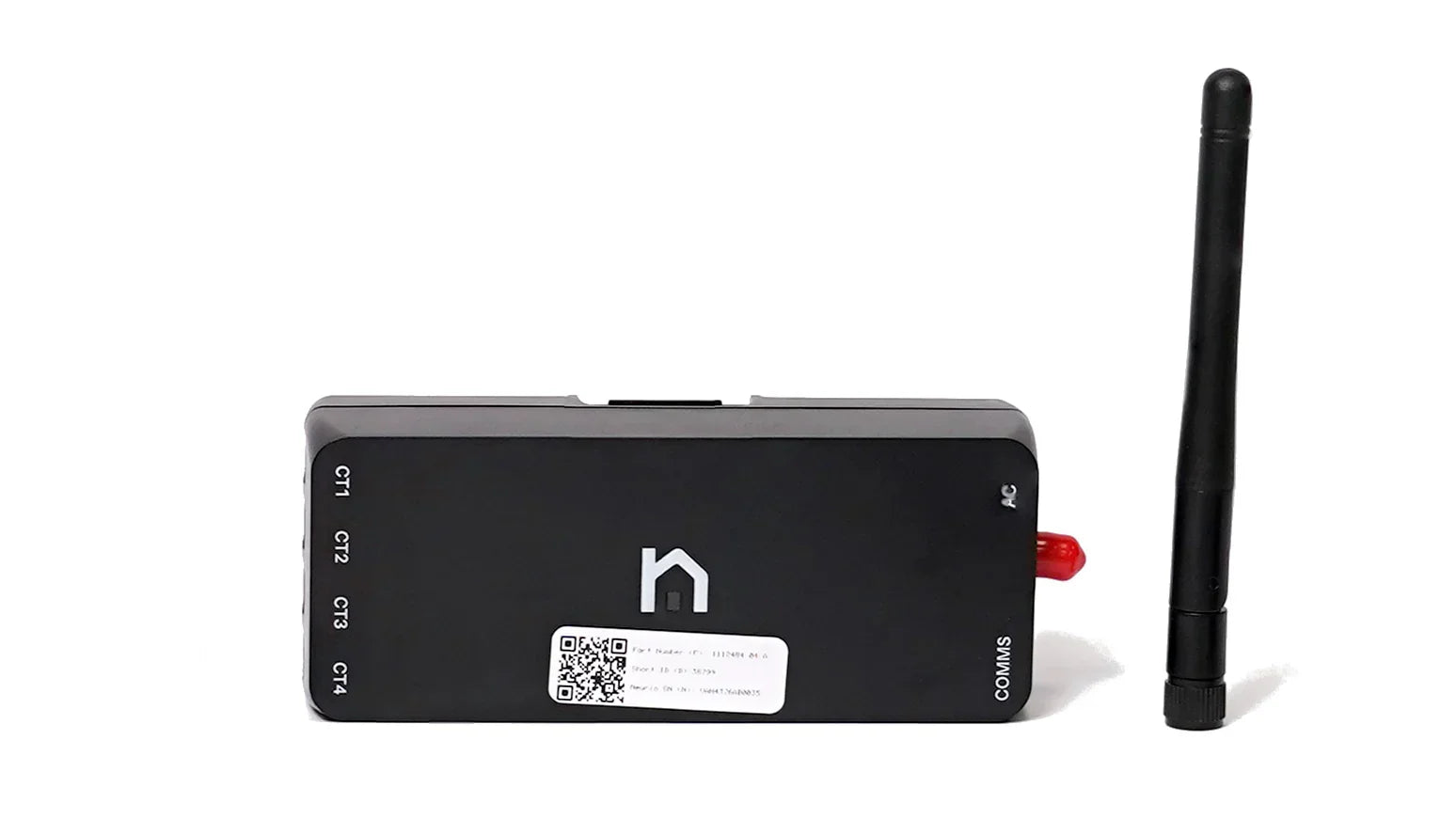

Tesla, Neurio, W2 Meter Kit with 2 CT's 200A, 1112484-06-x
The Tesla Neurio W2 Meter Kit (1112484-06-x) is a high-accuracy, revenue-grade energy monitoring solution designed for Tesla Powerwall 2, Powerwall+, and Backup Gateway 2 systems. This kit features the W2 meter (supporting Modbus TCP or RS485 communication) and two 200A current transformers (CTs) to monitor site consumption and solar production in residential settings.
Key Product Details:
- Model/Part Number: Neurio W2 Kit (1112484-06-X).
- Components: 1x Neurio W2 meter, 2x 200A Split-Core CTs (1622277-00-x).
- Compatibility: Exclusively compatible with W2 CTs; not interchangeable with W1 meter CTs.
- Features: Real-time energy monitoring, voltage range 110-240VAC, 50-60Hz.
- Installation: Requires professional installation by a Tesla Certified Installer.
- Application: Ideal for monitoring,, net metering, and solar PV, in North America, Europe, and Australia.
Important Notes:
The 1112484-06-x kit is often restricted to certified installers. The W2 meter requires specific compatible 200A CTs, which differ from the W1 model.
