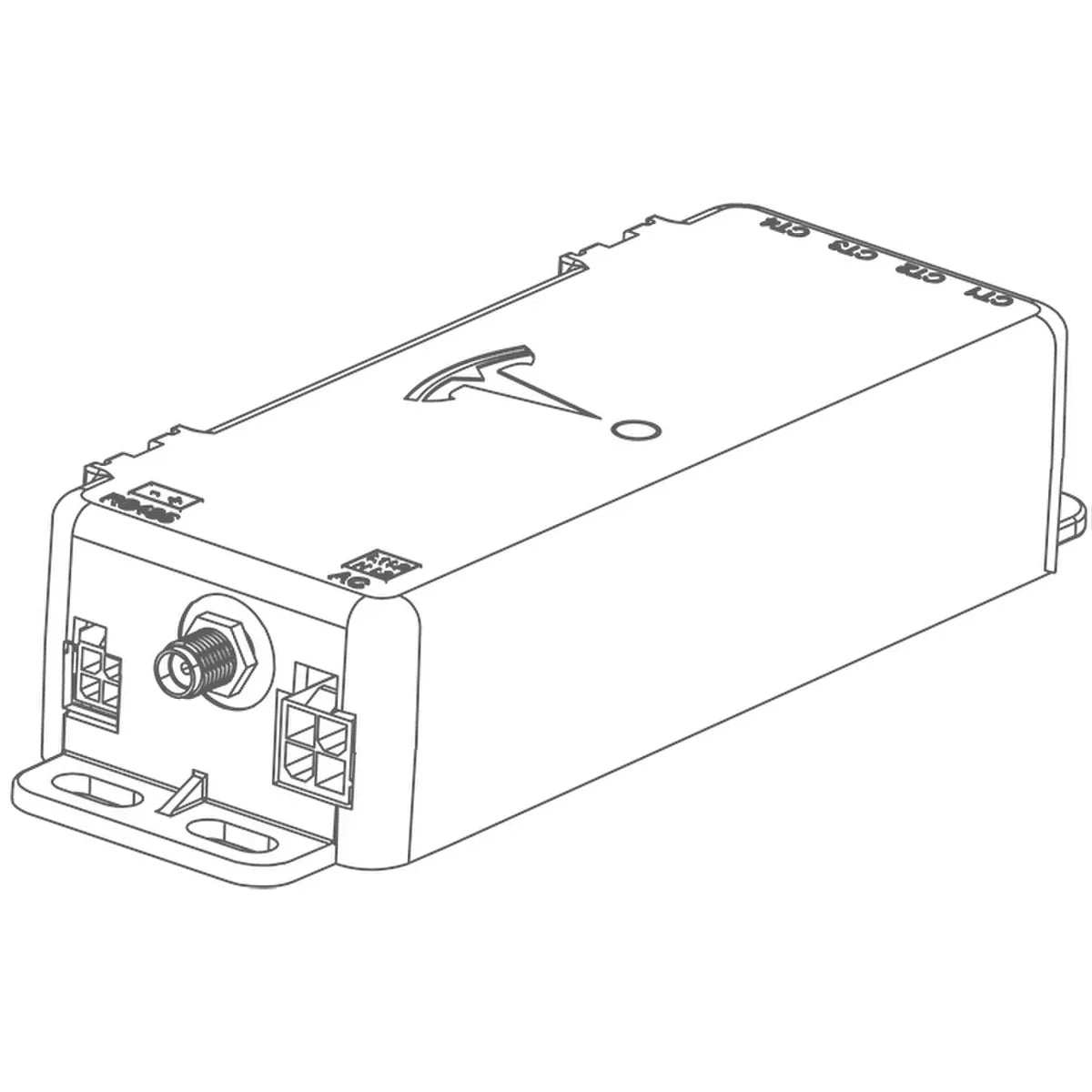

Tesla, Remote Energy Meter Kit with 2 Tesla 200A CTs, 2045796-xx-y
SKU: 570-3010
Manufacturer Part #: 2045796-xx-y
Item Weight: 1.5 lb
Dimensions (LxWxH): 5.7 x 2 x 1.2 inches
The Tesla Remote Energy Meter Kit (2045796-xx-y) is a professional-grade, 0.5% accurate (ANSI C12.1) monitoring system designed to measure voltage and current in Powerwall, solar inverter, and grid-tied systems. It includes the meter and two 200A current transformers (CTs) for real-time monitoring of energy consumption/production.
- Components: 1x Remote Meter (2002069-00-x), 2x 200A CTs (2033376-xx-y), and a voltage wiring harness (2046207-xx-y).
- Connectivity: Supports Wi-Fi or RS-485 wired communication to the site controller.
- Technical Specs: 100-240 VAC, 50-60 Hz, maximum 3W power consumption.
- Capacity: Monitors split-phase systems; includes terminals for CTs to track amperage, with data viewed in the Tesla app.
- Installation: Intended for certified installers; requires proper phase matching during commissioning.
- Dimensions: Approximately 145 x 52 x 31 mm (5.7 x 2 x 1.2 in).
The kit is widely used to manage site energy flow for Tesla Powerwall 2, Backup Gateway 2, and Tesla Solar Inverters.
