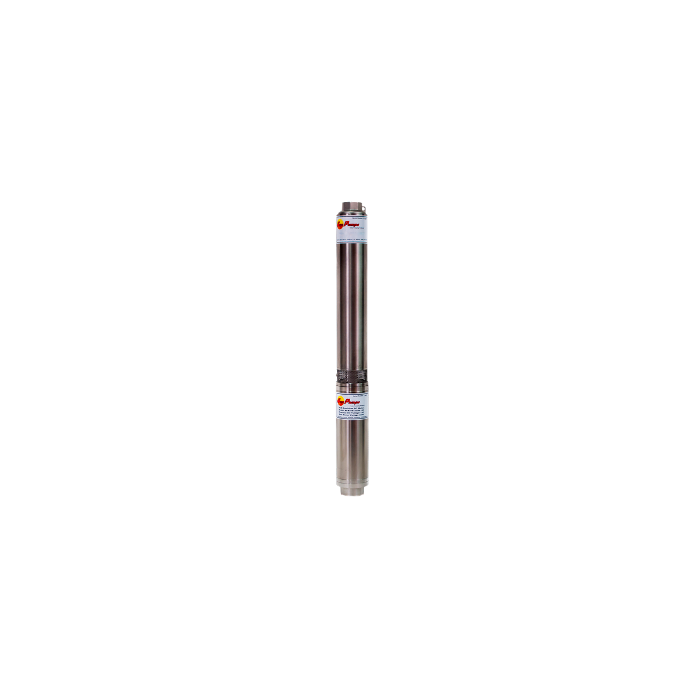

Sun Pumps SCS 17-280-180 BL Solar Submersible Pump

Specifications

Solar Submersible Pump, 17GPM, 280FT Head, 180VDC, Brushless Motor
Flow Range: 10-25 GPM (38-95 LPM)
Depth Range: 170-320 Ft. (52-98 Mt.)
Controller: 120-180
Controller: PCC 180-BLS-M2S
Minimum Well Diameter: 4" (100mm)
Discharge Size: 1 1/4" NPT

Sun Pumps SCS series submersibles are high quality, maintenance-free, DC powered pumps specifically made for water delivery in remote locations. They operate on 160 to 3000 watts of DC power with voltage choices ranging from 30 to 240 volts.

The submersible motors incorporate the latest in high efficiency, permanent magnet, sensorless brushless DC technology and there are no electronics inside the motor. They are constructed of corrosion resistant, stainless steel.

The pump ends are multi-stage centrifugals constructed of stainless steel. The impellers are wear resistant glass filled, engineered composite and are resistant to mineral and algae deposits. The bowls are constructed of stainless steel for strength and abrasive resistance.

Sun Pumps SCS series pumps can be installed below the water level in a water well, lake, river, or cistern. They can be used to fill an open tank or used to pressurize water systems.

Sun Pumps PCC Sensorless Brushless DC Controllers incorporate the latest state of art technology. The controllers are micro-processor based and have MPPT, Maximum Power Point Tracking to keep the solar array operating at peak efficiency at all.
