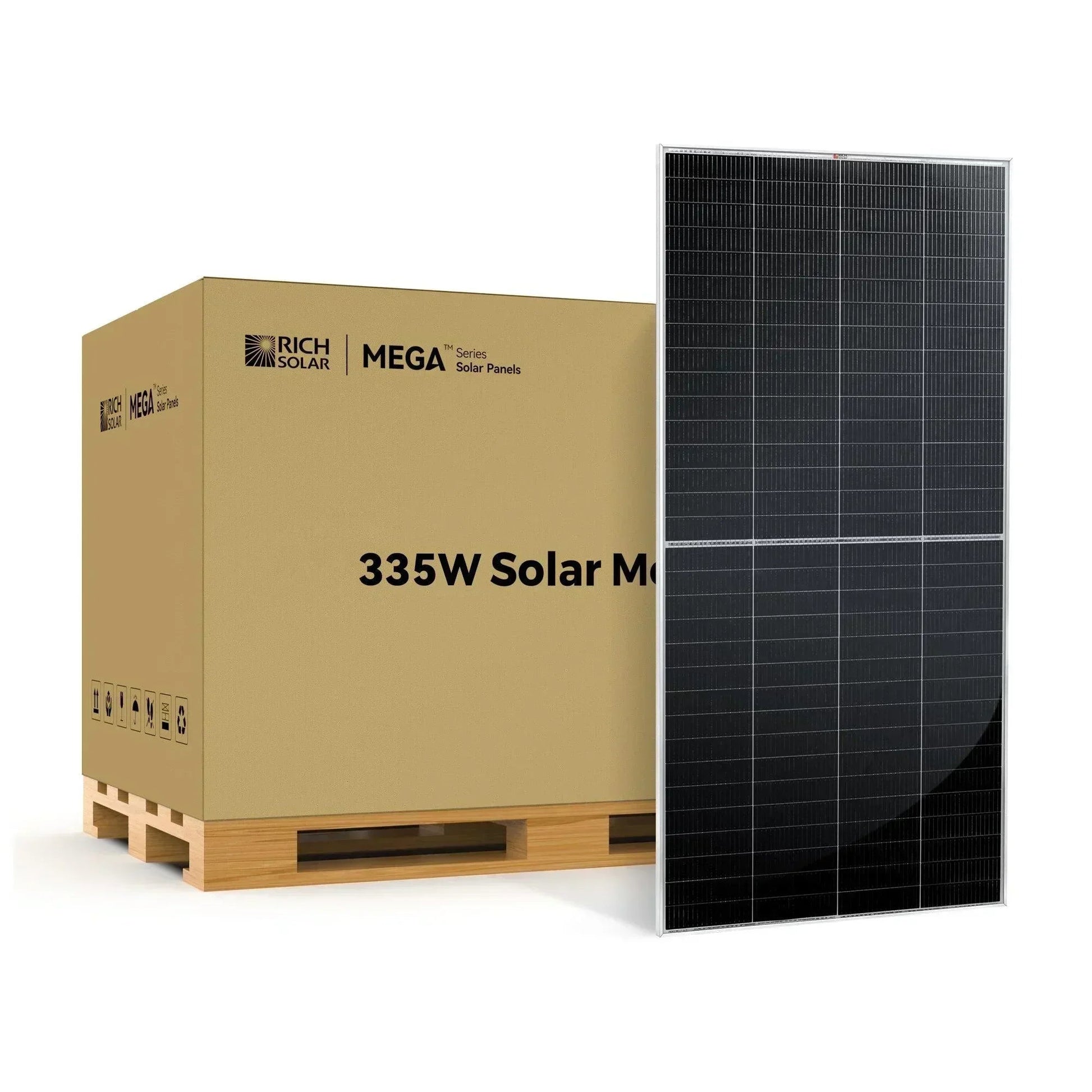

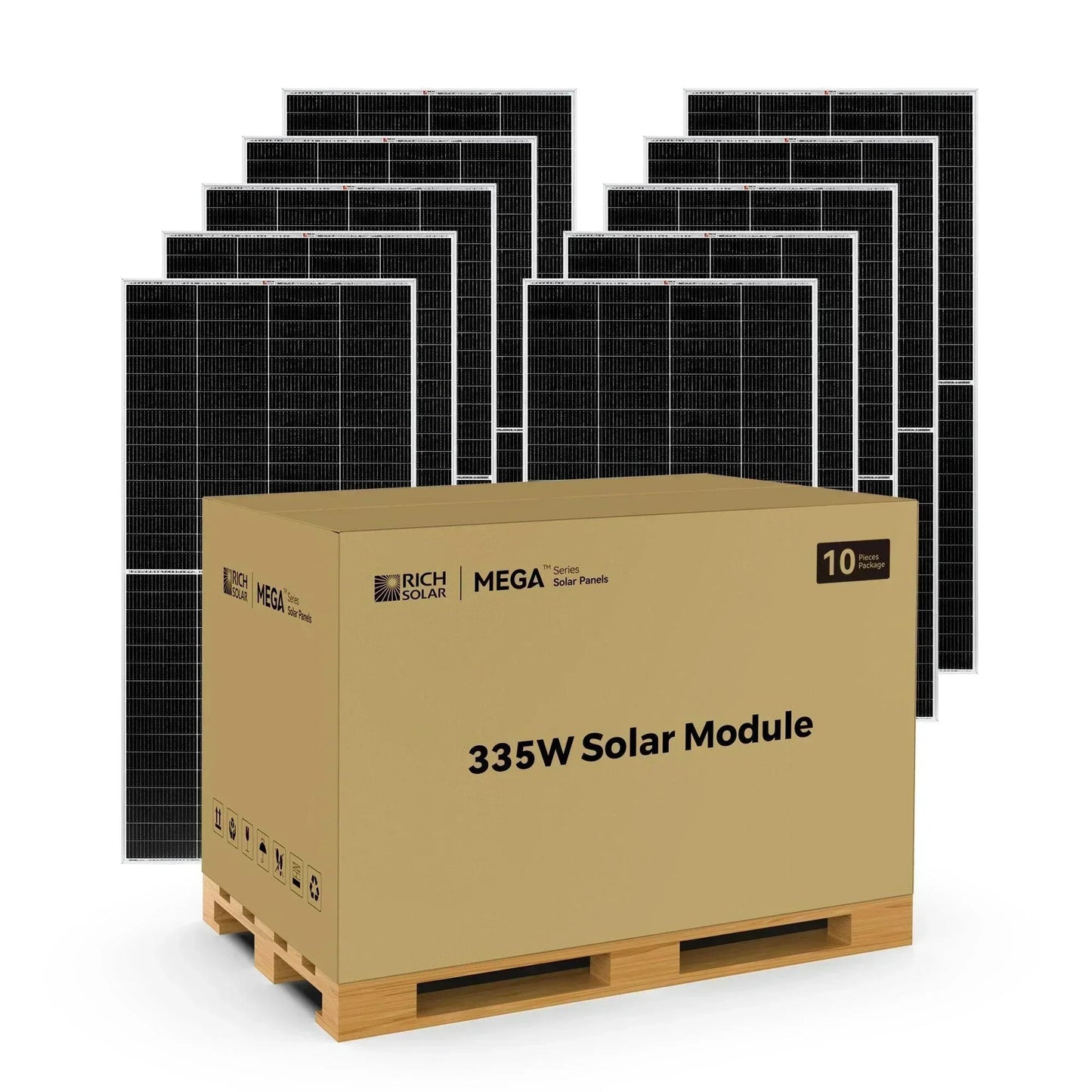

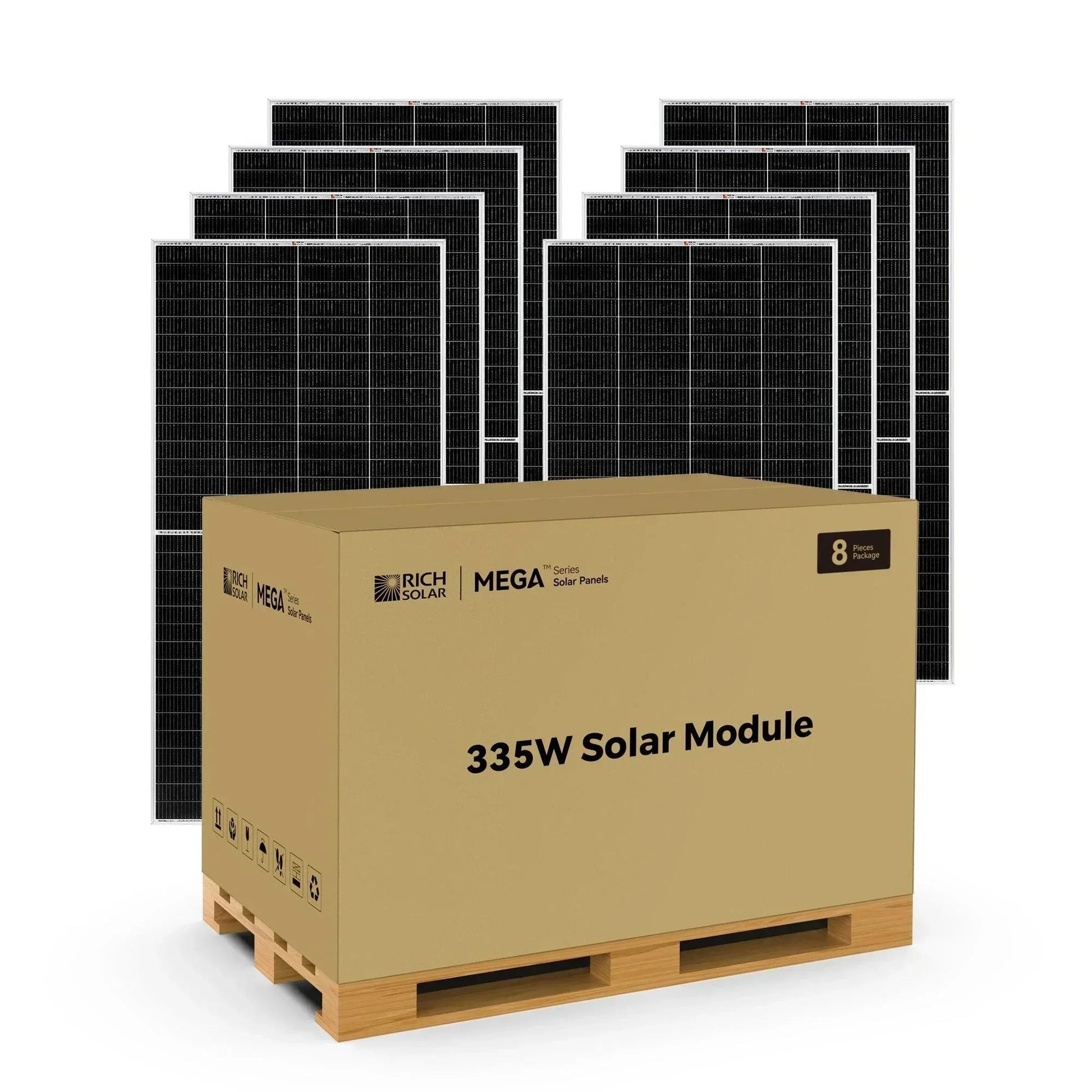

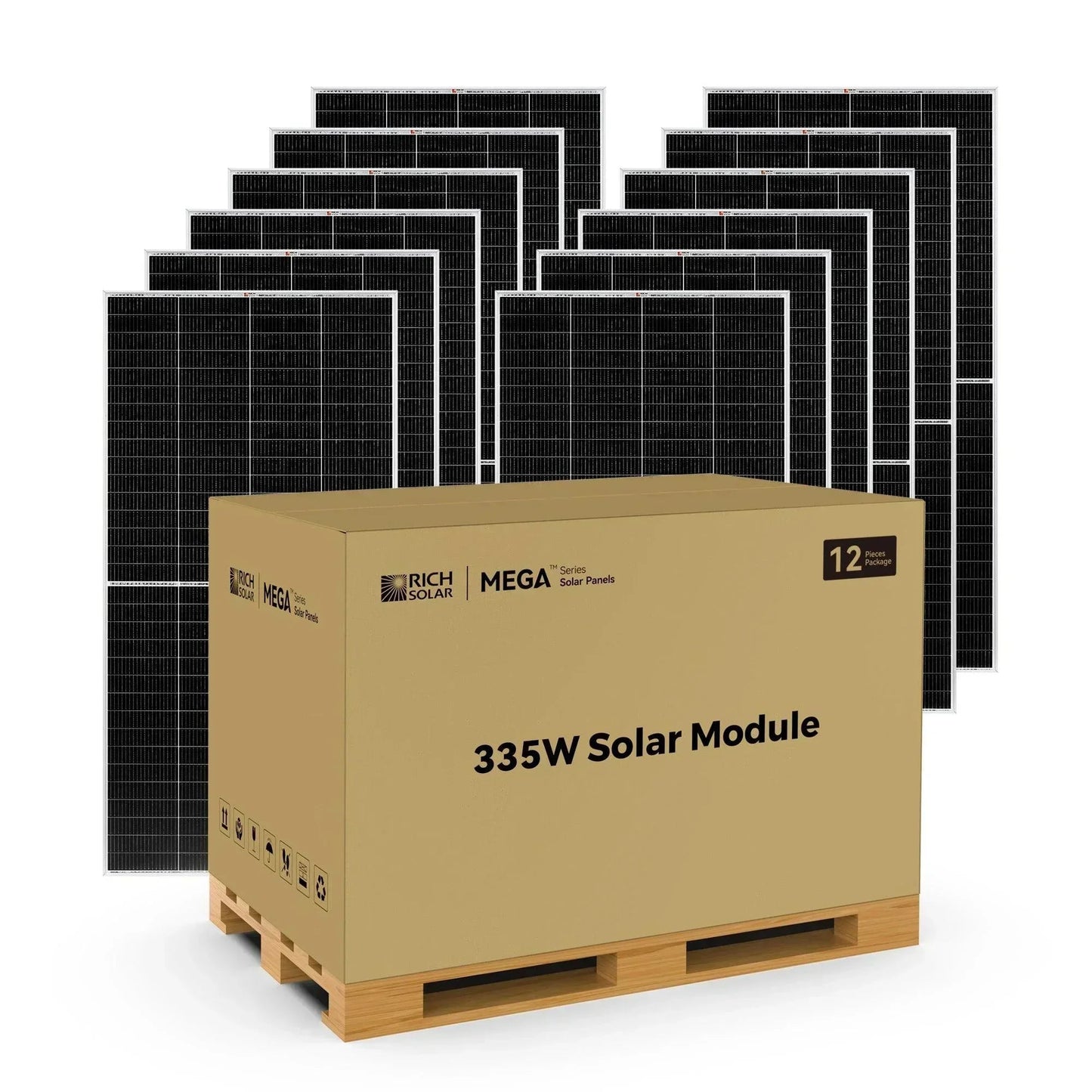

MEGA 335 Watt Solar Panel | Premium Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty | UL Certified
Generates 9.8 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
☑ High PerformanceExcellent low-light performance even on early mornings, evenings, and cloudy days.

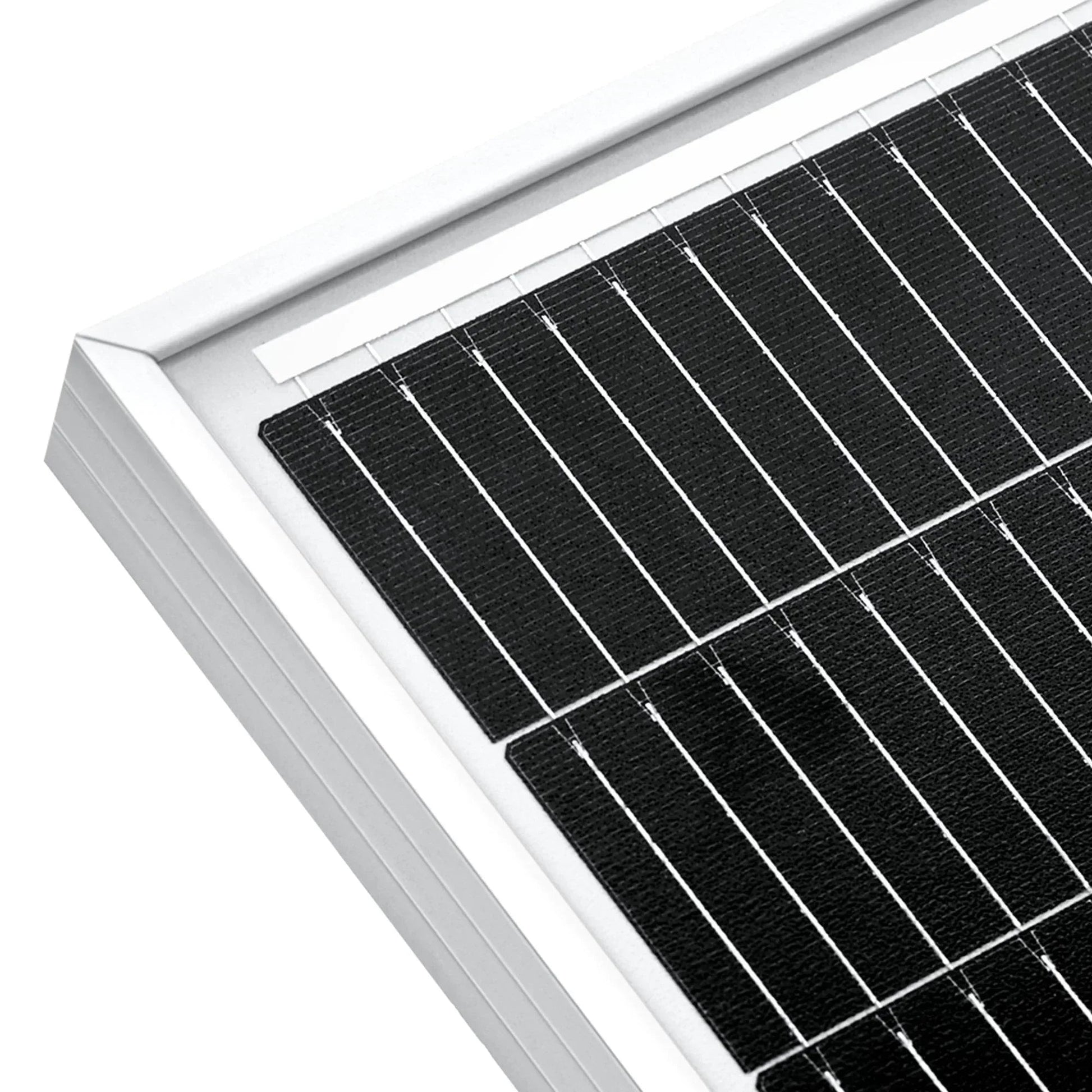

☑ Rugged DurabilityBuilt with strong high transmission “Anti-reflective” coated tempered glass, and an anodized aluminum frame.
Fast and easy installation thanks to 14 pre-drilled holes that are compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
☑ Warranty25-year power output warranty and a 10-year workmanship warranty.
Specifications

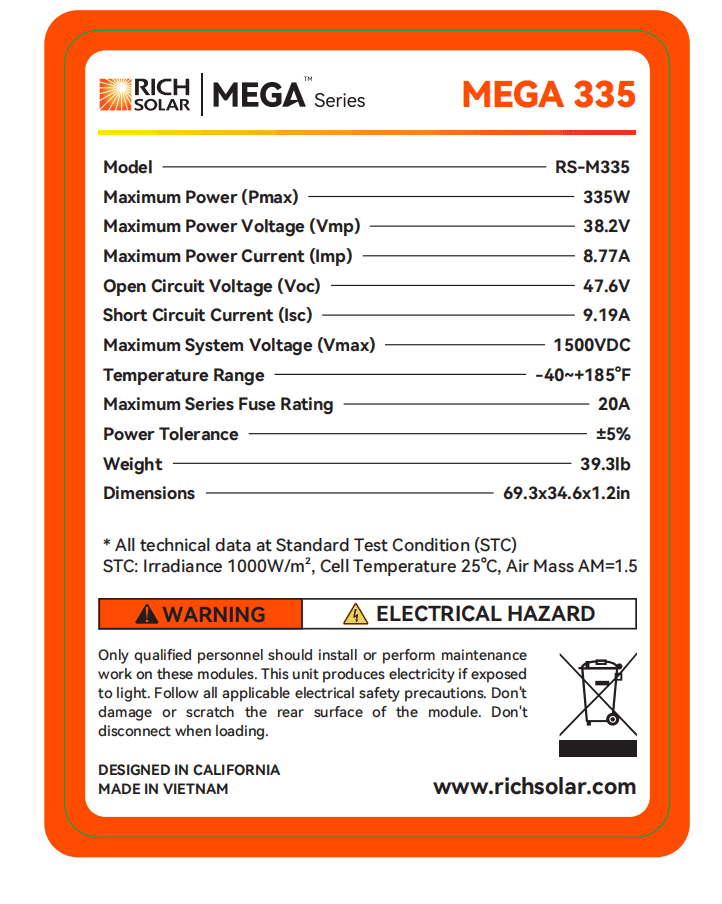

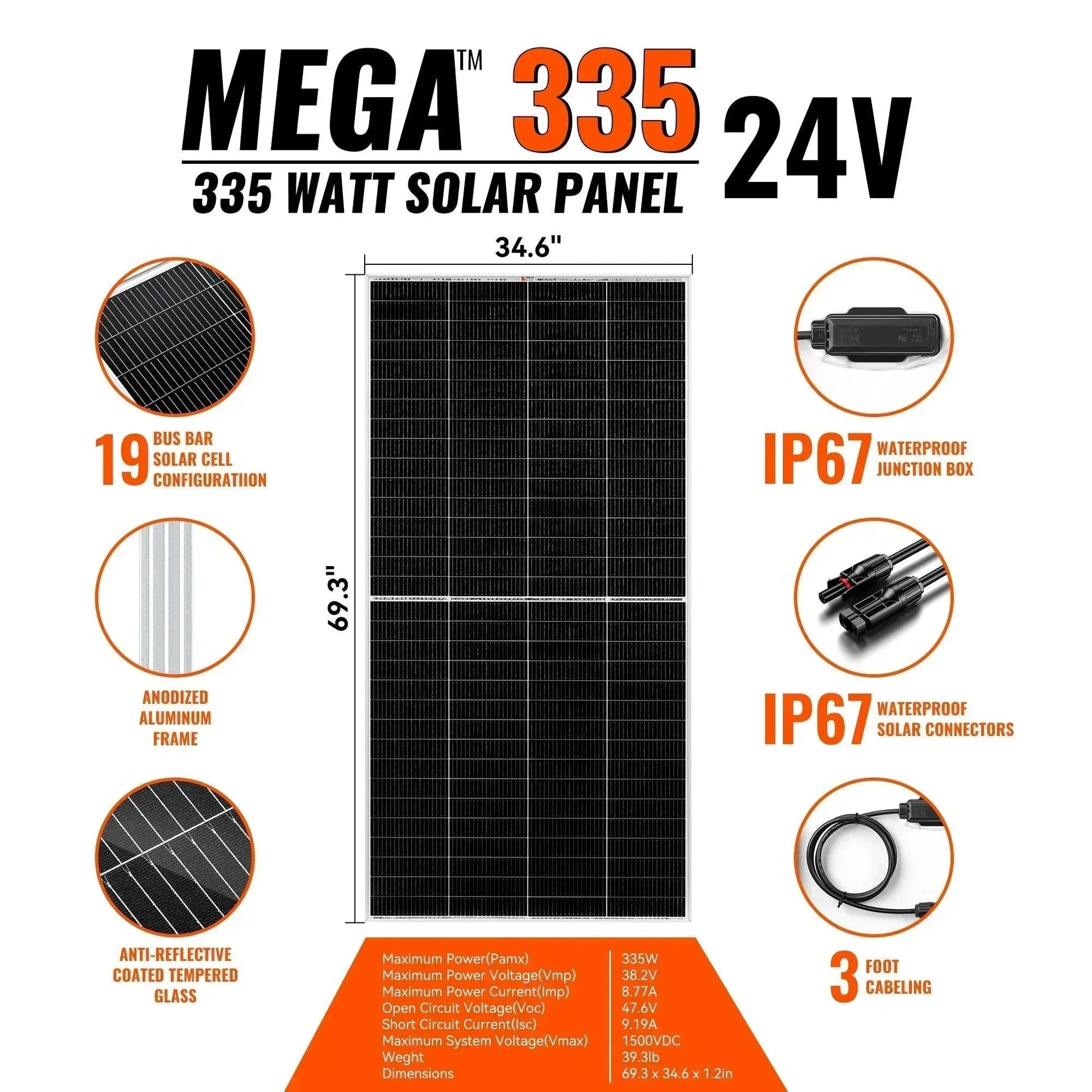

SOLAR PANEL INFO
Maximum Power(Pmax):
335W
Maximum Power Voltage(Vmp):
38.2V
Maximum Power Current(Imp):
8.77A
Open Circuit Voltage(Voc):
47.6V
Short Circuit Current(Isc):
9.19A
Maximum System Voltage(Vmax):
1500VDC
Temperature Range:
-40°F ~ 185°F
Max Series Fuse Rating:
20A

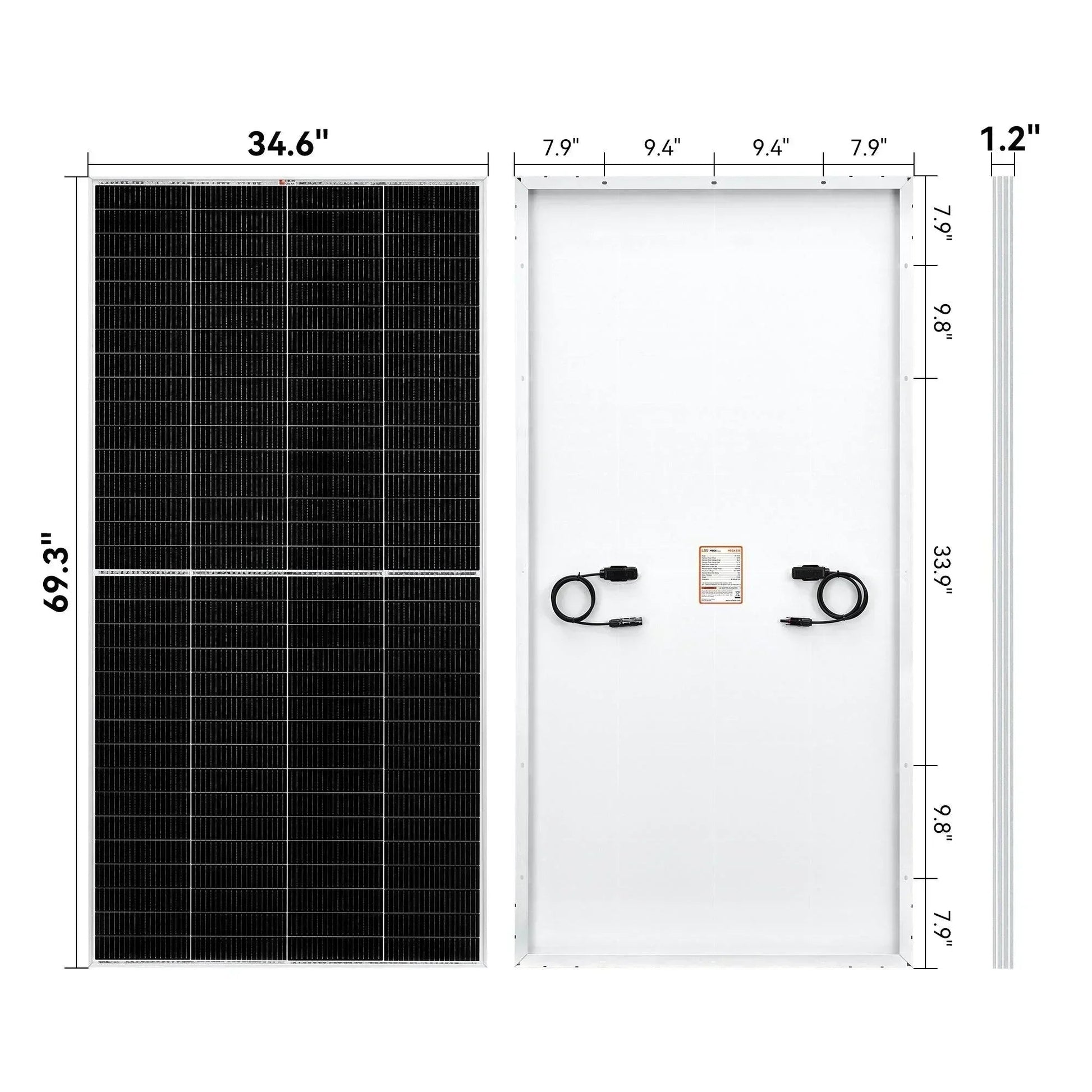

Dimensions:
69.3 x 34.6 x 1.2 in
Weight:
39.3 lb
Built-in Components

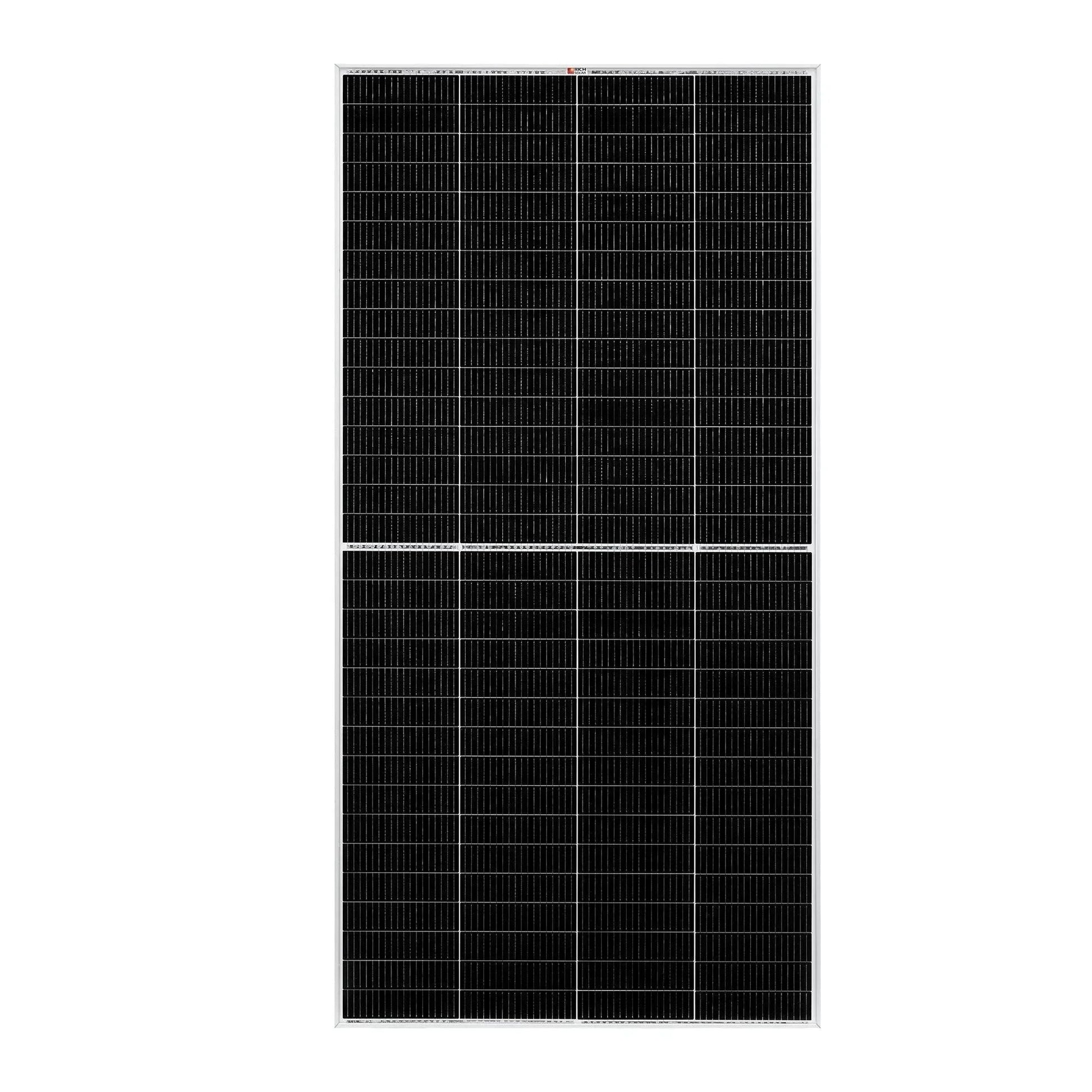

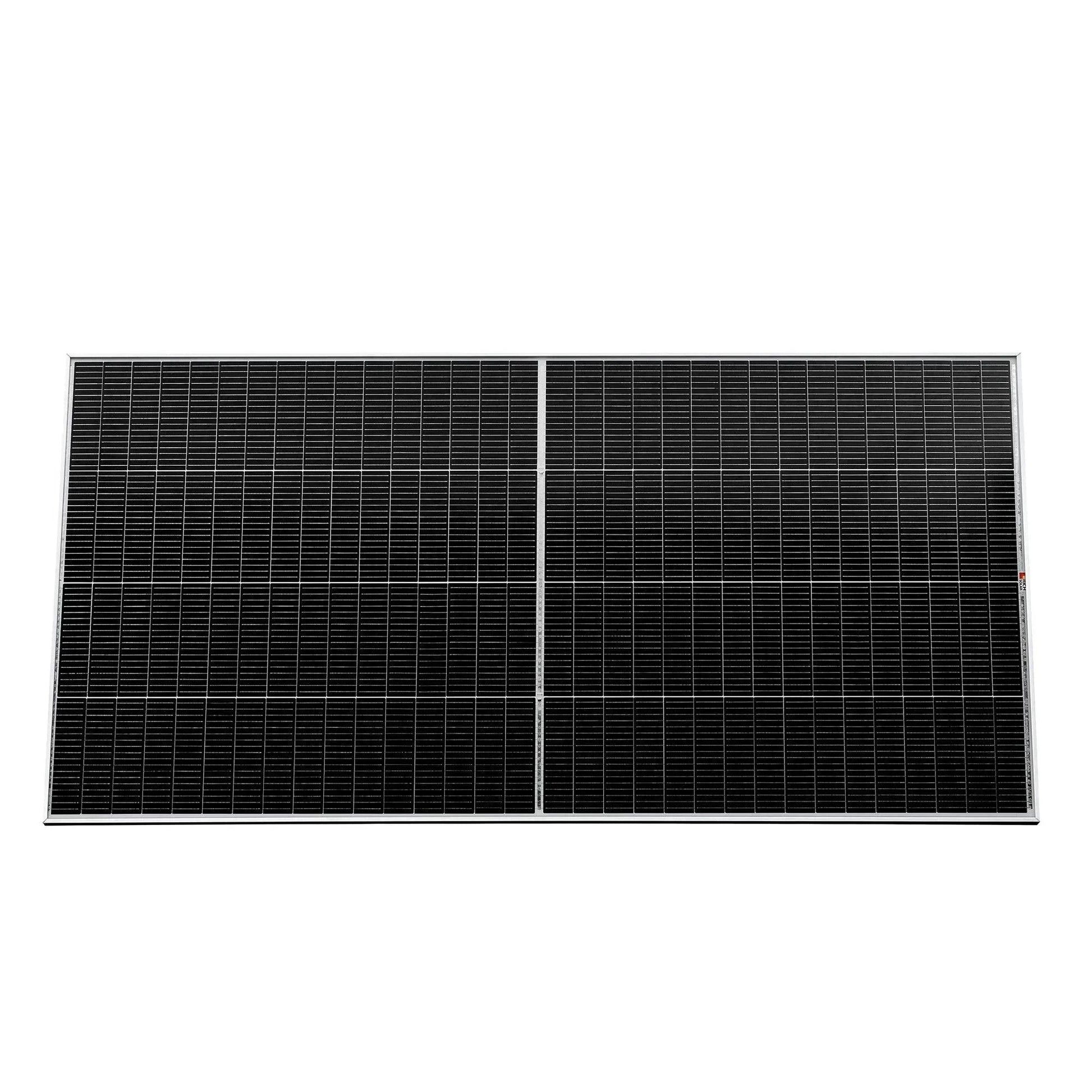

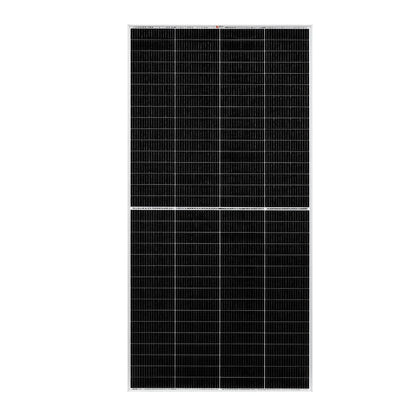

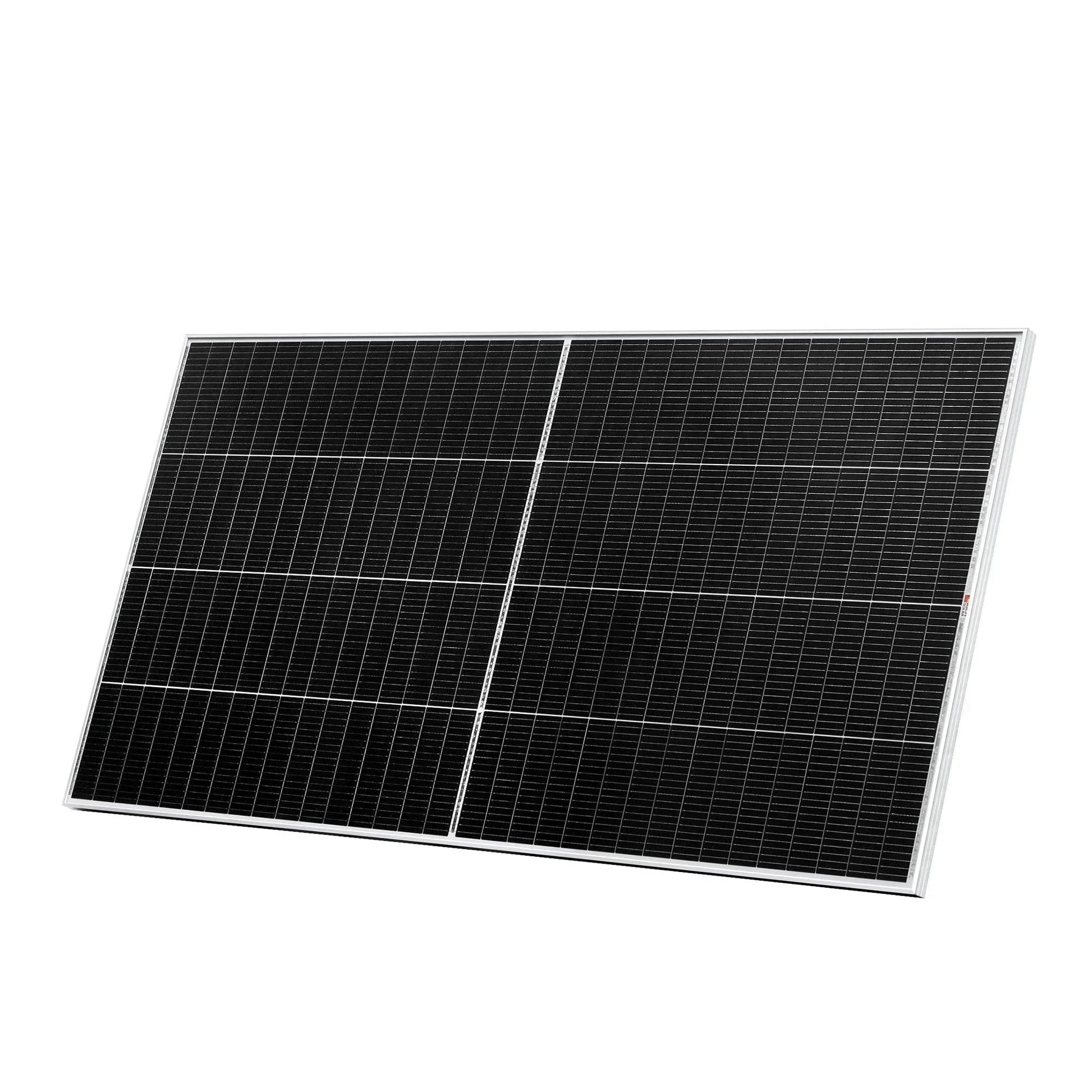

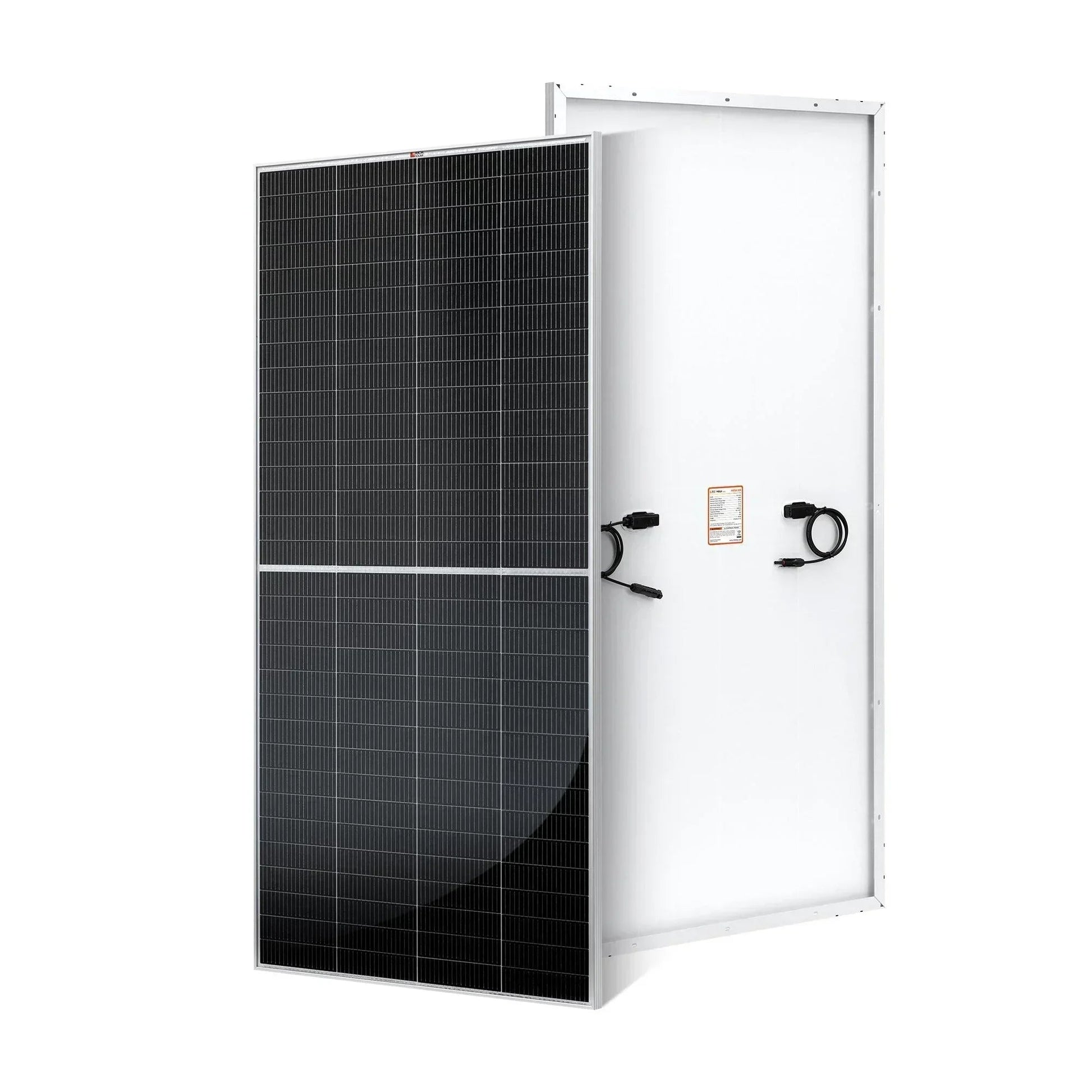

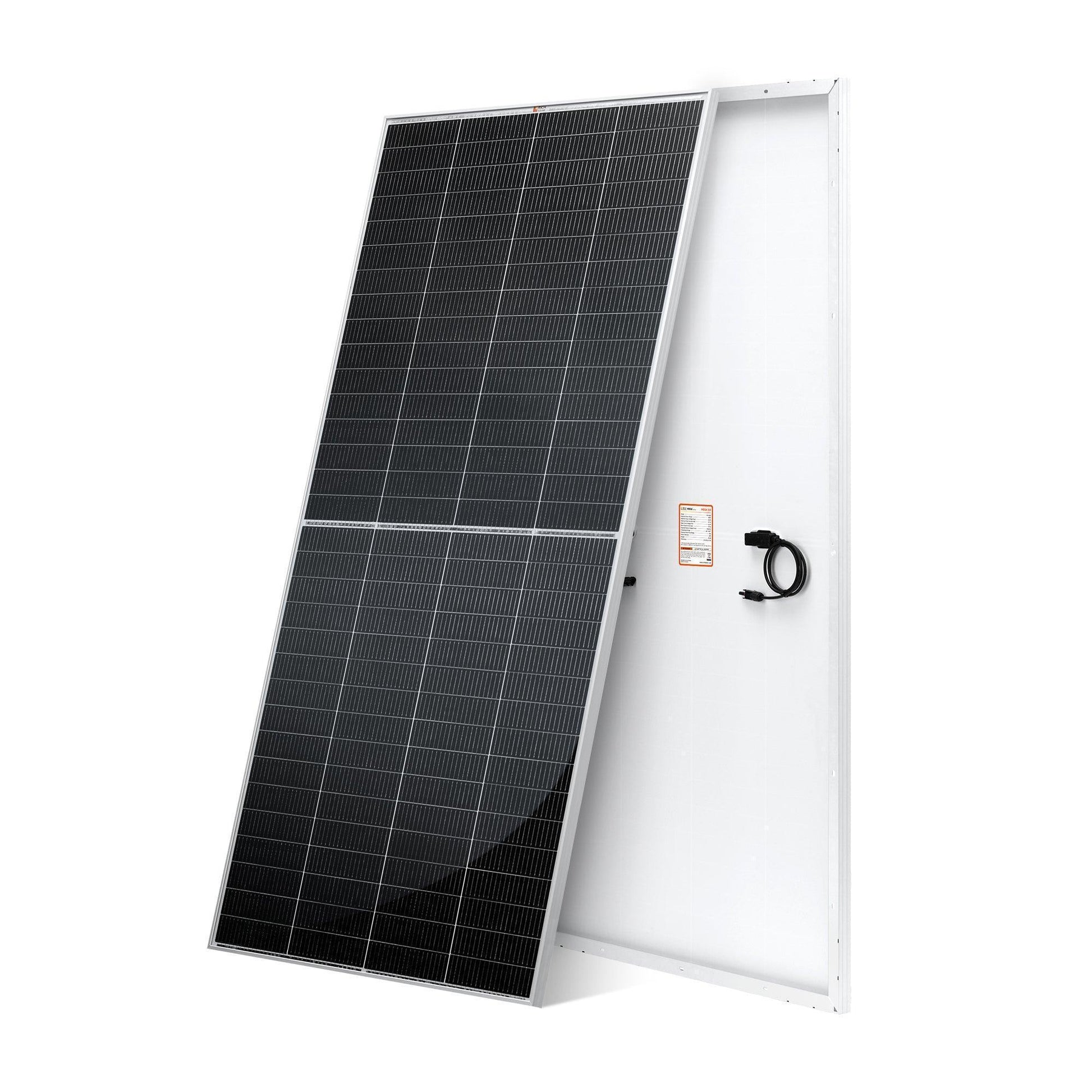

- 335-watt monocrystalline solar panel

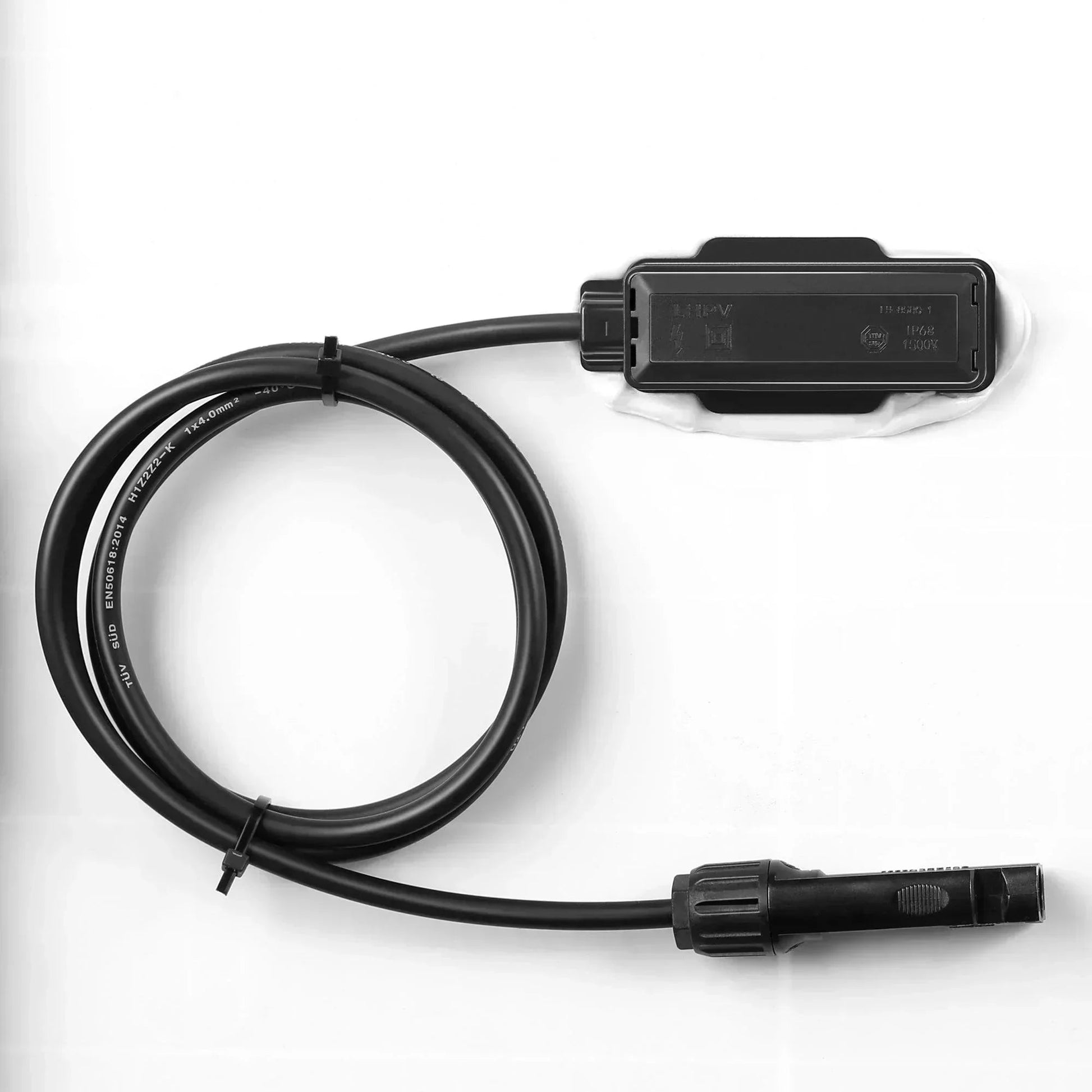

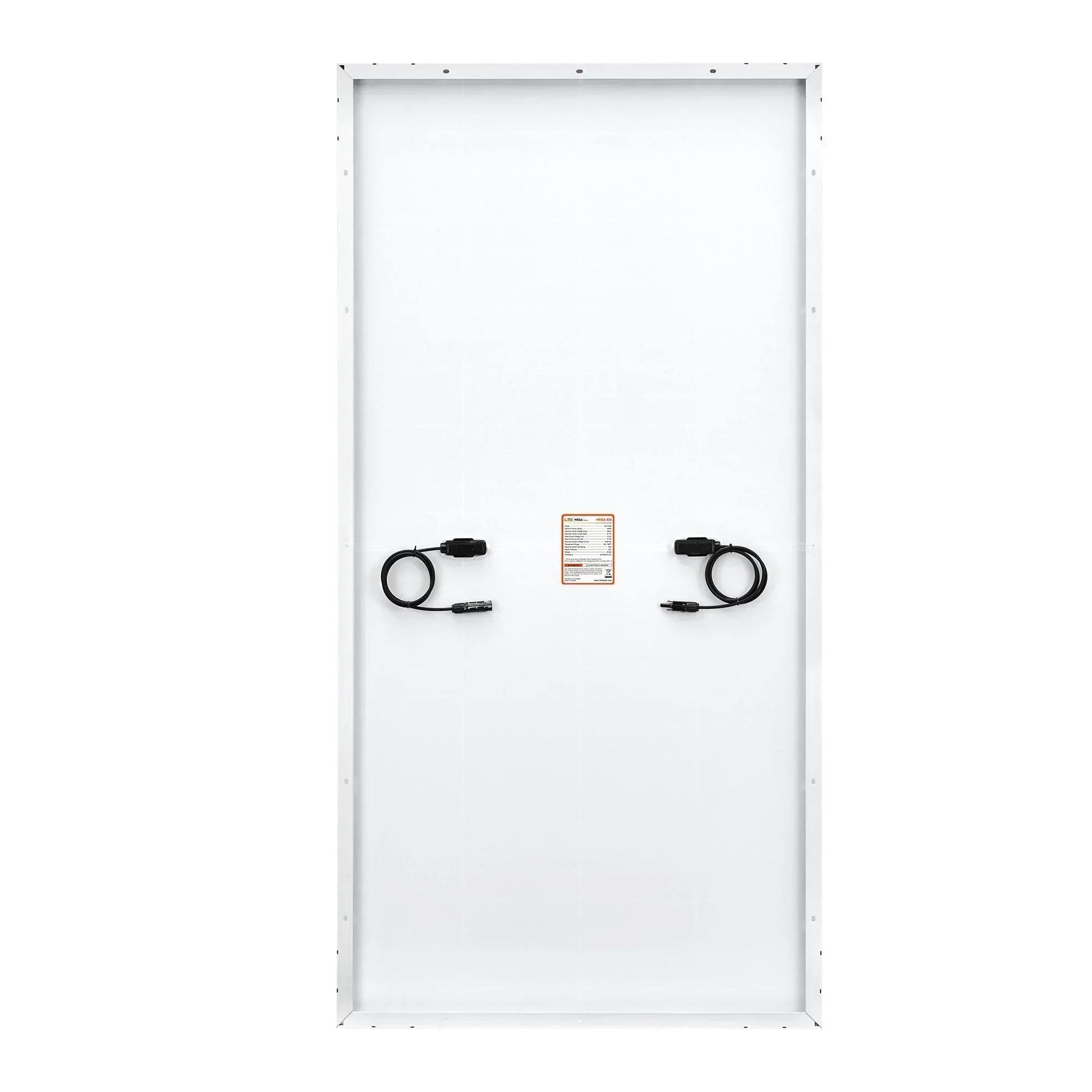

- Panel leads (pair): 3 feet each
- IP67-rated waterproof junction box
- IP67-rated waterproof solar connectors
- Bypass diodes built into the junction box
