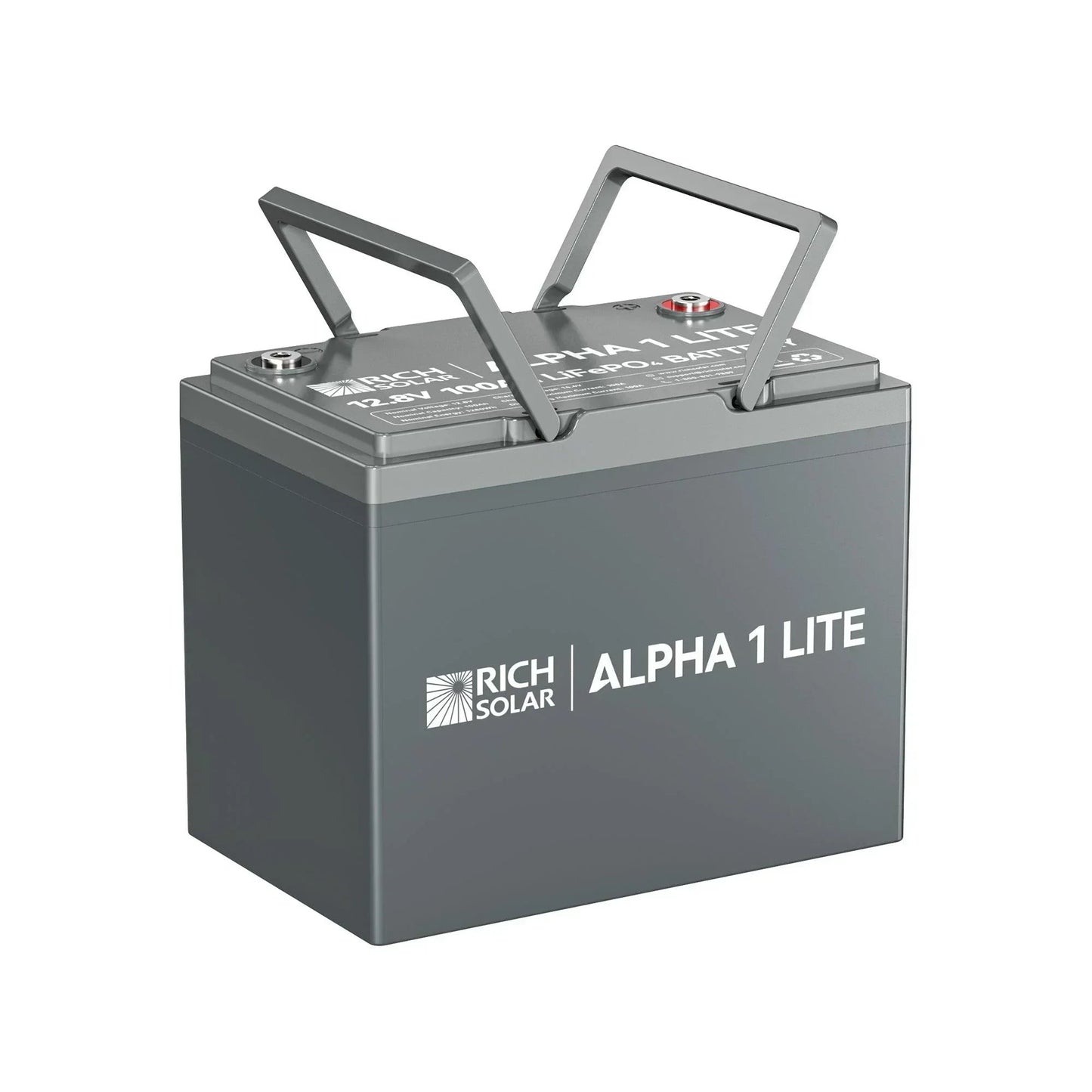

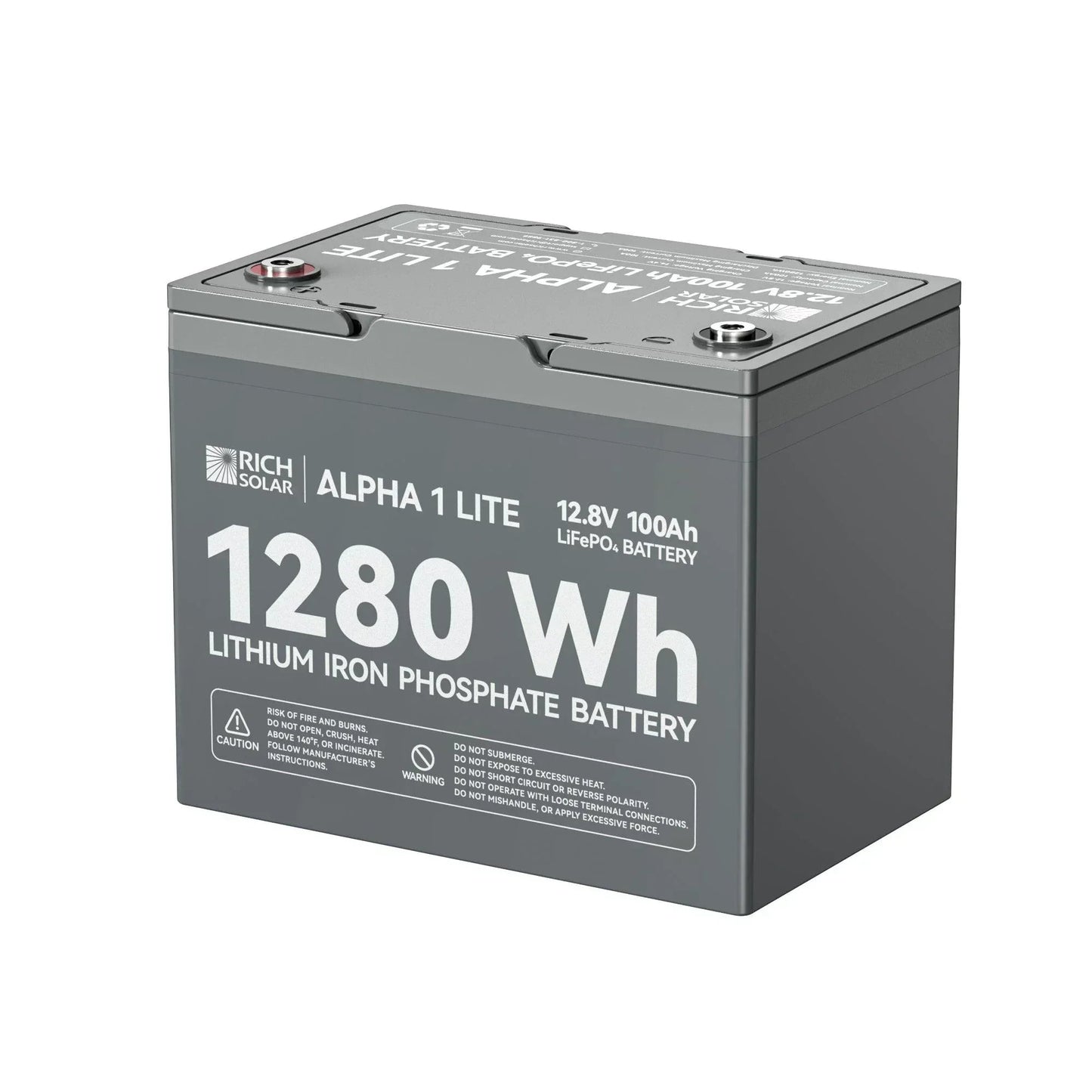

Compact Battery and Packed with Energy
Built with quality materials that are built to last, RICH SOLAR's new ALPHA 1 LITE is a 12V 100Ah battery packed to the brim with premium lithium-ion-phosphate (LiFePO4) cells. Experience a full day of high-quality power output with the ALPHA 1 LITE's capacity of 100Ah, setting you up for a full day on the open road in your RV, camper, or van. With it's low-maintenance, deep-cycle capabilities, and RICH SOLAR premium materials, you can store your energy with ease.
Specifications
BATTERY
Nominal Voltage:
12.8V
Nominal Capacity:
100Ah
Minimum Capacity:
99.5Ah
Cycle Life:
>4000 cycles
Operating Specifications
Operating Voltage:
12.8 V
Capacity:
100 Ah
Energy:
1280 Watt Hours
Charge Voltage:
14.4V
Continuous Charge Current:
100A
Continuous Discharge Current:
100A
Self Discharge:
< 5%/month
TEMPERATURE
Charge Temperature:
32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature:
-4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature:
14°F-113°F / -10℃~45℃ 90％RH Max (More than 3 months)
Physical Specifications
Battery Dimensions(L*W*H):
10.2x6.6x8.3 in
Weight:
24.3 lb
BMS Operation
Over Charge Protection
Over charge detection voltage:
3.75V±0.03V
Over charge detection delay time:
1000ms±500ms
Over charge recovery voltage:
3.55V (Min 3.40V, Max 3.60V)
Over Discharge Protection
Over discharge detection voltage:
2.20V±0.08V
Over discharge detection delay time:
1000ms±500ms
Over discharge recovery voltage:
2.70V±0.10V
Warranty: 5 years
