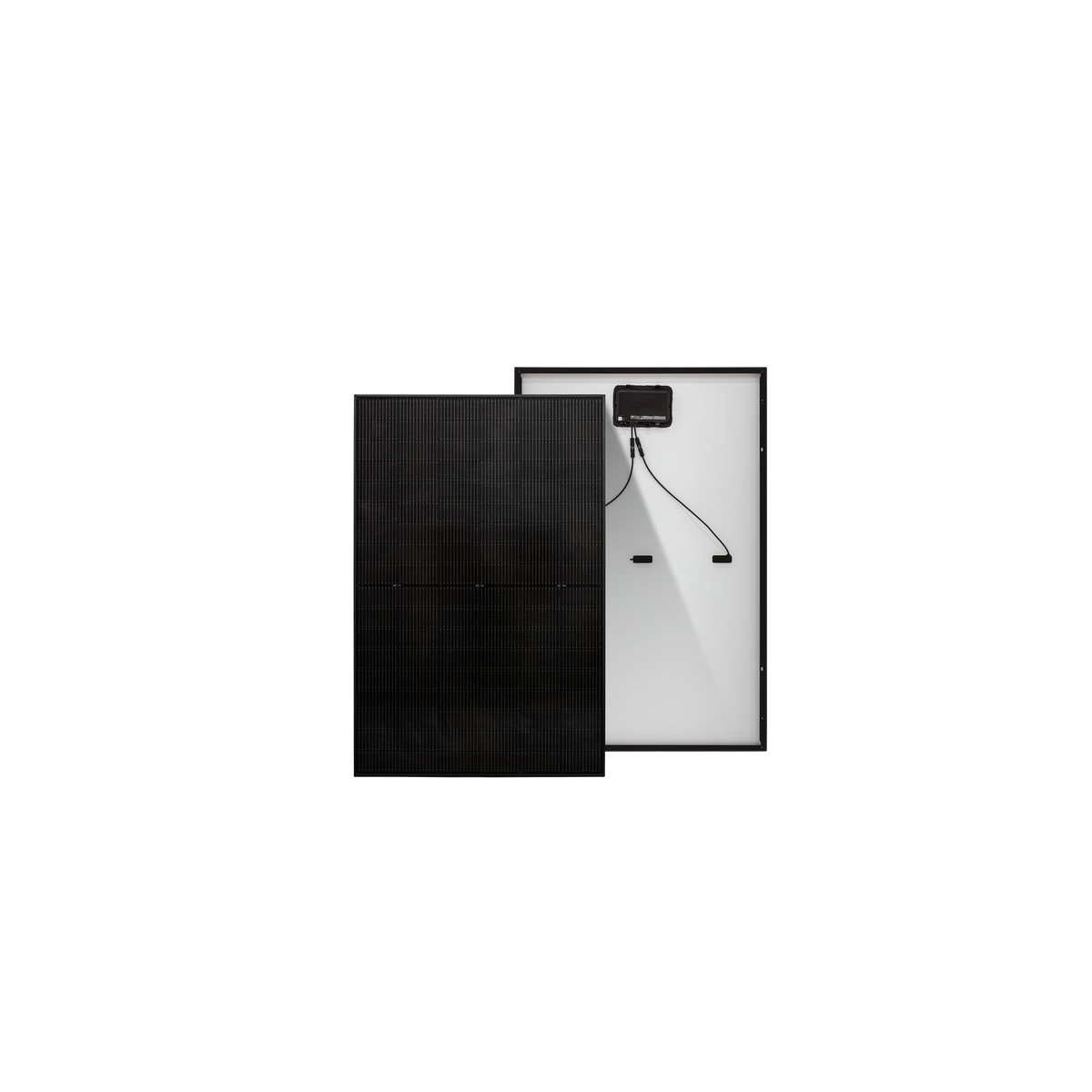

QCELLS Q.TRON BLK M-G2.C1+ 430 Solar Panel
The Qcells Q.TRON BLK M-G2.C1+ 430 is an all-black, 430-watt residential AC solar module. It features an N-type TOPCon monocrystalline half-cell technology. It delivers up to 22.0% efficiency, built-in rapid shutdown compliance, and a 25-year product warranty.
Technical Specifications
Nominal Power (STC): 430 W
Module Efficiency: 22.0%
Cell Type: N-Type TOPCon Monocrystalline (108 half-cells)
Open Circuit Voltage (\(V_{oc}\)): 39.32 V
Short Circuit Current (\(I_{sc}\)): 13.74 A
Max Power Voltage (\(V_{mpp}\)): 32.94 V
Max Power Current (\(I_{mpp}\)): 13.05 A
Dimensions: 67.8 in × 44.6 in × 1.57 in (1722 mm × 1134 mm × 40 mm)
Weight: 50.59 lbs (22.95 kg)
Frame & Backsheet: Black anodized aluminum frame with black backsheet.
Core Technologies & Features
Q.ANTUM NEO Technology: Utilizes N-type chemistry with phosphorus doping to completely eliminate light-induced degradation (LID) and lower temperature coefficients, meaning less power loss in hot weather.
Weather & Load Safety: Certified to withstand heavy mechanical loads, including high snow loads (up to 8100 Pa) and wind loads (up to 3600–5400 Pa).
Monitoring Systems: Supports module-level performance tracking via the Q.OMMAND PRO App for installers and the Q.OMMAND HOME App for homeowners.
Warranty & Degradation
Product Warranty: 25-year comprehensive coverage.
Performance Warranty: Linear performance guarantee ensuring high output over time, retaining over 90% of nominal power production by year 25.
