Lensun 200W(4x50W) Waterproof Foldable Solar Panel
Lensun’s new IP67 waterproof, 11-layer monolithic foldable panel. Features dual aerospace-grade window films—same as commercial aircraft—for unmatched UV and impact resistance.
Built to endure vibration, extreme temperatures, and rugged outdoor use—reliably powering your adventures anywhere.
Feature:
1. 11-Layer Monolithic Lamination: Seamless 11-material encapsulation, it delivers unmatched resilience against vibration, extreme temperatures, and harsh outdoor abuse.
2. Aerospace-Grade Window Film: Dual layers of aircraft-window composite for superior UV, impact, and microcrack resistance—built to last in extreme conditions.

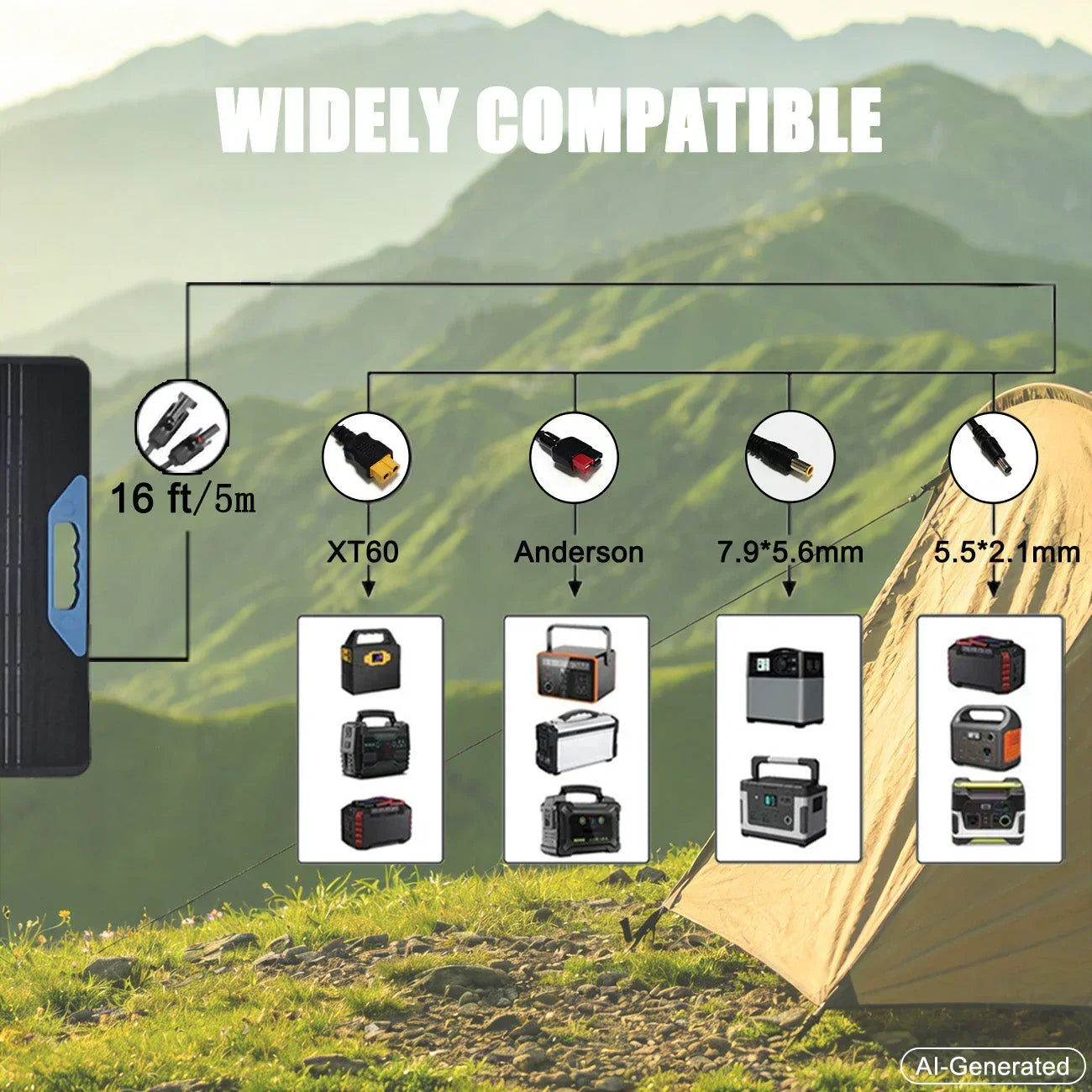

3.High Compatibility: Standard 5m/16ft MC4 cable, 4-in-1 adapter cable, fits Anderson/DC5521/XT60/DC7956, seamlessly connecting most power stations
4. N-Type Solar cell: Advanced 18BB N-type cells (25% efficiency) deliver more power from the same size—perfect for camping, RVs, and backup power.
5. IP67 Waterproof: Advanced one-piece lamination resists scratches, UV, and wear—ensuring reliable power in harsh or emergency conditions.
6. Premium ETFE Film: High light transmittance with heat, UV, and corrosion resistance—plus self-cleaning for consistent performance.

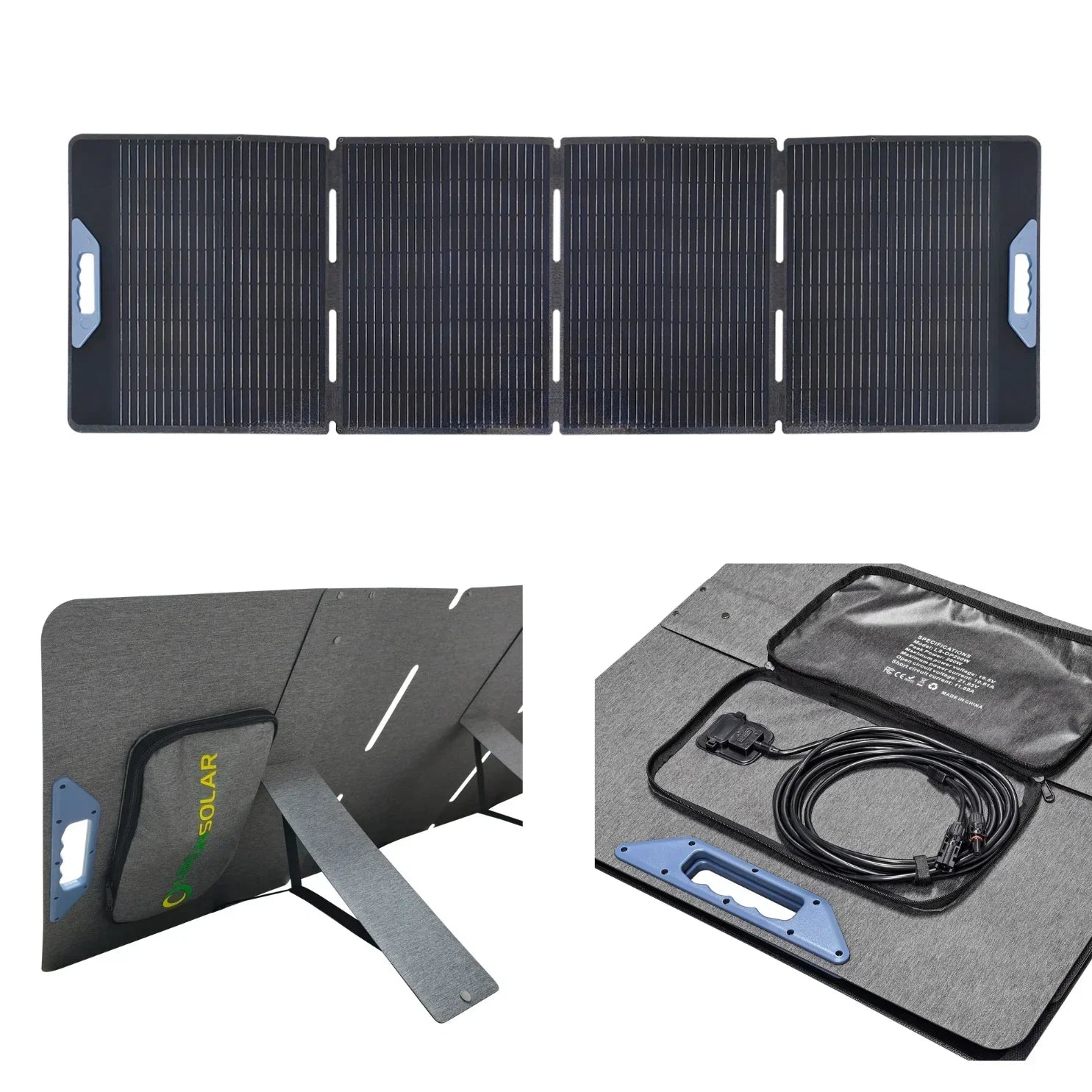

7. Kickstands design: Kickstands designs get up to 30% more solar energy than flat laying.
8. Lightweight: Weighing only 5.75 kgs/12.7 lbs, Lensunsolar portable solar panel is the lightest in its class. Innovative folding design packs down to 24.2 x 21.4 in/614 x 544 mm.
9. Optional plug-and-play 20A waterproof MPPT controller—pre-wired with fuses and connectors, featuring smart protection (reverse polarity, overcharge) and compatibility with sealed, AGM, Gel, and Lithium batteries.
Specifications:
Model: OP200W
Rated Power Output: 200W
Optimum Operating Voltage [Vmp]: 18.5V
Optimum Operating Current [Imp]: 10.81A
Open Circuit Voltage [Voc]: 21.83V
Short Circuit Current [Isc]: 11.89A
Cell Technology: Monocrystalline Solar Cells
Solar Cells Efficiency: 25%
Production Tolerance: +/-3%
Output Type: 5m/16ft solar cable with solar connector

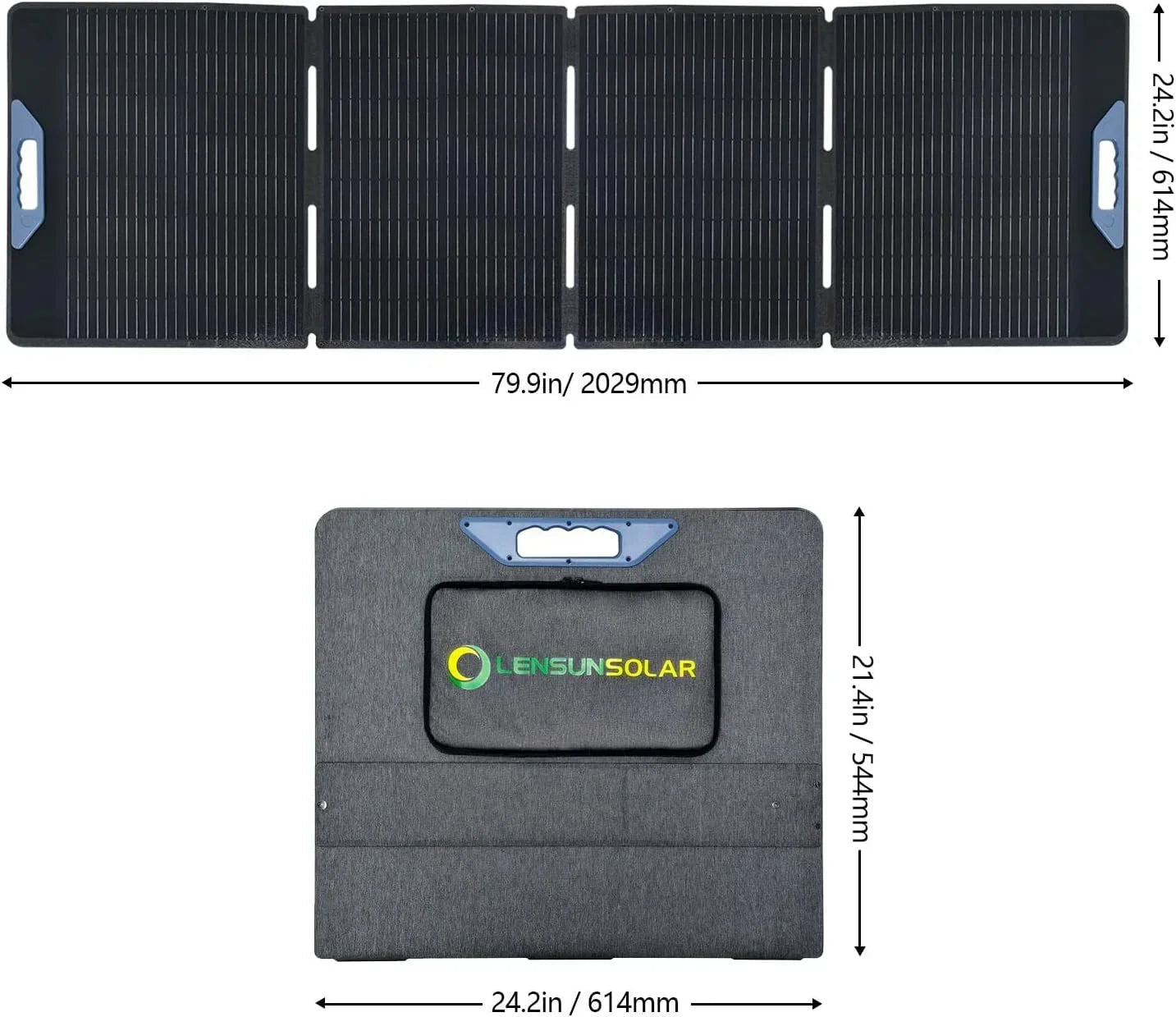

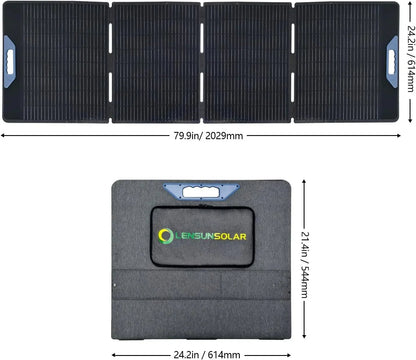

Dimensions(unfolded): 2029 x 614 x 25 mm/79.9 x 24.2 x 1 in
Dimensions(folded): 614 x 544 x 40 mm/ 24.2 x 21.4 x 1.6 in
Net. Weight: 5.75 kgs / 12.7 lbs
All Technical data at standard test conditions AM=1.5, E=1000W/mm, Tc=25℃

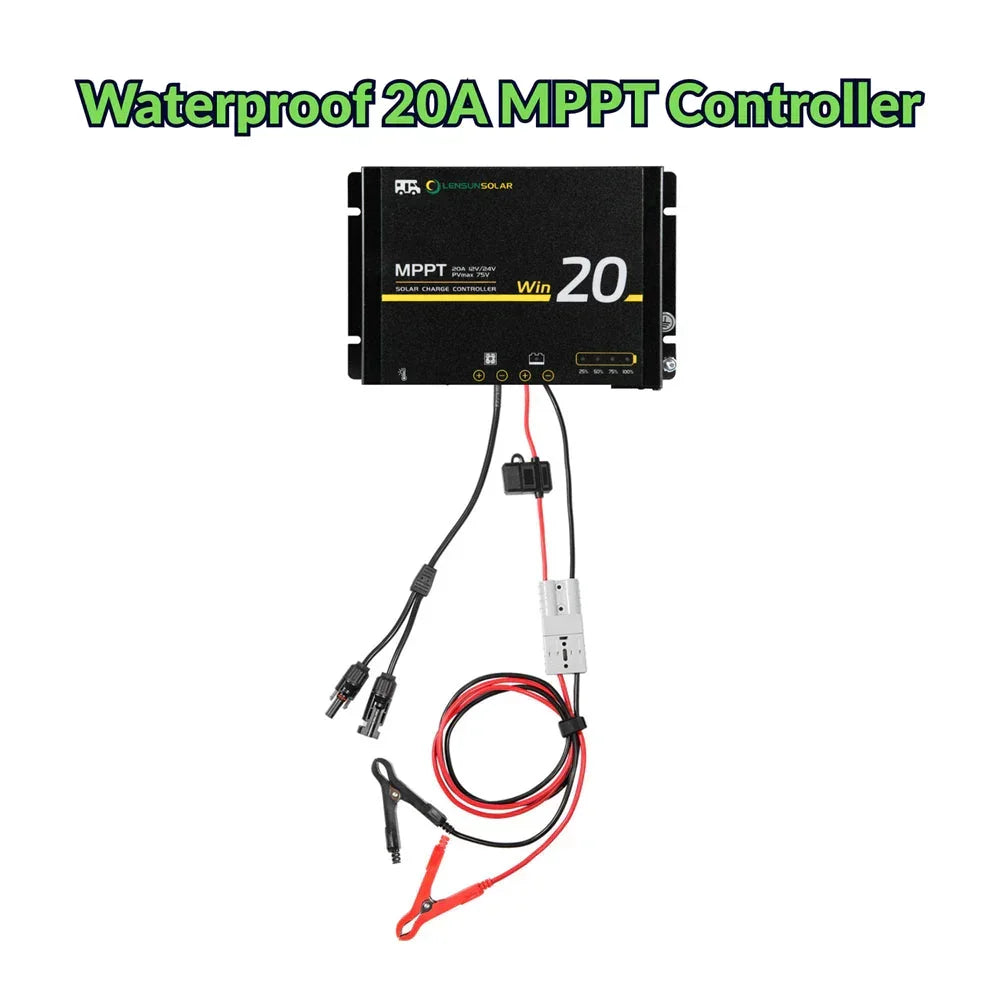

20A Waterproof MPPT Solar Controller
Includes battery alligator clips and solar connectors—ready to work with Lensun or any standard solar panel.
Advanced MPPT, common-negative design, and full protection (reverse polarity, overcharge, short-circuit, reverse current). Bluetooth-enabled for app monitoring. Compatible with LiFePO4, lithium, AGM and Gel batteries
Specification:
Solar Panel Parameters
Max volt on PV(-20℃): 75V
Max volt on PV(25℃): 70V
Max input power: 260W/520W
MPPT tracking range: (Battery Voltage + 1.0V) ~Voc*0.9
Battery Parameters
System voltage: 12/24V automatical recognization
Max charging current: 20A
MPPT charging voltage: <14.5/29.0V@25℃
Max volt on bat terminal: 35V
Battery type: Gel, AGM, Liquid, Lithium(default: Gel)
Max tracking efficiency: >99.9%
Max conversion efficiency: 98.0%
Dimensions: 164x109x32mm/6.5x4.31.3 inch
Weight: 900g
Communication: BLE
Protection degree: IP54

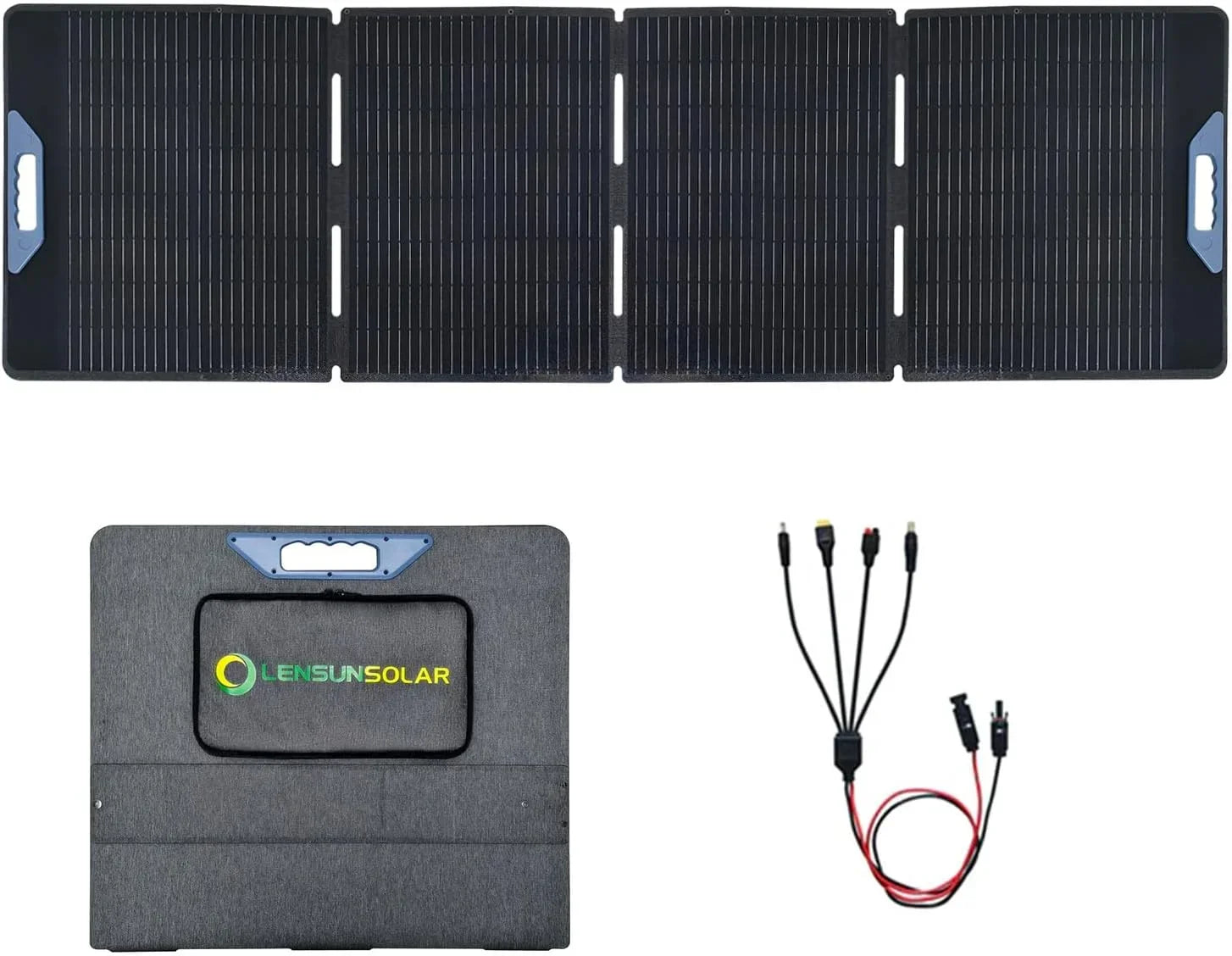

Packing:

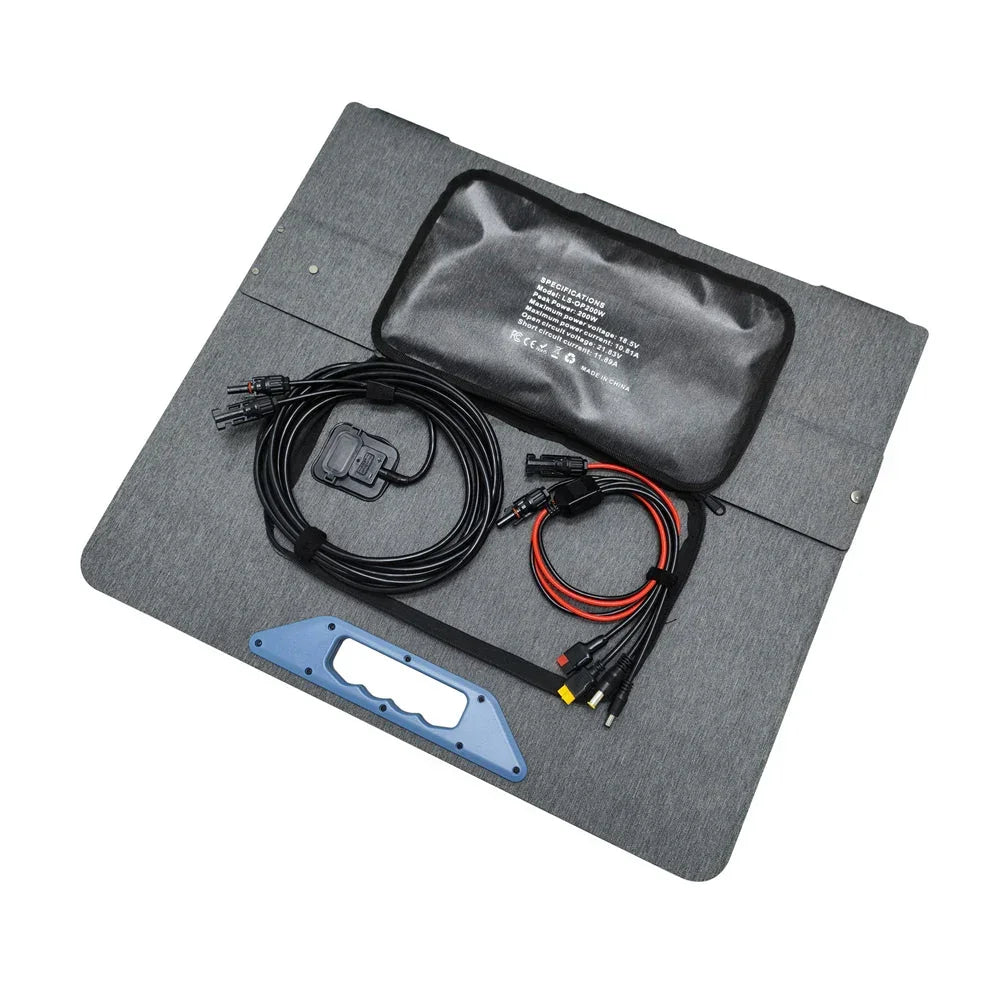

1 x 200W waterproof foldable solar panel
1 x 4 in 1 adaptor cable (DC 8mm, DC 5.5x2.1mm, Anderson, XT60)
1 x 20A Waterproof MPPT solar controller( (at your option)
Note: We have warehouses in the US, UK, and Germany, and we will ship to you according to your country to avoid paying import duties.
