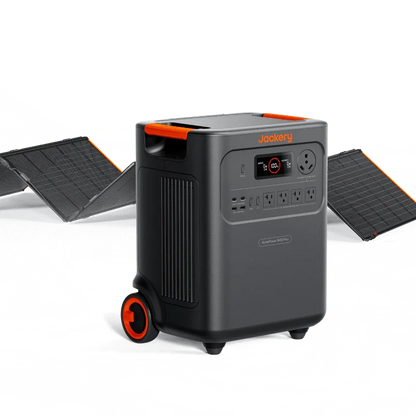

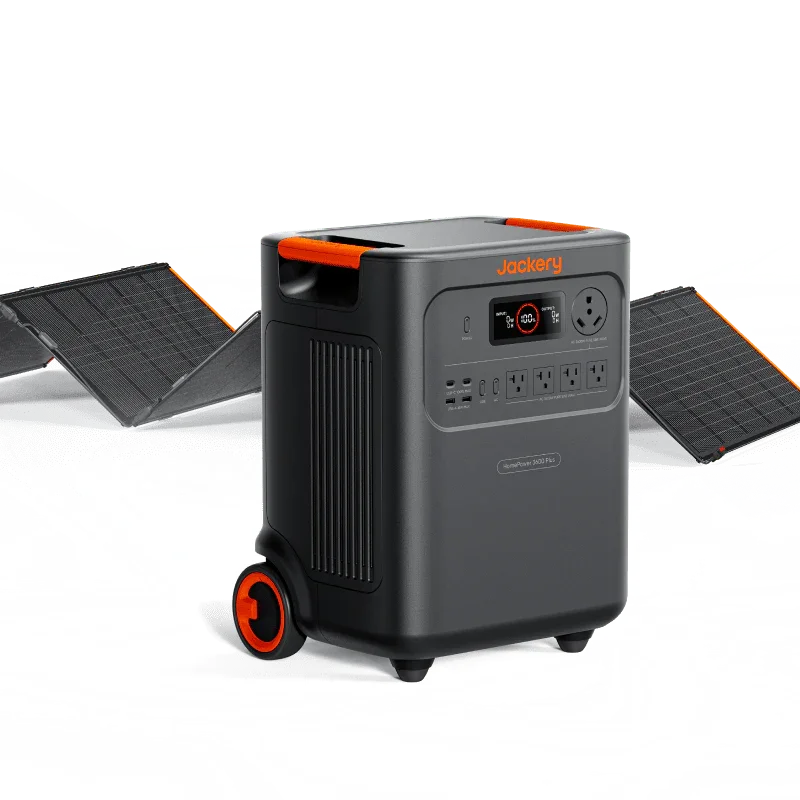

Jackery Solar Generator Home Power 3600 Plus

Jackery Solar Generator Home Power 3600 Plus

Key Selling Points:

• Massive 3584Wh capacity with 3600W output (expandable power solution)

• Ultra-durable LiFePO4 battery with 6,000+ cycles for 10+ years lifespan

• Includes high-efficiency 500W SolarSaga 500X solar panel (IP68 waterproof, foldable design)

Description:

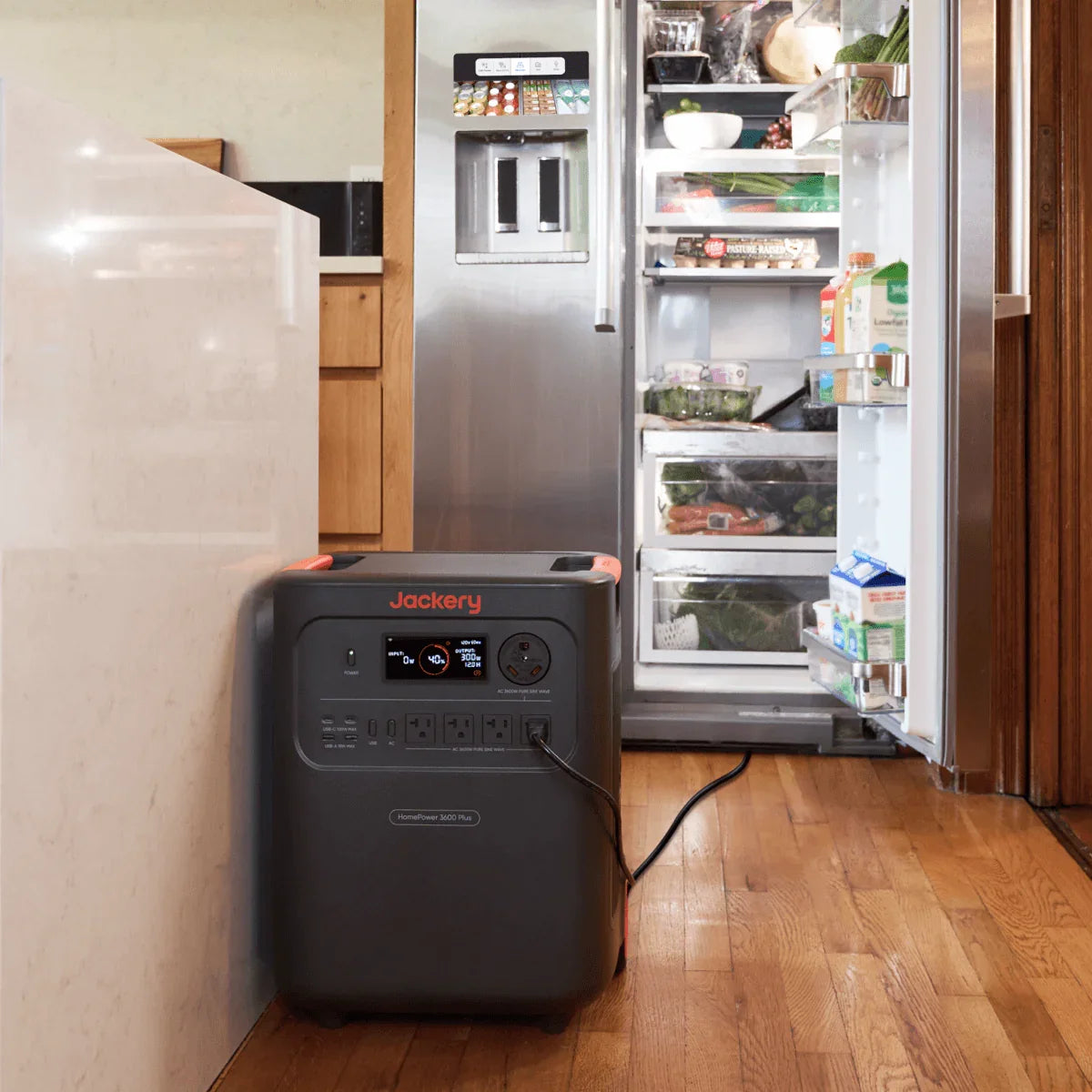

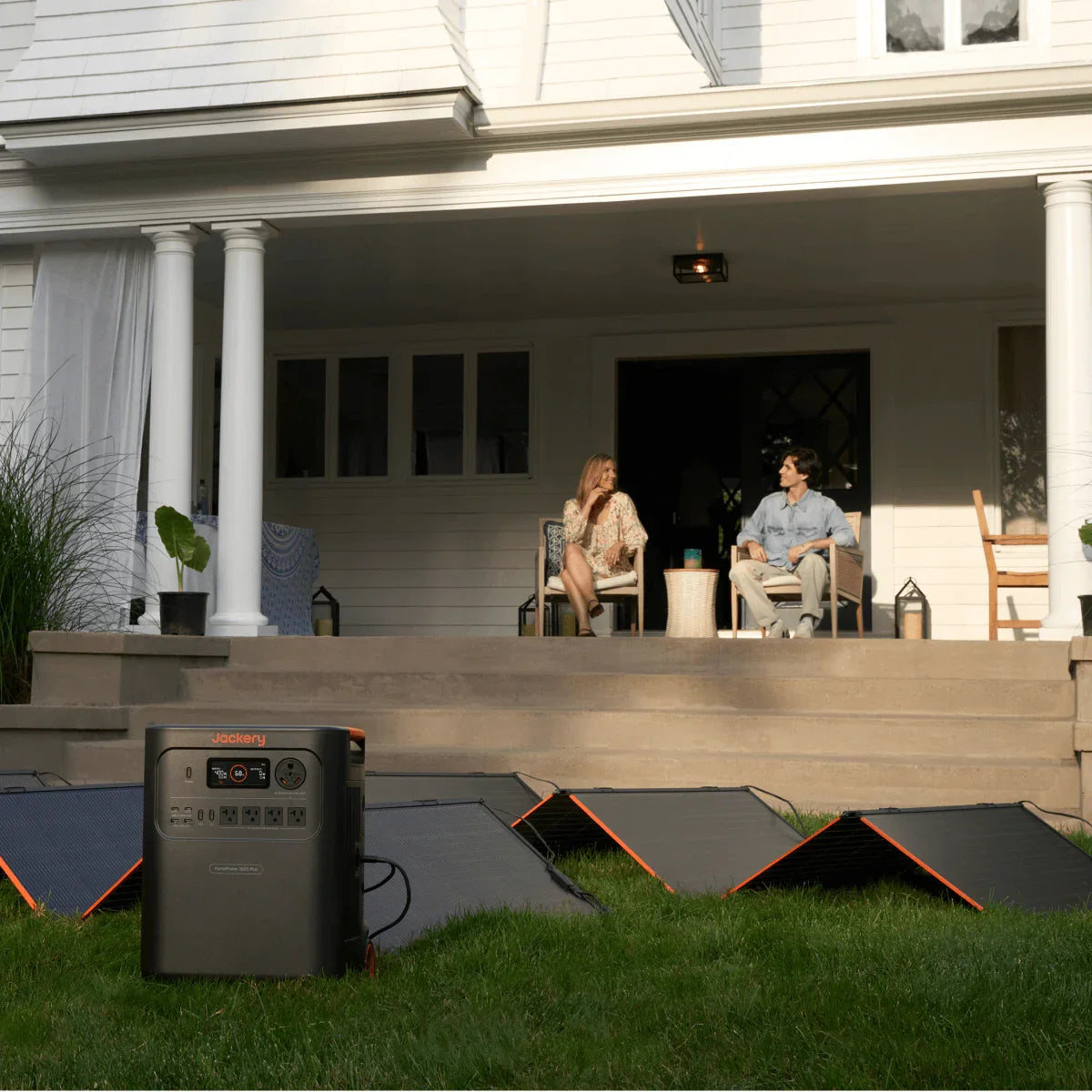

The HomPower 3600 Plus is a next-generation portable solar generator designed for home backup, outdoor adventures, and off-grid living. Crafted with advanced LiFePO4 battery technology, it delivers a long lifespan, reliable performance, and expanded safety. This powerhouse offers multiple AC and DC outputs, fast charging options, and compatibility with solar panels, making it perfect for homeowners, campers, RV travelers, and emergency preppers who need dependable energy anytime, anywhere.

Features:

• High-Capacity Battery – 3584Wh with expandable options for longer runtime

• Fast Charging – Recharge in just 2.5 hours with AC adapter

• Multiple Outputs – AC, DC, USB-C, USB-A, and 12V car port for versatile use

• Solar-Ready – Includes 500W bifacial solar panel with IP68 waterproofing

• Durability & Safety – LiFePO4 chemistry ensures stability and longevity

• All-Weather Performance – Operates in extreme temperatures (-20°C to 45°C for power station, -40°C to 85°C for solar panel)

Specs in Picture:

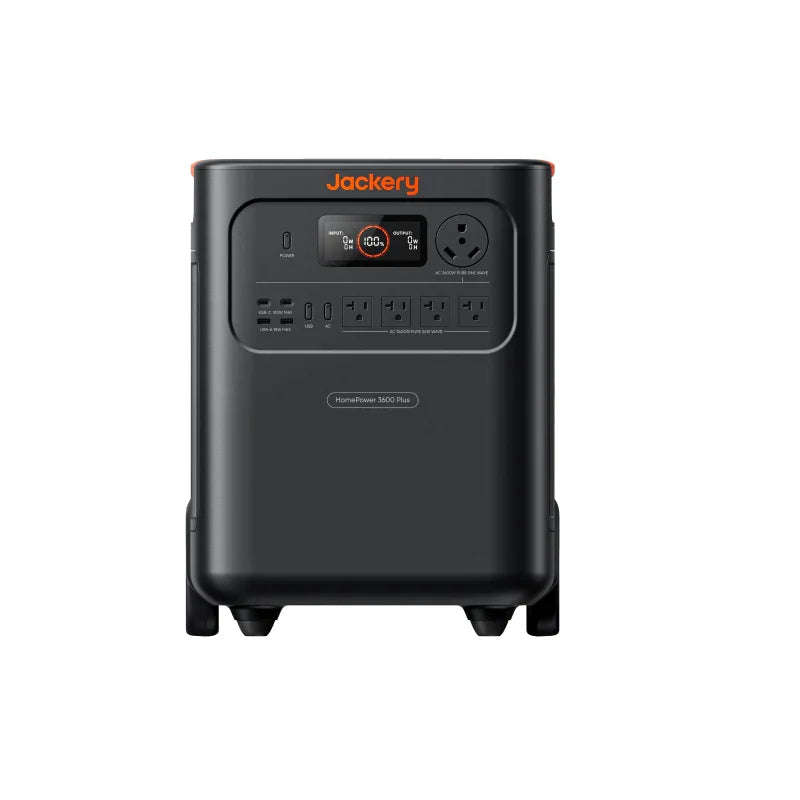

1. Main Power Button
2. USB-C Output
3. USB-A Output
4. USB Power Button
5. LCD
6. AC Output（NEMA TT-30)
7. AC Output
8. AC Power Button

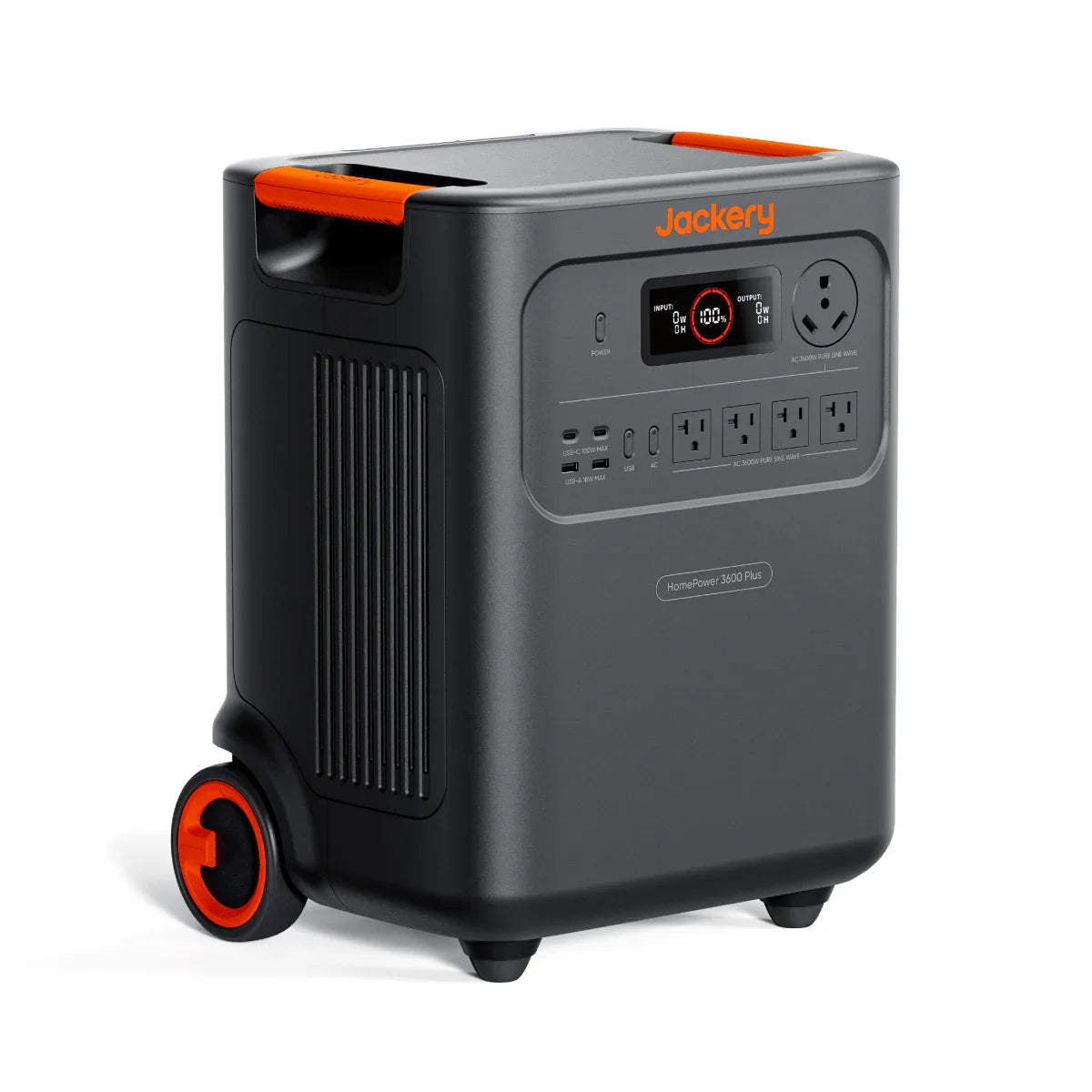

HomePower 3600 Plus

1. AC Expansion Port
2. AC Output Reset Button
3. DC Expansion Port
4. Wheels

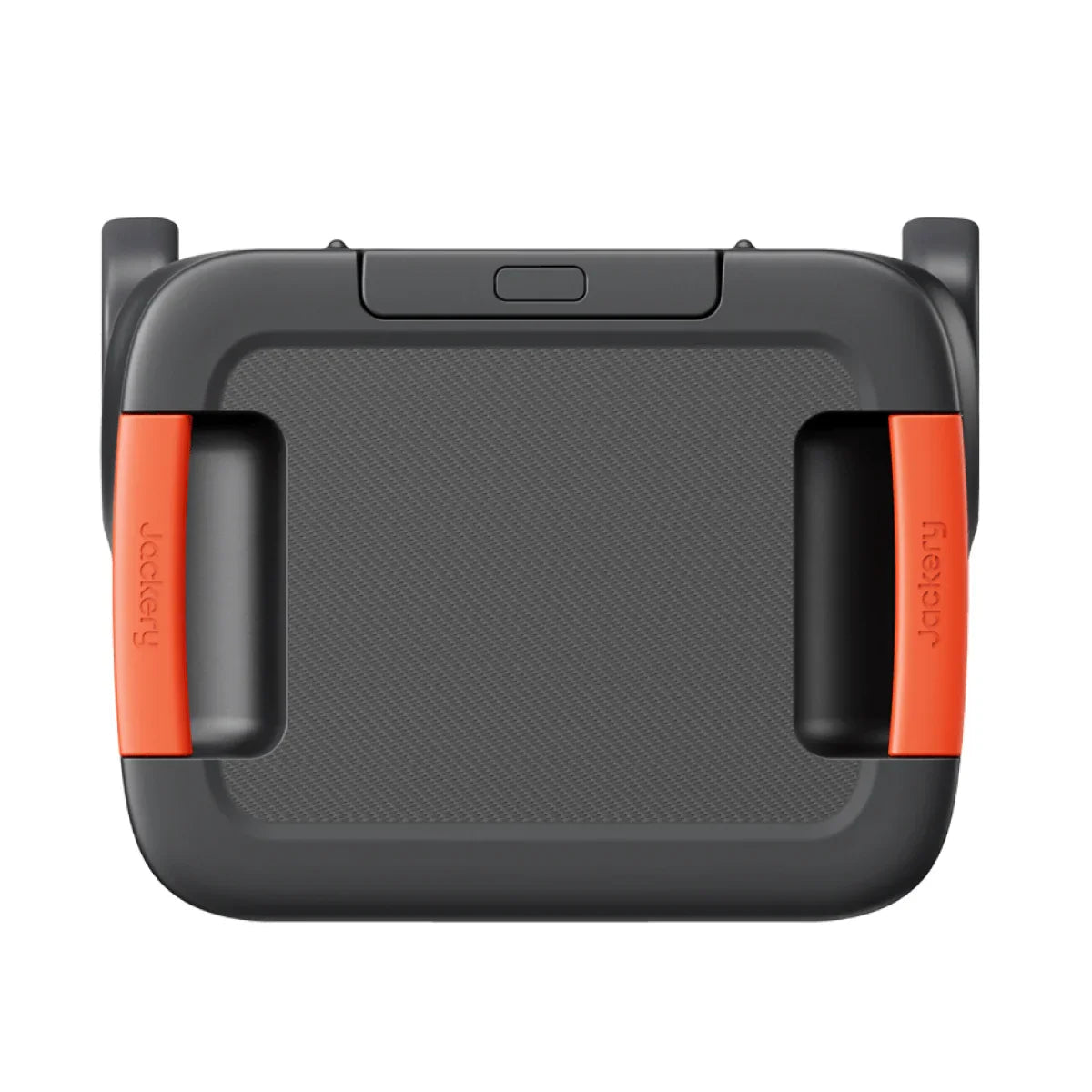

5. Retractable Handle
6. DC Input
7. AC Input

Dimensions (folded)

1. SolarSaga 500X

Dimensions (unfolded)

Tech Specification:

15.2"h x 12.2"w x 19.3"d

Item Weight

77.16 lbs

Battery

• Capacity: 3584Wh (80Ah / 44.8V DC)

• Chemistry: LiFePO4 (LFP)

• Cycle Life: 6000 cycles to 70%+ capacity

Power Output

• AC Output: (4x) 120V~ 60Hz, 20A Max, 2400W; (1x) 120V~ 60Hz, 30A Max, 3600W

• AC Total: 3600W Rated / 7200W Surge

• USB-C Output: (2x) 100W Max

• USB-A Output: (2x) 18W Max

• Cigarette Lighter Port: 12V⎓10A Max

Input

• AC Charging: 100V–120V~ 60Hz, 15A Max

• Solar Input: Up to 1000W Max (2x DC 8mm ports, 16–60V ⎓ 12A each)

• Car Charging: Supported

• Charging Time: ~2.5 Hours (AC Adapter)

Performance

• Voltage: 120V (supports 120V/240V dual voltage in parallel)

• Adjustable via Manual Transfer Switch for home integration

• Dimmable: N/A

• Cycle Life: 10+ years

Durability

• Charge/Discharge Temp: -4°F to 113°F (-20°C to 45°C)

• High-temp ceramic membrane tested to 302°F for safety

• Warranty: 3+2 Years

Solar Saga 500 X Panel

• Peak Power: 500W ±5% (545W ±5% with rear boost)

• Open Circuit Voltage (VOC): 48.5V ±5%

• Short Circuit Current (ISC): 13.02A ±5%

• Dimensions Folded: 39.21" x 20.71" x 3.82"

• Dimensions Unfolded: 98.15" x 39.21" x 11.57"

• Weight: 22 lbs ± 2 lbs

• Waterproof: IP68

• Operating Temp: -40°F to 185°F (-40°C to 85°C)

• Warranty: 5 Years

What's in the Box:

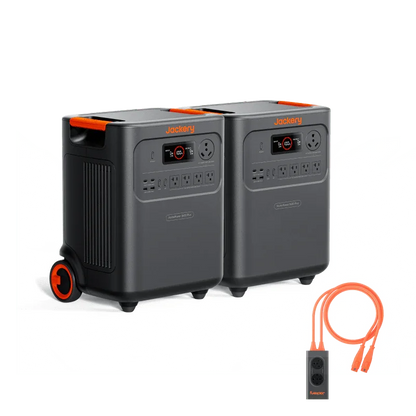

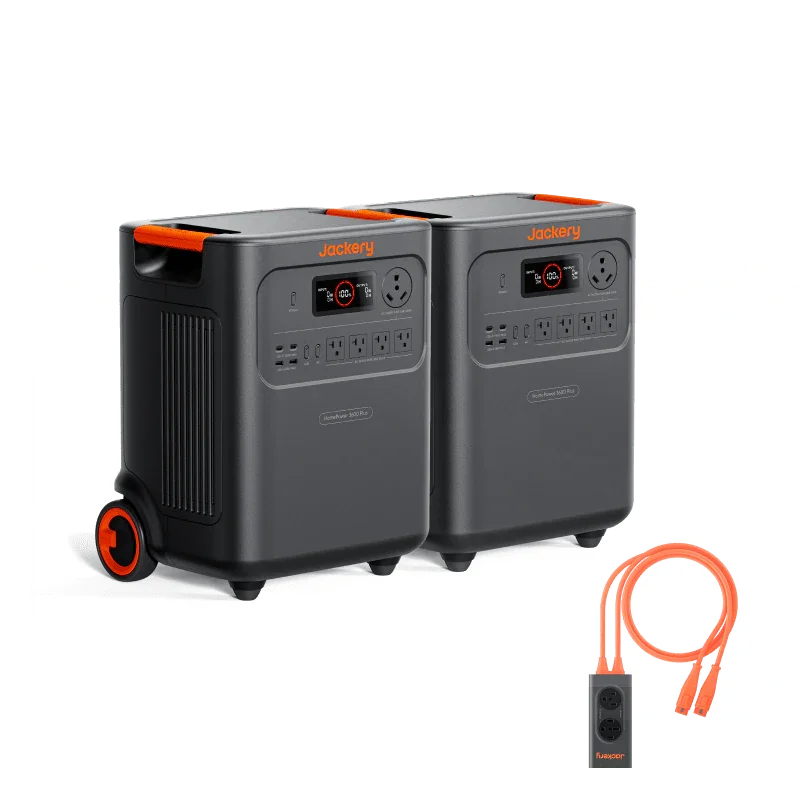

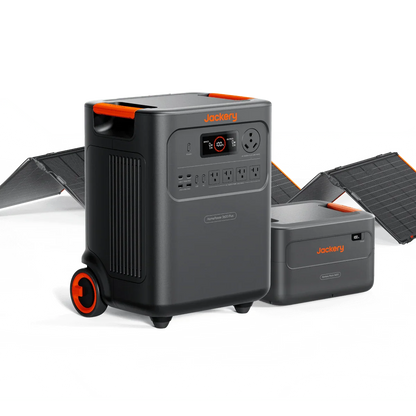

	HomePower 3600 Plus + SolarSaga 500 X	HomePower 3600 Plus	HomePower 3600 Plus (7.2kWh) + SolarSaga 500 X	HomePower 3600 Plus Double Kit
HomePower 3600 Plus	X1	X1	X1	X2
SolarSaga 500 X	X1	-	X1	-
AC Charge Cable	X1	X1	X1	X2

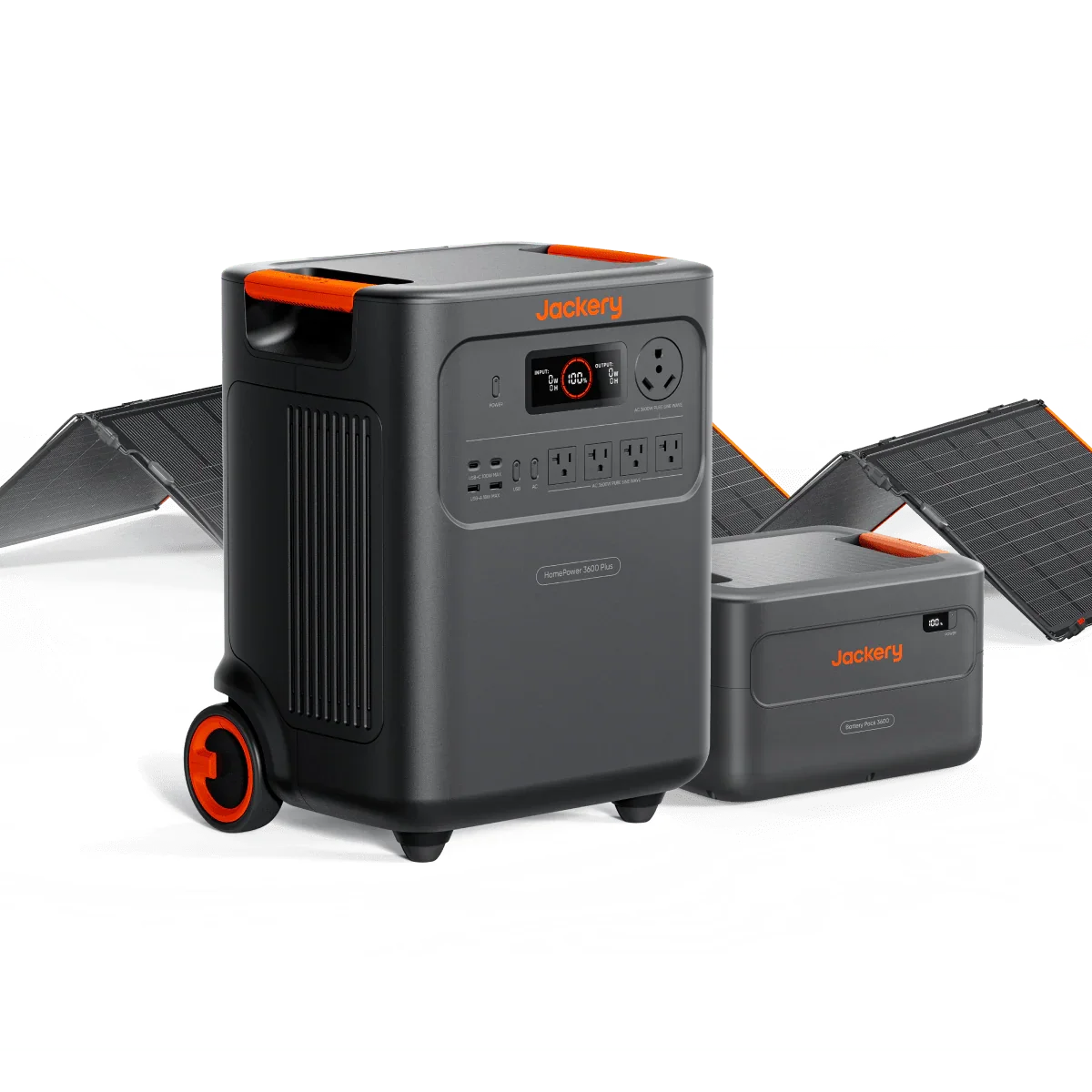

Battery Pack HomePower 3600	-	-	X1	-
Jackery Connector	-	-	-	X1

User Manual:

Jackery HomePower 3600 Plus User Manual

SolarSaga 500 X User Manual
