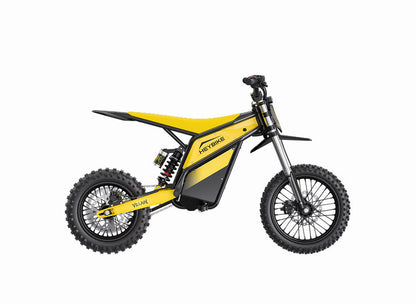

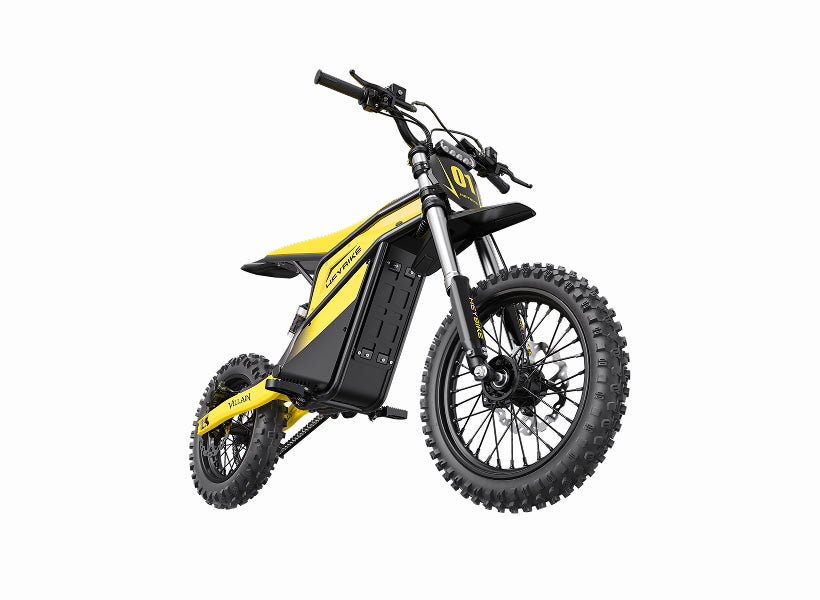

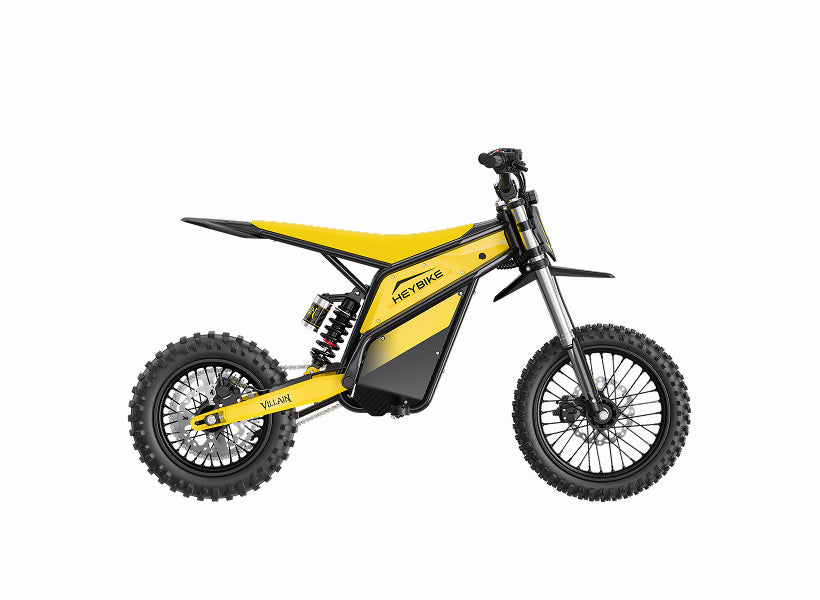

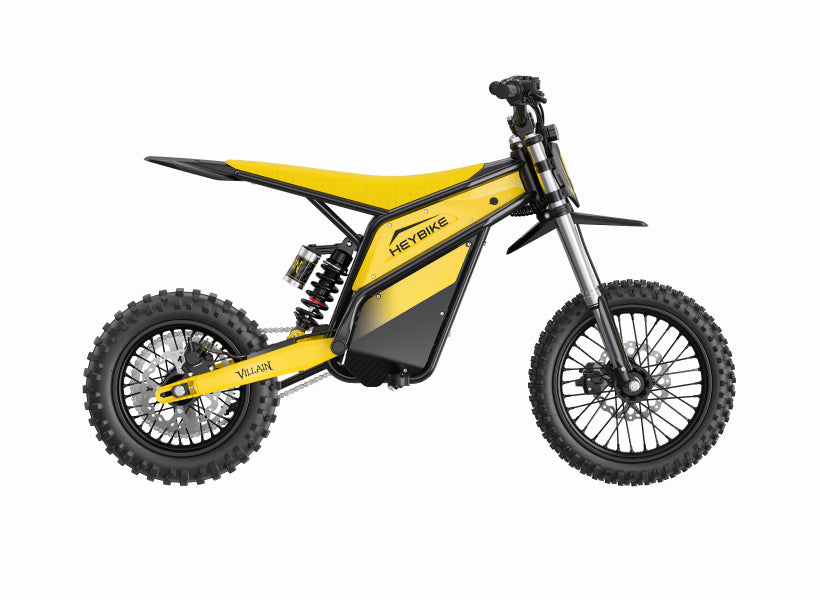

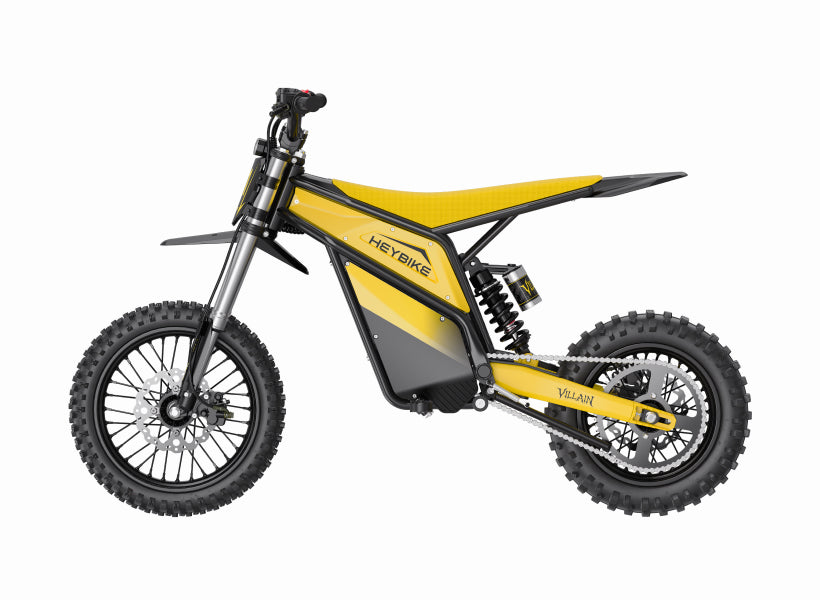

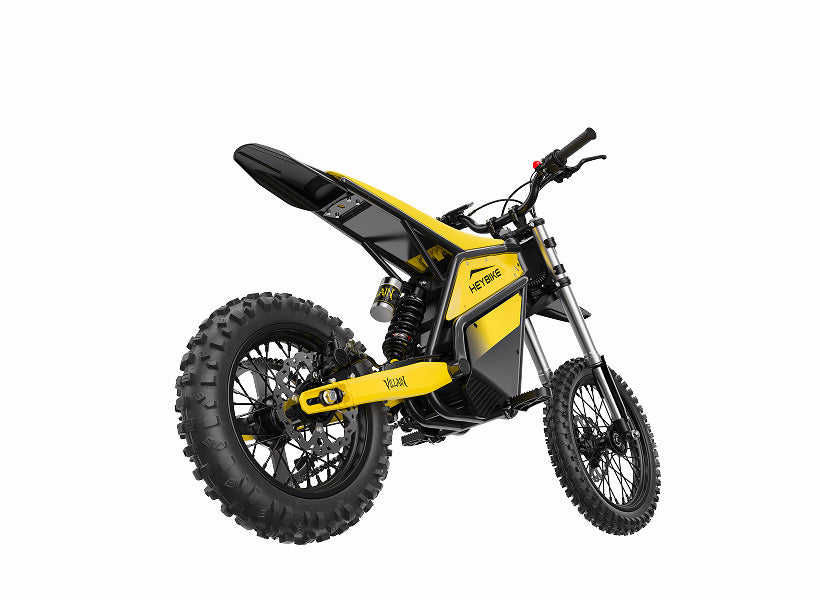

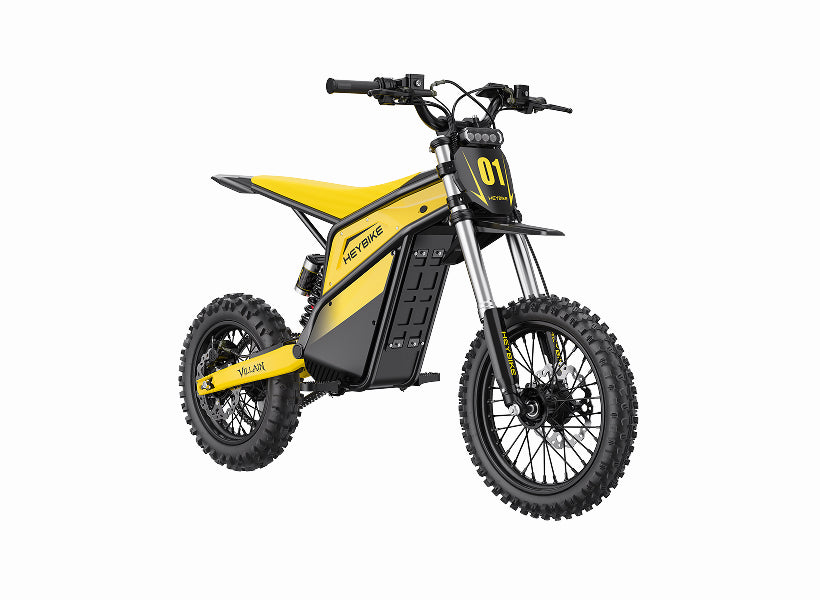

Heybike Villain
The Heybike Villain is a powerful 52V, 4,160W peak mid-drive electric dirt bike designed for teens and adults, featuring a compact 14"/12" wheel configuration. It offers a 45 MPH top speed, 50-mile range, and 190 N·m torque, aiming to be an affordable, high-performance, non-street-legal pit bike for off-road trails and tracks.
Key Features and Performance
- Power System: 52V 26Ah battery driving a mid-drive motor with a peak output of 4,160W.
- Acceleration: Fast performance, hitting 0-10 mph in 0.9 seconds.
- Speed & Range: Top speed of roughly 45 MPH and a maximum range of up to 50 miles.
- Suspension & Braking: Equipped with a 150mm hydraulic front fork, nitrogen rear shock, and hydraulic disc brakes with regenerative braking.
- Build: Carbon steel frame with a 29.5-inch seat height suitable for riders from 3'9" to 6'1".
Off-Road Design and Usability
- Dimensions: Rides on 14-inch front and 12-inch rear off-road tires, weighing around 125 lbs with a 265 lb maximum load.
- Control & Safety: Features a full twist throttle, magnetic kill switch, and a "Reverse" button for maneuverability.
- Customization: Designed with easily swappable panels for custom graphics.
-
Controller: Utilizes a Far Driver controller.
Usage Disclaimer
- Not Street Legal: The Villain is not allowed on public roads, sidewalks, or bike lanes; it is strictly for private land, trails, and dirt tracks.
Specifications:
- Motor 52V 4160W Mid Drive Motor
- Battery 52V 26Ah Lithium Battery(1352Wh)
- Charger 58.8V 5A Charger
- Charger Voltage 100-220V, 50-60Hz
- Controller 52V 80A Smart Controller
- Display LED Display
- Frame Carbon Steel
- Tires F:14"x2.5" Tire; R:12"x3.0" Tire
- Suspension F:Hydraulic Suspension; R:Nitrogen Shock Absorber
- Front Shocks Diameter & Travel
- 40mm Diameter and 150mm travel
- Brake Hydraulic Heavy Duty Brakes(4mm thick)
- Drivetrain/Ride Mode Chain Drive/Three-speed Zero Start Chain
- 1year Manufacturer's Warranty
Performance:
- Max Speed 45MPH (72km/h)
- Max Torque 190N·m
- Range Up To 50 Miles
- Charging Time 0%-100% 4-6h
- Waterproof IPX6
- Max Climbing 30 Degrees
- Front White Headlight
- Chain Drive/114 links (420 chain) Heavy Duty Chain
Geometry:
- Suitable Height 3.9ft(120cm) ~ 6.1ft(185cm)
- Wheelbase 42.5''(1080mm)
- Handlebar Width 27.6''(700mm)
- Handlebar Height 38''(970mm)
- Seat Height 29.5" (750mm)
- Bike Height 37"(95cm)
- Ground Clearance 9.8"(24.89cm)
- Product Dimension 1570x700x950mm
- Package Dimension 1310x310x640mm
- G.W./N.W. 141lbs/125lbs(64kg/57kg)
- Max Rider Weight 265lbs(120kg)
