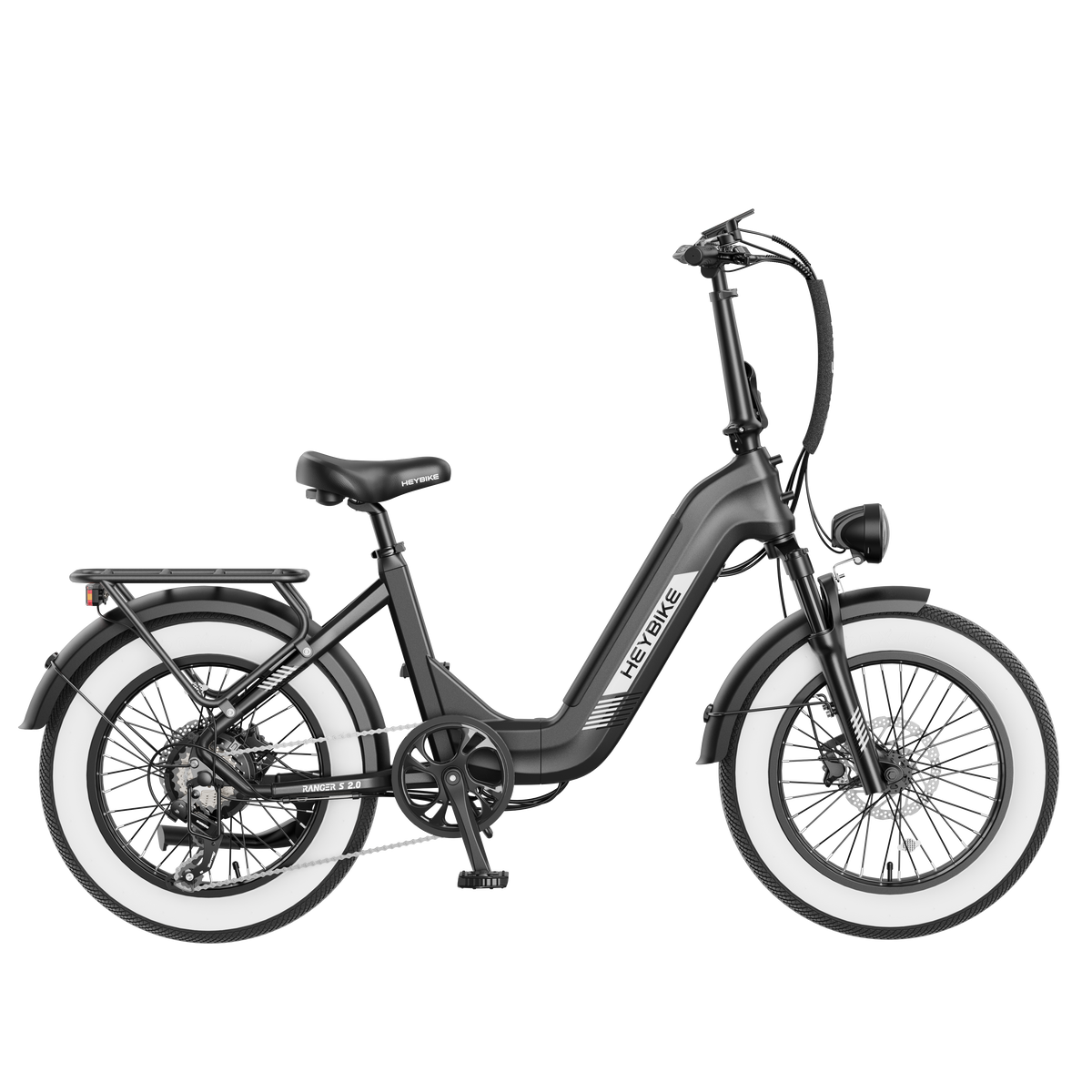

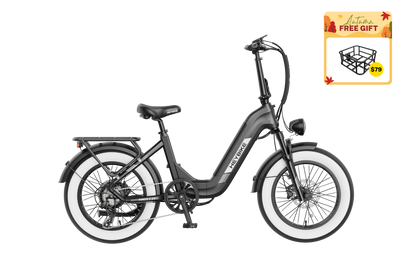

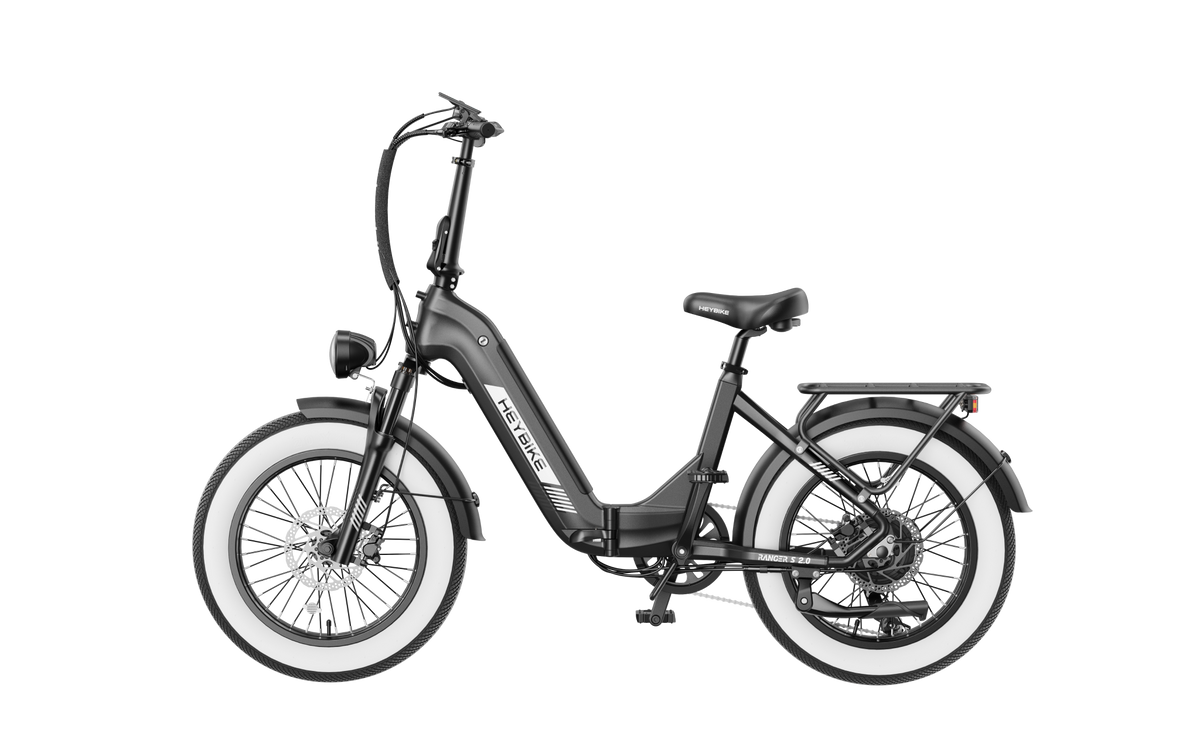

Heybike Ranger S 2.0

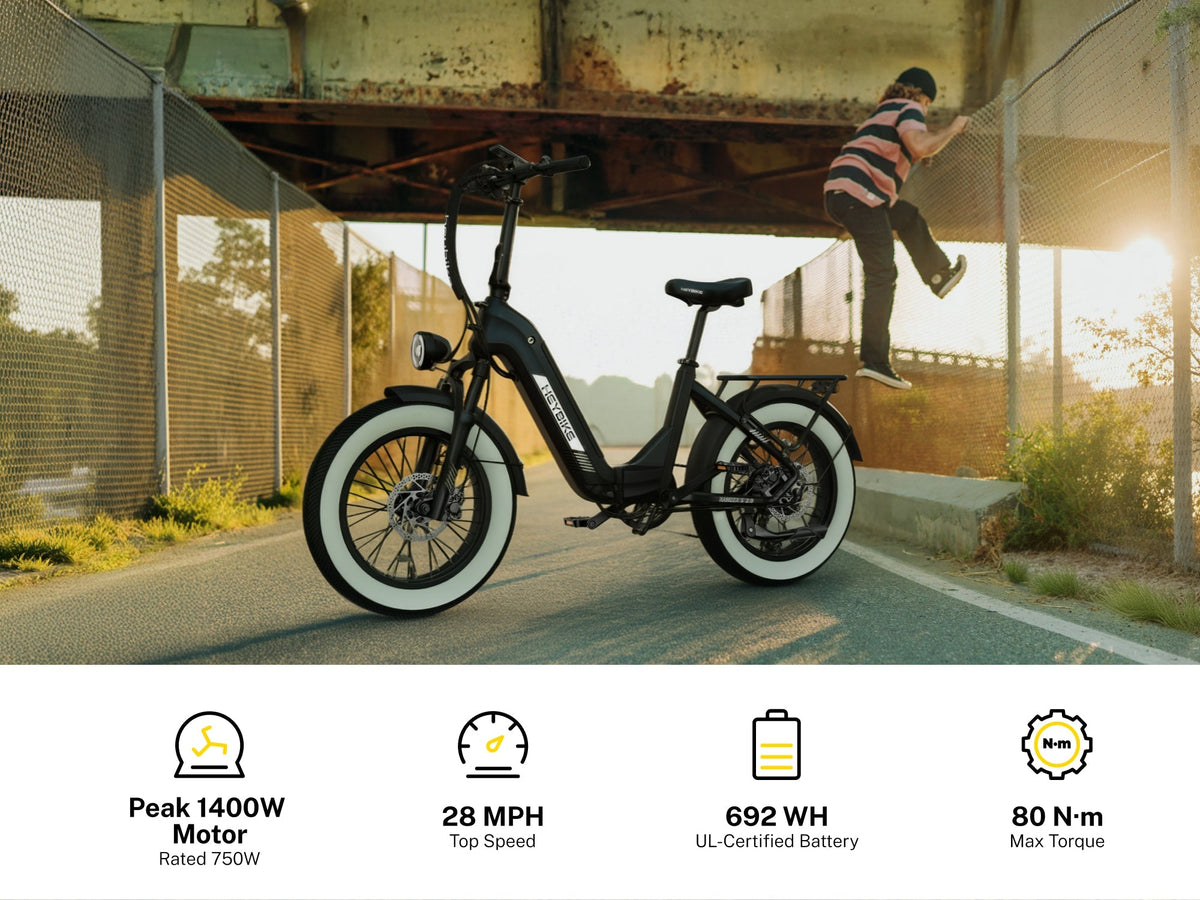

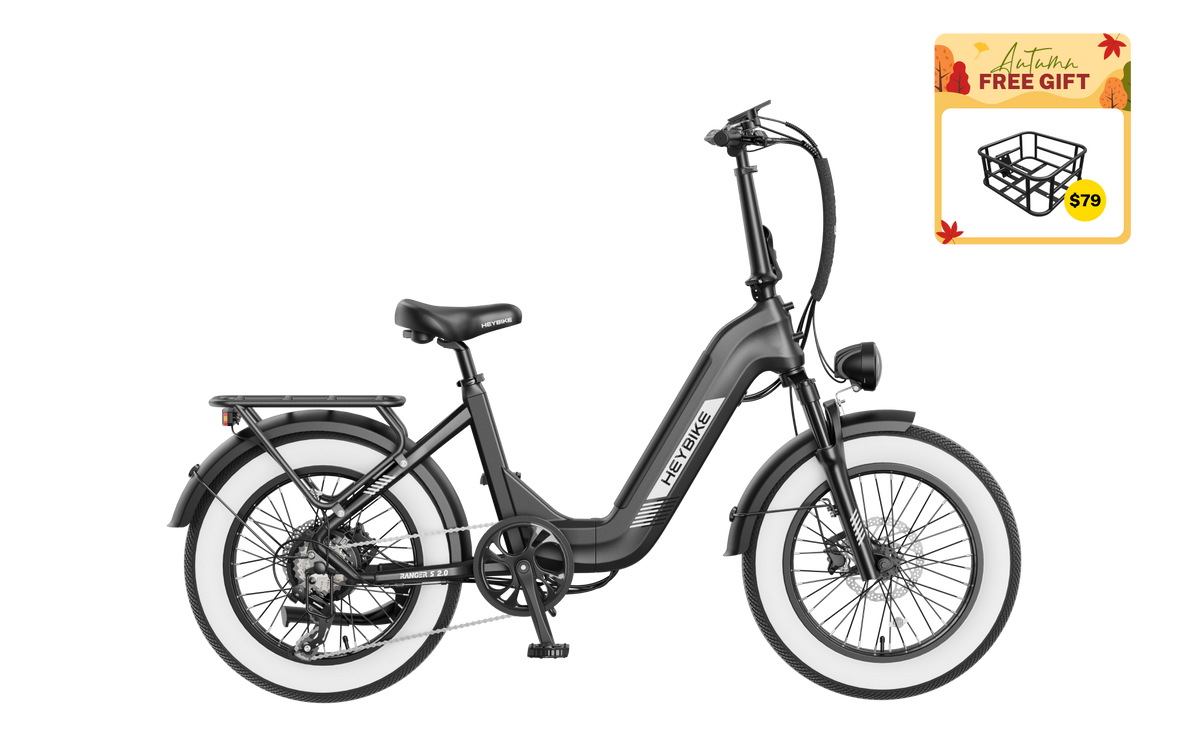

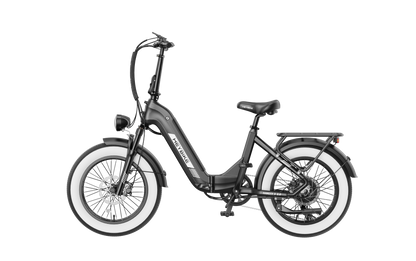

The Heybike Ranger S 2.0 is a Class 3 foldable electric bike built for urban commuting and light trails.
Performance & Power

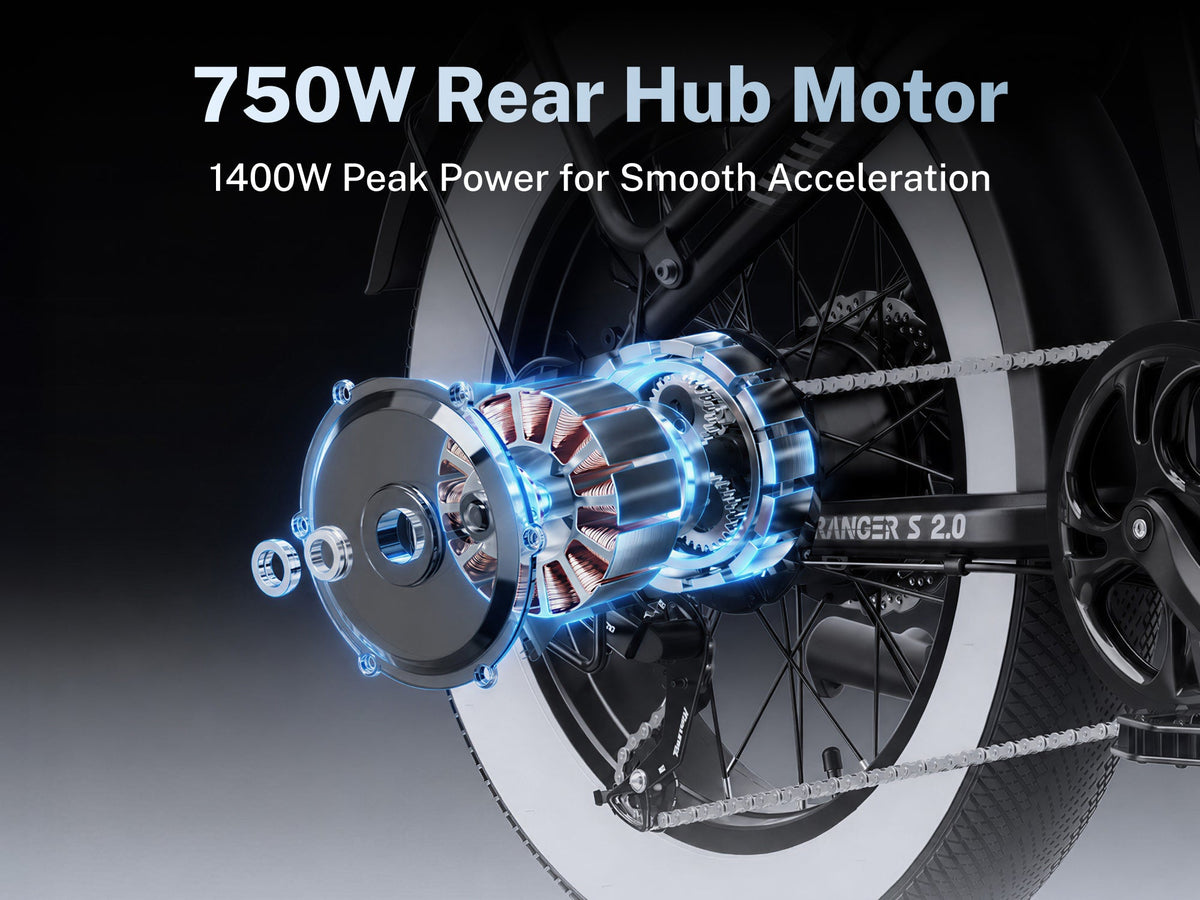

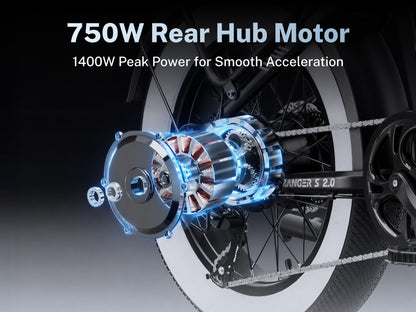

Motor: 48V 750W rear hub motor with a peak power of 1,400W and 80 Nm of torque.
Top Speed: Up to 28 mph (Class 3) via throttle and pedal-assist.
Battery: 48V 14.4Ah (692 Wh) removable battery hidden inside the down tube.
Range: Up to 55 miles per charge under optimal conditions.
Charging Time: About 7 hours using the included 2-amp charger.
Build & Design
Frame: Hydroformed step-through aluminum folding frame.
Tires: 20" x 4" Cool Ride puncture-resistant fat tires with a smooth street/semi-slick tread pattern.

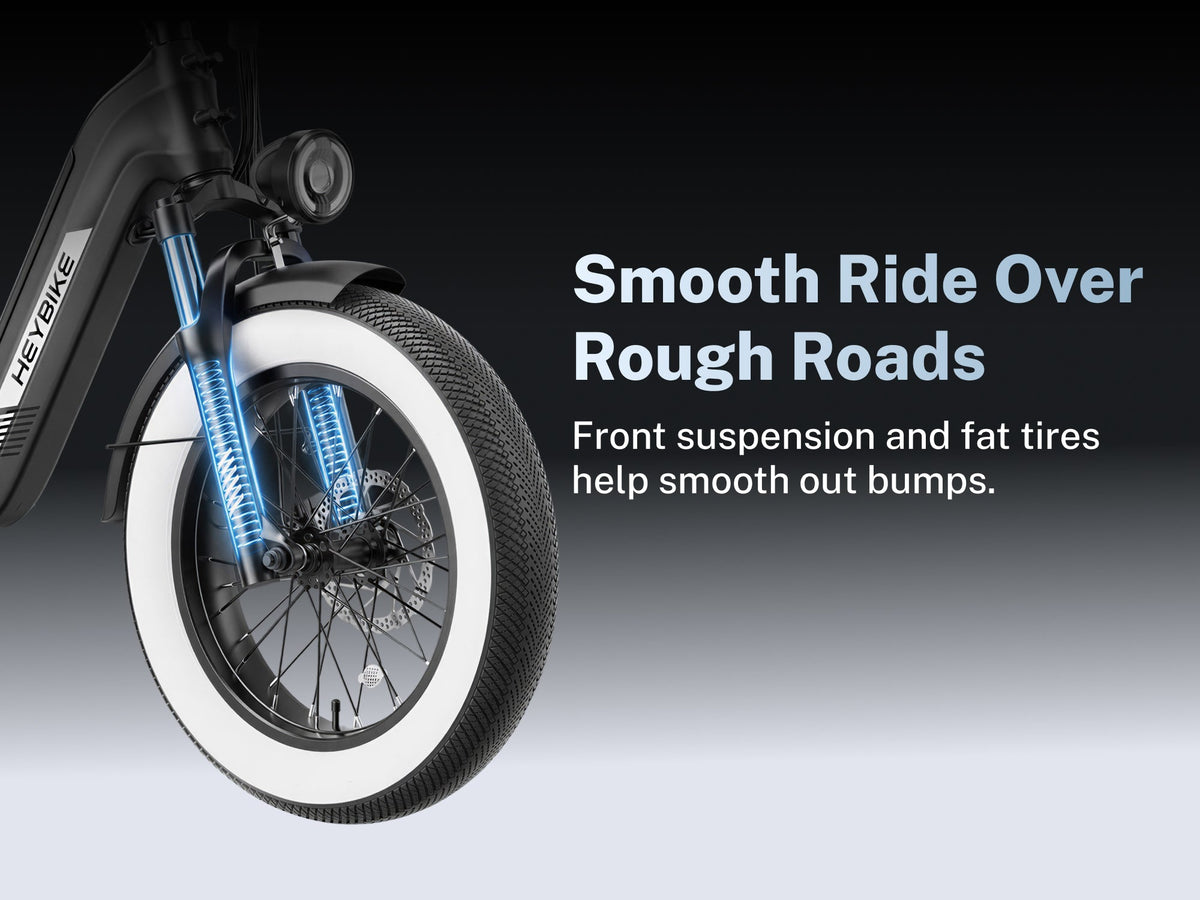

Suspension: Front hydraulic suspension fork with 65mm travel, preload, and lockout.
Weight & Load Capacity: Weighs roughly 72–75 lbs and supports a maximum payload of 400 lbs.
Color: Matte black finish with white wall tires and white accents.

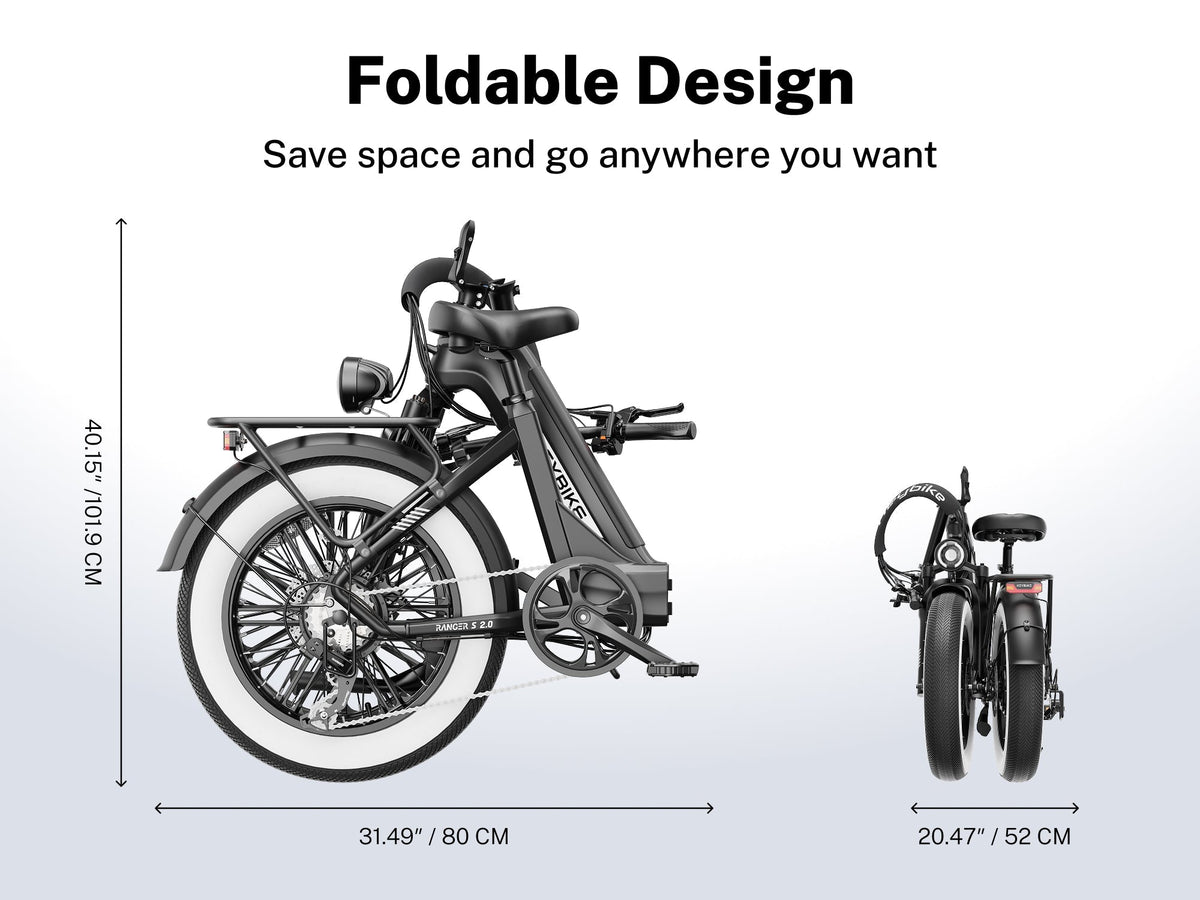

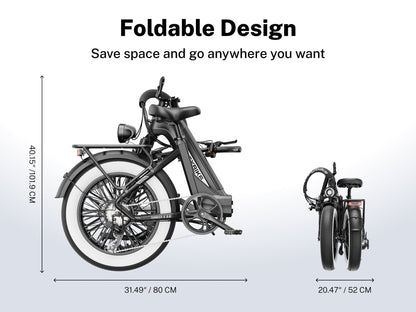

Folded Dimensions: Measures about 41 inches long, 32 inches high, and 20 inches deep when folded.
Components & Safety
Brakes: Two-piston hydraulic disc brakes with 180mm rotors.
Drivetrain: 7-speed Shimano Tourney derailleur with a 48T chainring.
Display: Full-color LCD screen showing speed, battery level, pedal-assist level, trip distance, and active turn signals.

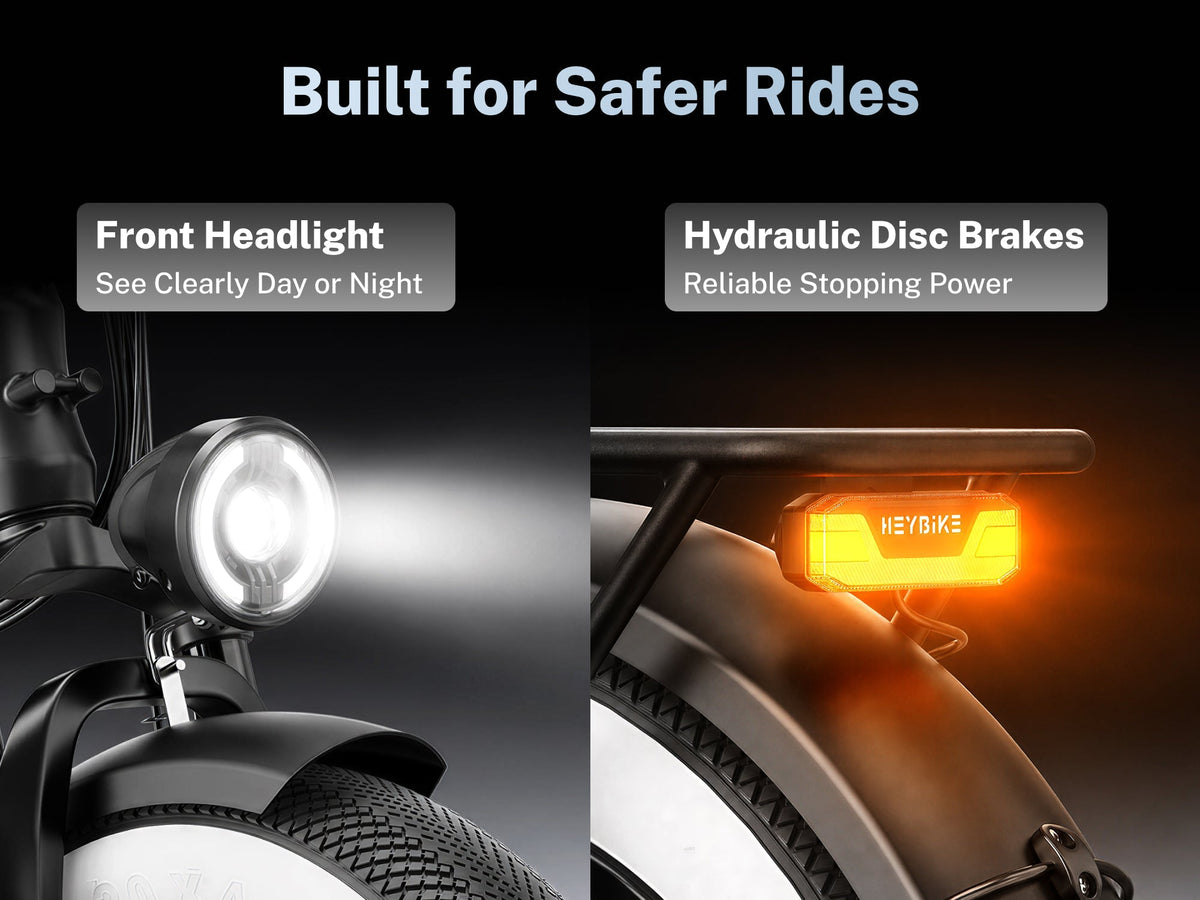

Lighting & Signals: Integrated bright headlight, taillight, brake light, and front/rear turn signals.
Certification: UL 2849 certified for electrical and battery safety with an IPX4 water-resistance rating.
