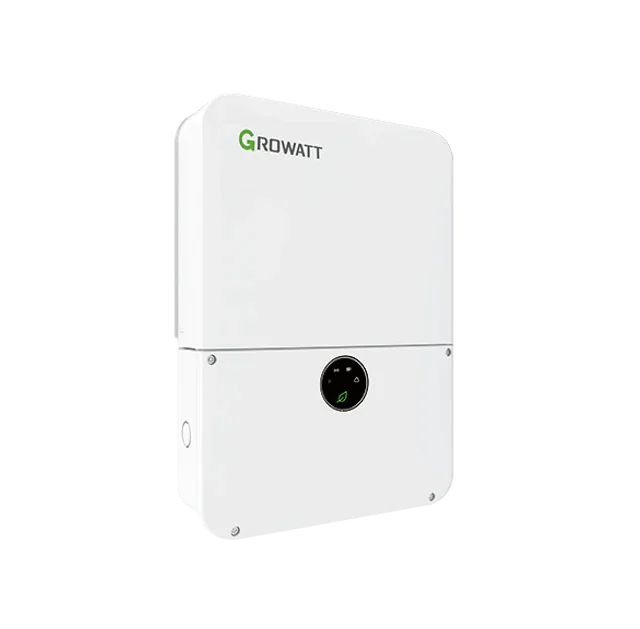

Growatt 6kW Grid-Tie Inverter (V2) | MIN 6000TL-XH-US
The Growatt MIN 6000TL-XH-US supports six strings in total, optimizing energy harvest even when panels experience partial shading. The 500 VDC maximum input voltage accommodates larger string configurations, reducing balance-of-system costs. The NEMA4X (IP65) weatherproof enclosure protects internal components from moisture, dust, and extreme temperatures.
This string inverter features comprehensive protection, including UL 1741 certification, AFCI arc-fault protection, rapid shutdown capability, and anti-islanding protection. Additionally, with integrated 4G/Wi-Fi communication, you have real-time system monitoring through iOS, Android, and Windows apps.
Features:
Cutting-Edge Grid-Tie:
- 6000W nominal output
- High 500 VDC input
- 3 MPP trackers, 2 strings per MPP tracker
- Up to 98.4% efficiency
Quality Design:
- –13°F to +140°F operating temperature
- Natural convection cooling
- NEMA4X (IP65) rated
- 'Aerospace grade' flame-retardant lightweight materials
Communication:
- 4G/Wi-Fi communication with APP, IoT integrated cloud and monitoring
- IOS, Android & Windows Apps
Advanced Protection & Safety:
- UL certified (1741)
- Type III AC surge protection
- AC short circuit protection
- Ground fault & grid monitoring
- AFCI protection
- Rapid shutdown capable, RFCI protection
- Anti-islanding protection
- Residual-current monitoring
Specifications
|
Type |
Grid-tie (battery ready) |
|
AC Output Power |
6,000W nominal |
|
Phases |
Single phase |
|
Efficiency |
98.4% peak / 97% CEC weighted |
|
DC Input Voltage |
160 - 500V (full load voltage range) |
|
MPP Trackers |
3 independent trackers (2 strings per tracker) |
|
AC Output Voltage |
240V / 208V (grid-compatible) |
|
Battery Support |
Growatt APX , ARO, LG |
|
Protections |
UL 1741, AFCI, rapid shutdown, anti-islanding, Type III AC surge, ground fault monitoring |
|
Operating Conditions |
-13°F to +140°F / IP65 (NEMA4X) / Natural convection cooling |
|
Warranty |
10 years (manufacturer standard) |
Download full specifications here.
Download manual here.
Download certificate here.
