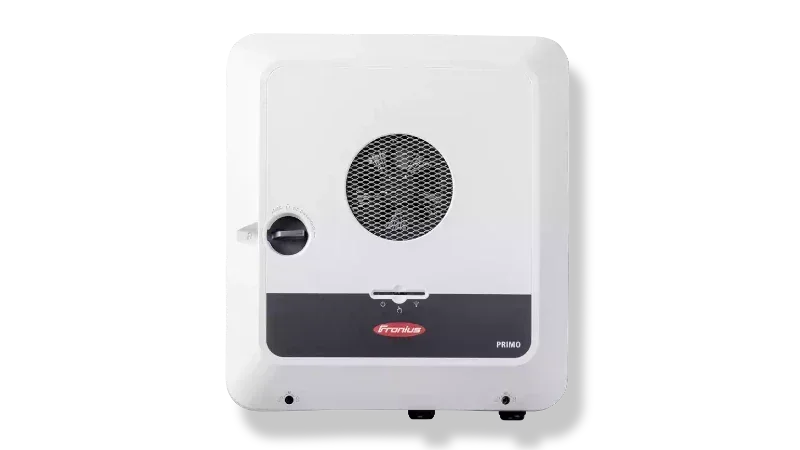

Fronius Primo GEN24 7.7 208-240 Plus 4210143802
Key Features
- Integrated Shade Management: Features the Dynamic Peak Manager, optimizing yields at the string level, even in shaded conditions, without requiring additional hardware.
- Backup Power Ready: Equipped with PV Point for immediate backup power during grid outages, using solar energy (as long as sunlight is available) without needing a battery.
- Active Cooling Technology: Maintains optimal operation by reducing heat stress on components, ensuring longevity and reliability.
- Flexible System Design: The SuperFlex Design supports complex roof configurations with modules in various orientations and requires as few as three modules per string.
- Future-Ready Hybrid Design: Through a software upgrade, the inverter can be retrofitted with battery functionality for Full Backup capabilities.
Applications
- Designed for residential and small-scale commercial PV installations.
- Ideal for systems requiring backup power, with or without batteries.
- Suitable for installations in complex roof configurations or shaded environments.
- Perfect for outdoor installations in harsh climates due to its robust build.
Installation
- Flexible Mounting: Supports indoor and outdoor installation.
- Cooling: Advanced Active Cooling ensures consistent performance in high-temperature settings.
- Environmental Protection: Rated Type 4X, providing excellent protection against water and dust ingress.
Specifications
| Parameter | Value |
|---|---|
| Model | Fronius Primo GEN24 7.7 Plus |
| AC Rated Power | 7,680 W |
| Maximum Output Current | 32.0 A (240 V nominal) |
| Maximum PV Input Voltage | 600 V |
| Nominal DC Input Voltage | 365–400 V |
| MPP Voltage Range | 260–480 V |
| Number of MPPTs | 2 |
| Maximum Efficiency | 97.6% |
| CEC Efficiency | 97.0% |
| Backup Power (PV Point) | 3,120 VA (240 V nominal) |
| Dimensions | 23.0 × 20.8 × 7.1 in |
| Weight | 45.97 lbs |
| Operating Temperature Range | -40°C to +60°C |
| Noise Emission | <52 dB(A) |
| Protection Class | Type 4X |
| Cooling | Active Cooling Technology |
| Warranty | 5-year standard (extendable) |
