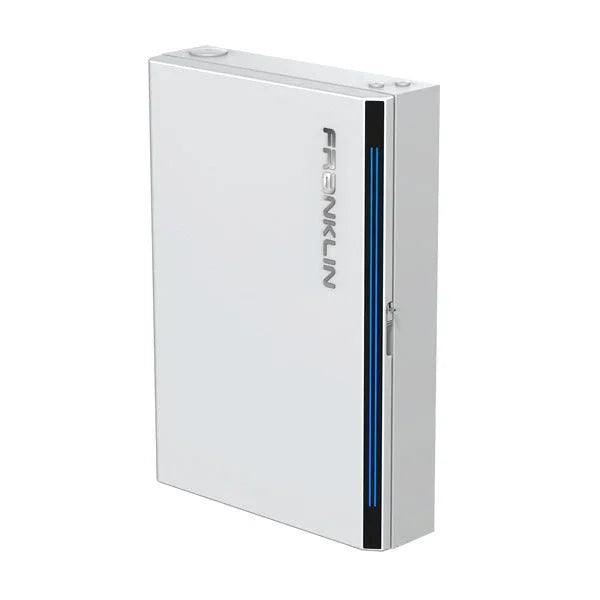

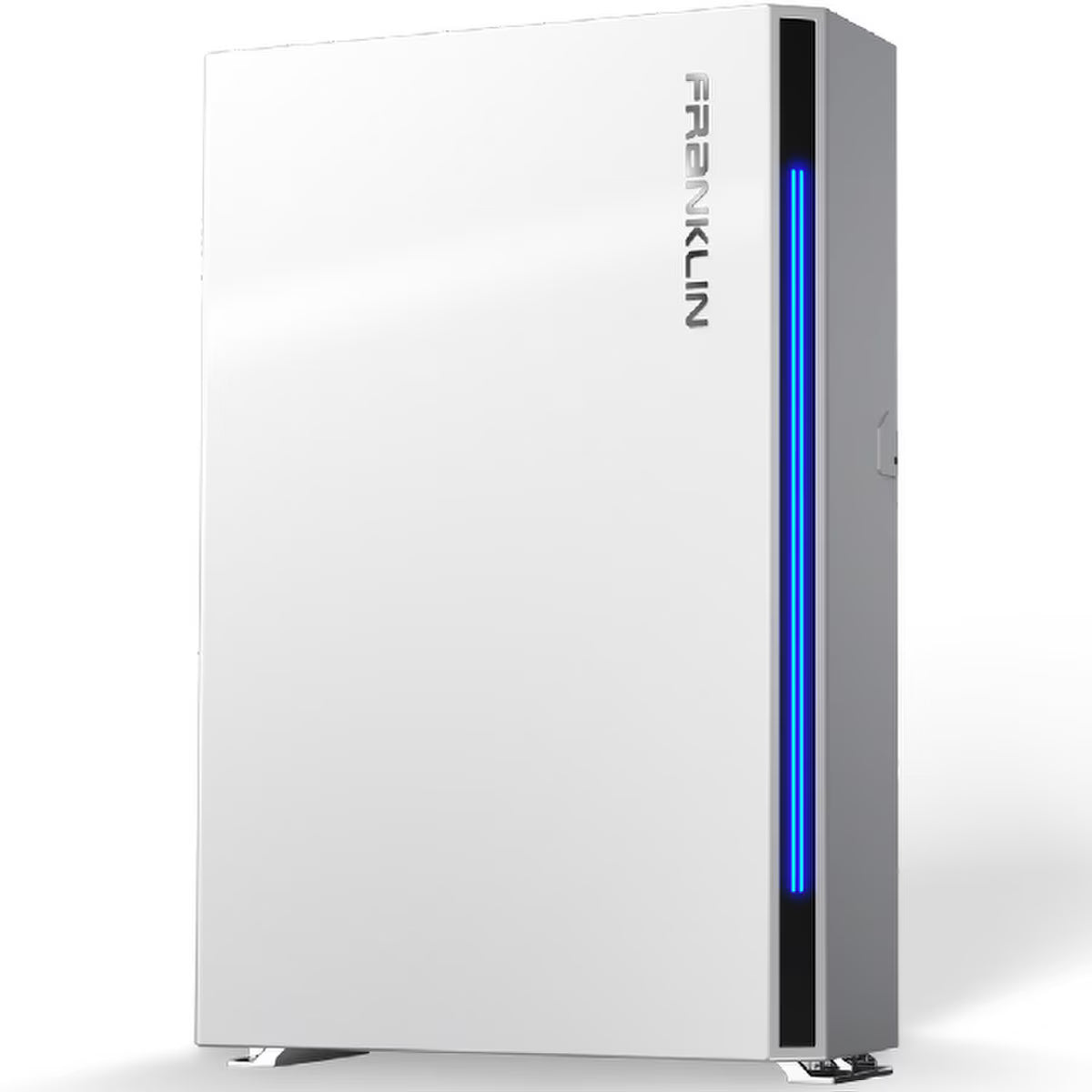

FranklinWH APR-10K15V2-US 15kWh AC Battery 10kW 120/240VÂ
Key Features
- High Power Output – 10 kW continuous, 15 kW peak for 10 seconds.
- Scalable Capacity – 15 kWh per unit, expandable up to 15 units (225 kWh total).
- Superior Efficiency – 90% round-trip efficiency ensures maximum energy utilization.
- Advanced Lithium Iron Phosphate (LFP) Chemistry – Provides enhanced safety and longevity.
- Weather-Resistant Enclosure – Rated for both indoor and outdoor installation (IP56/IP67).
- Natural Air Cooling – Silent operation with no moving parts.
Applications
- Residential and commercial solar energy storage
- Backup power during outages
- Load shifting and time-of-use optimization
Installation
The FranklinWH aPower 2 is designed for easy wall or floor mounting. Its compact size and natural air-cooled design reduce installation complexity. It seamlessly integrates with aGate 1.3, providing reliable and uninterrupted power during grid outages.
Advanced Technology
Equipped with advanced energy management capabilities, the aPower 2 allows users to monitor and control their energy usage in real time through the FranklinWH App. Its off-grid-ready design provides peace of mind during severe weather or extended outages.
About FranklinWH
FranklinWH is a leading energy technology company specializing in high-efficiency battery storage systems. Known for their innovation and reliability, FranklinWH solutions are designed to deliver sustainable, clean energy for residential and commercial applications.
Specifications
| Parameter | Details |
|---|---|
| Model Number | APR-10K15V2-US |
| Battery Type | Lithium Iron Phosphate (LFP) |
| Nominal Output Power | 10 kW continuous |
| Peak Output Power | 15 kW for 10 seconds |
| Nominal Voltage | 120/240 V, 60 Hz |
| Energy Capacity | 15 kWh per unit |
| Ingress Protection | IP56 (wiring), IP67 (battery pack & inverter) |
| Dimensions (HxWxD) | 45.2 × 29.5 × 11.8 inches |
| Weight | 357 lb. |

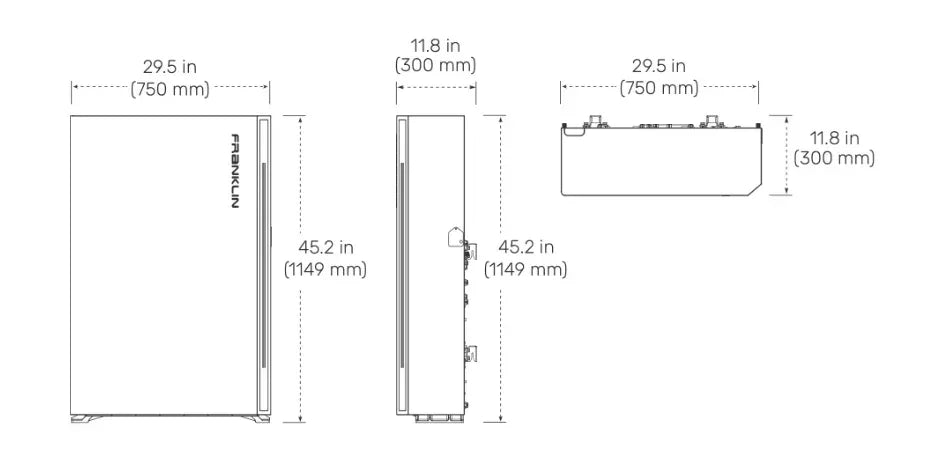

- Height: 45.2 in (1149 mm)
- Width: 29.5 in (750 mm)
- Depth: 11.8 in (300 mm)
- Weight: 357 lb (162 kg)
