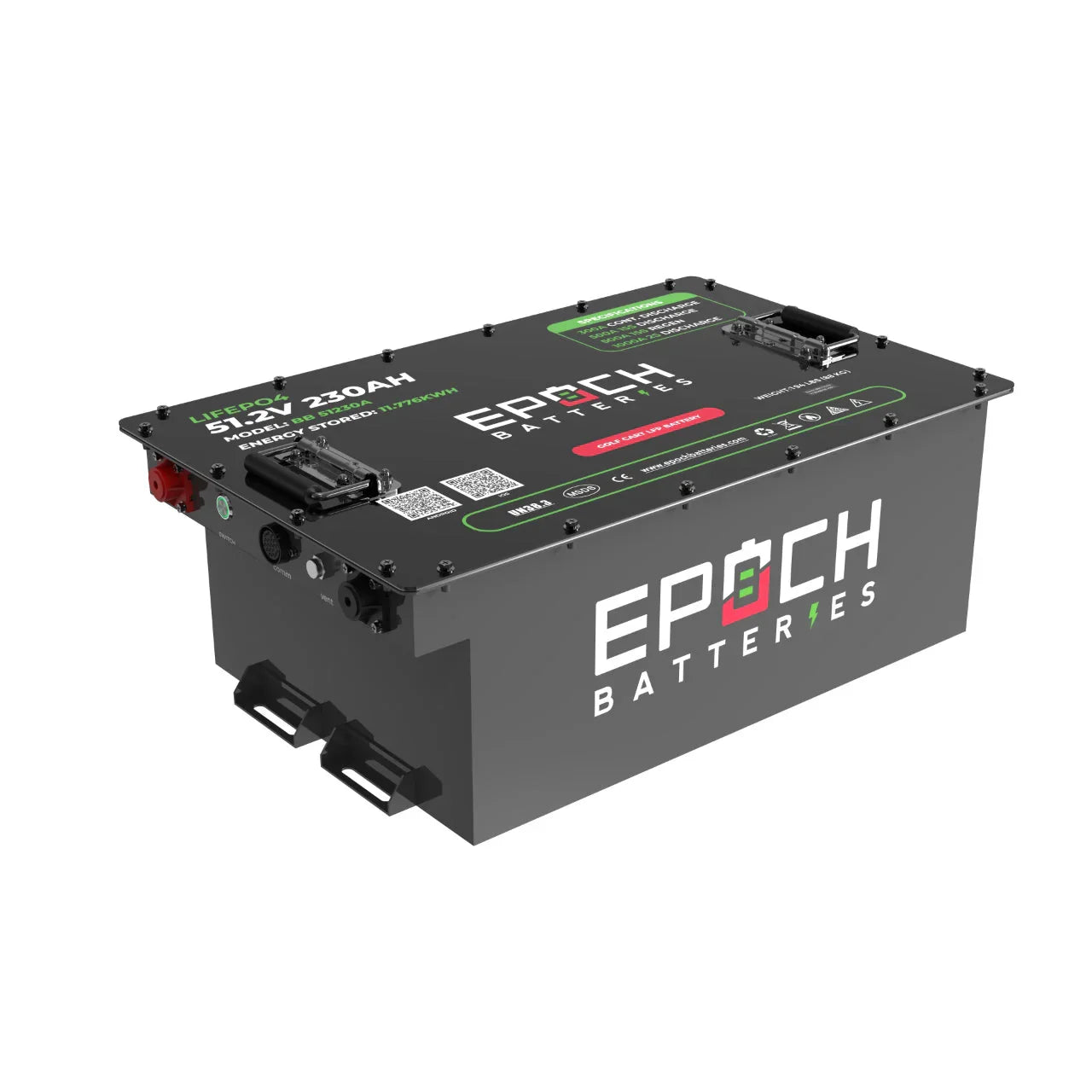

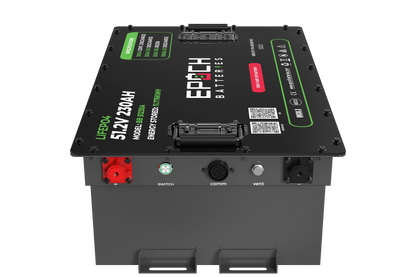

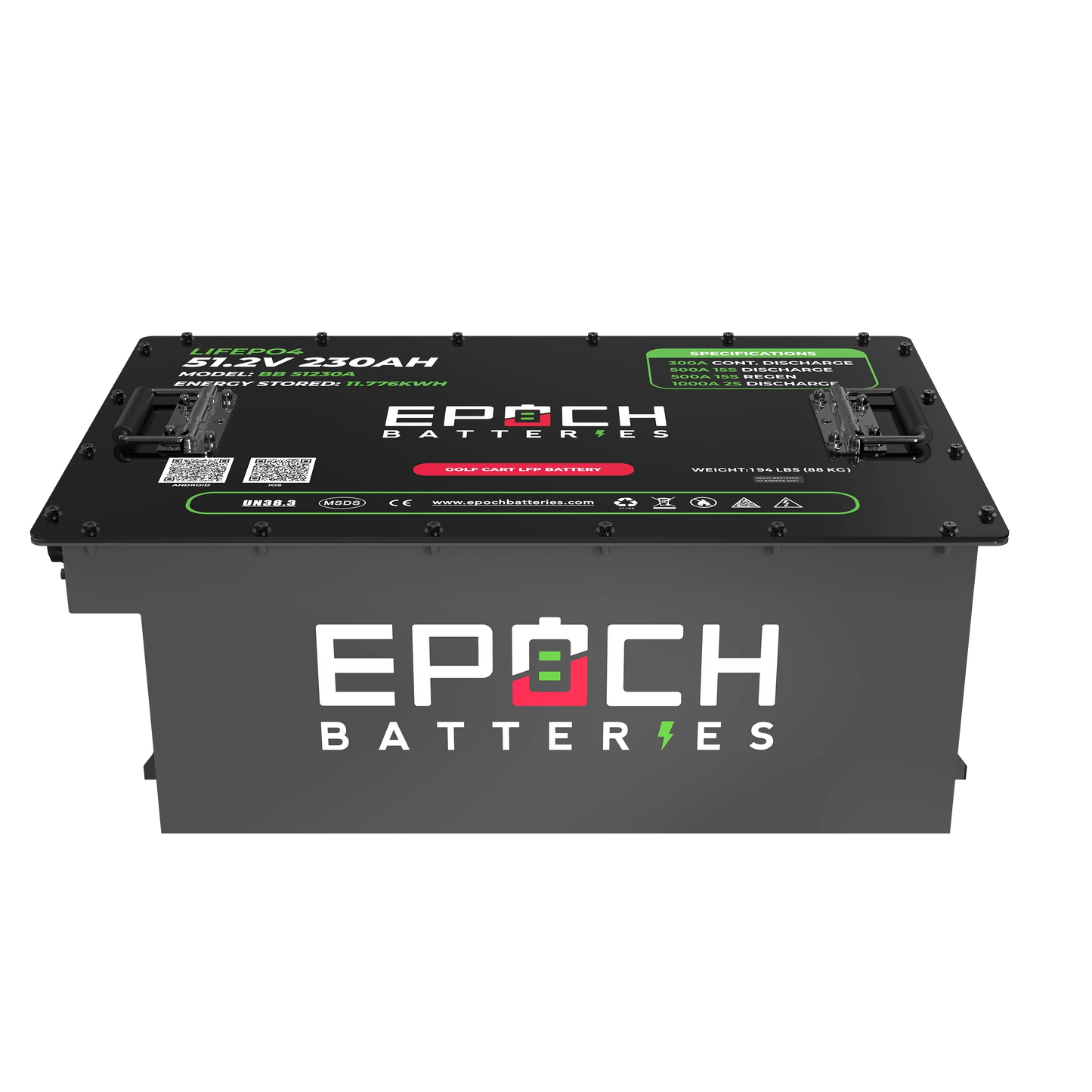

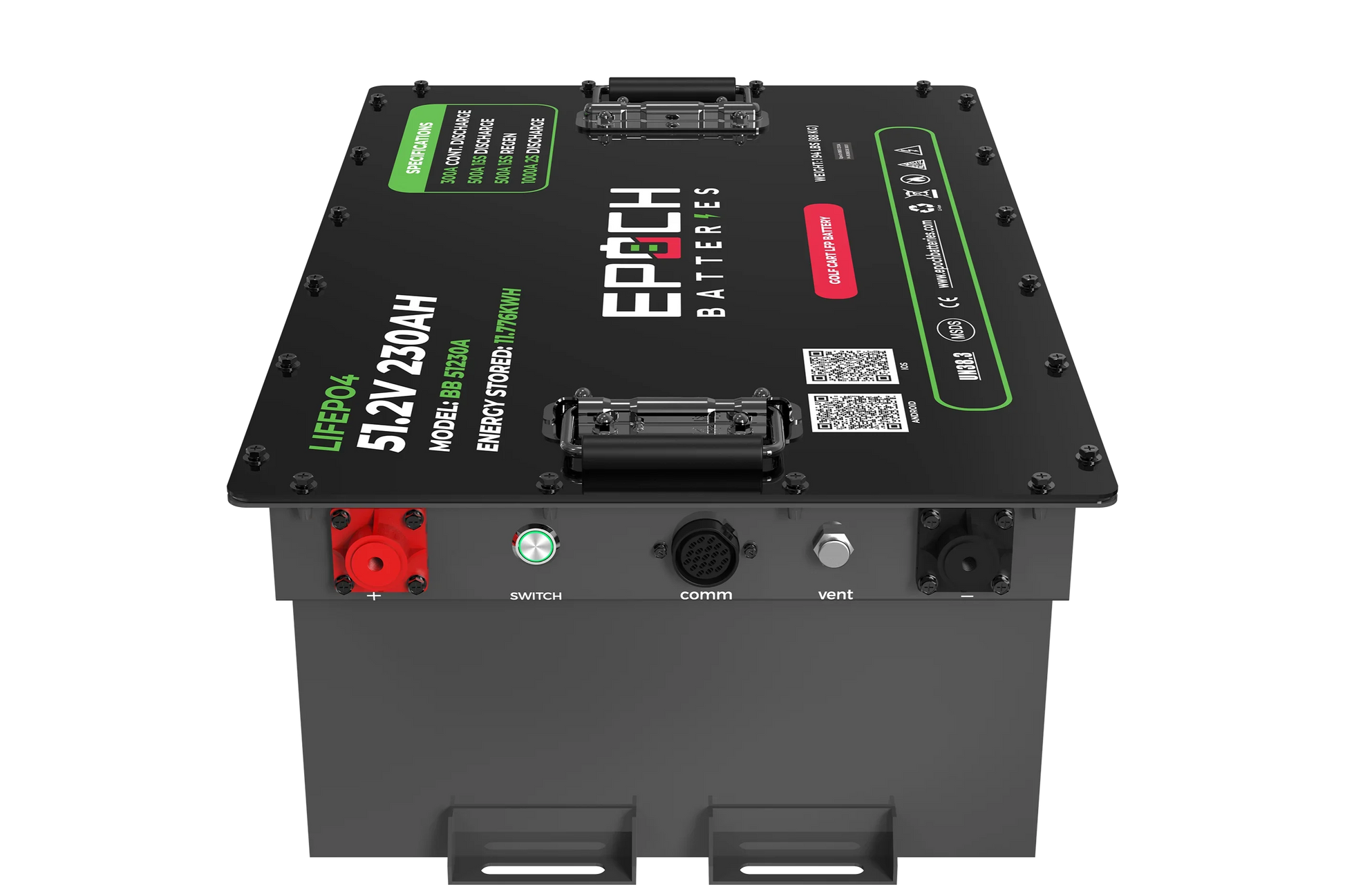

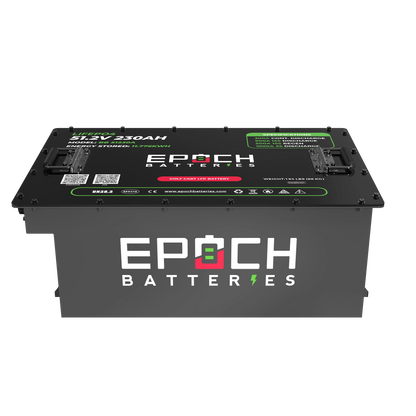

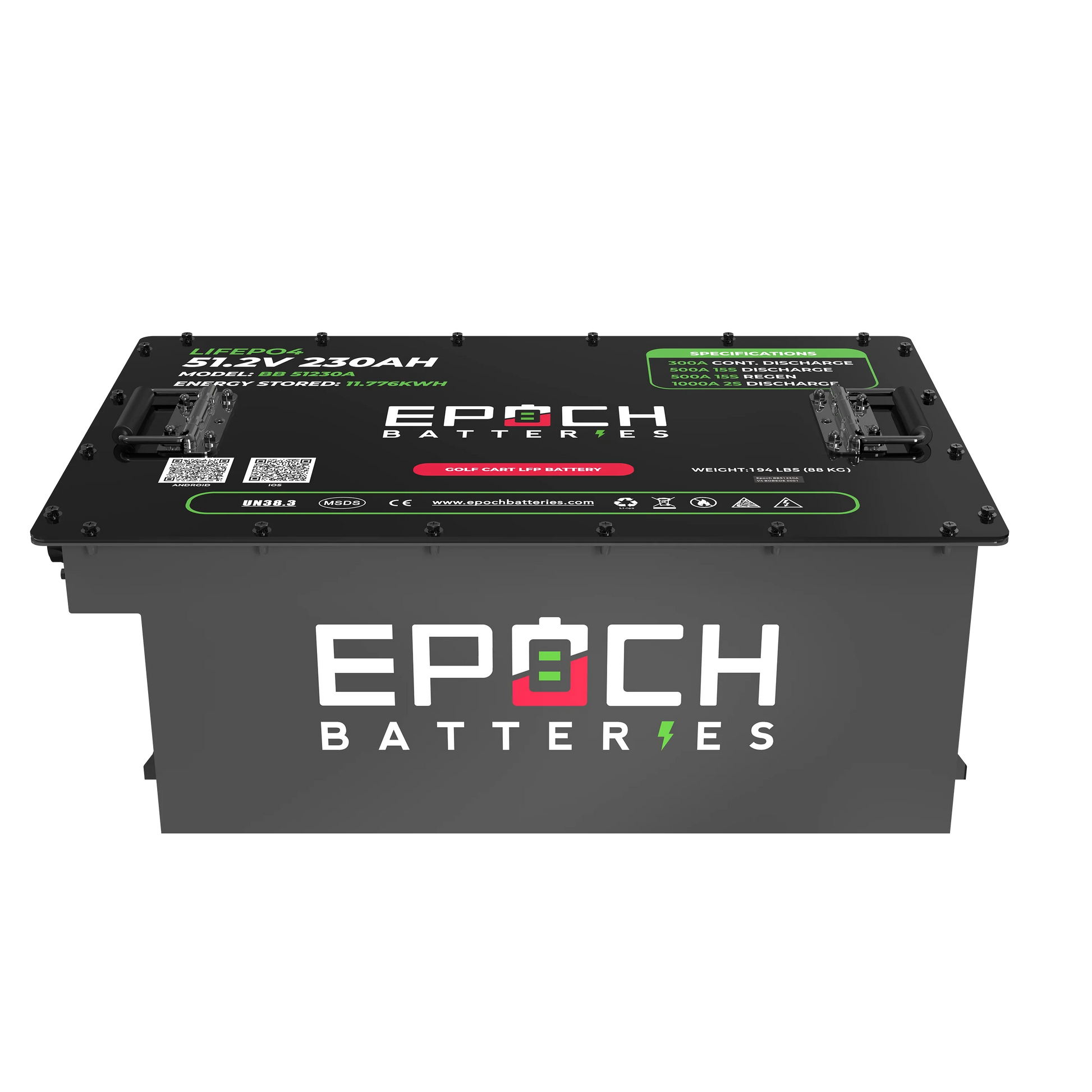

Epoch Batteries 48V 230Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit
- Complete Lithium Conversion Kit

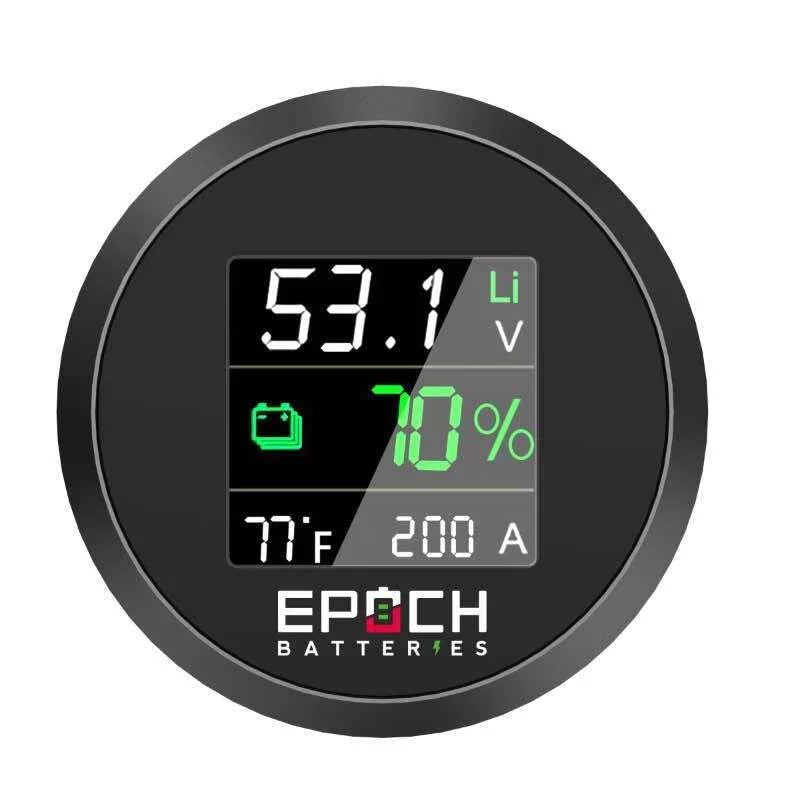

- 48V 22A Lithium Charger, Battery Gauge, 12V Converter INCLUDED

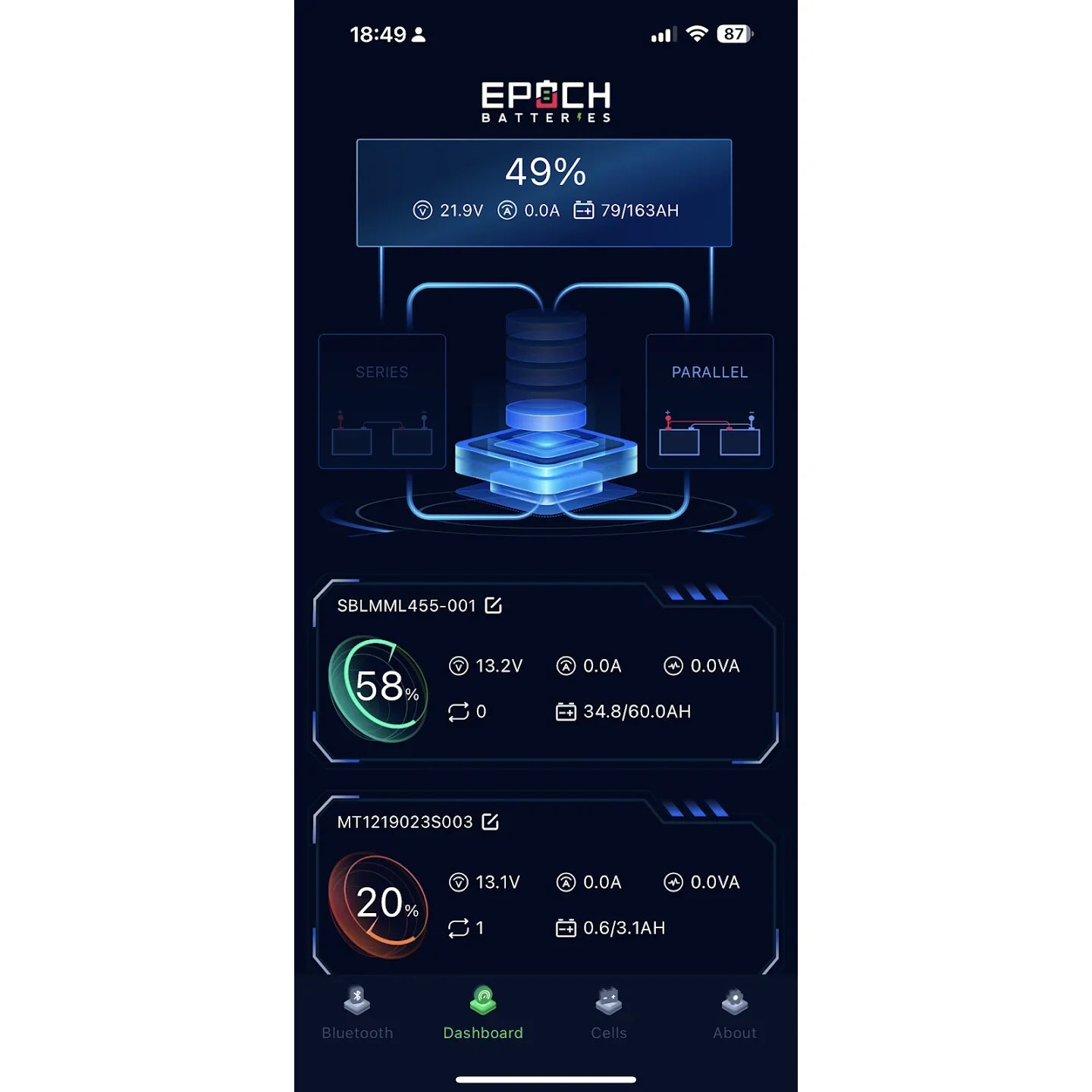

- Bluetooth App (iOS & Android)
- Over the air firmware updates available
- 300A Max Continuous Discharge
- 500A @ 15s, 1,000A @ 2s Peak Discharge
- 230A Max Continuous Charge
- 500A @ 15s Peak Charge/Regen
- 4,000 Cycle Life
- 11 Year Warranty
Configuration
Cell Configuration: 1P16S
Chemistry: LiFePO4
Current
Ah Capacity: 230Ah
Max Continuous Discharge Amps: 300A
Max Charge Current Amps: 230A Continuous, 500A @ 15s
Max Discharge Peak Current Amps: 500A @ 15s, 1,000A @ 2s
Series | Parallel: Max (2) in Parallel
Voltage
Voltage: 51.2V
Max Charge Voltage: 58.4V
Operating Voltage Range: 40 - 58.4V
Temperature
Charge Temp Range: 0°C (32°F) / 55°C (131°F)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)
Weight: 196 (LBS)
Dimensions
Length: 23.5 (inches)
Width: 14.4 (inches)
Height: 9.9 (inches)
