ECO-WORTHY Complete Off-Grid Solar Panel Kit | 2×5kW 120V/240V Output | 20.48kWh–30.72kWh Lithium Battery | 7380W–9840W Solar Input
The ECO-WORTHY Complete Off-Grid Solar Panel Kit is a fully integrated solar energy solution for off-grid homes, cabins, workshops, and commercial applications. Available in multiple configurations, this kit combines high-efficiency 410W monocrystalline solar panels, 5000W 48V All-in-One off-grid inverters, and modular 51.2V 100Ah LiFePO₄ lithium batteries, delivering reliable, scalable, and clean energy for your property.
This system features advanced MPPT solar charging, pure sine wave output, and optional server rack expansion for large-scale energy storage. It is designed to handle high-demand appliances, electronics, and off-grid loads with efficiency and reliability.
System Configurations

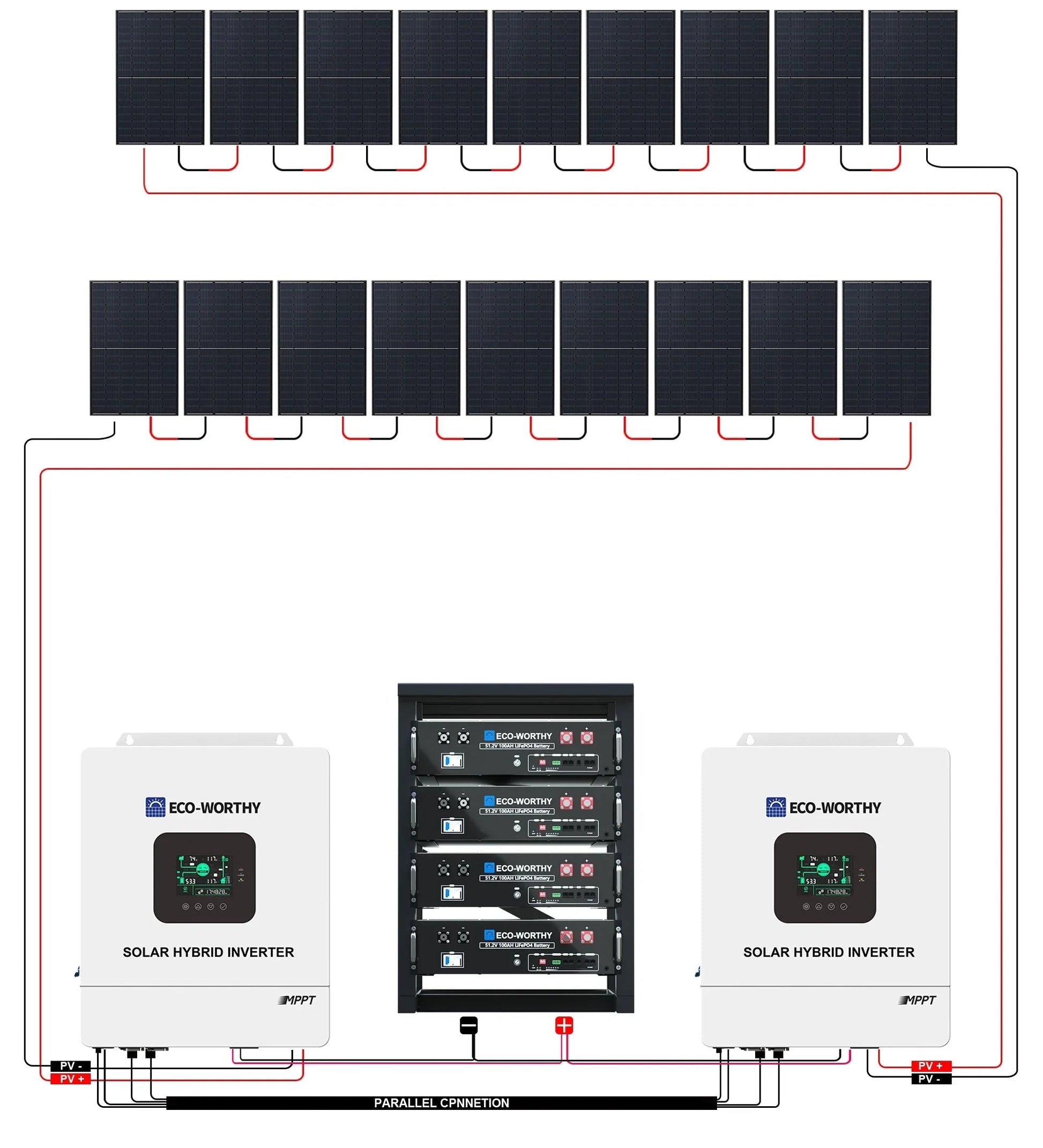

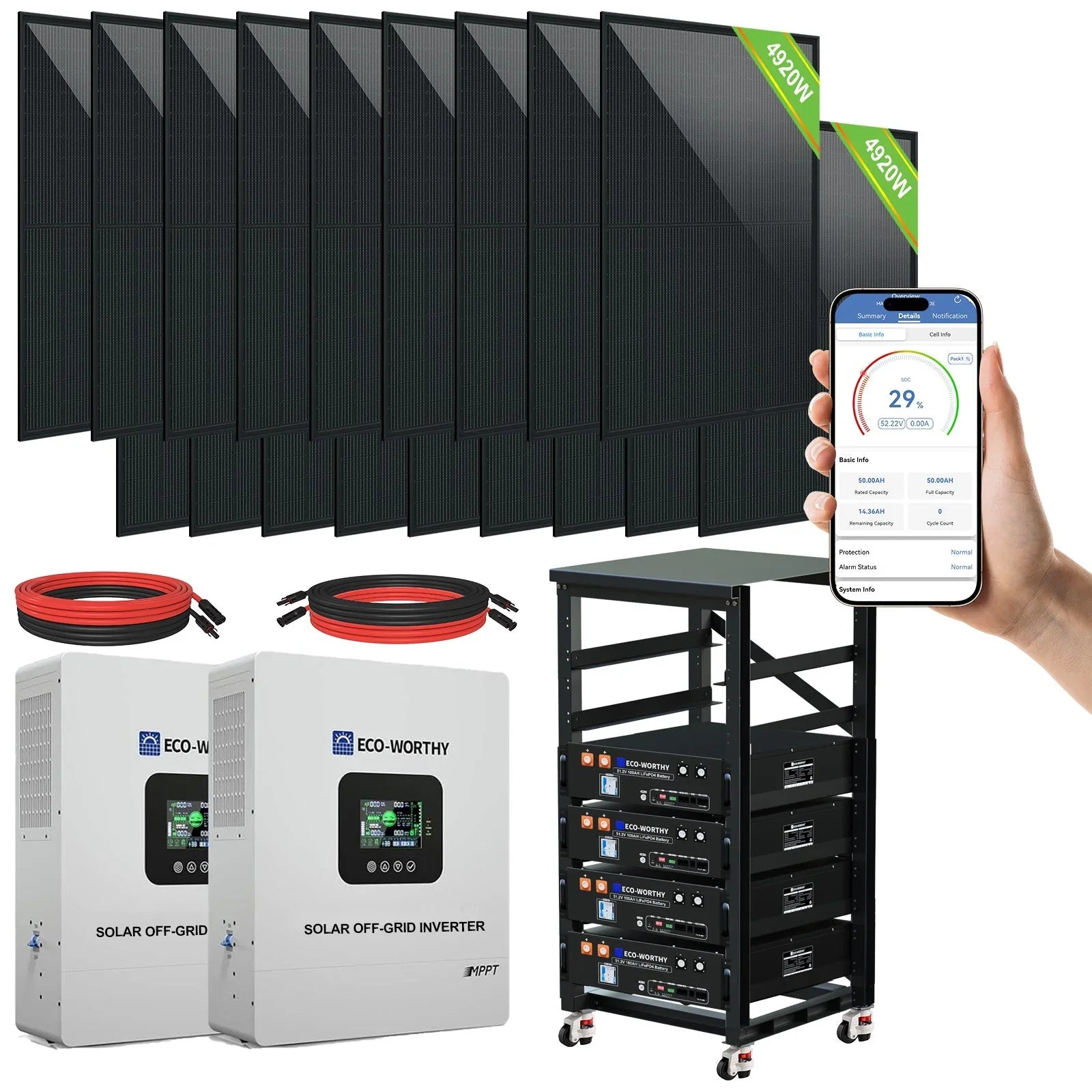

7380W PV & 20.48kWh Battery
-
18× ECO-WORTHY 410W Monocrystalline Solar Panels (Black)
-
2× ECO-WORTHY 5000W All-in-One Off-Grid Inverters
-
2× PV-to-Inverter Cables
-
4× PV Extension Cables
-
4× ECO-WORTHY 51.2V 100Ah LiFePO₄ Batteries
-

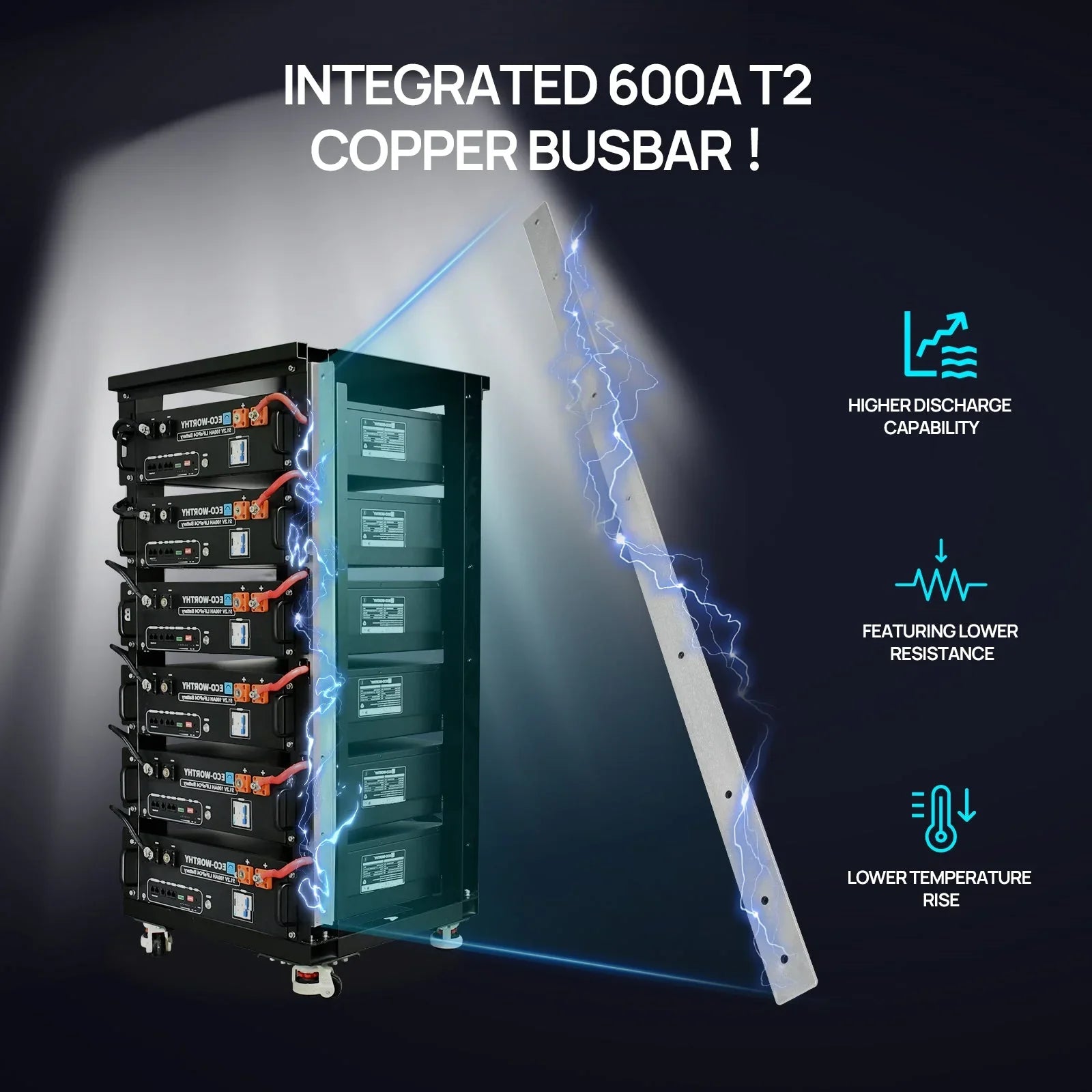

1× ECO-WORTHY RACK6 V2 I 6-Layer Rack with 600A Busbar

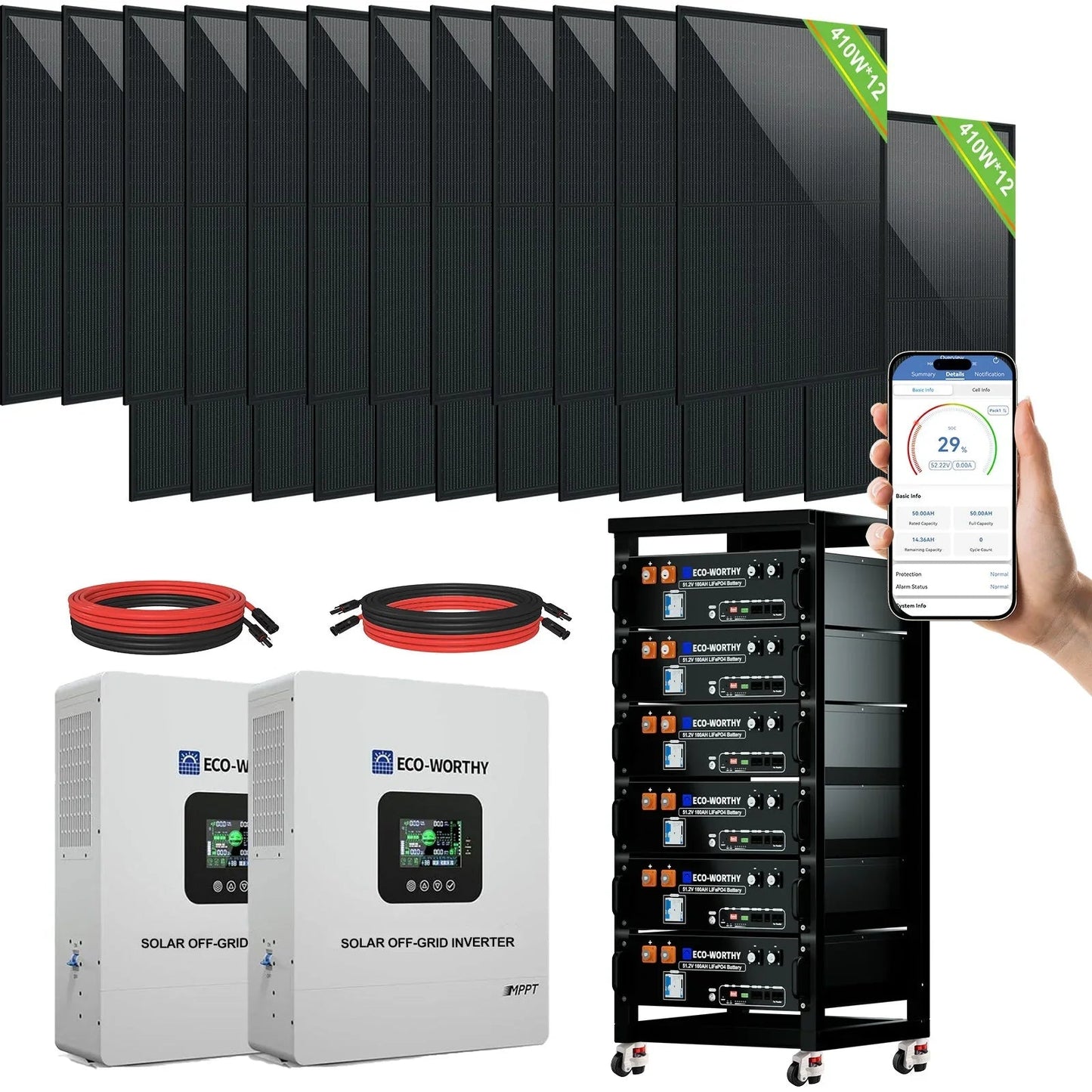

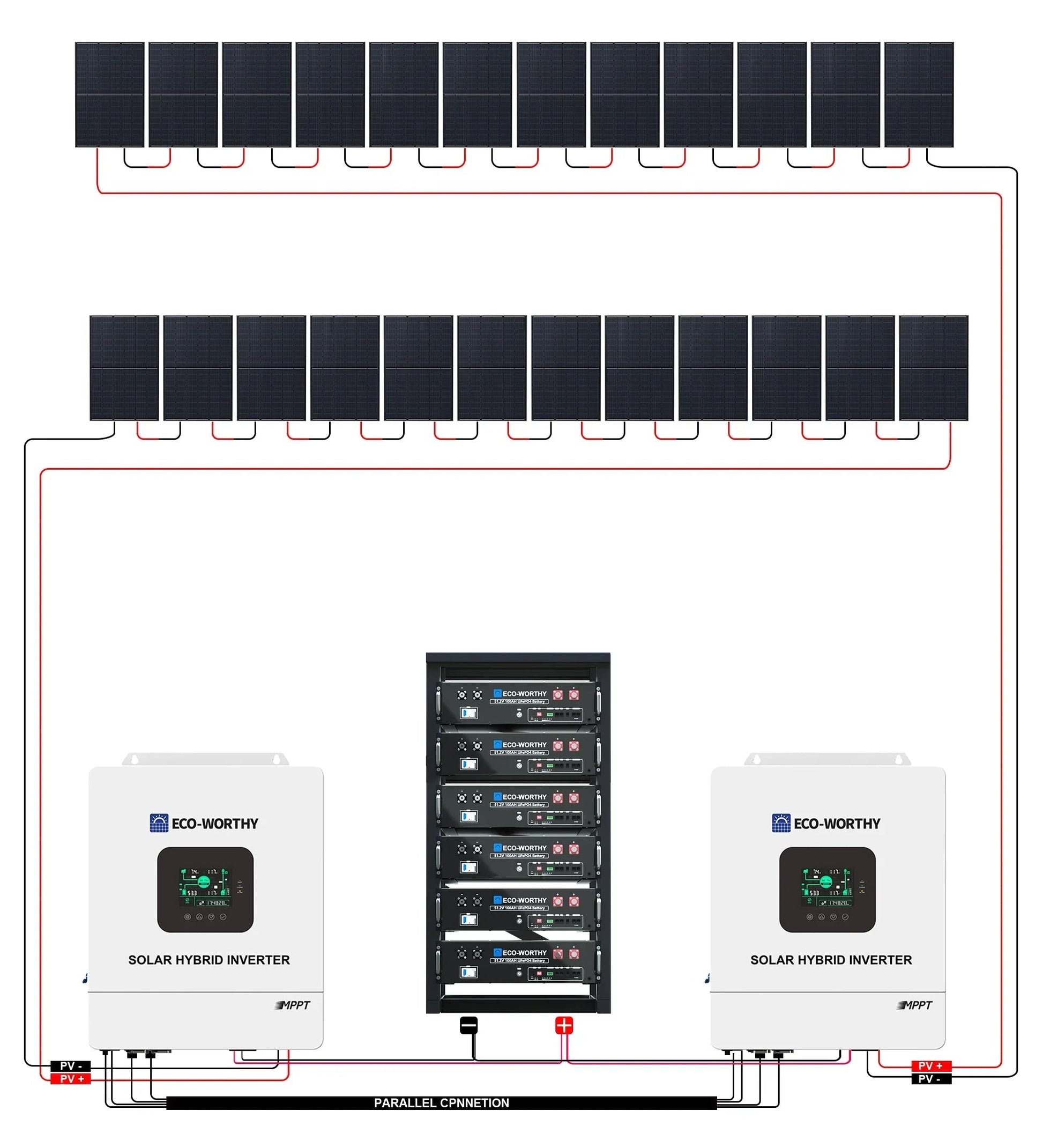

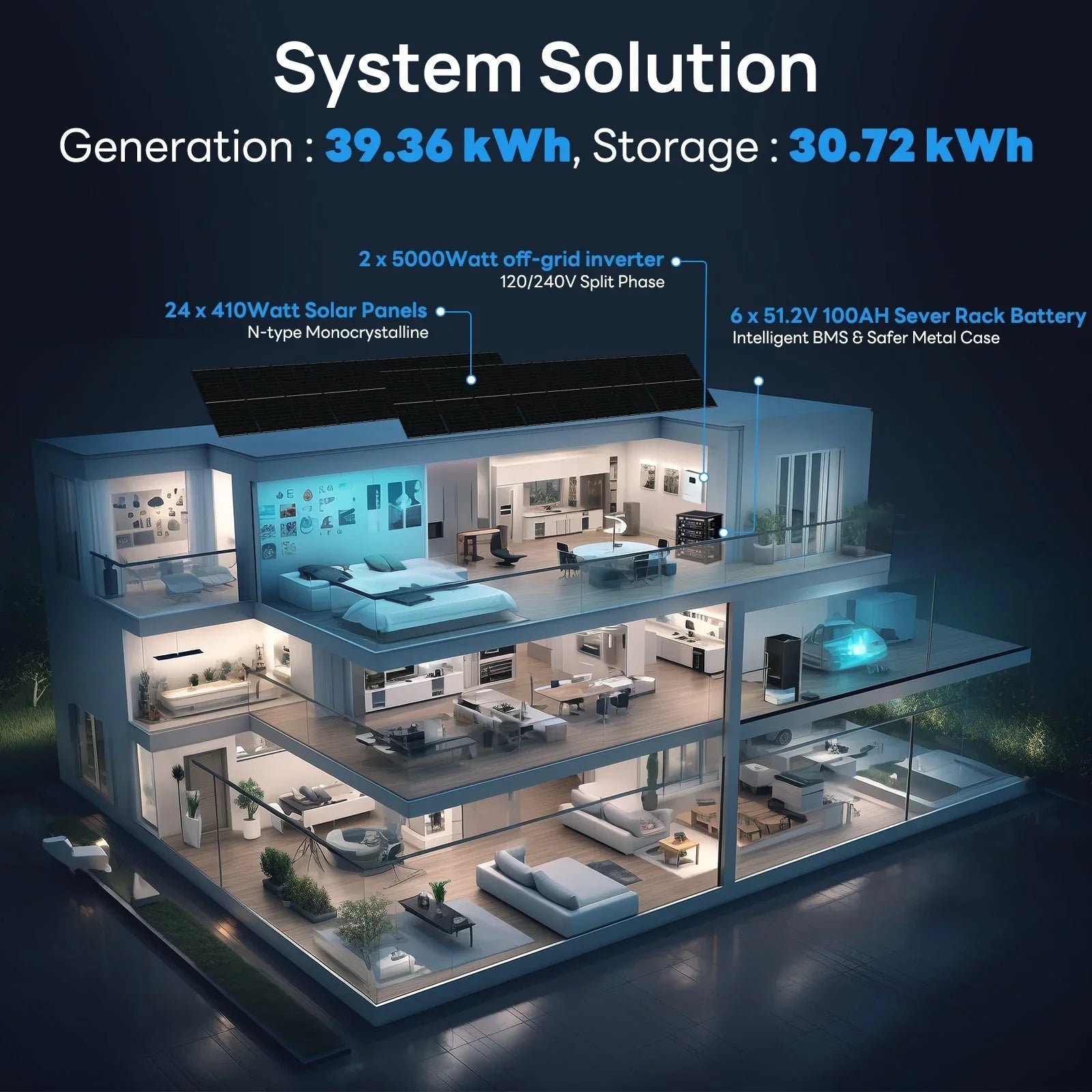

9840W PV & 30.72kWh Battery
-
24× ECO-WORTHY 410W Monocrystalline Solar Panels (Black)
-
2× ECO-WORTHY 5000W All-in-One Off-Grid Inverters
-
2× PV-to-Inverter Cables
-
4× PV Extension Cables
-
6× ECO-WORTHY 51.2V 100Ah LiFePO₄ Batteries
-
1× ECO-WORTHY RACK6 V2 I 6-Layer Rack with 600A Busbar

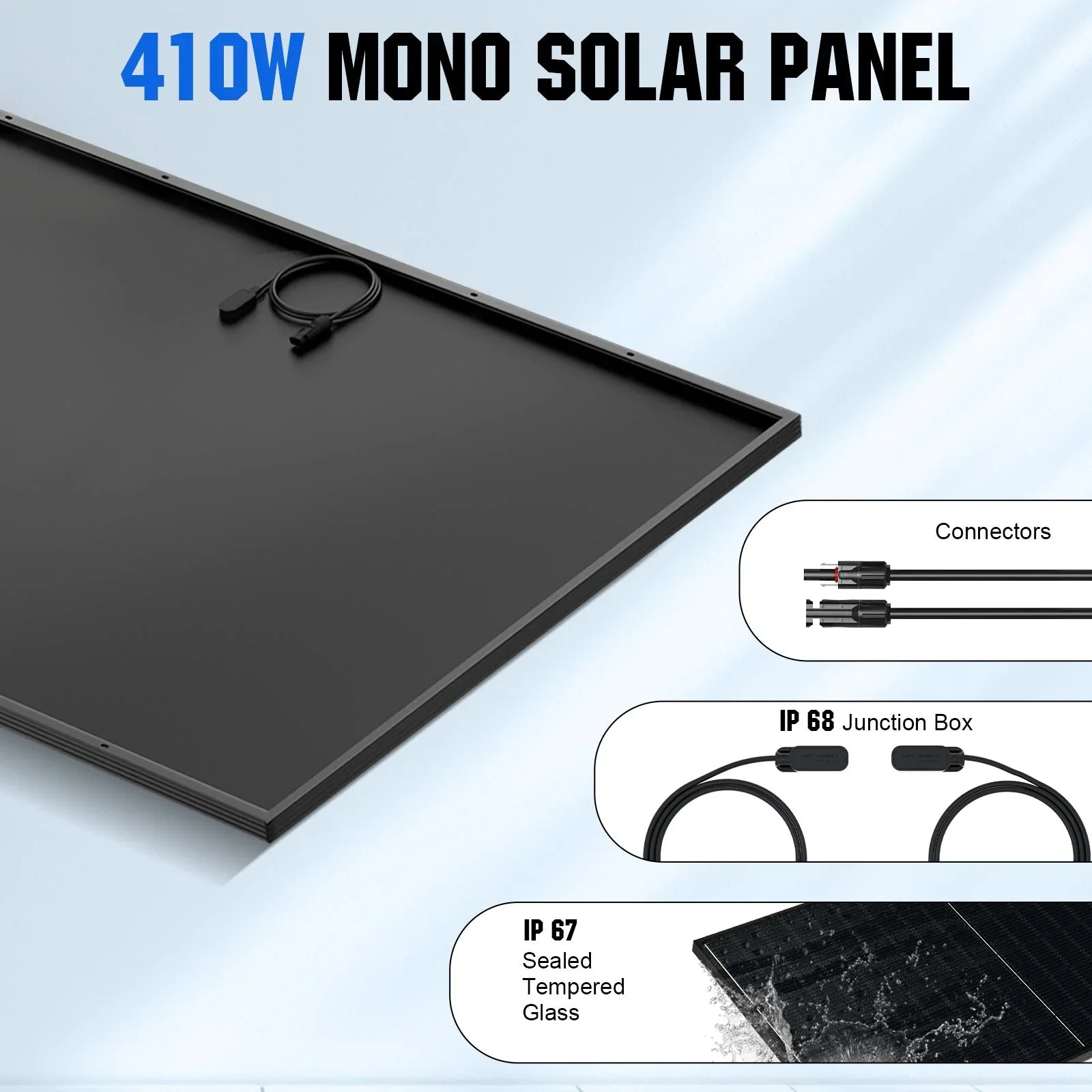

ECO-WORTHY 410W Monocrystalline Solar Panel
-
Rated Power: 410W
-
Solar Cell: Mono PERC
-
Maximum Power Voltage (Vmp): 31.3V
-
Open Circuit Voltage (Voc): 37.5V
-
Short Circuit Current (Isc): 13.84A
-
Maximum Current (Imp): 13.1A
-
Output Tolerance: ±3%
-
Temperature Coefficient of Isc: 0.05%/°C
-
Temperature Coefficient of Voc: –0.29%/°C
-
Operating Temperature: –40°C to +85°C
-
Frame: Aluminum Alloy
-
Dimensions: 1724 × 1134 × 30 mm
-
Weight: 20.5 kg
-
Warranty: 10 Years
ECO-WORTHY 5000W 48V Off-Grid Inverter Charger
-
Rated Output Power: 5000W
-
Peak Power: 10000W
-
Output Voltage: 120V AC
-
Output Waveform: Pure Sine Wave
-
Battery Input Voltage: 48V
-
AC Input Voltage Range: 90–140VAC
-
AC Input Frequency: 50/60Hz (Auto Detect)
-
Max AC Charge Current: 60A
-
PV Charging Input: Max 5000W, 0–80A, MPPT 120–450VDC
-
Battery Voltage Range: 40–60VDC

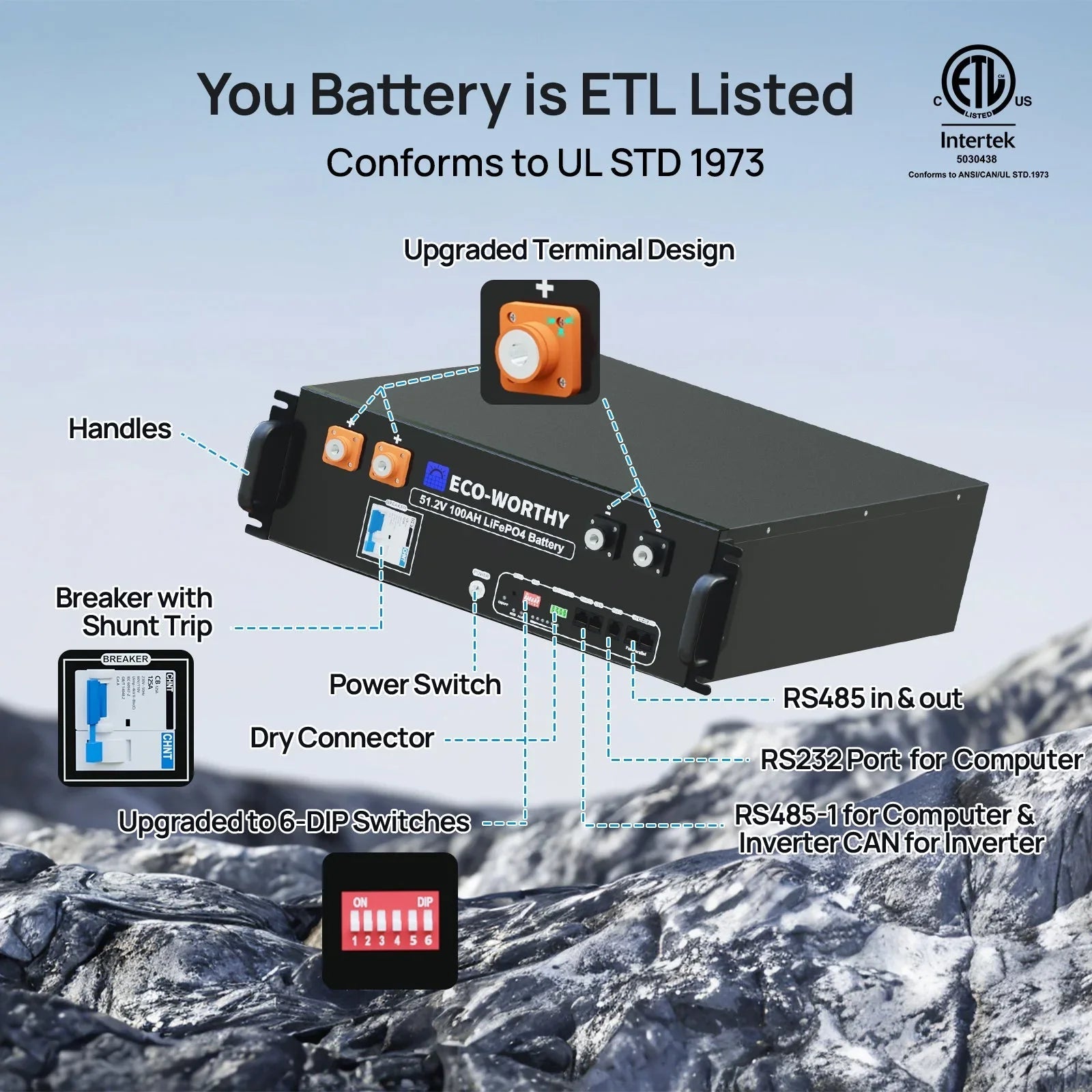

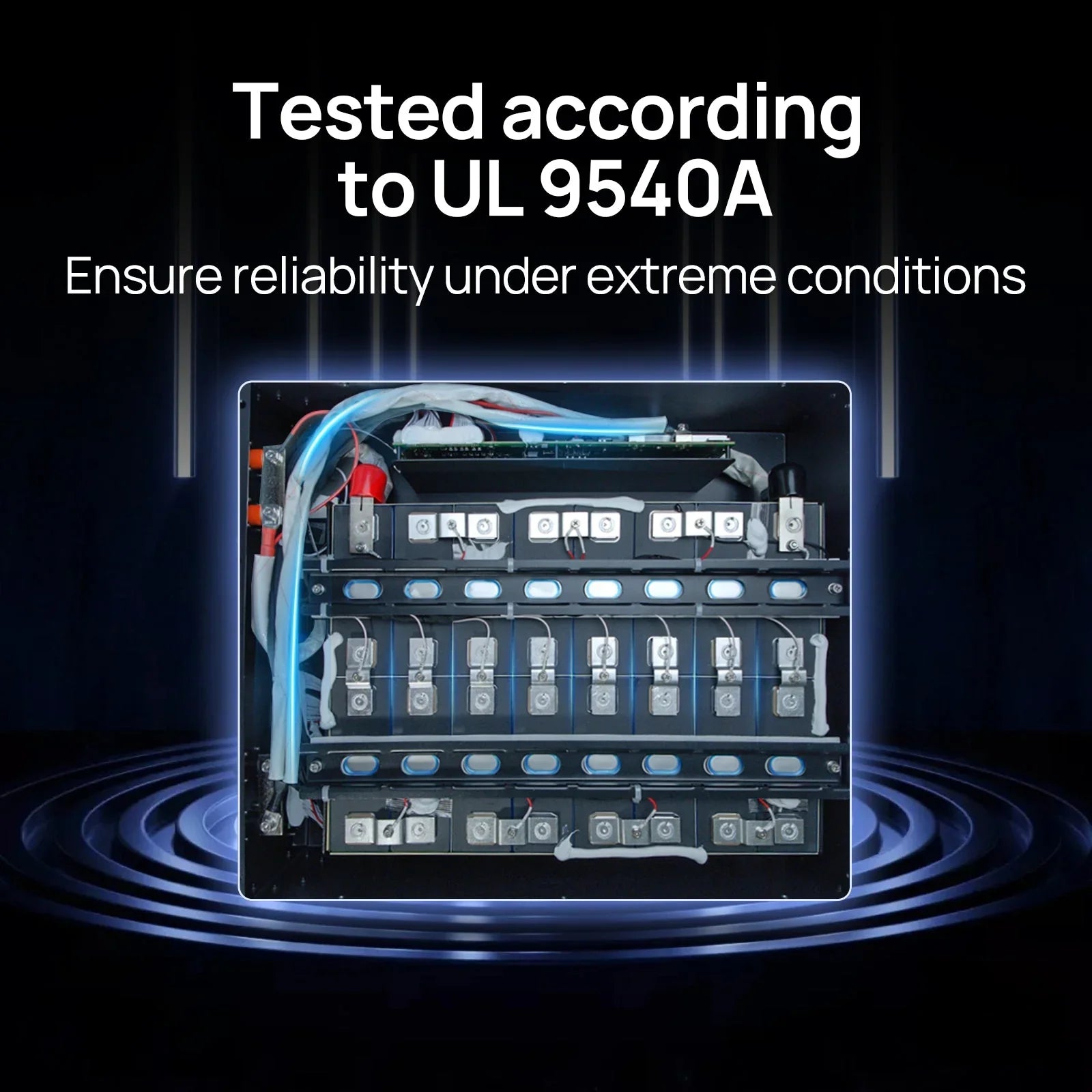

ECO-WORTHY 48V 100Ah LiFePO₄ Lithium Battery
-
Battery Capacity: 100Ah
-
Energy: 5.12kWh
-
Battery Voltage: 51.2V
-
Maximum Charging Current: 100A
-
Maximum Discharging Current: 100A
-
Max Charge Voltage: 58.4V
-
Discharge Cut-Off Voltage: 10V
-
Operating Temperature: –20°C to 60°C (–4°F to 140°F)
-
Cycle Life: ≥4000 at 50% DoD
-
Dimensions: 21.71 × 19.02 × 5.24 in
-
Weight: 94.8 lbs
This ECO-WORTHY Complete Off-Grid Solar Panel Kit offers a complete, reliable, and expandable off-grid power solution for residential and commercial solar energy applications.
