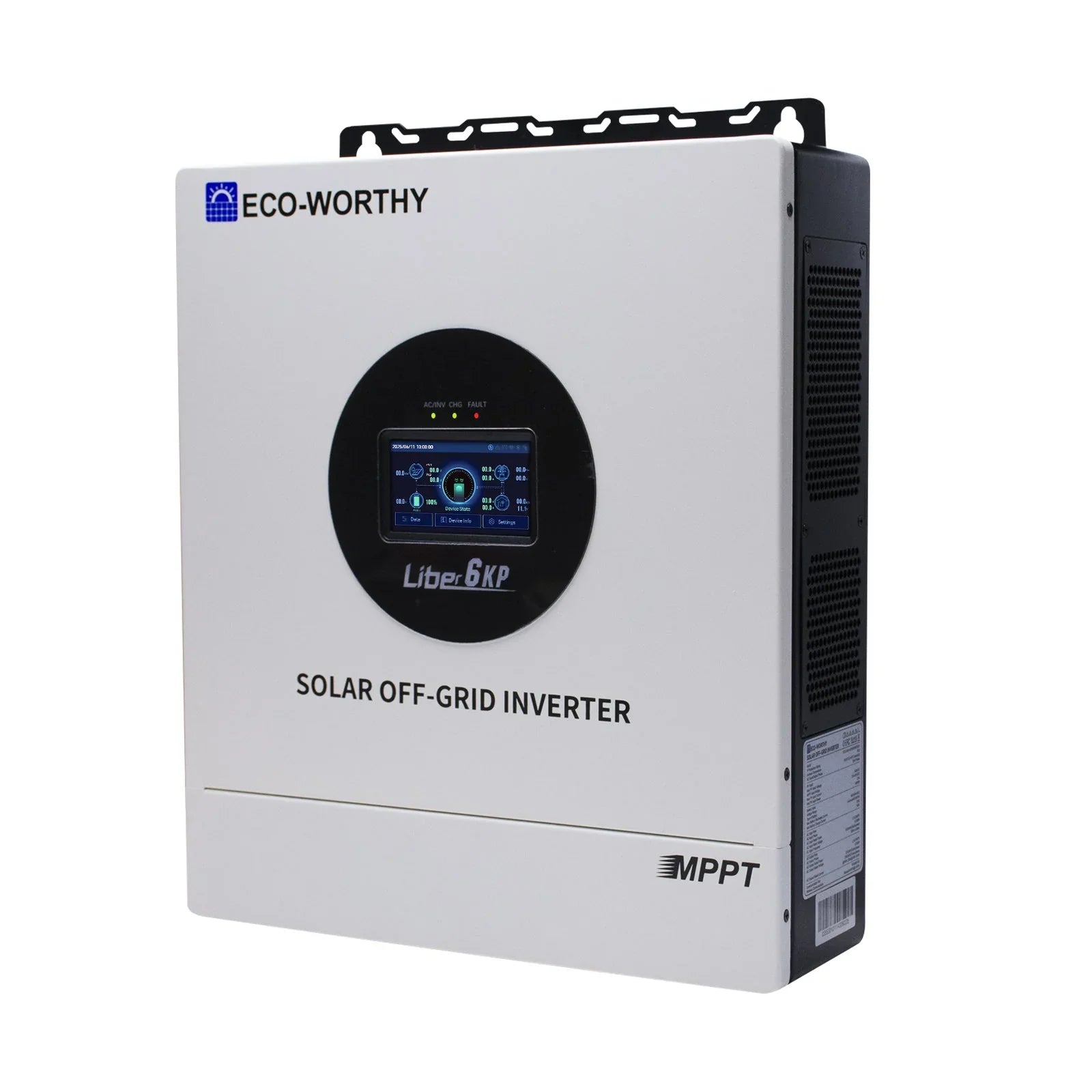

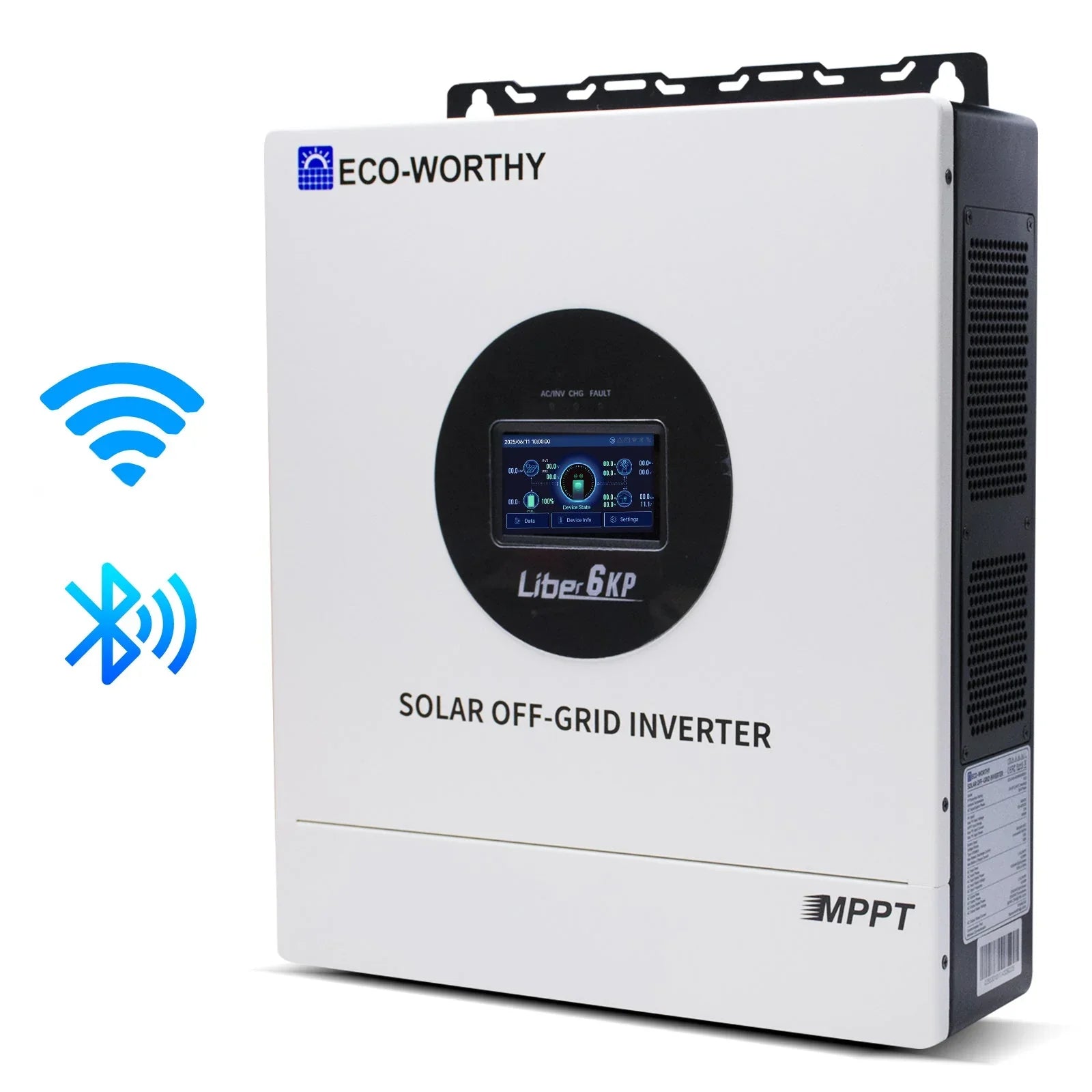

Eco-Worthy 6KW Solar Off-grid Split-phase AIO Inverter, 48Vdc to 120Vac/240Vac, 9kW@500V PV Input
Power your off-grid home, cabin, shop, or backup power system with the high-performance 6kW Off-Grid Split-Phase All-in-One (AIO) Inverter. Engineered for reliability, efficiency, and heavy-duty performance, this inverter delivers 6000W continuous power and up to 12,000W peak power, making it ideal for demanding appliances, motors, and whole-home off-grid systems.

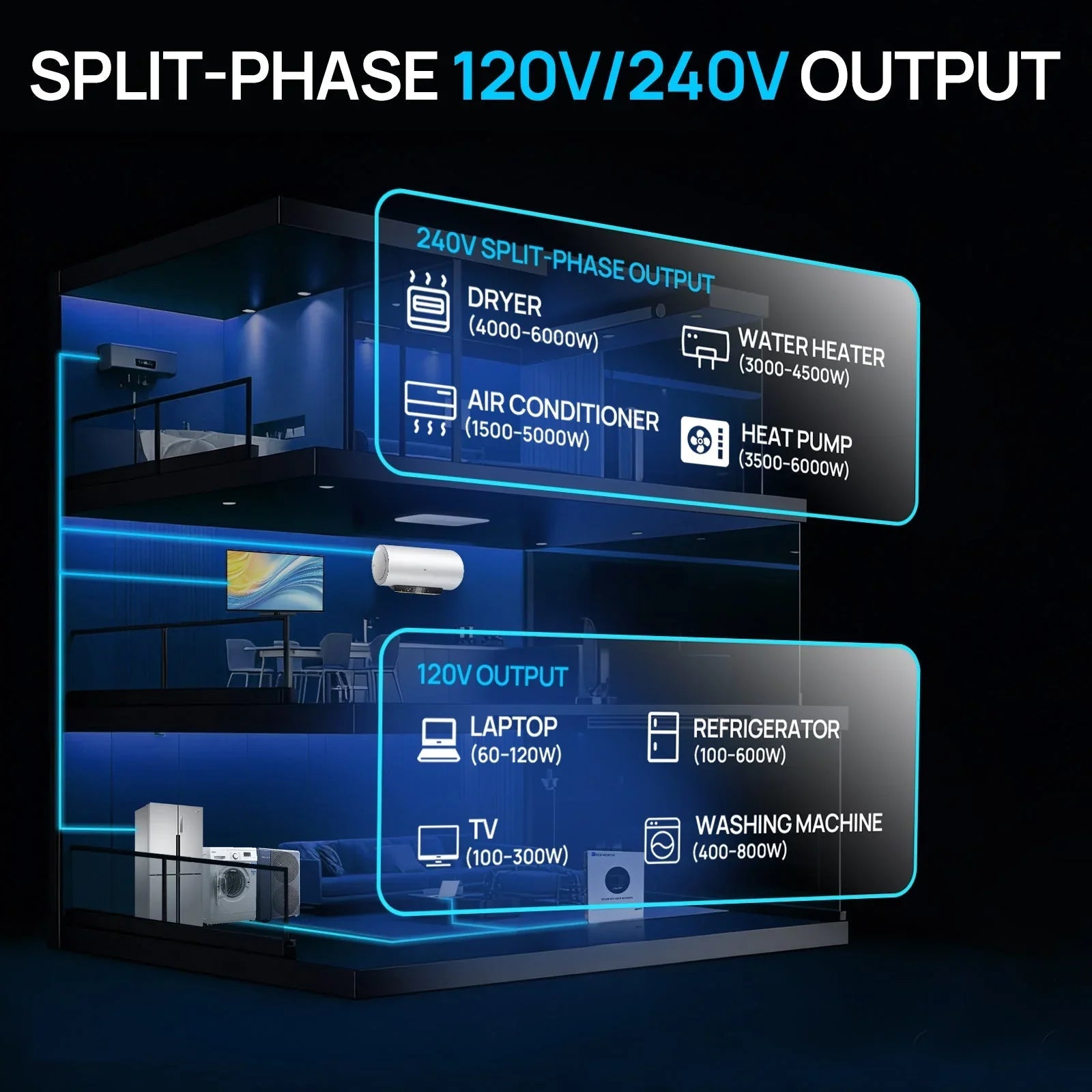

With true 120/240V split-phase output, this inverter supports everything from standard household outlets to large 240V loads such as well pumps, air conditioners, heaters, and workshop tools. A fast 10ms switching time ensures seamless transition during outages, protecting sensitive electronics.
Designed for flexible energy setups, this AIO inverter integrates solar, battery, and generator inputs in one powerful unit. It supports 48V lithium or lead-acid batteries, offers a massive 9000W PV input, and features advanced MPPT technology for maximum solar efficiency.
Built for homeowners, off-grid systems, RVs, tiny homes, and commercial backup applications, this inverter delivers reliable energy independence—day and night.
Key Features
Inverter
-
Rated Power: 6000W
-
Peak Power: 12,000W
-
Output Voltage: 120/240V (Single-phase/Split-phase)
-
Motor Capacity: 4.8 HP
-
Frequency: 60Hz
-

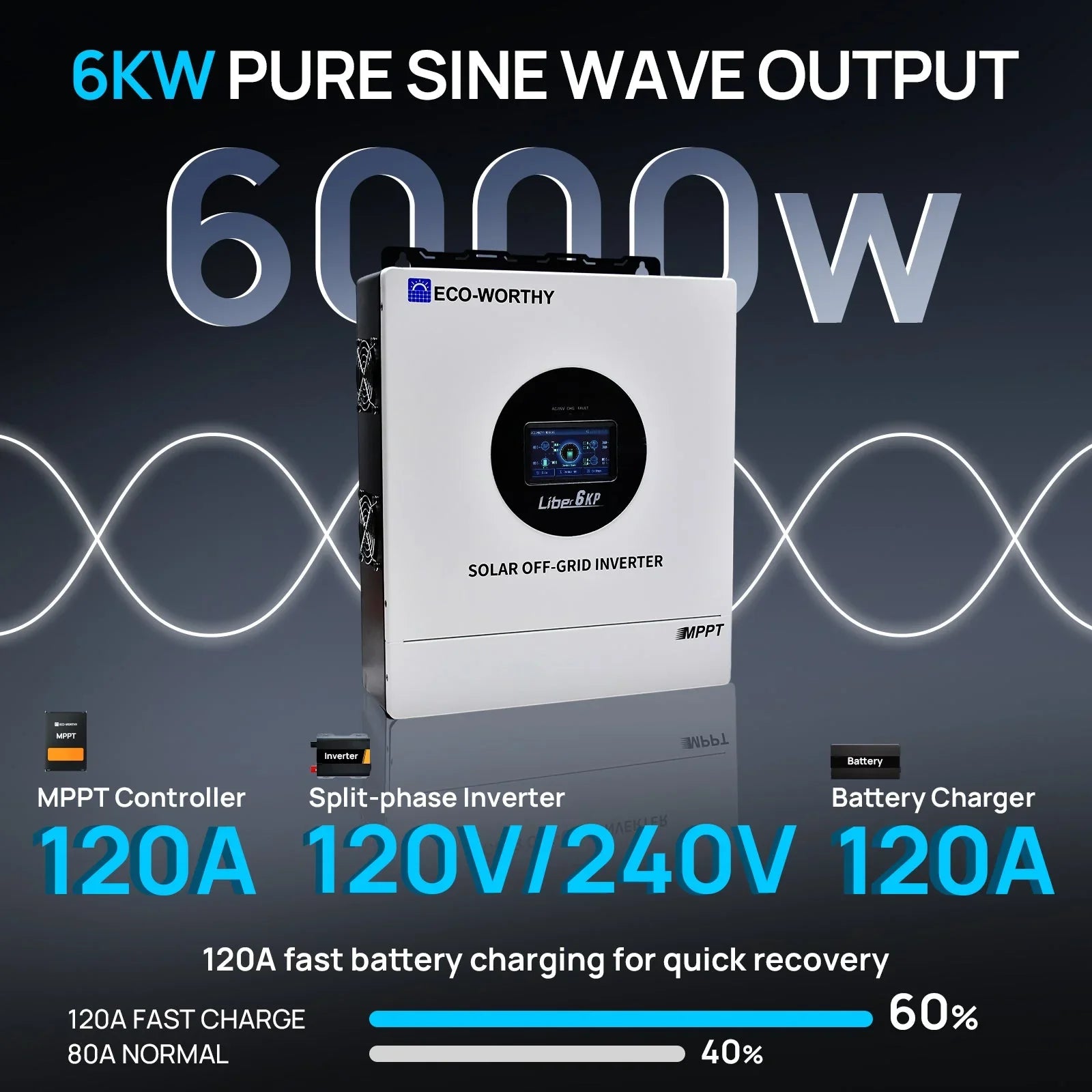

Pure Sine Wave Output for clean, stable power
-
Fast 10ms Switching for uninterrupted performance

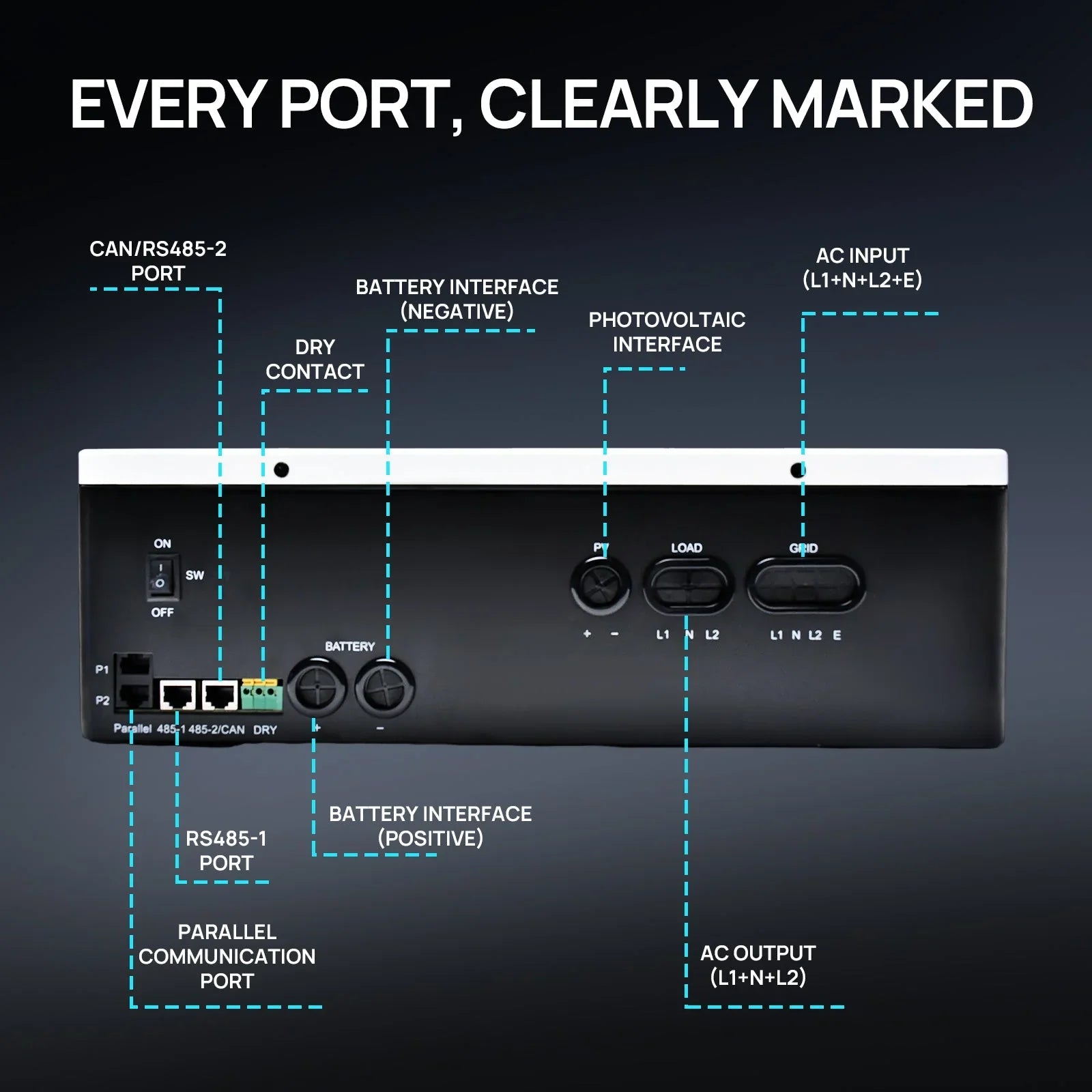

AC Input (Grid/Generator)
-
Voltage Range: 180–280V AC
-
Frequency: 60Hz
-
Bypass Overload Current: 45A
Battery System
-
Compatible with Lithium, Lead-acid, or User-defined batteries
-
Rated Voltage: 48V
-
Voltage Range: 40–60V
-
Max PV Charging: 120A
-
Max Grid/Generator Charging: 100A
-
Max Hybrid Charging: 120A

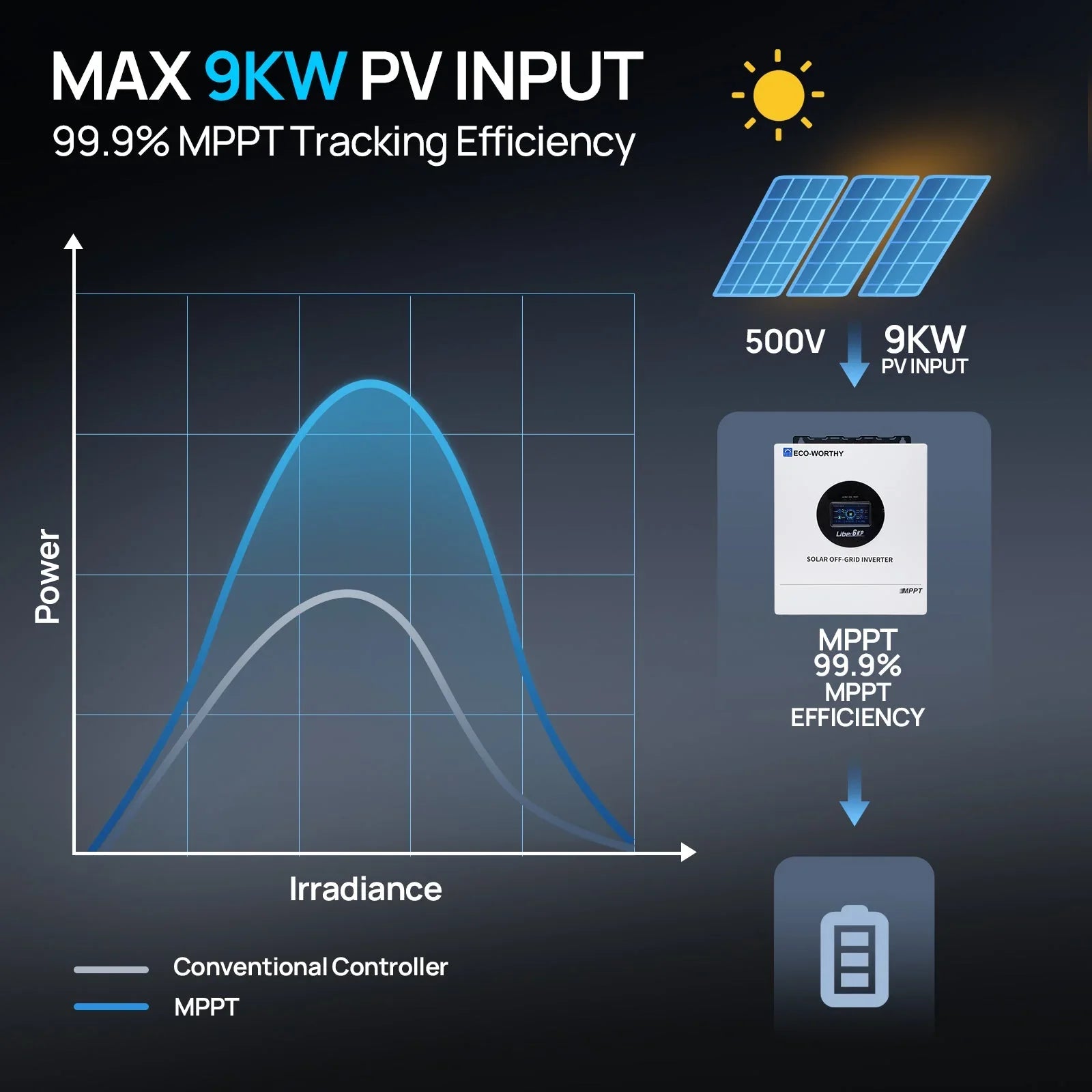

Solar Input
-
1 MPPT Route
-
Max PV Input Power: 9000W
-
Max Input Current: 27A
-
Max VOC: 500V
-
MPPT Range: 125–425V
Perfect for full off-grid homes, cabins, farms, remote sites, or hybrid solar systems, this 6kW AIO inverter delivers dependable power, flexible configuration, and high solar charging capacity to keep your system running efficiently.
