Battery Weight: 293.2lb/133kg

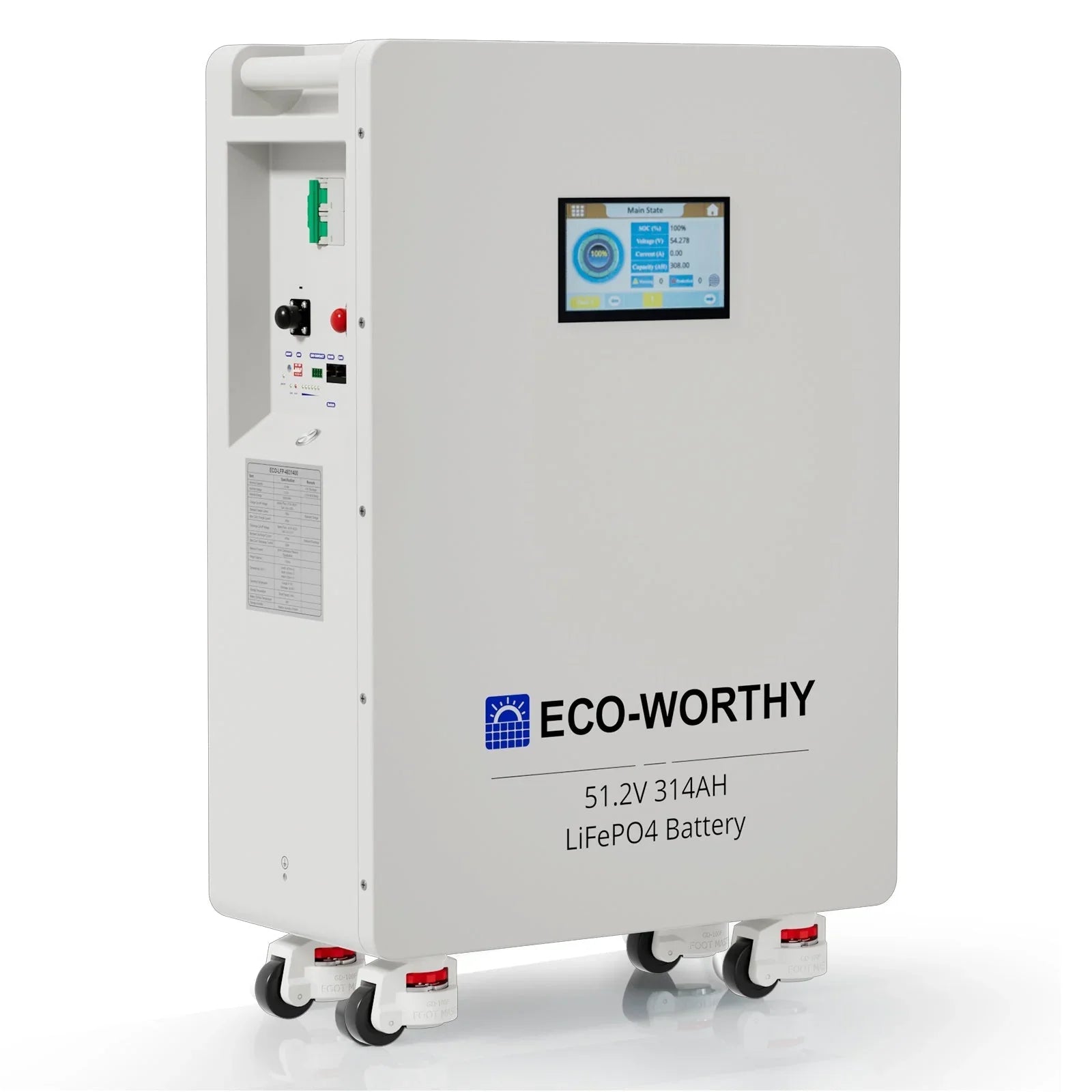

ECO-WORTHY 51.2V 314Ah LiFePO4 Home Backup Battery
| Battery Capacity: 314Ah | Battery Power: 16.08kWh |
| Rated Voltage: 51.2V | Voltage Range: 40~58.4V |
| Maximum Charge/ Discharge Current: 200A | Charge Temperature Range: 0-55℃ |
| Disharge Temperature Range:﹣20－55℃ | Maximum Charge Voltage: 58.4V |
|
|
Battery Size: 32.56*20.47*9.92in/80.7*52*25.2cm |

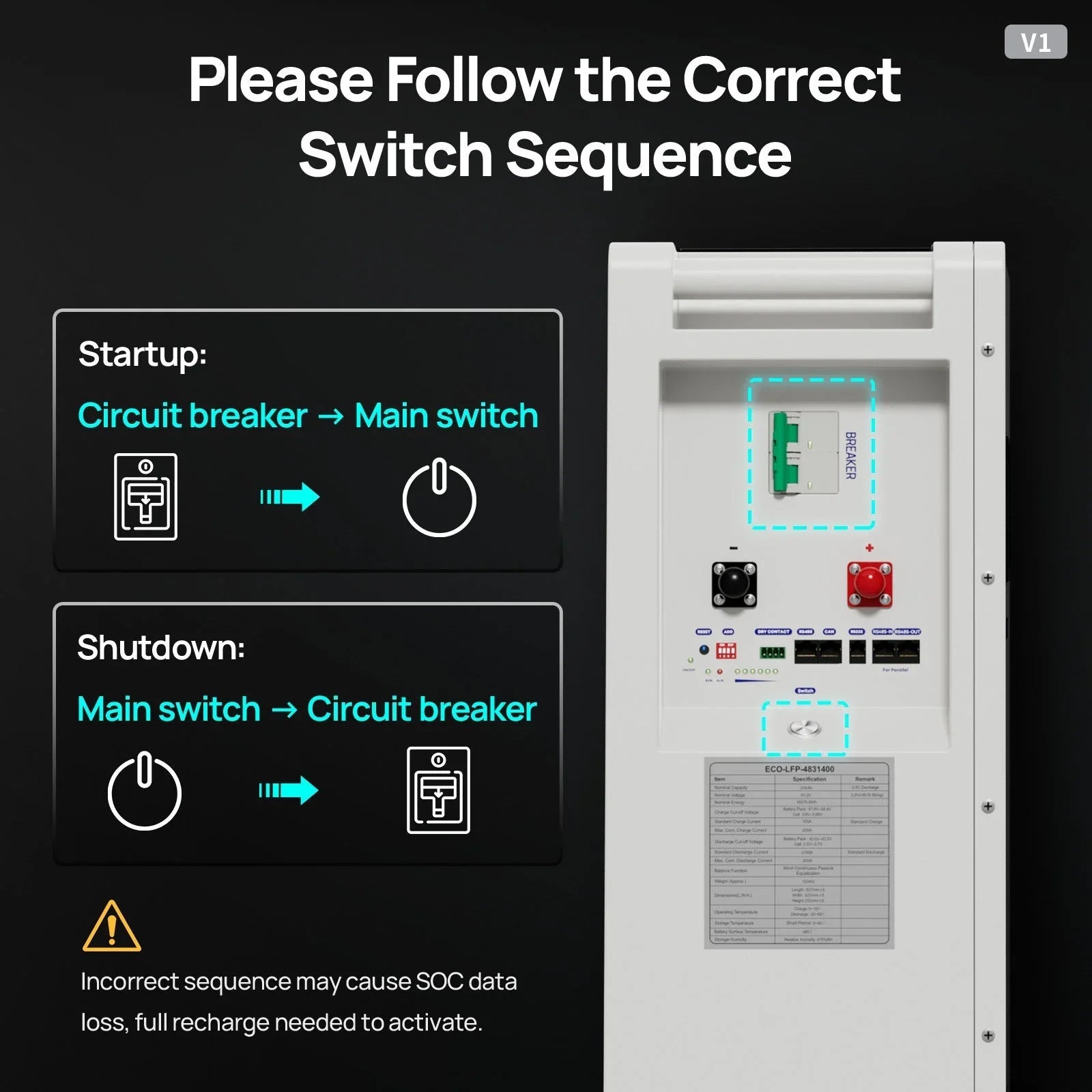

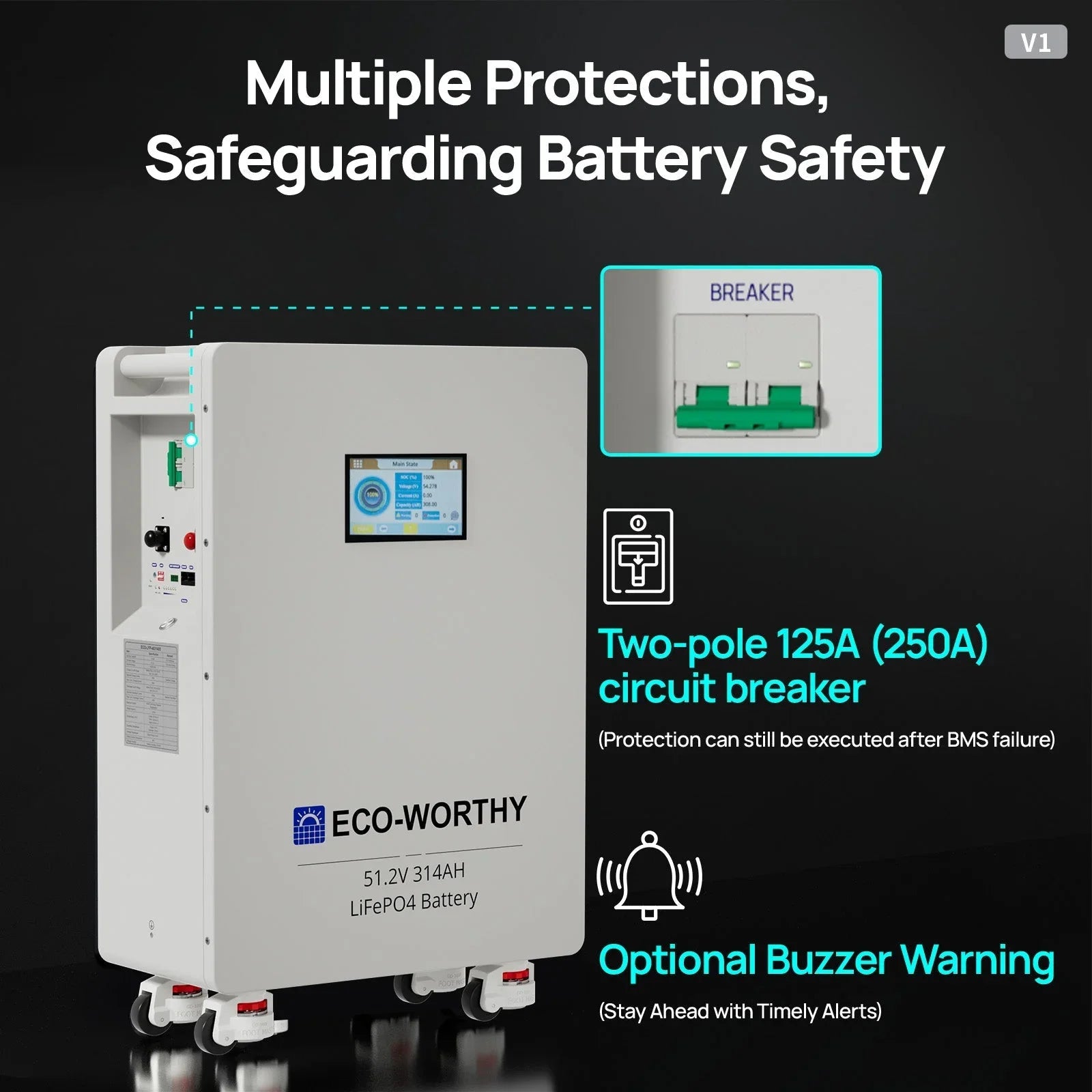

| Circuit Breaker:2*125A(250A) |

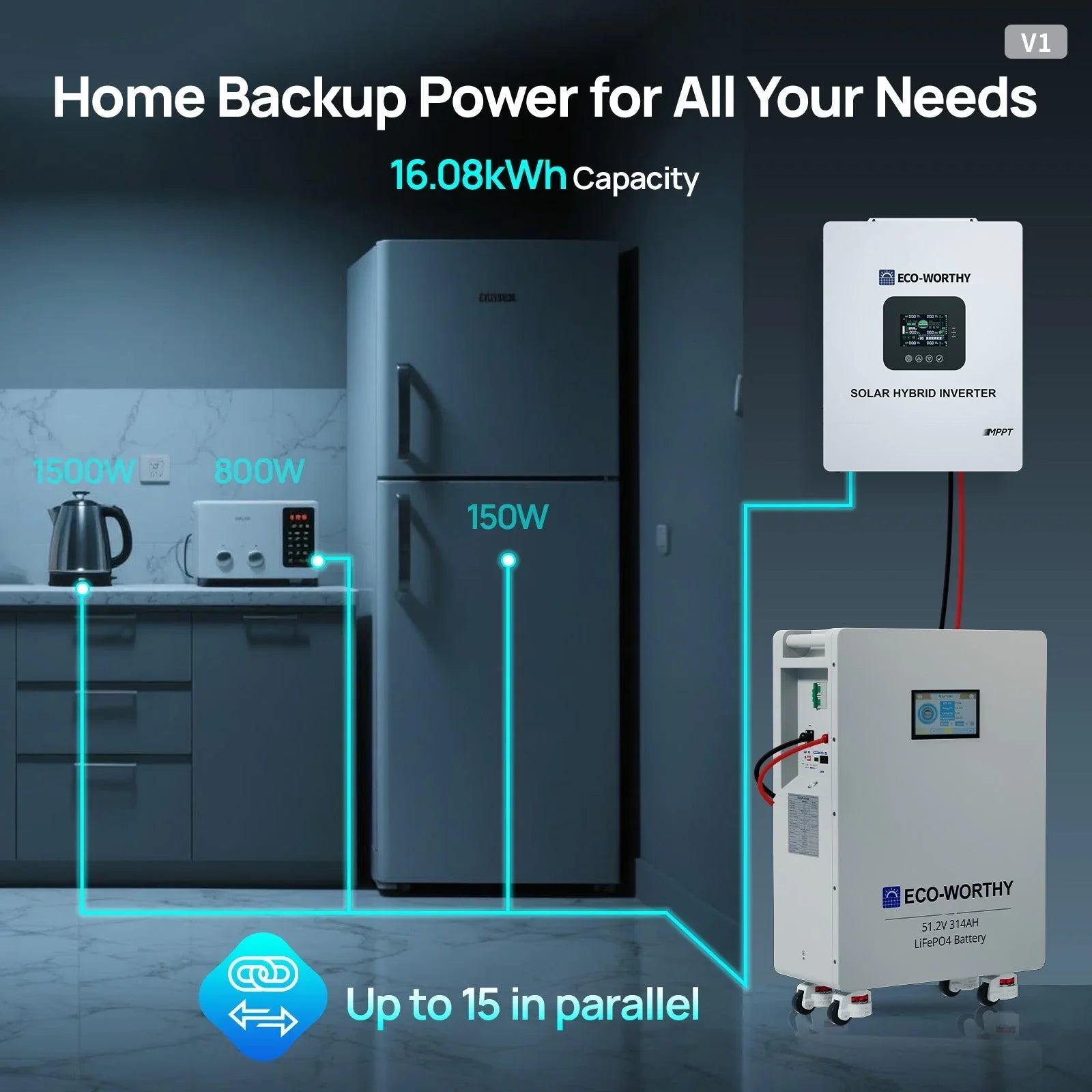

Max. parallel number:15pcs
|

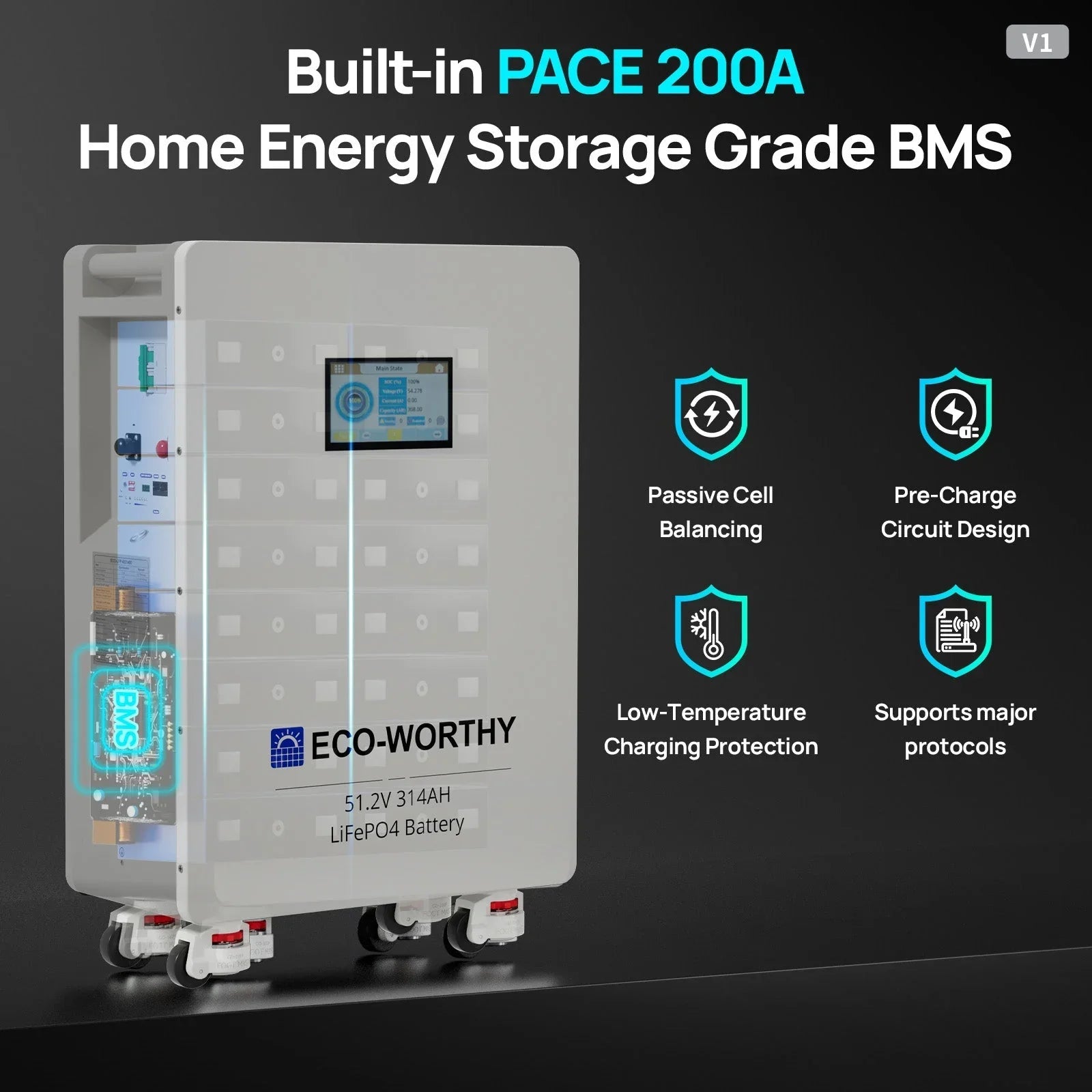

| BMS Brand：PACE BMS |
Package included:
1 x 51.2v 314ah battery
1 x 51.2v 314ah battery battery manual
1 x Battery to Inverter communication cable(1500mm)
1 Pair Of Battery to Inverter cable(2AWG 1500mm Black&Red)

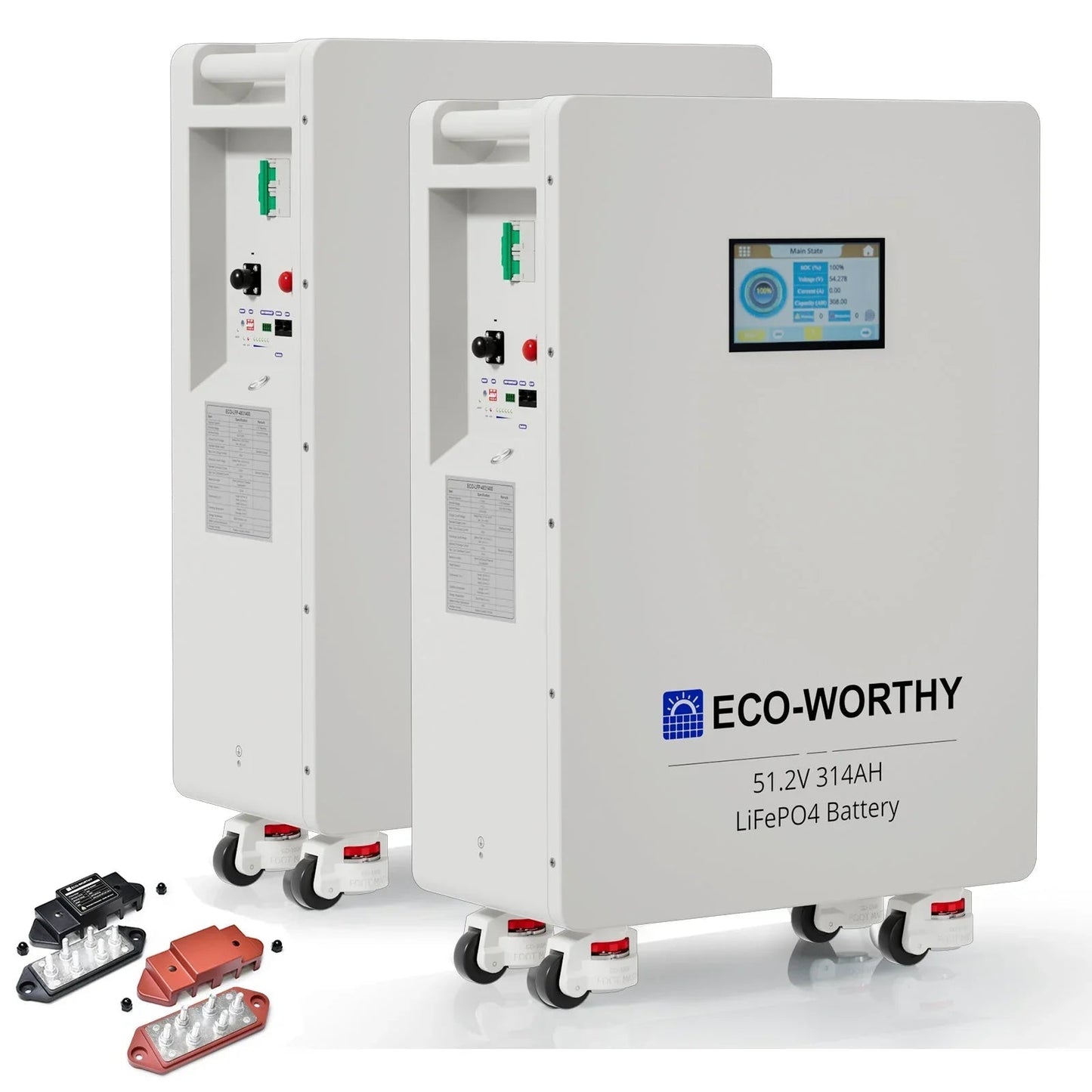

# Buy 2 packs of batteries，get a free 400A busbar
When the total power of your inverter exceeds 10KW but is less than 30KW, use a 400A busbar to parallel the batteries to ensure the safety of your energy storage system under maximum power performance.
