Eco-Worthy 2340W 48V (12×195W) Complete MPPT Off-Grid Solar Kit | 5kW Inverter + 48V 100Ah Rack Battery
The Eco-Worthy 2340W 48V Complete MPPT Off-Grid Solar Kit is a high-performance, all-in-one solar solution designed for homes, cabins, workshops, and remote properties. Featuring 12 high-efficiency 195W monocrystalline solar panels, a 5000W 48V split-phase off-grid inverter charger, and a 48V 100Ah Rack LiFePO₄ lithium battery, this kit delivers reliable, clean, and renewable energy for off-grid, backup, or hybrid solar systems.
Equipped with advanced MPPT solar charging technology, pure sine wave inverter output, and modular lithium battery storage, this Eco-Worthy solar kit provides efficient, stable, and scalable power for appliances, electronics, and critical loads. All necessary cables, connectors, and mounting hardware are included for fast installation.

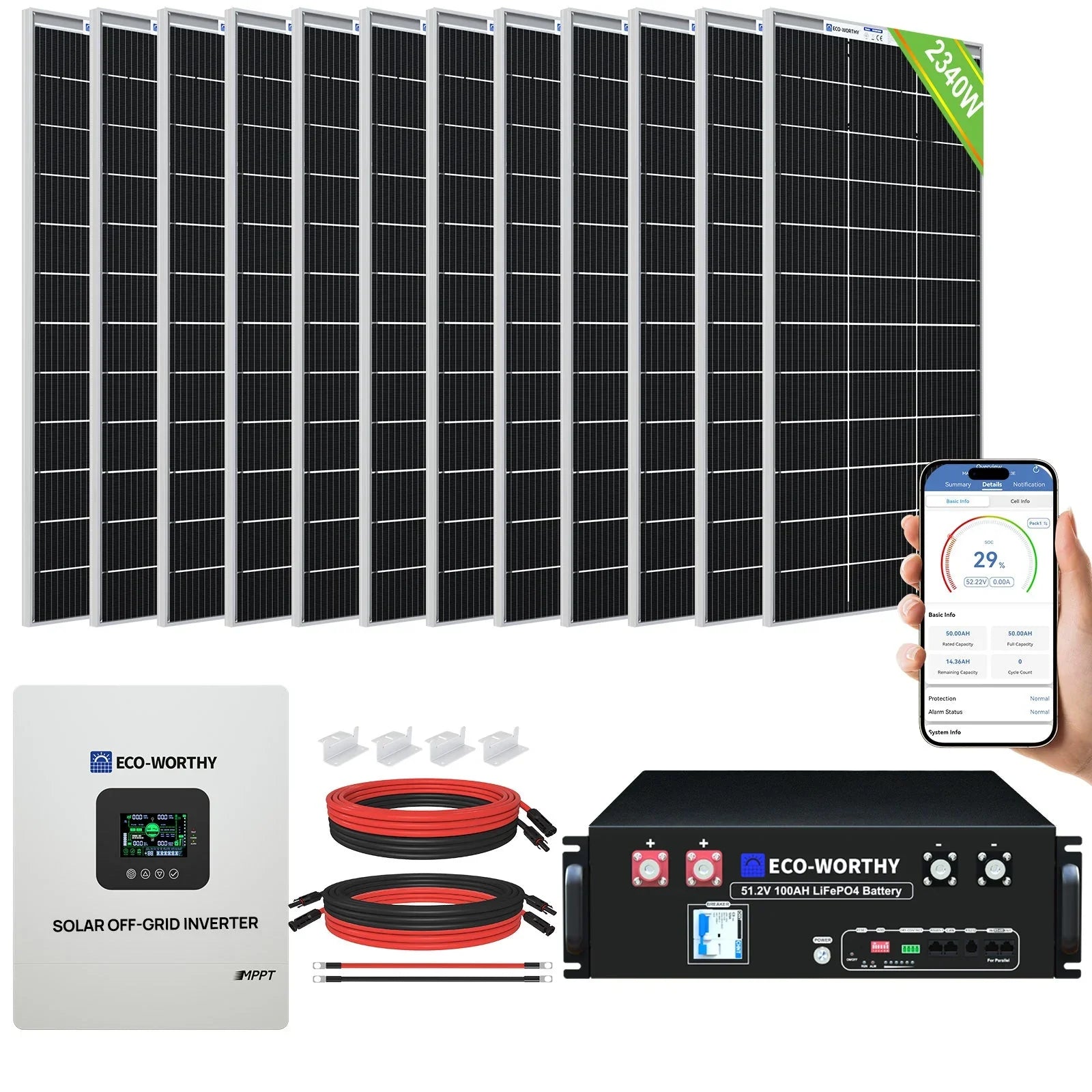

Package Includes
-
12× 195W Monocrystalline Solar Panels
-
1× 5000W 48V Off-Grid Inverter Charger
-
1× 5M 8AWG Extension Cable with MC4
-
1× 5M 12AWG Solar Cable with MC4
-
12× Z Mounting Brackets with stainless steel nuts and cap bolts
-
1× 48V 100Ah Rack LiFePO₄ Lithium Battery
-
16.4 ft (5m) 12AWG Solar Cables for panel connection

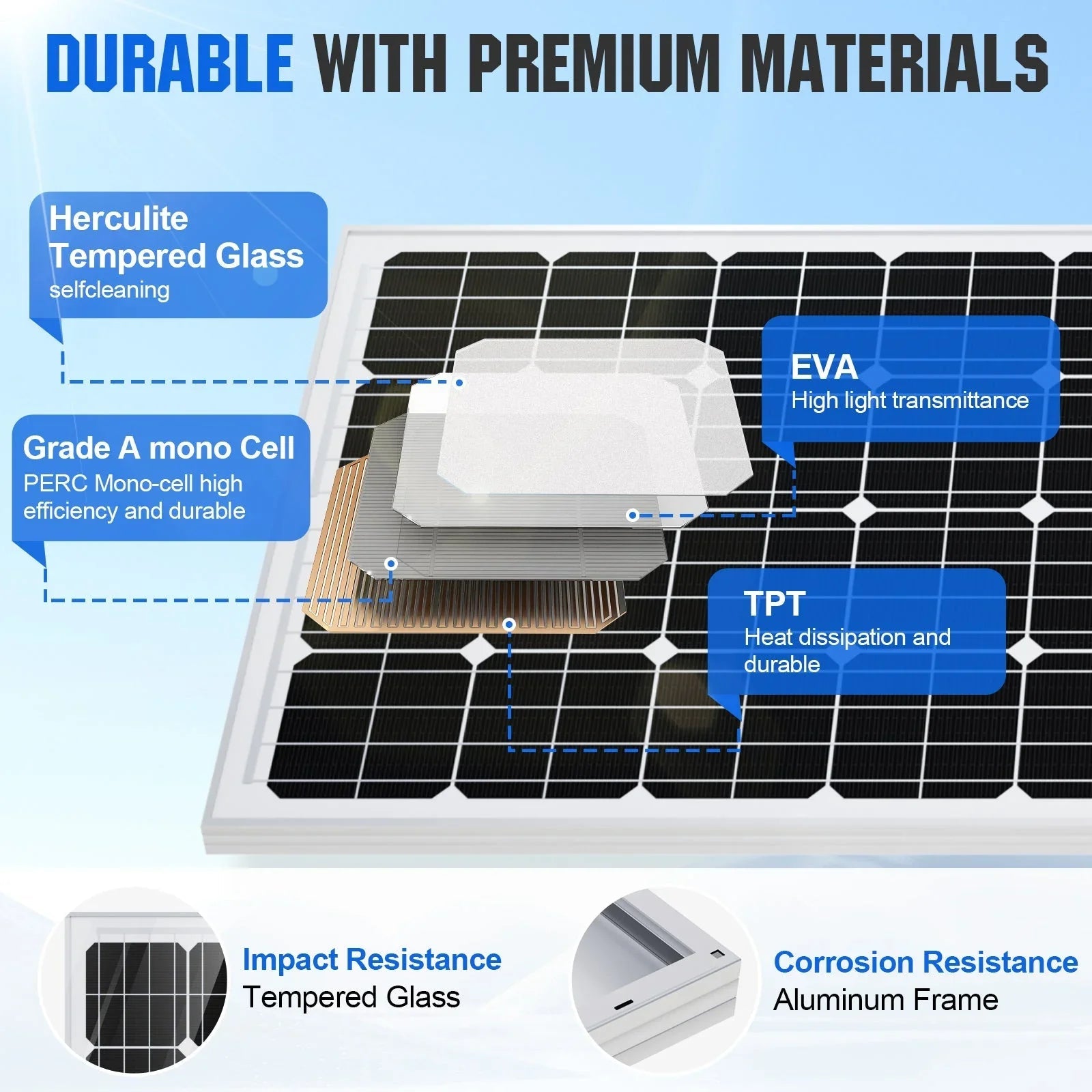

Eco-Worthy 195W Monocrystalline Solar Panel Specifications
-
Rated Power: 195W
-
Solar Cell Type: Monocrystalline
-
Maximum Power Voltage (Vmp): 20.2V
-
Open Circuit Voltage (Voc): 24.5V
-
Short Circuit Current (Isc): 10.14A
-
Maximum Current (Imp): 9.65A
-
Output Tolerance: ±3%
-
Temperature Coefficient of Isc: 0.10 ±0.01%/°C
-
Temperature Coefficient of Voc: –0.38 ±0.01%/°C
-
Operating Temperature Range: –40°C to +85°C
-
Frame: Aluminum Alloy
-
Dimensions: 52.6 × 26.38 × 1.38 in (1335 × 670 × 35 mm)
-
Weight: 20.48 lbs (9.29 kg)

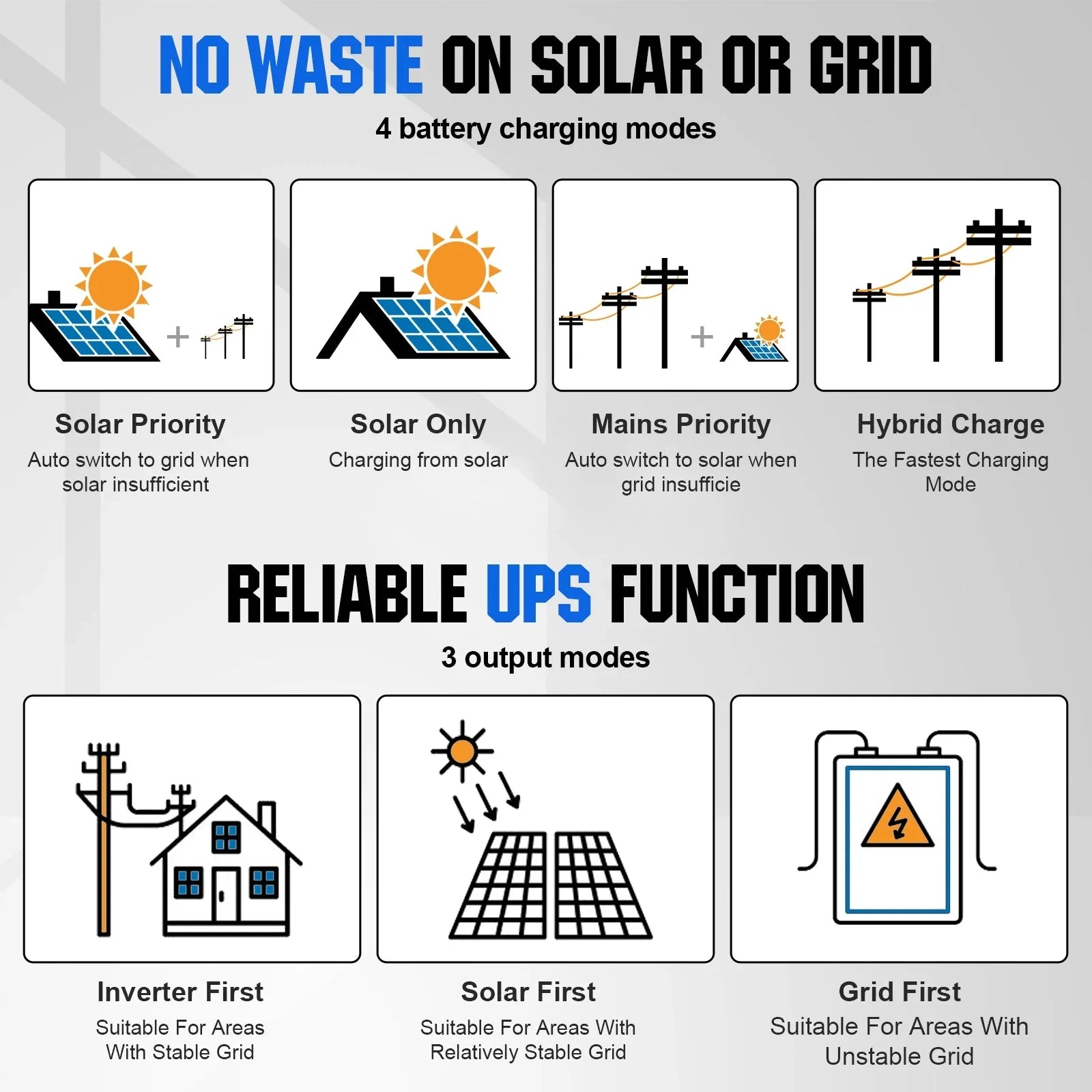

Eco-Worthy 5000W 48V Split-Phase Off-Grid Inverter Charger
Solar Charging Mode
-
PV Charging Current: 100A
-
MPPT Voltage Range: 120–450VDC
-
Max Solar Input Power: 5500W
-
Battery Voltage Range: 40–60VDC
Inverter Mode
-
Output Waveform: Pure Sine Wave
-
Rated Output Power: 5000W
-
Rated Output Voltage: 110V/120V AC, 50Hz/60Hz
-
Rated Battery Input Voltage: 48V
-
Peak Power: 10,000W

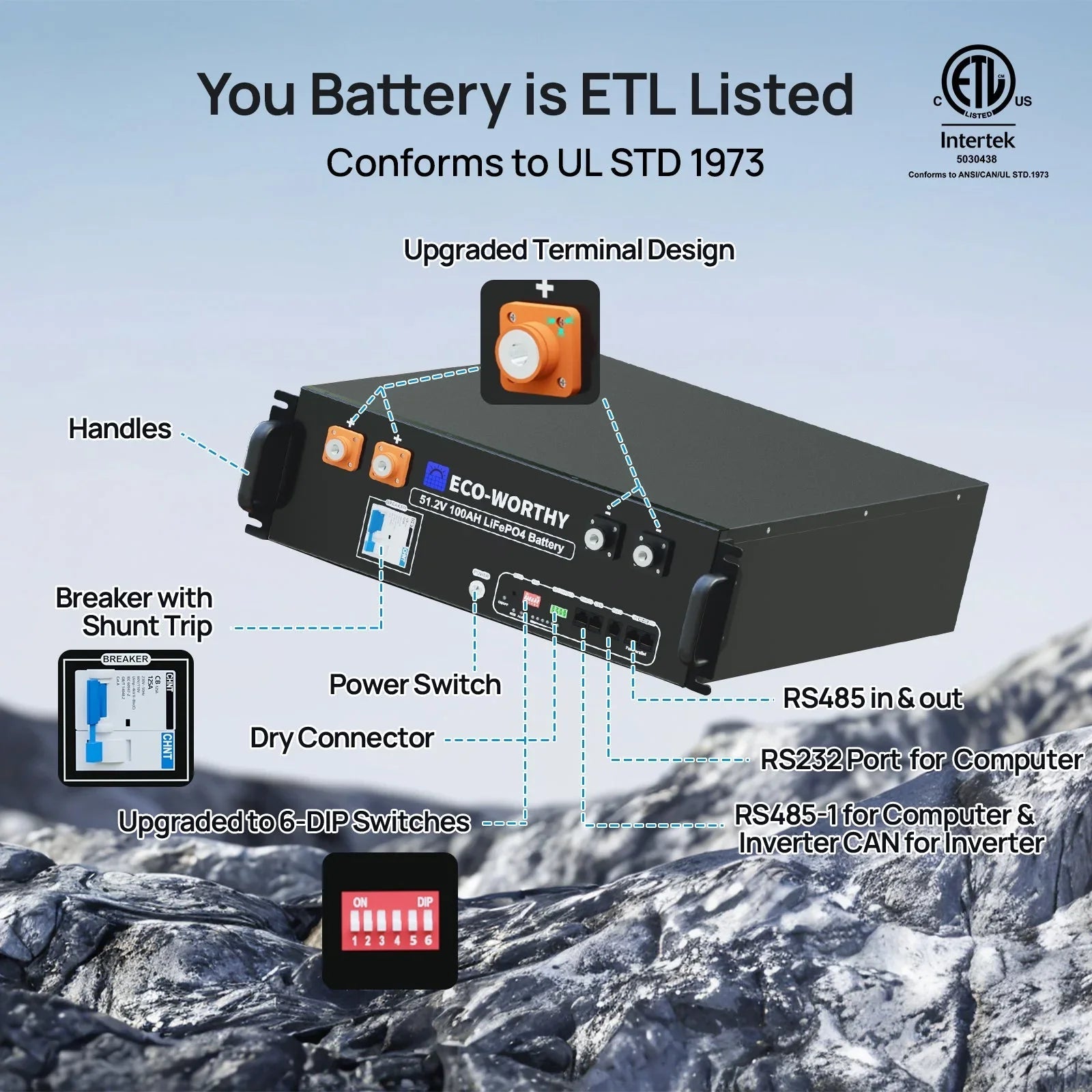

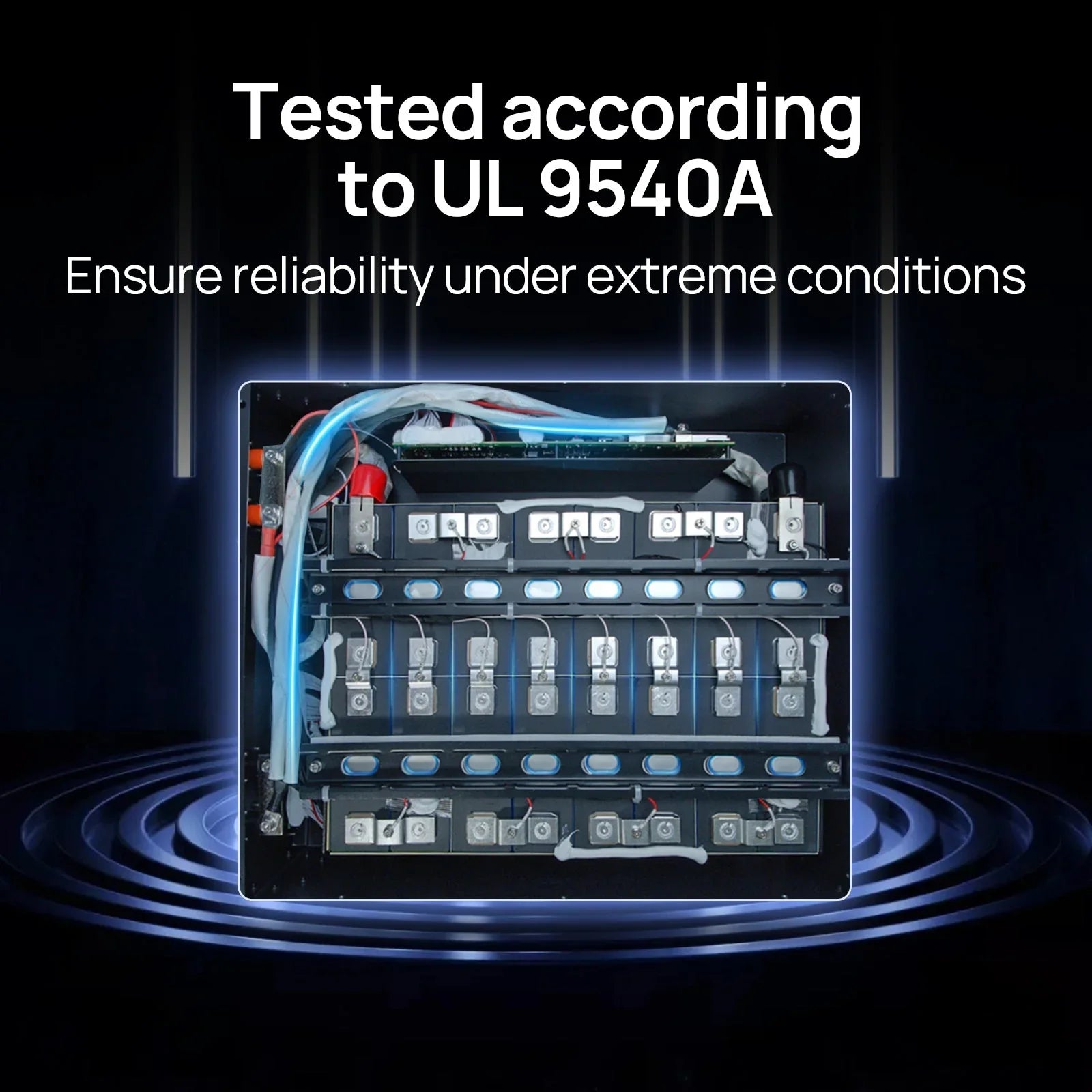

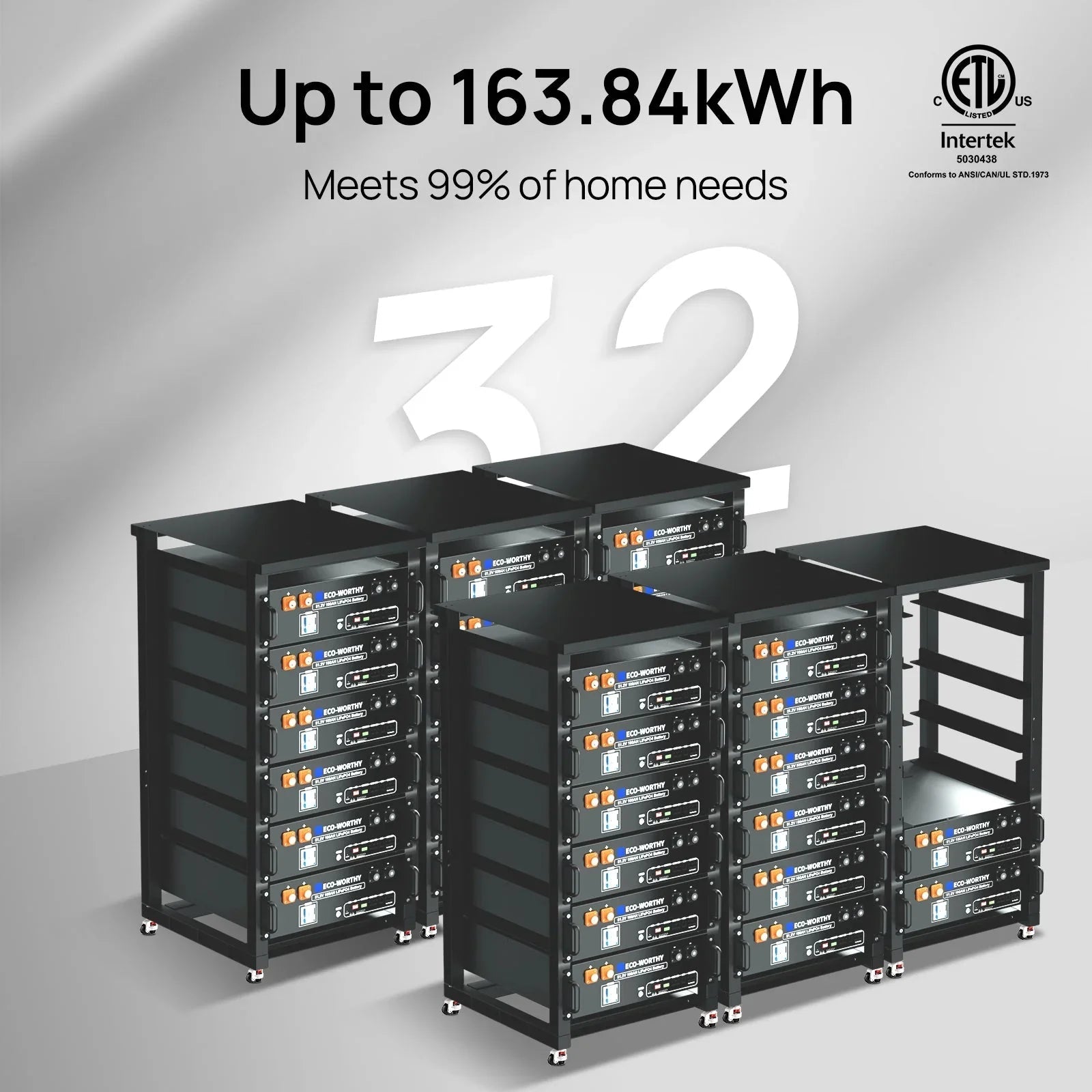

Eco-Worthy 48V 100Ah Rack LiFePO₄ Lithium Battery
-
Battery Capacity: 100Ah
-

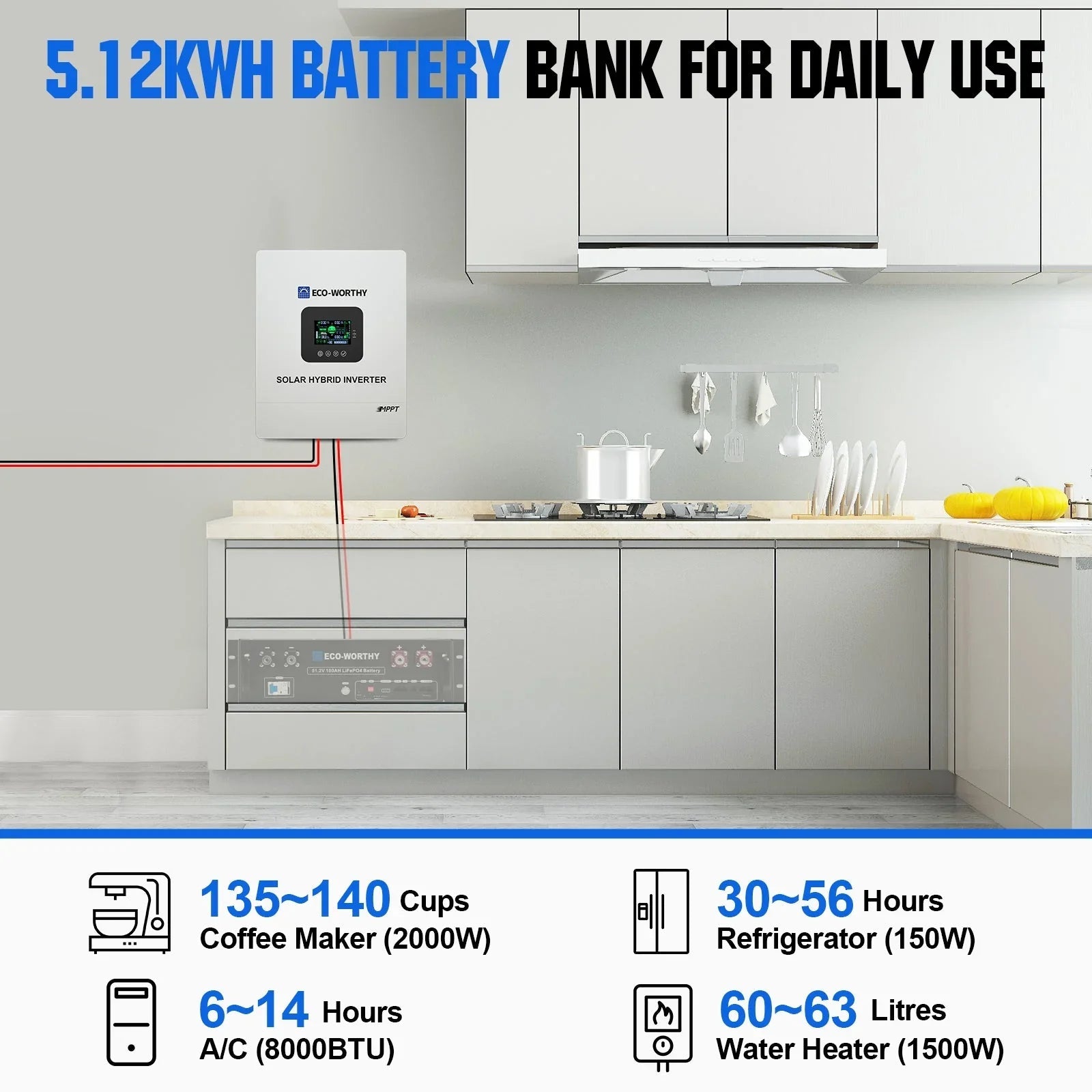

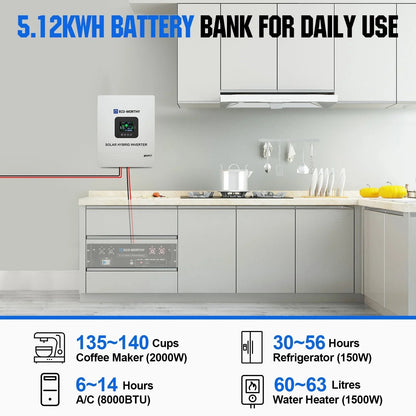

Energy: 5120Wh
-
Rated Voltage: 51.2V
-
Voltage Range: 40–58V
-
Max Charge/Discharge Current: 100A
-
Max Charge Voltage: 58.4V
-
Charge Temperature Range: 0–55°C
-
Discharge Temperature Range: –20–55°C
-
Dimensions: 22.55 × 17.13 × 5.63 in
-
Weight: 97 lbs
Solar Cables & Mounting Hardware
-
16.4 ft (5m) 12AWG solar cables with MC4 connectors
-
12× Z Mounting Brackets with stainless steel nuts and cap bolts
-
Tinned copper wire, IP65 waterproof, –40°F to +185°F
