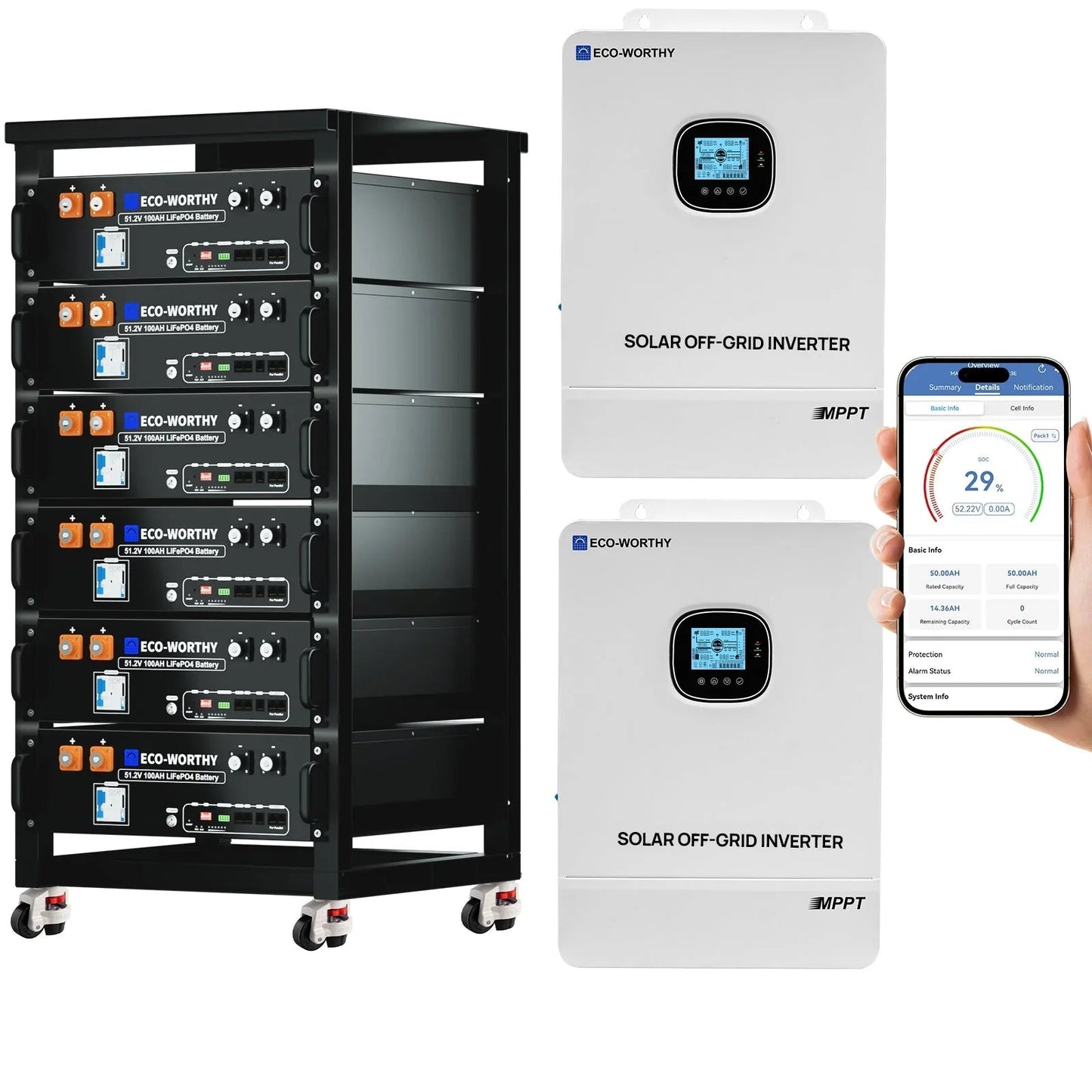

Eco-Worthy 20.48kWh / 30.72kWh Home Backup Power System | 48V 100Ah LiFePO₄ Batteries + 10kW Off-Grid Inverter

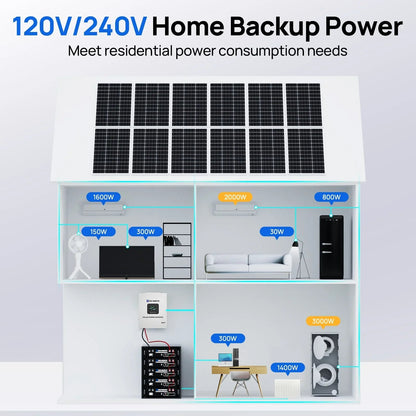

The Eco-Worthy Home Backup Power System is a high-capacity, all-in-one solution for off-grid homes, cabins, workshops, and emergency backup needs. Available in 20.48kWh and 30.72kWh configurations, this system combines multiple 48V 100Ah LiFePO₄ server rack batteries with 10kW 48V off-grid inverters, providing reliable, clean, and stable power for high-demand appliances, tools, and home electronics.

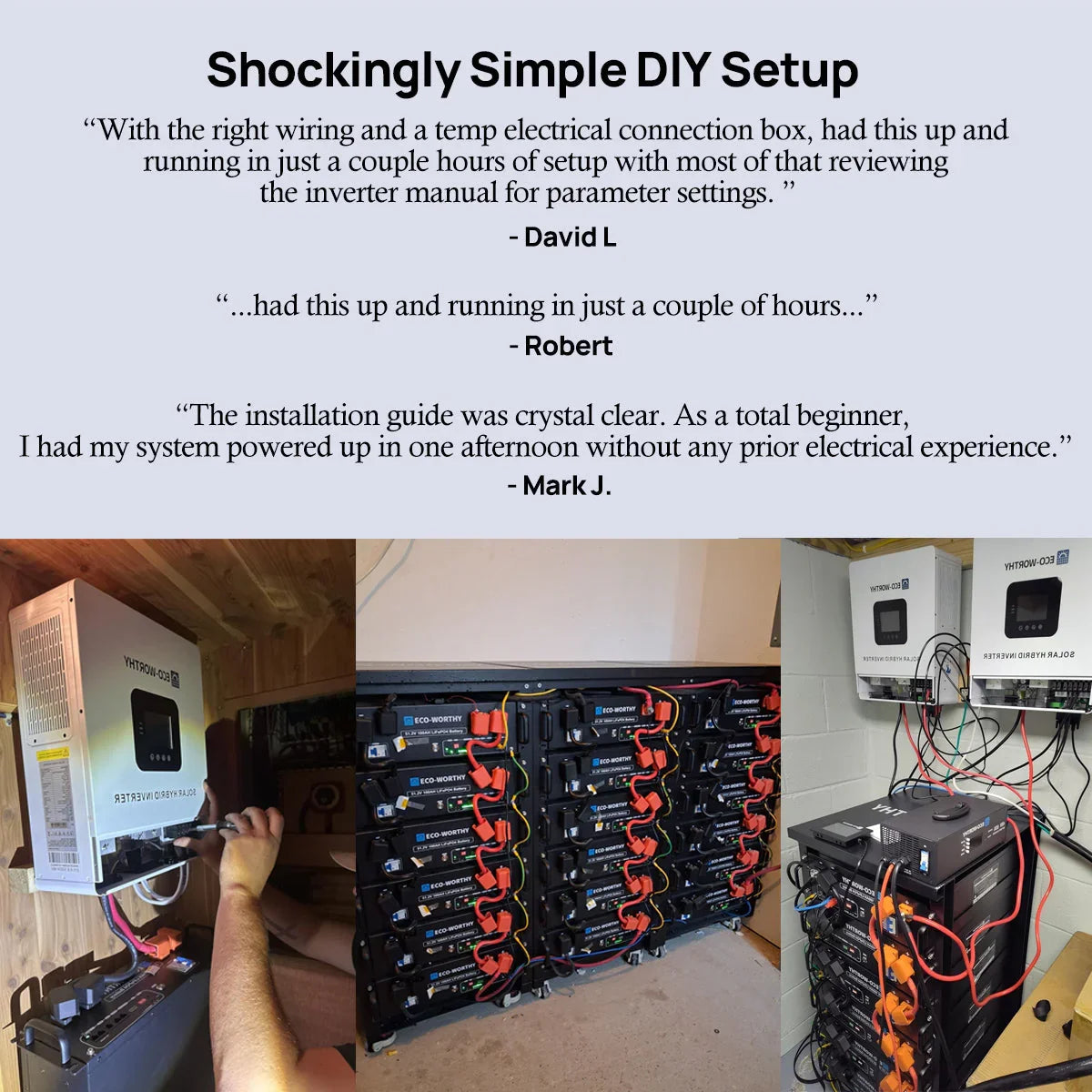

Engineered for efficiency and scalability, the system includes advanced MPPT solar charging, split-phase inverter output, and expandable battery racks for long-term energy storage. All required cables, connectors, and mounting accessories are included, making installation straightforward and convenient.
Package Options

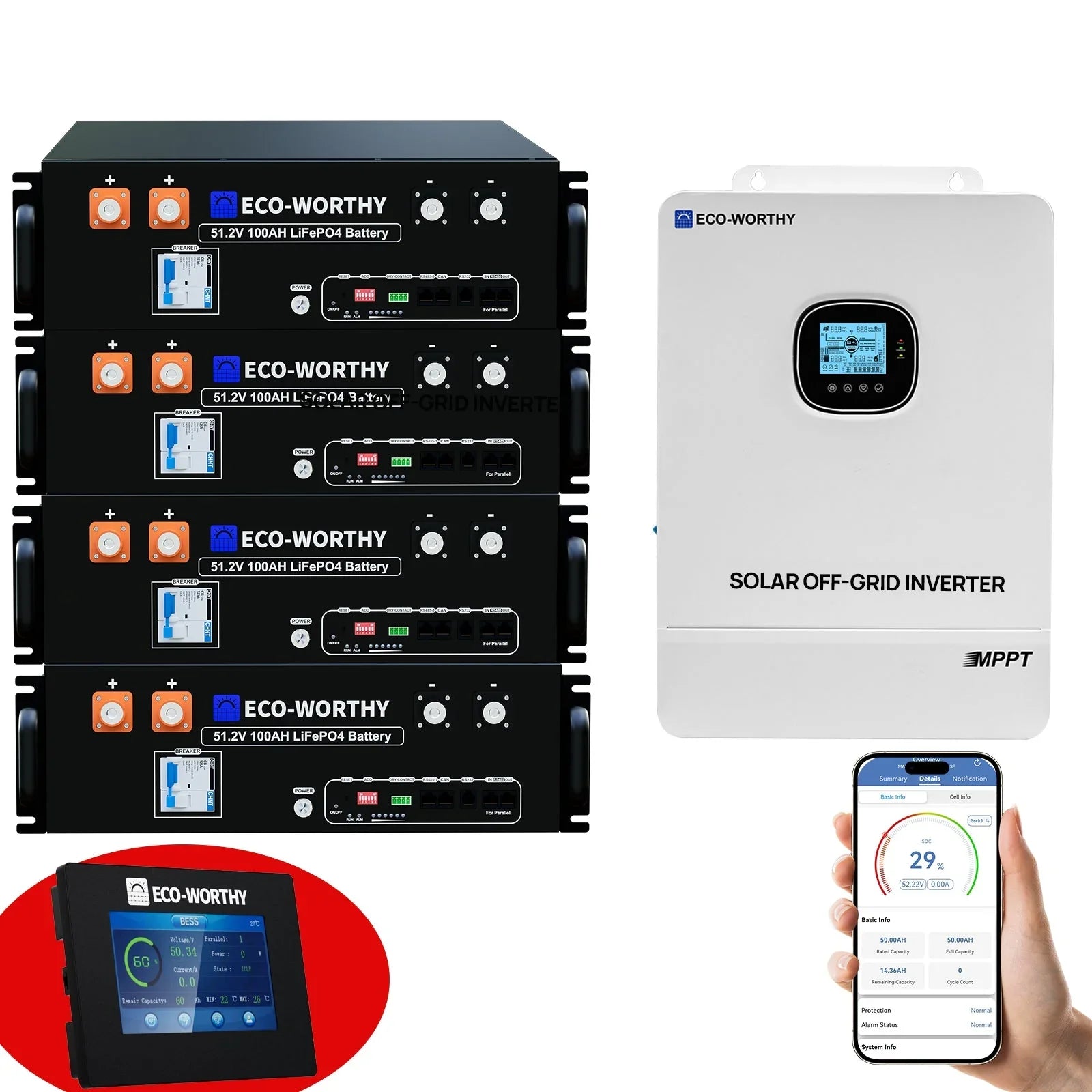

20.48kWh System – 10kW AIO Inverter
-
4× 48V 100Ah Server Rack LiFePO₄ Batteries
-
1× 10kW Off-Grid Inverter
-
1× Pair Battery-to-Inverter Connection Cable
-
4× Pairs Battery Parallel Cables
30.72kWh System – 20kW AIO Inverter
-
6× 48V 100Ah Server Rack LiFePO₄ Batteries
-
2× 10kW Off-Grid Inverters
-

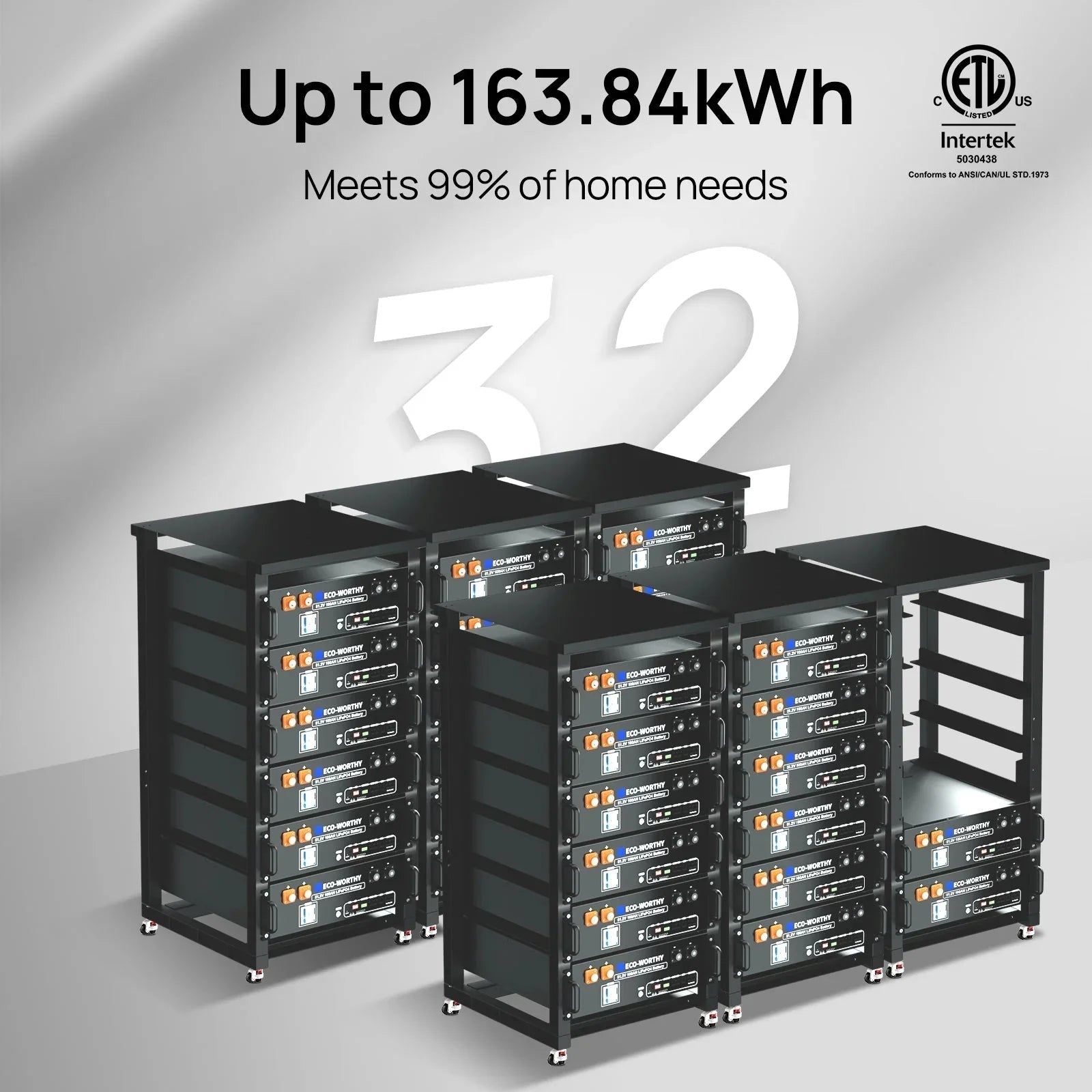

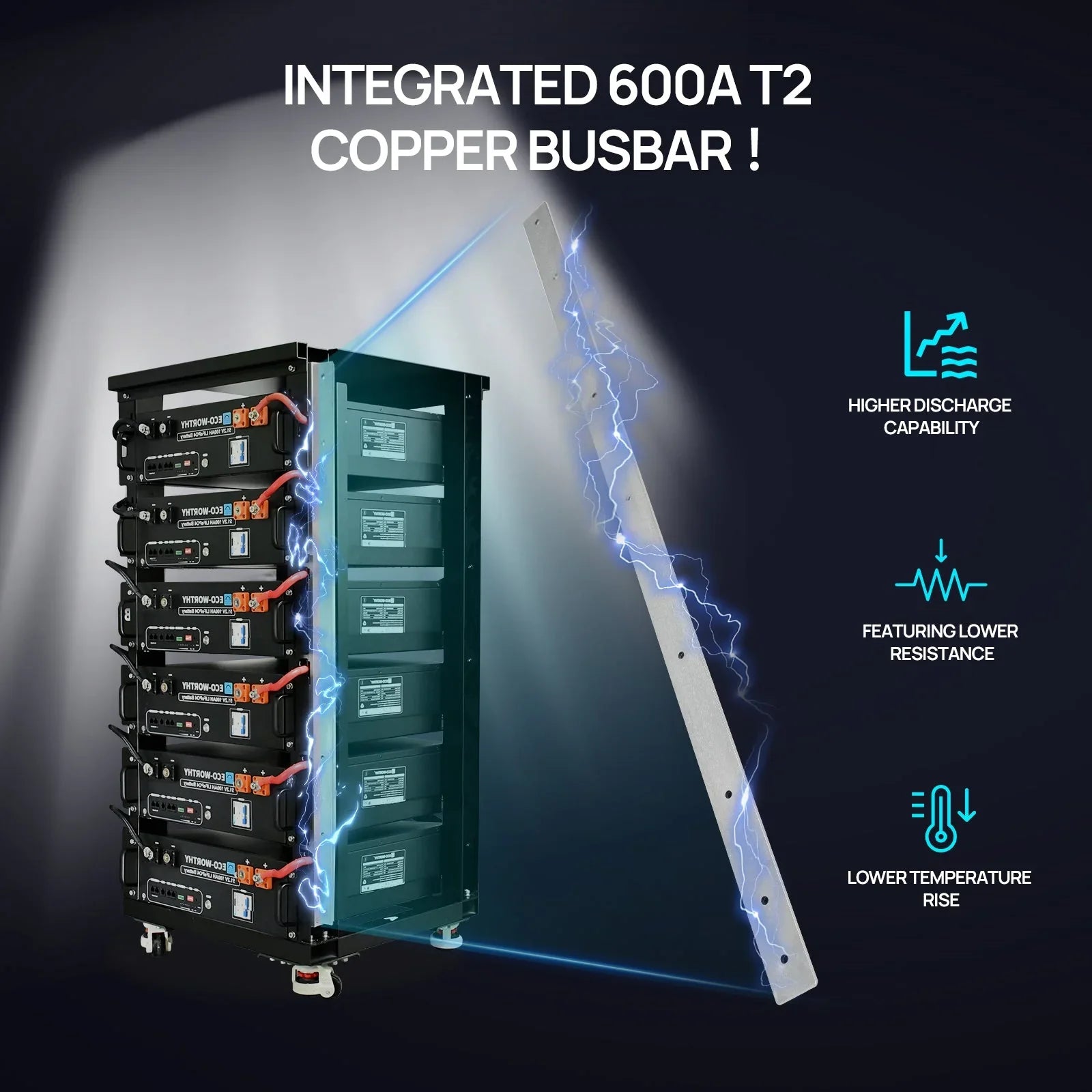

1× ECO-WORTHY RACK6 V2 6-Layer Rack with 600A Busbar
-
2× Pairs Battery-to-Inverter Connection Cable
-
6× Pairs Battery Parallel Cables
Special Offers: Buy 4 packs to get an ESM100 Battery Monitor, buy 6 packs to get a 6-layer battery rack.

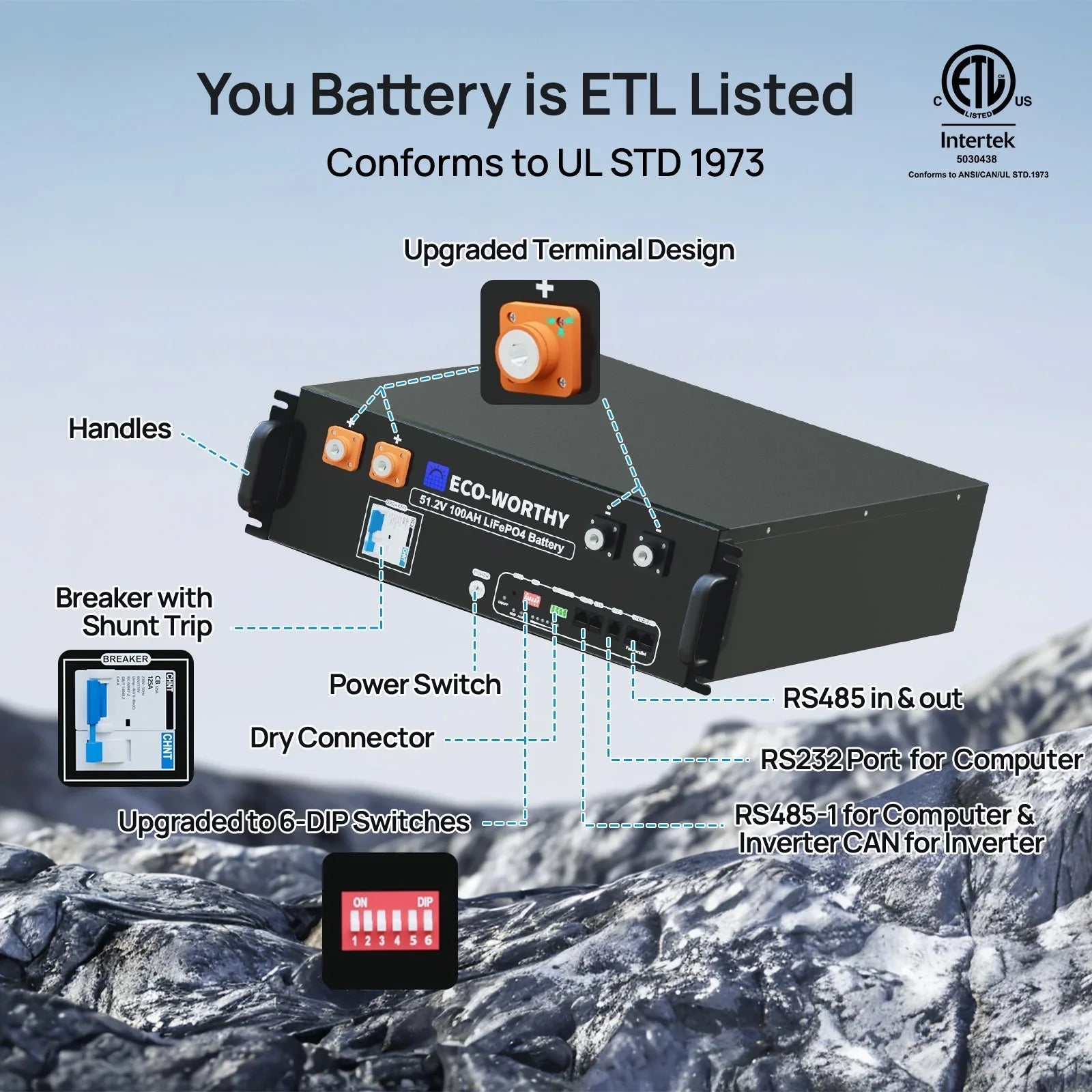

Eco-Worthy 48V 100Ah Server Rack LiFePO₄ Battery Specifications
-
Battery Capacity: 100Ah
-
Energy: 5120Wh
-
Rated Voltage: 51.2V
-
Voltage Range: 40–58V
-
Max Charge/Discharge Current: 100A
-
Max Charge Voltage: 58.4V
-
Charge Temperature Range: 0–55°C
-
Discharge Temperature Range: –20–55°C
-
Screw Size: M8
-
Dimensions: 22.55 × 17.13 × 5.63 in
-
Weight: 97 lbs
-

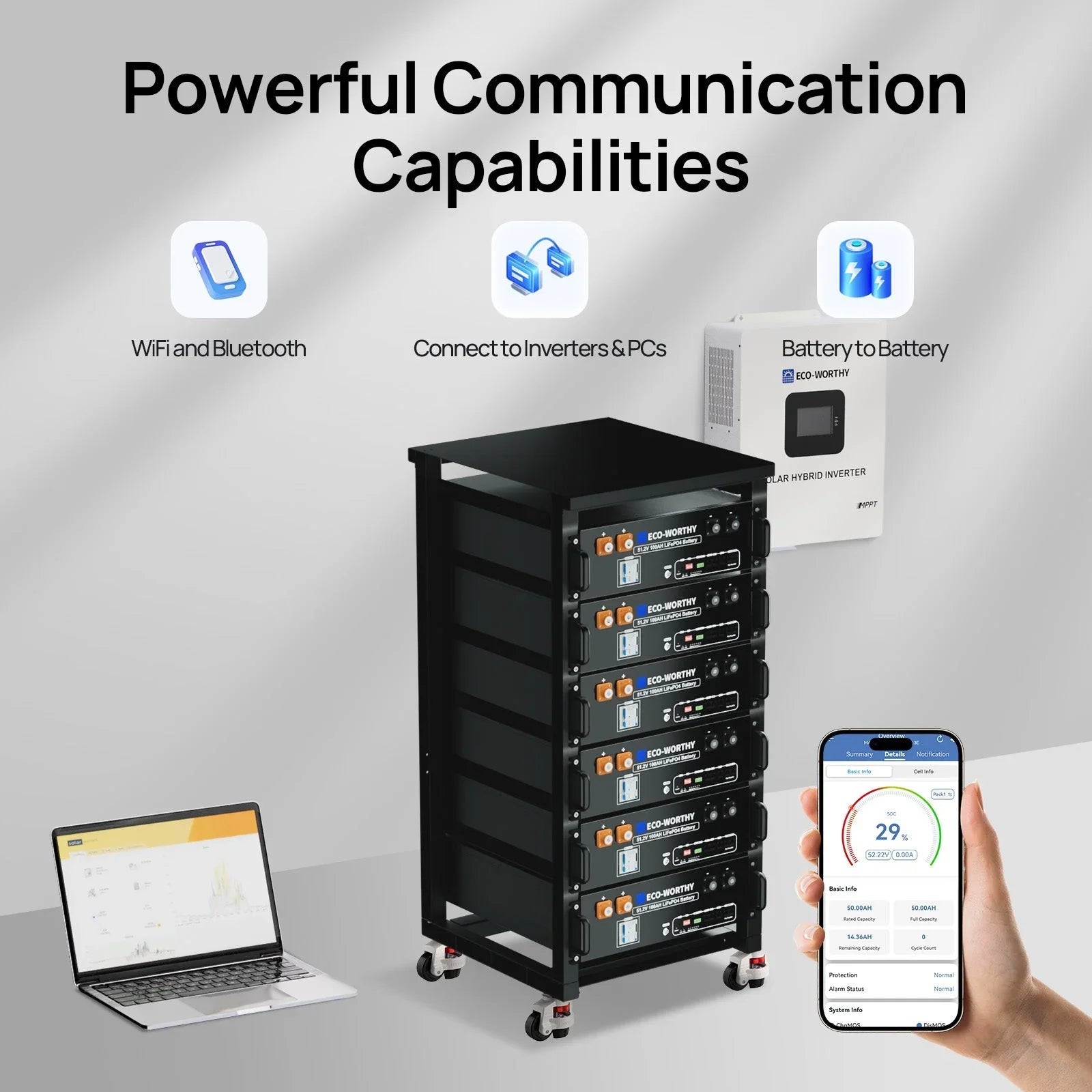

Each battery comes with parallel cables, screws, terminal cover, grounding wire, and battery-to-battery communication cable

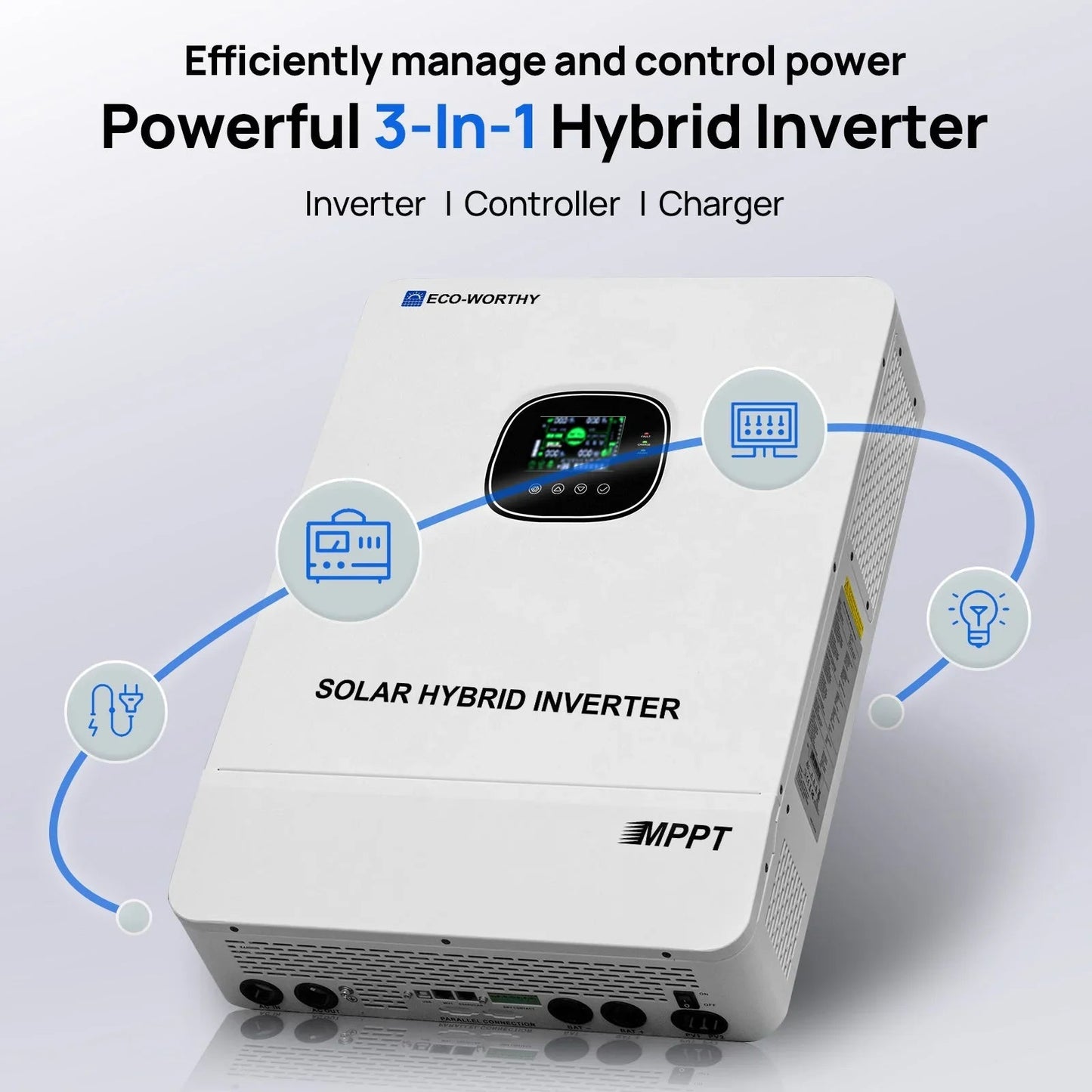

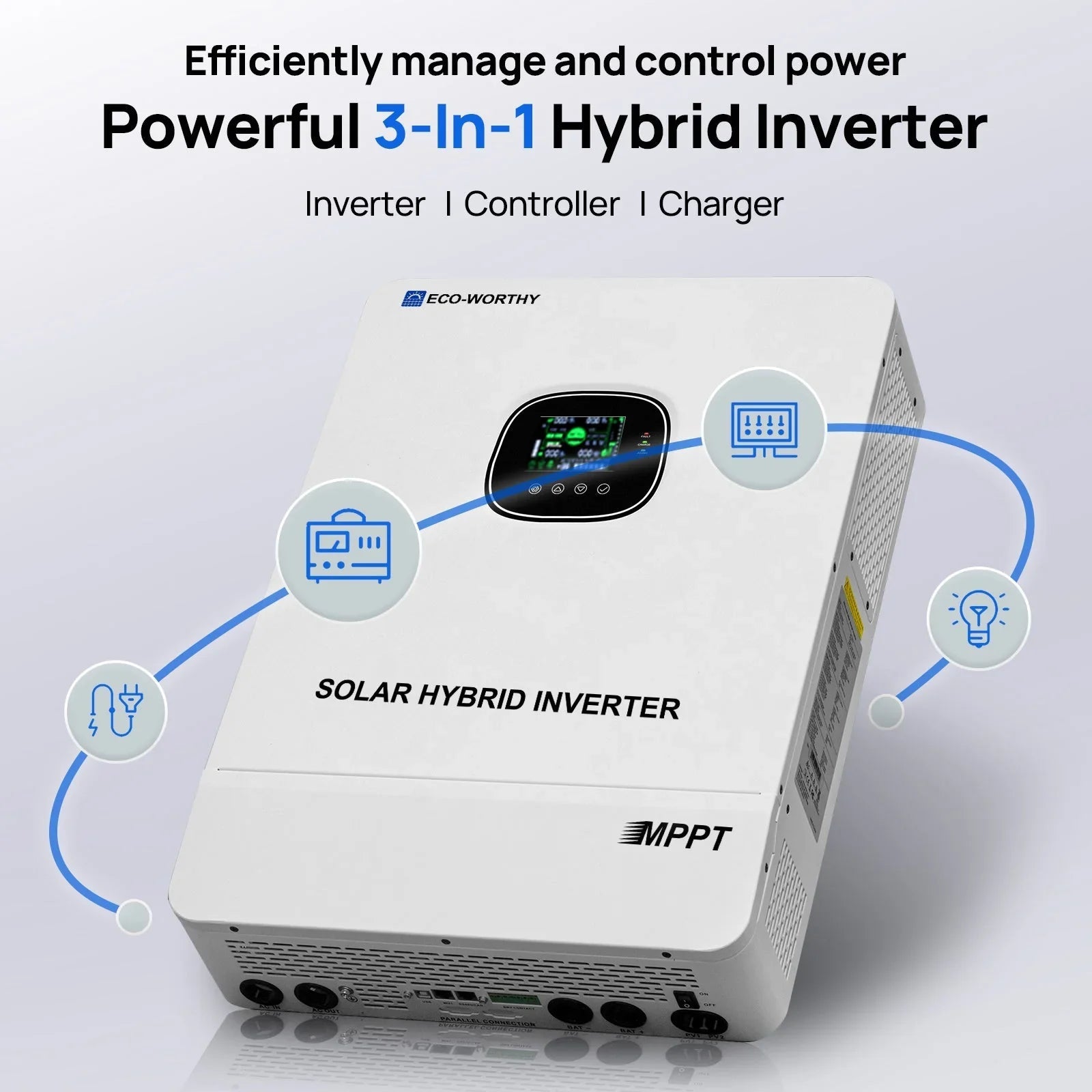

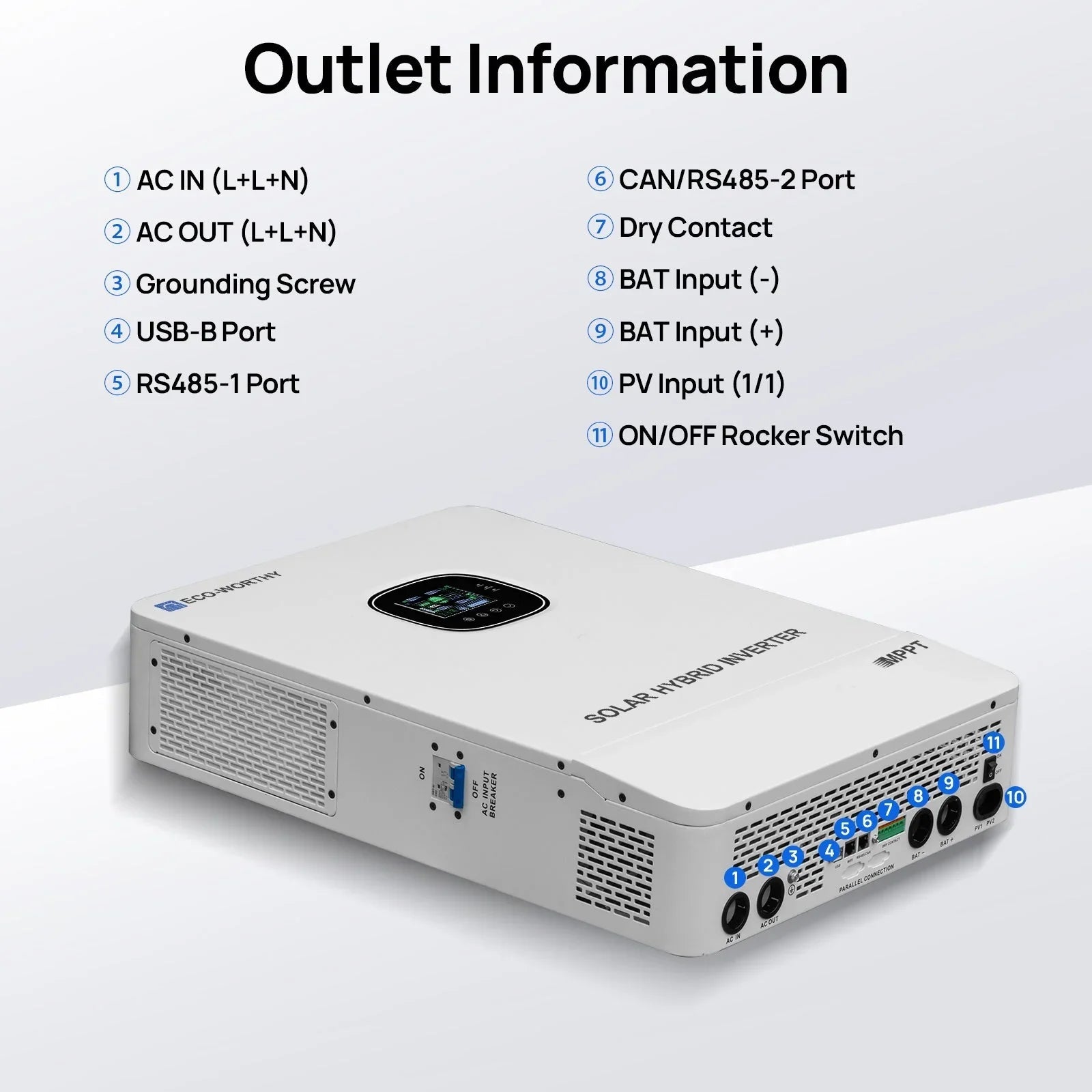

Eco-Worthy 10kW 48V Off-Grid Inverter Specifications
-
Output: Split Phase L1/L2/N/PE or Single Phase
-
Rated Output Power: 10,000W
-
Peak Output Power: 10,000W
-
Output Voltage: 120V AC (per phase)
-
Output Current: 83.3A
-
Frequency: 50Hz / 60Hz
-
AC Input Voltage Range: 90–140V
-
Max AC Charge Current: 126A
-
Battery Input Voltage: 48V DC (40–60V)
-
Max Battery Discharge Current: 220A
-
Max Battery Charge Current: 200A
-
Number of PV Circuits: 2
-
PV Input Voltage Range: 100–500V DC
-
MPPT Input Range: 125–425V DC
-
Max PV Input Current: 22A + 22A
-
Max PV Input Power: 5500W + 5500W
-
Max PV Charge to Battery Current: 200A
-
IP Rating: IP20
This Eco-Worthy Home Backup Power System delivers scalable, reliable, and high-capacity off-grid energy storage and power conversion for residential, commercial, and emergency applications.
