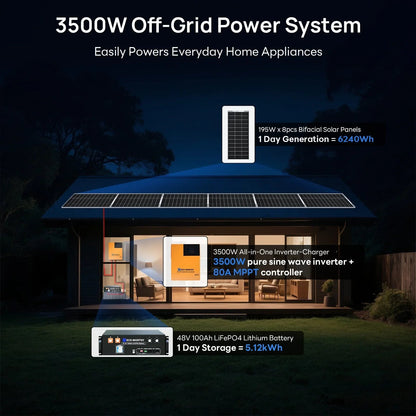

The Eco-Worthy 1560W 48V Complete Off-Grid Solar Kit is a comprehensive solar solution for homes, cabins, workshops, and remote properties. Combining 8 high-efficiency 195W monocrystalline solar panels, a 3.5kW 48V All-in-One Inverter, and a 48V 100Ah server rack lithium battery, this kit delivers reliable, clean, and renewable energy for off-grid and backup power applications.

Designed for easy installation and maximum efficiency, the kit includes all necessary cables, connectors, and components to get your solar power system up and running quickly. With advanced MPPT charging, pure sine wave inverter output, and expandable battery storage, this Eco-Worthy solar kit is ideal for powering appliances, electronics, and critical loads off-grid.

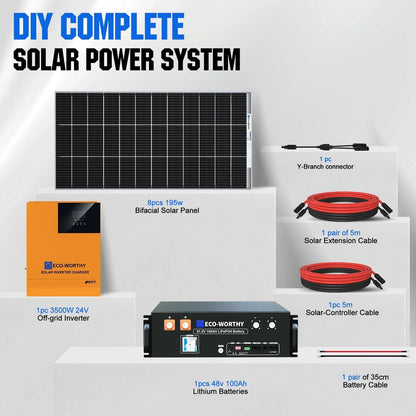

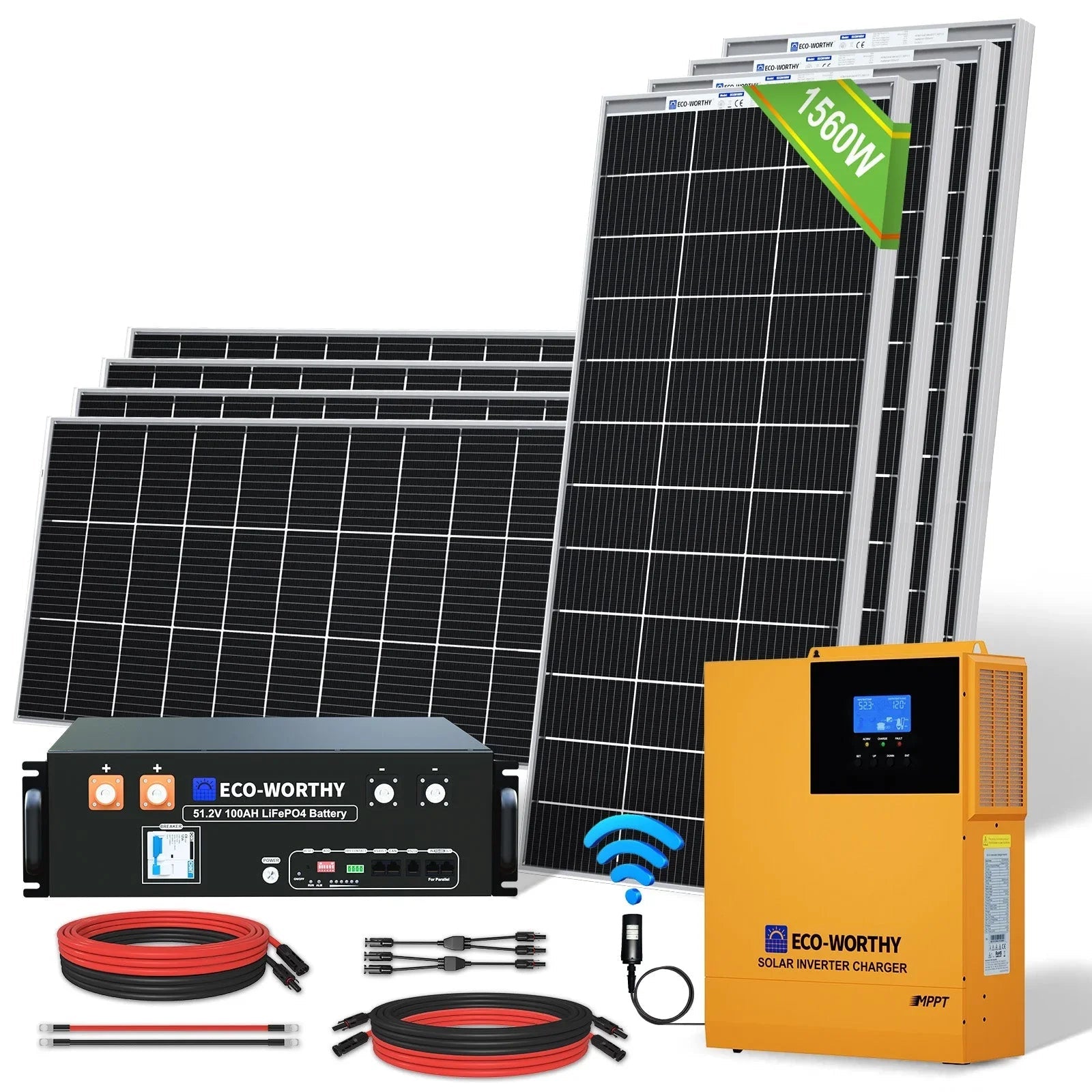

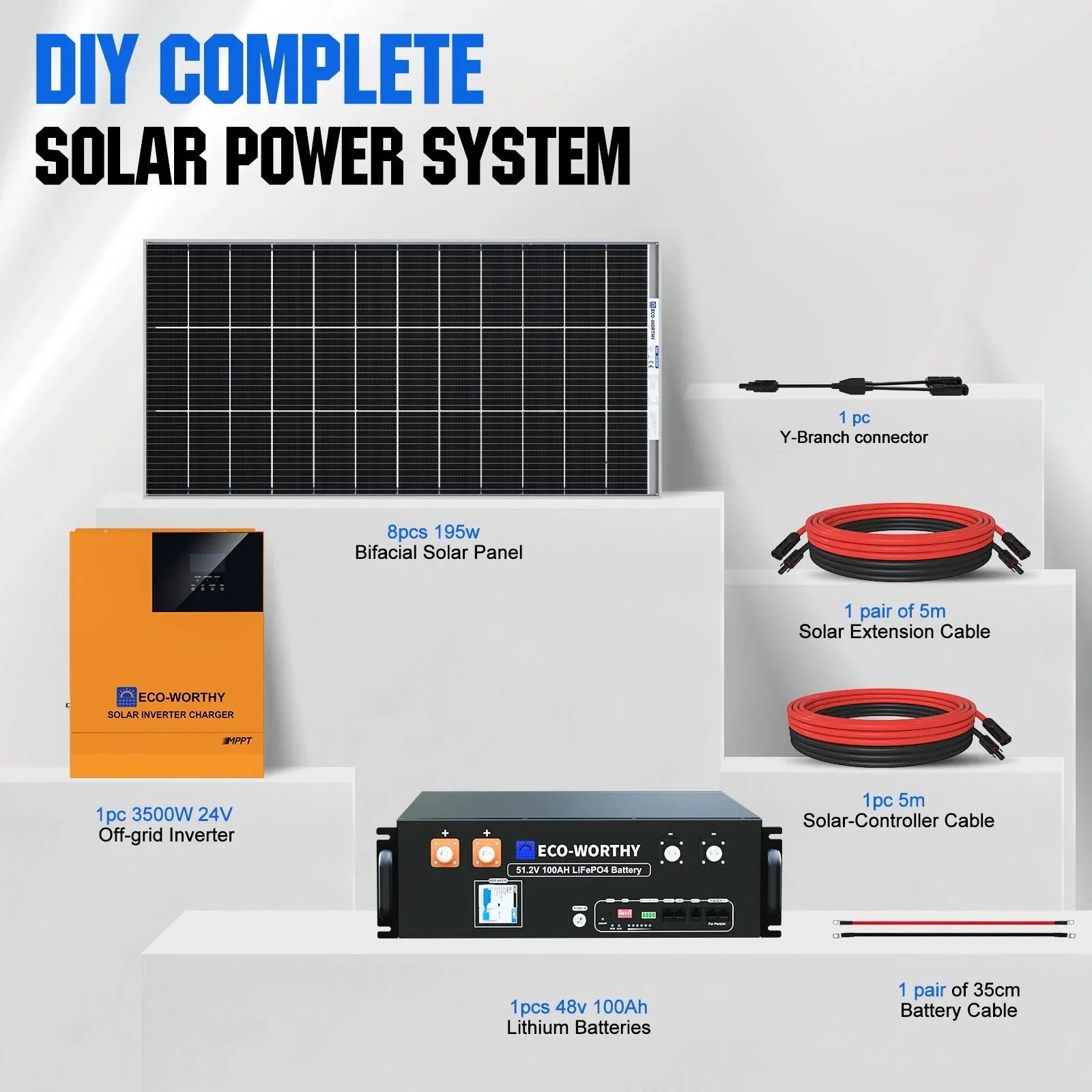

Package Includes

• 8× 195W Monocrystalline Solar Panels

• 1× 3.5kW 48V All-in-One Inverter

• 1× 5M 12AWG Extension Cable with MC4

• 1× 5M 12AWG MC4-MC4 Extension Cable

• 1× Y MC4 Connector

• 1× 48V 100Ah Server Rack Lithium Battery

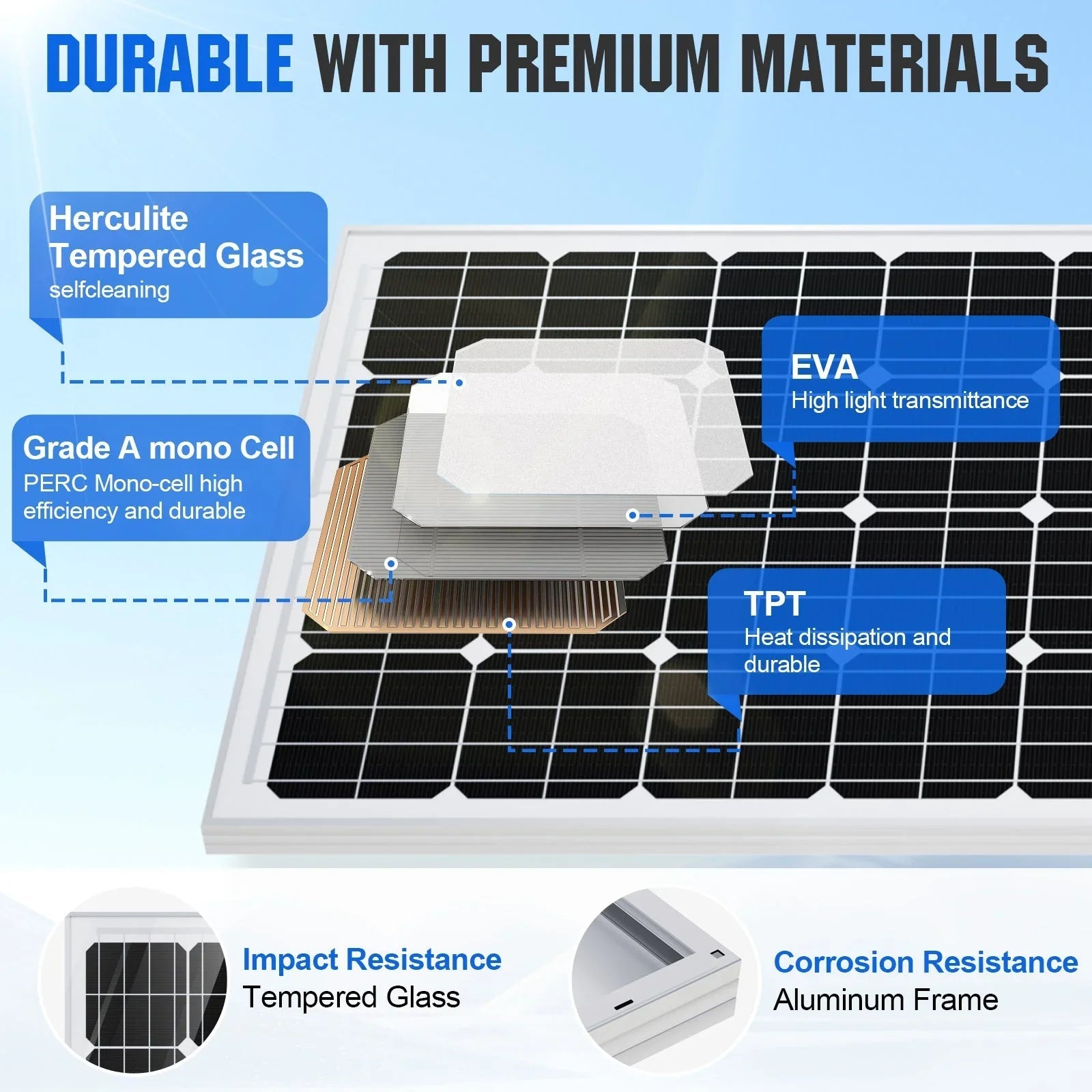

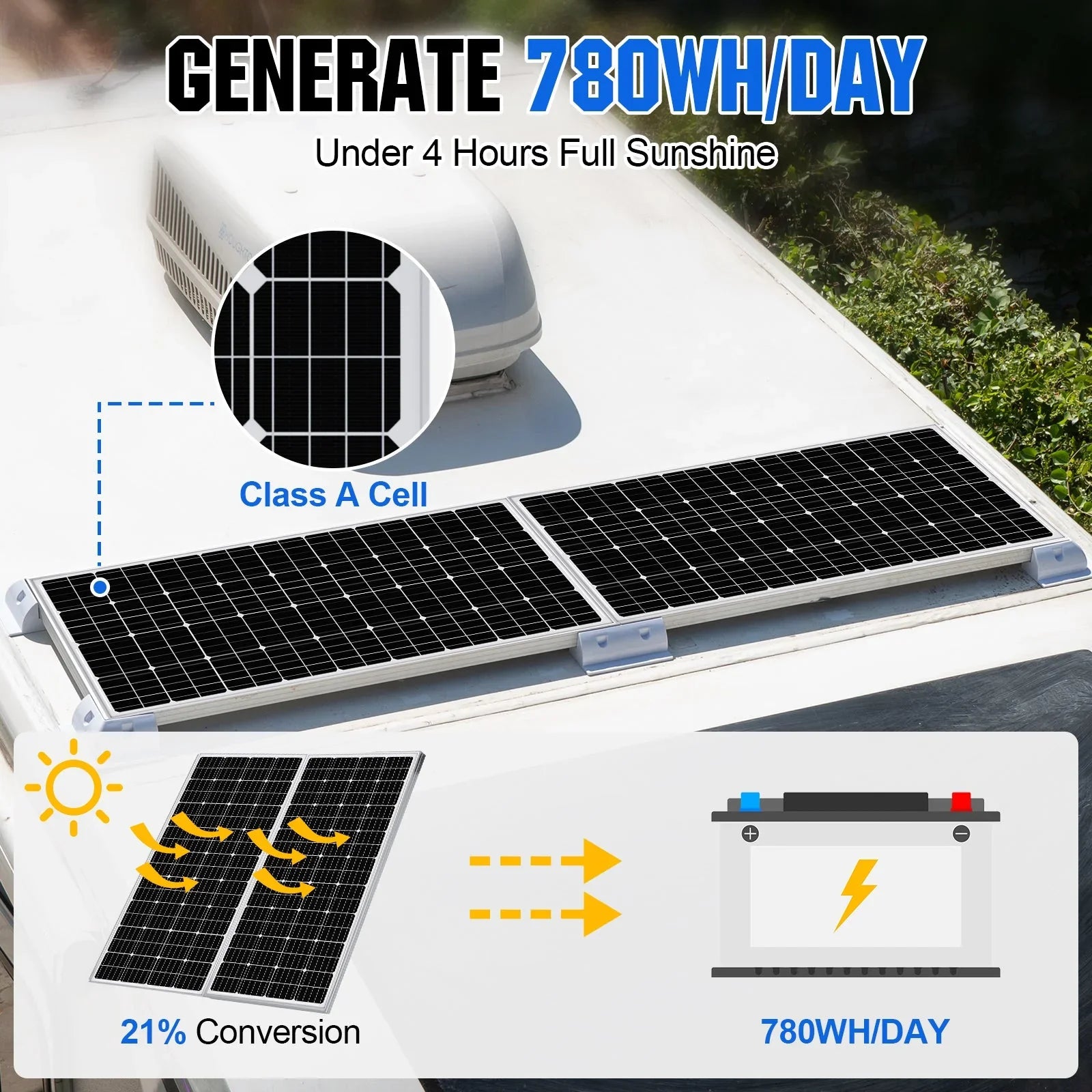

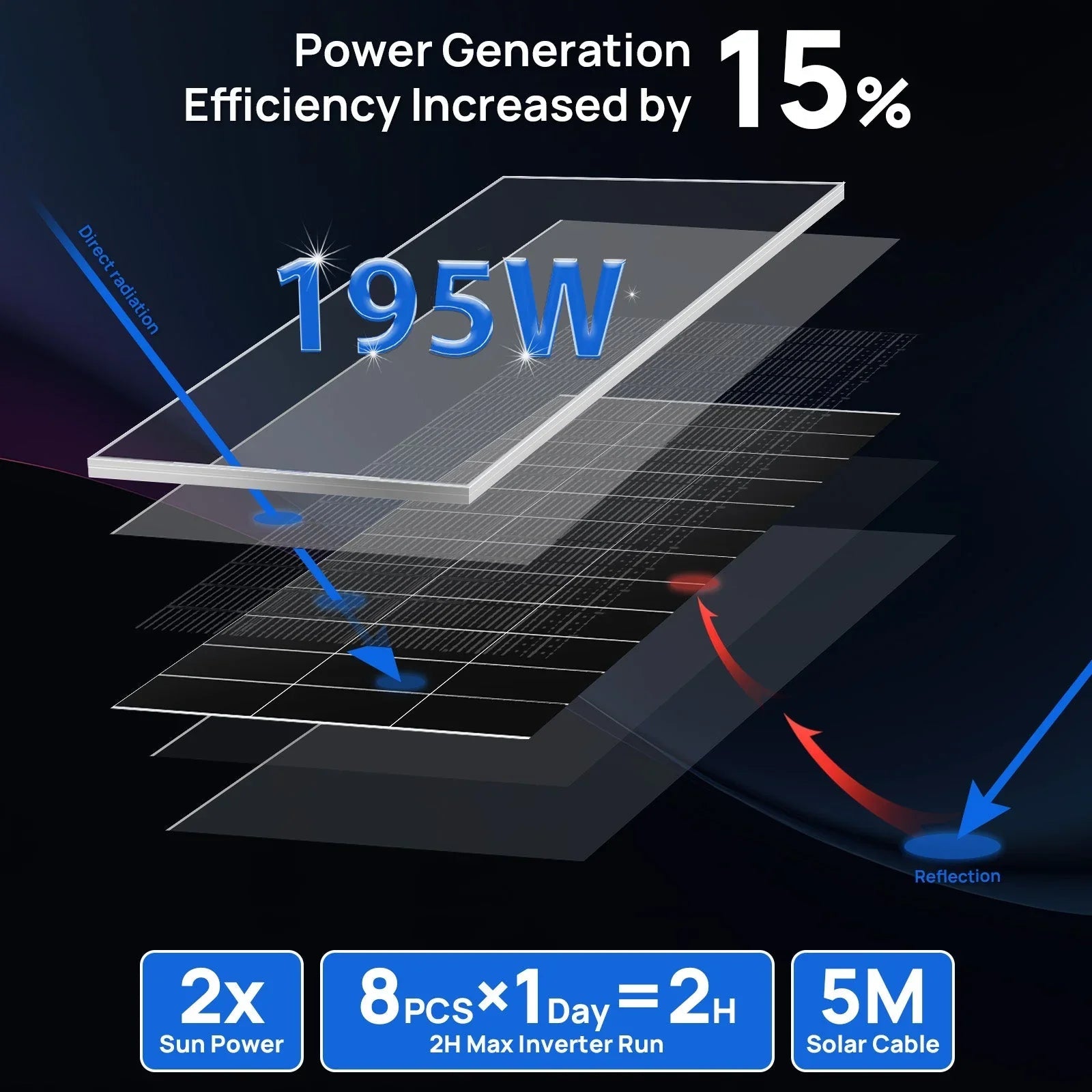

Eco-Worthy 195W Monocrystalline Solar Panel Specifications

• Rated Power: 195W

• Solar Cell Type: Monocrystalline

• Maximum Power Voltage (Vmp): 20.2V

• Open Circuit Voltage (Voc): 24.5V

• Short Circuit Current (Isc): 10.14A

• Maximum Current (Imp): 9.65A

• Output Tolerance: ±3%

• Temperature Coefficient of Isc: 0.10 ± 0.01%/°C

• Temperature Coefficient of Voc: –0.38 ± 0.01%/°C

• Operating Temperature: –40°C to +85°C

• Frame: Aluminum Alloy

• Dimensions: 52.6 × 26.38 × 1.38 in (1335 × 670 × 35 mm)

• Weight: 20.48 lbs (9.29 kg)

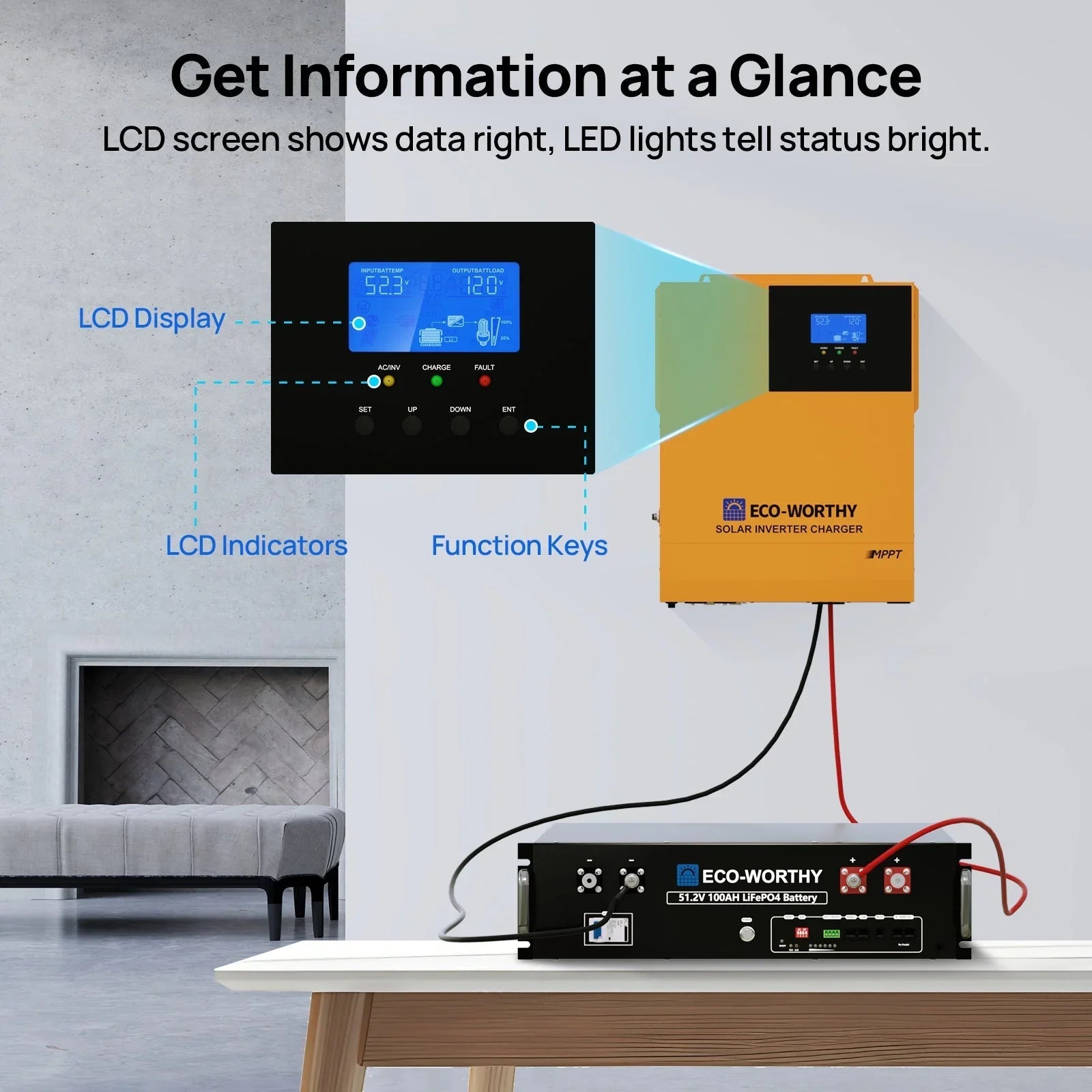

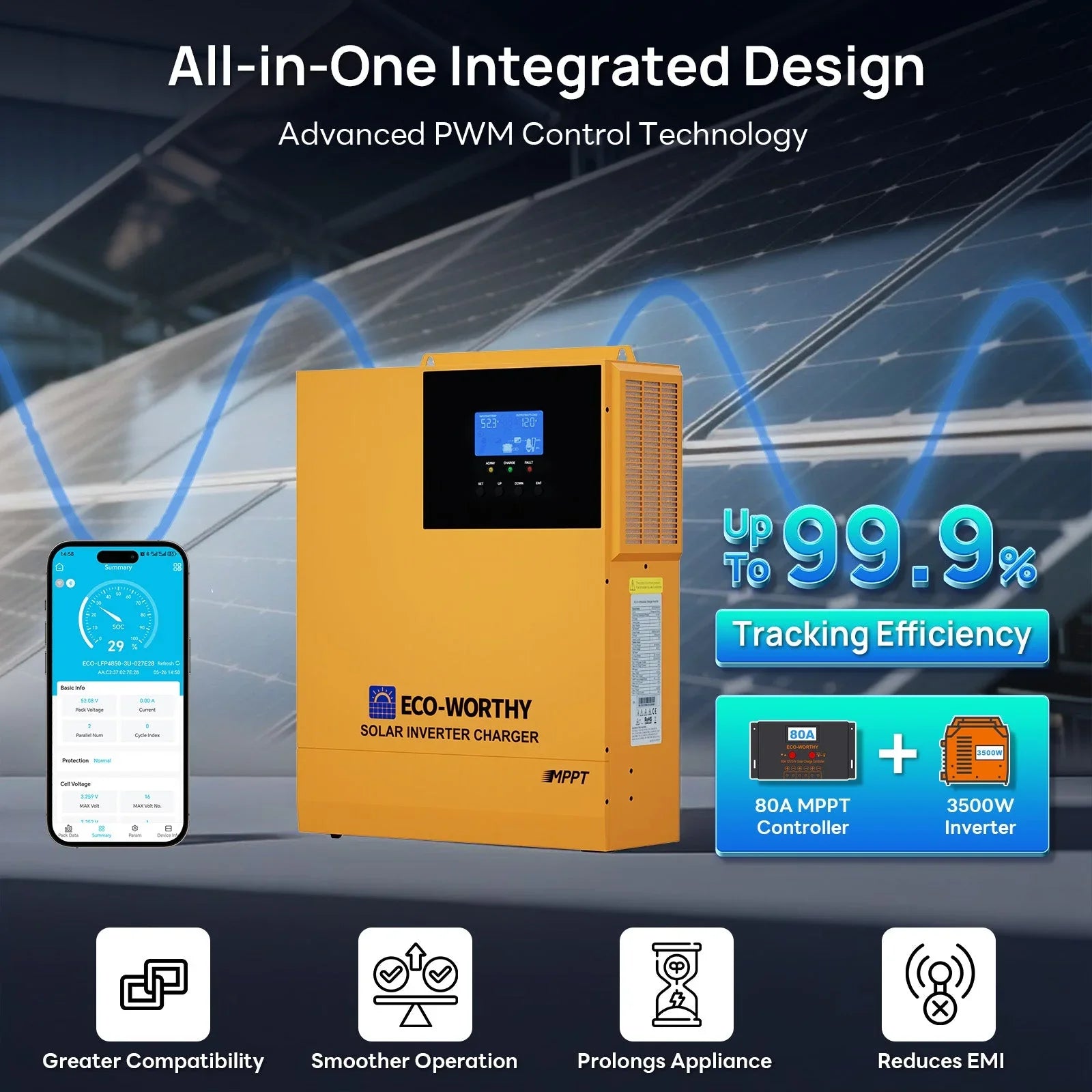

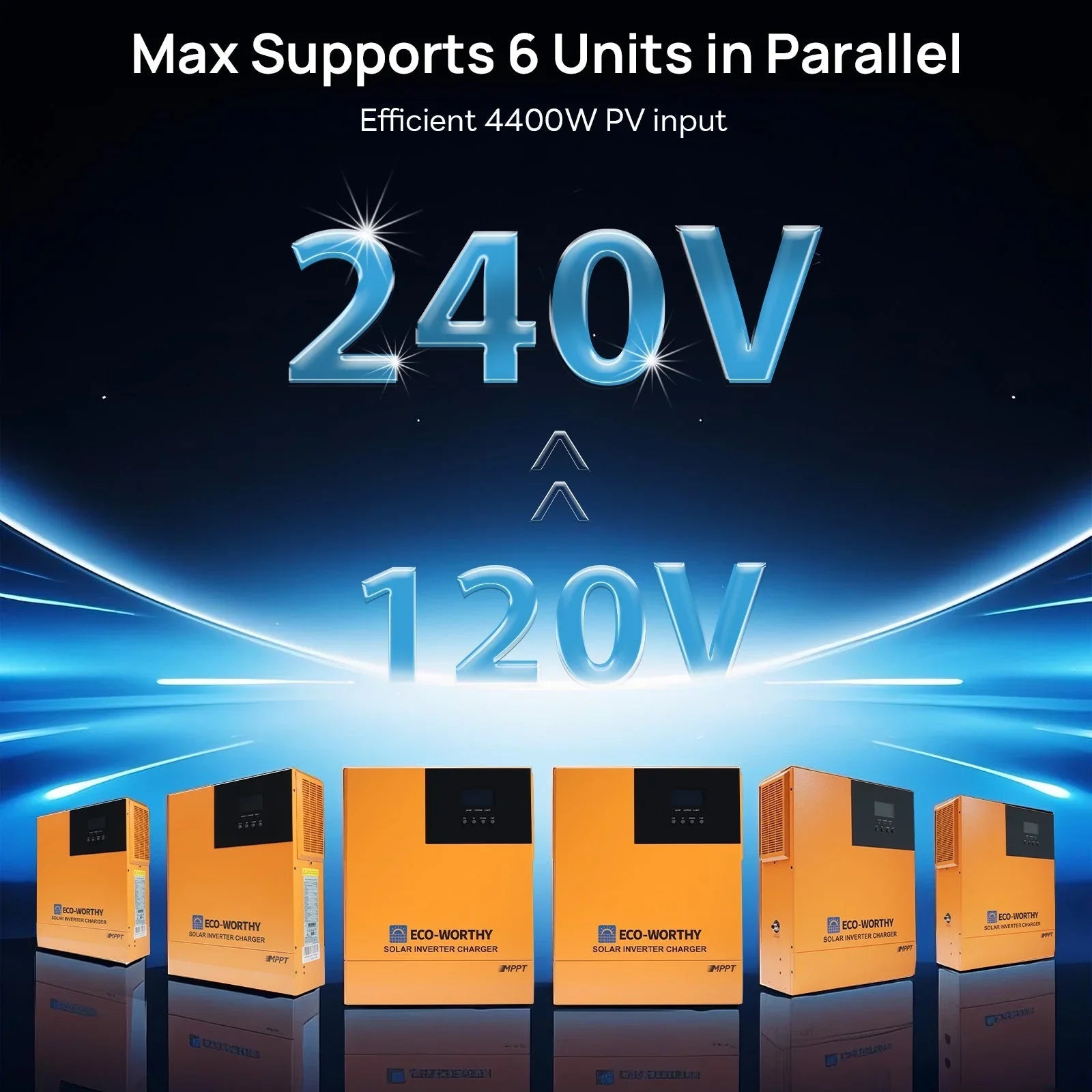

Eco-Worthy 3.5kW 48V All-in-One Inverter Specifications

AC Input Mode

• Rated Input Voltage: 110/120VAC

• Input Voltage Range: 90–140VAC

• Frequency: 50/60Hz (auto detect)

• Overload/Short Circuit Protection: Circuit breaker

• Efficiency: 92%

• AC Reverse Protection: Available

• Max Bypass Overload Current: 40A

Invert Mode

• Output Waveform: Pure Sine Wave

• Rated Output Power: 3500W

• Rated Output Voltage: 120VAC

• Peak Power: 6000W

• Bypass Breaker: 40A

• Rated Battery Input Voltage: 48V

• Min Starting Voltage: 44V

• Power Saving Mode: Load ≤50W

AC Charging Mode

• Compatible Battery Types: Lead-acid or Lithium

• Max Charge Current: 40A

• Charge Voltage Range: 40–60VDC

• Overcharge Protection: Alarm and turn off charging after 1 minute

PV Charging Mode

• Max Input Power: 5000W

• PV Charging Current Range: 0–80A (adjustable)

• Max PV Open Circuit Voltage: 500VDC

• PV Operating Voltage Range: 120–450VDC

• MPPT Voltage Range: 120–450VDC

• Battery Voltage Range: 40–60VDC

• Max Output Power: 4400W

• Short Circuit Protection: Blown fuse

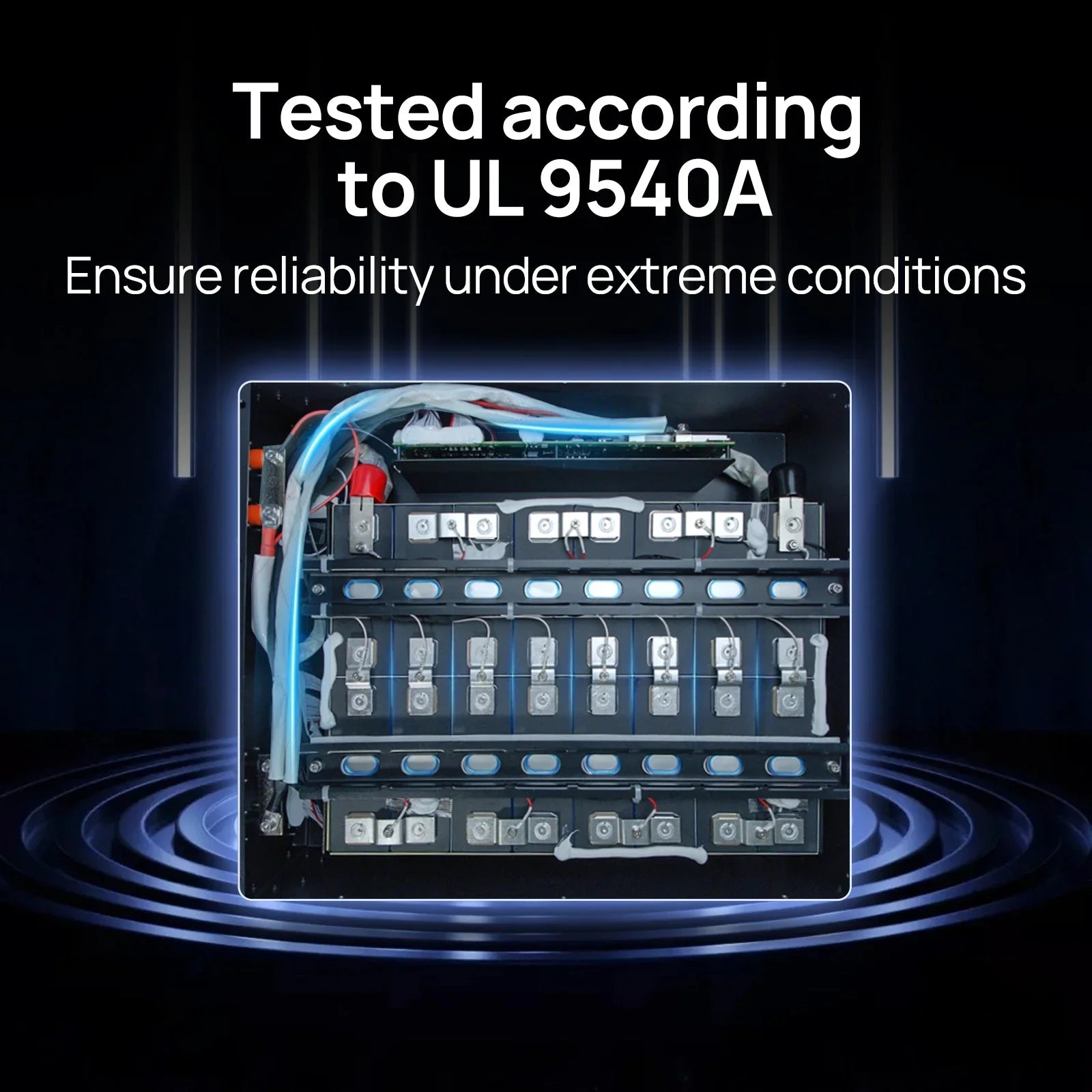

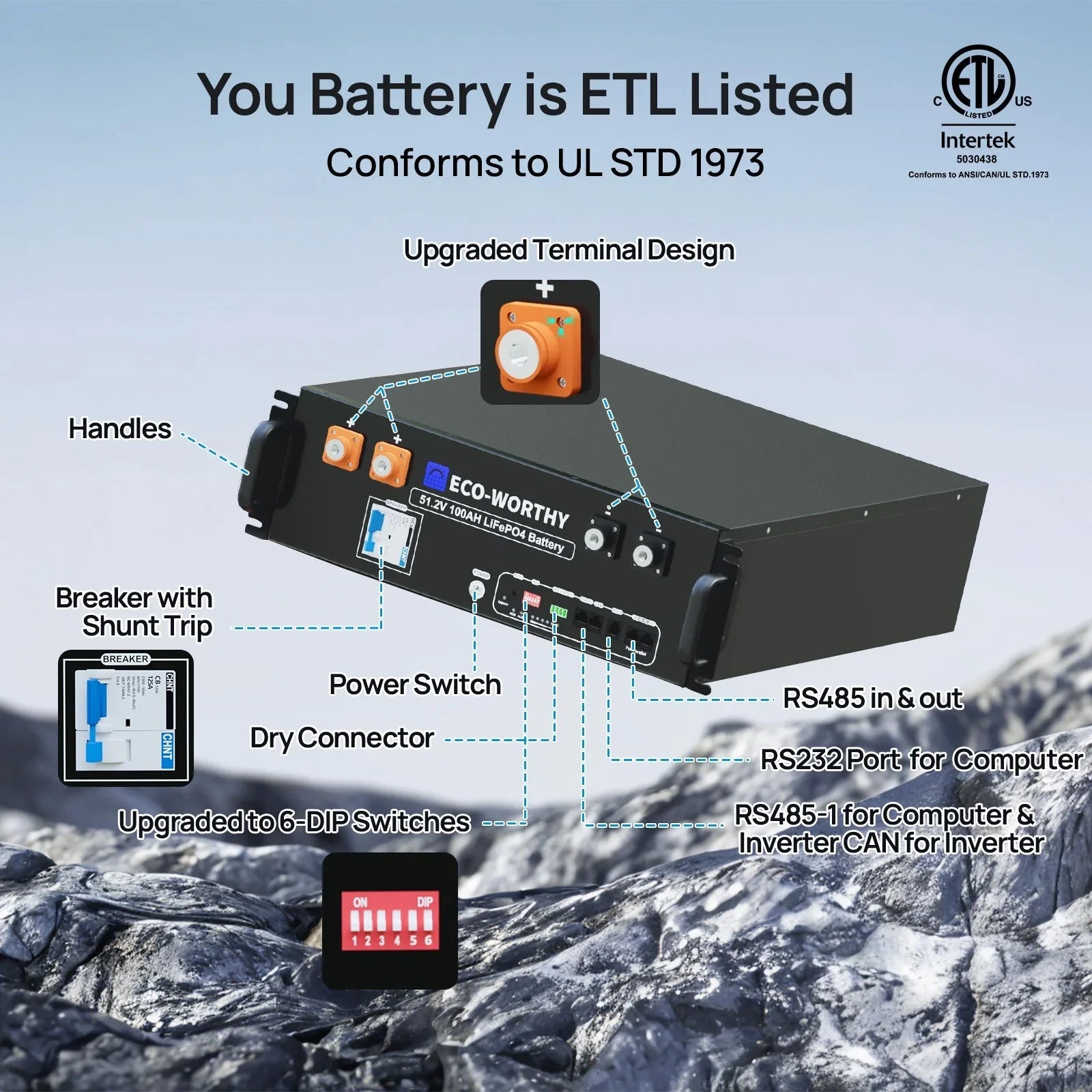

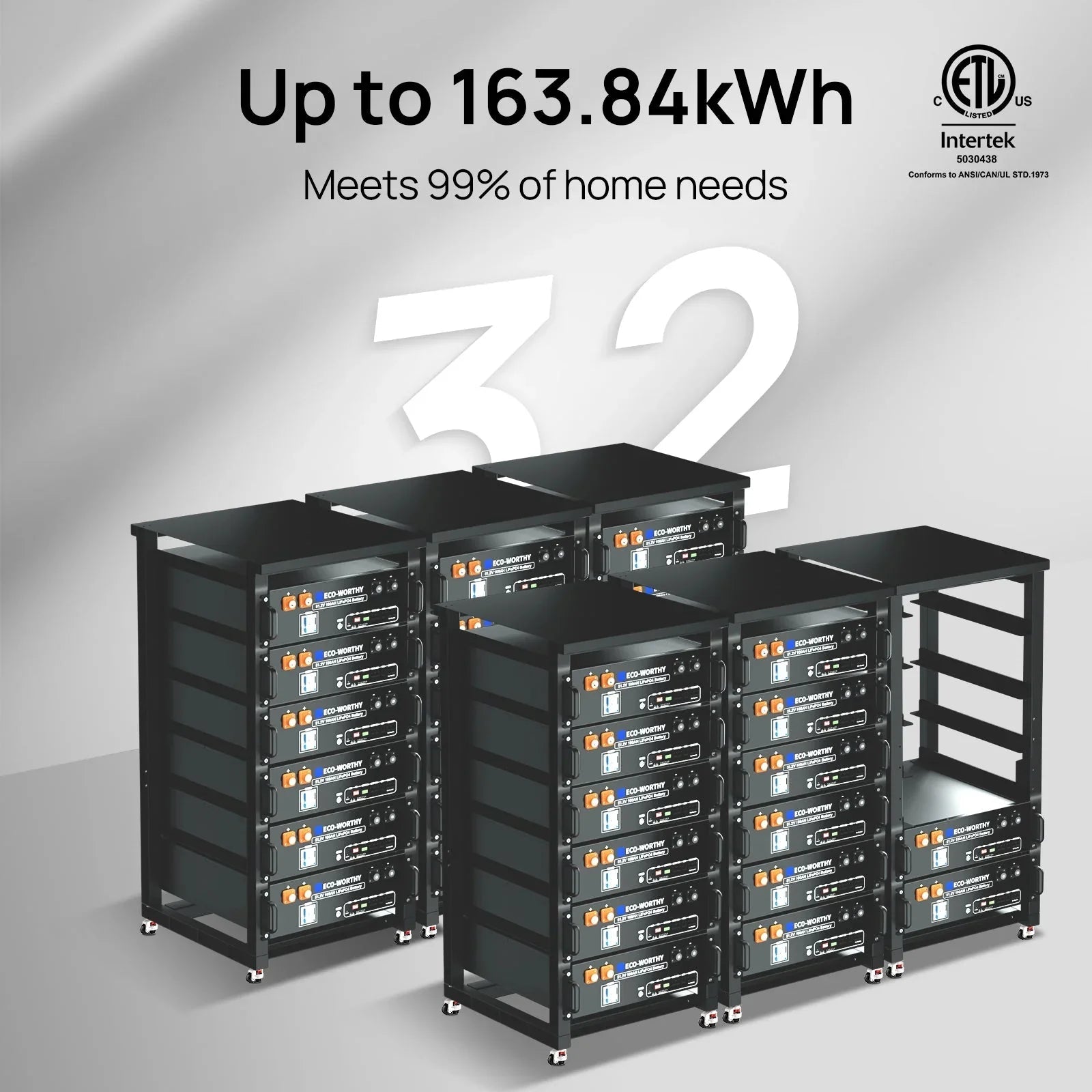

Eco-Worthy 48V 100Ah Server Rack Lithium Battery Specifications

• Battery Capacity: 100Ah

• Energy: 5120Wh

• Rated Voltage: 51.2V

• Voltage Range: 40–58V

• Max Charge/Discharge Current: 100A

• Max Charge Voltage: 58.4V

• Charge Temperature Range: 0–55°C

• Discharge Temperature Range: –20–55°C

• Dimensions: 22.55 × 17.13 × 5.63 in

• Weight: 97 lbs

• Screw Size: M8

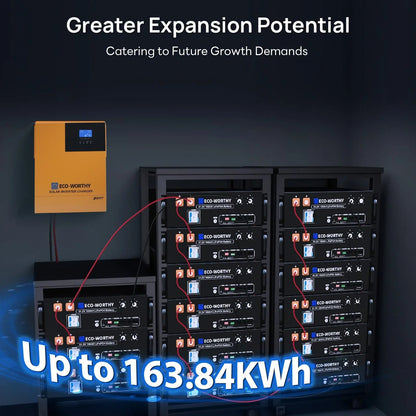

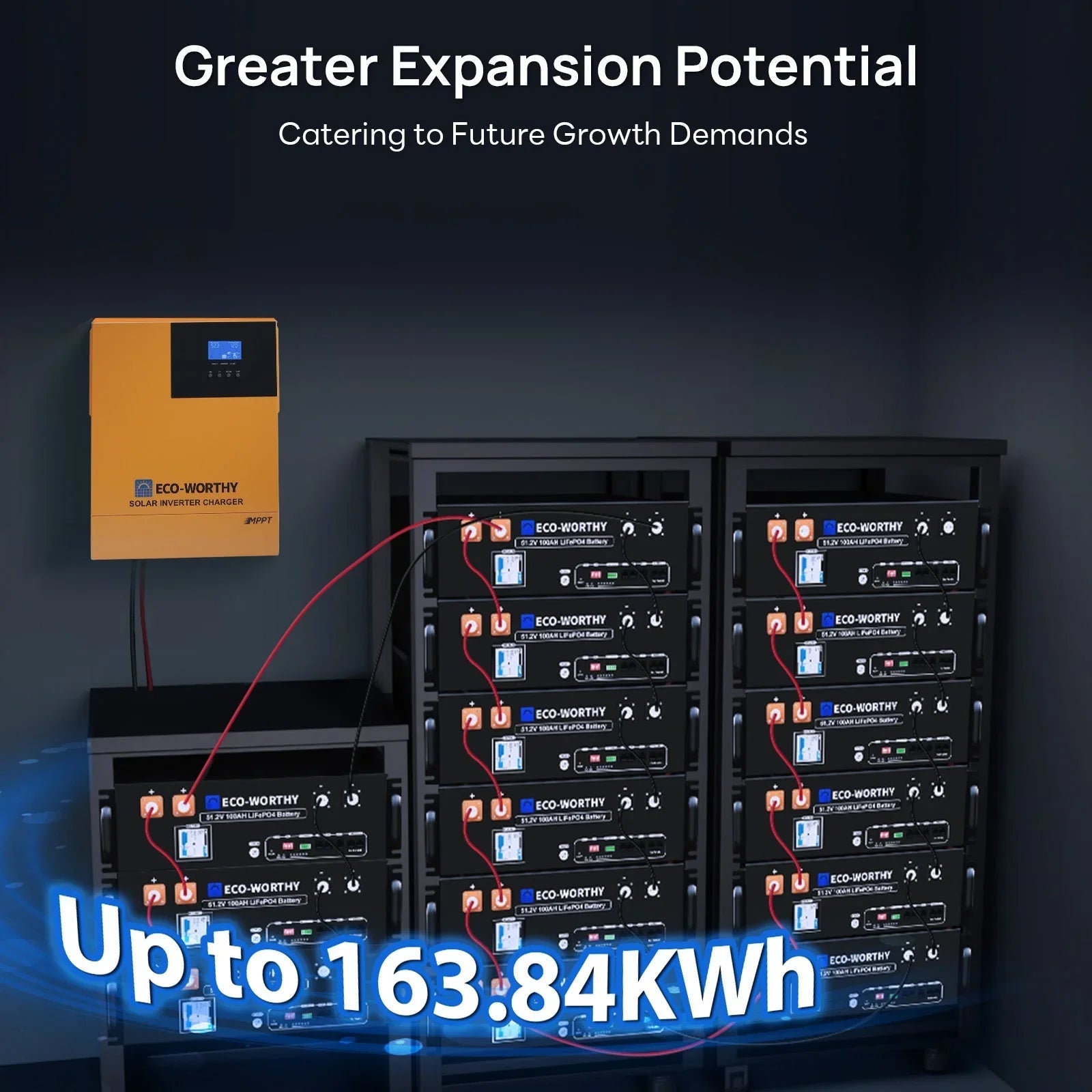

This high-capacity server rack battery provides stable, reliable, and long-lasting energy storage for off-grid systems.
