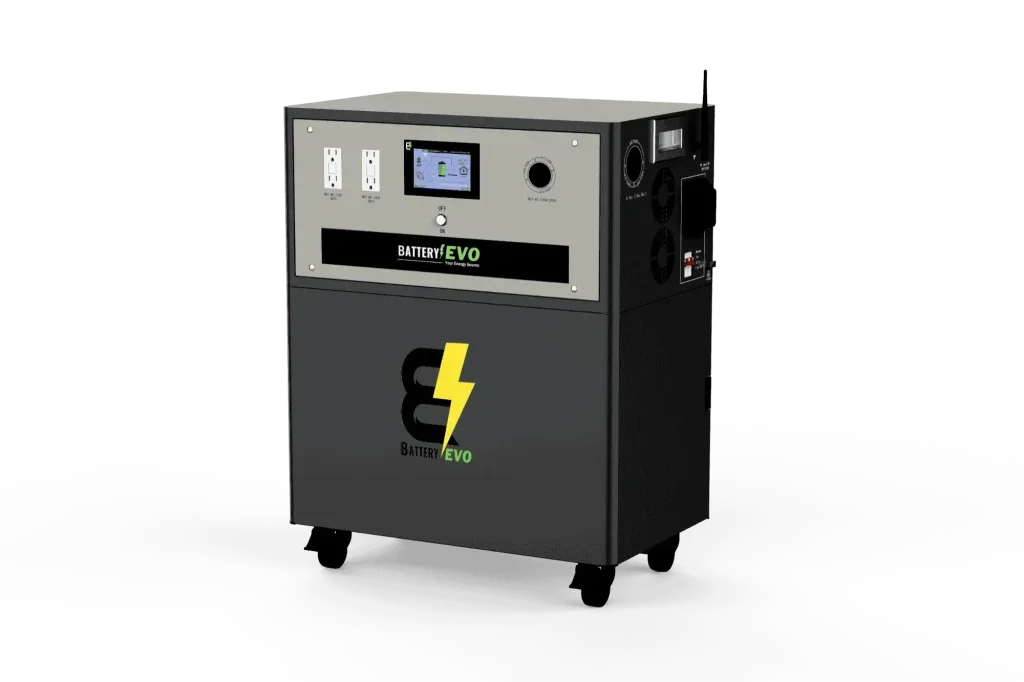

BatteryEvo WALRUS G4 Plus 16.5K INV. 23 kWh AC110/220V 96N
The Walrus G4 is the perfect whole home generator for any grid-tied or off-grid setup. Keep the lights on during power outages and lower your electric bill up to 95%.

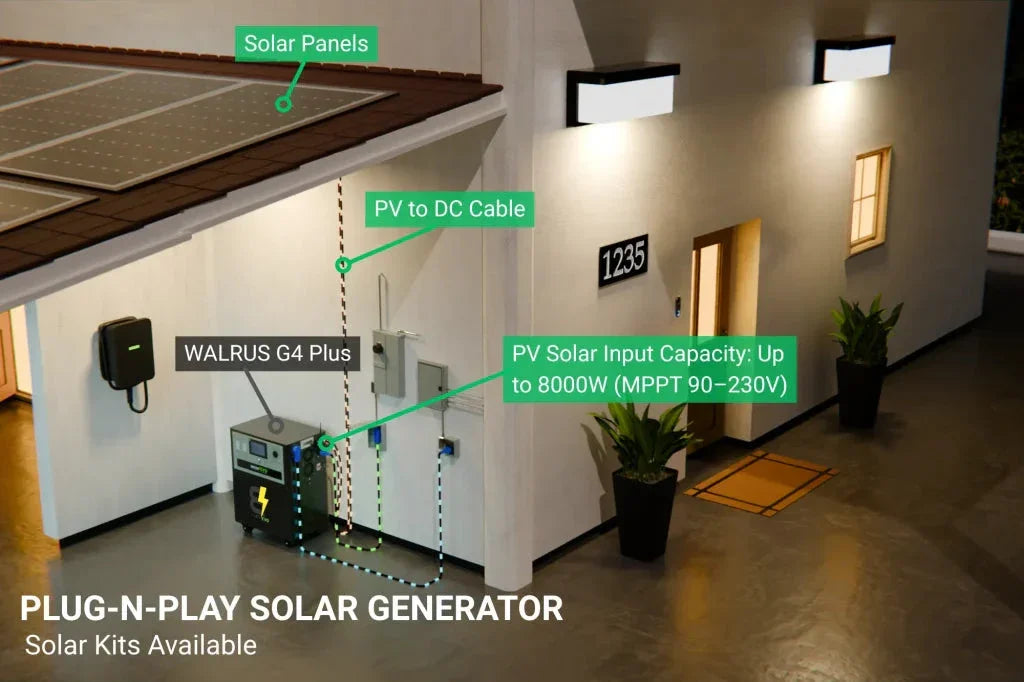

- Off-grid 90-230V PV 8kW solar compatible.
- Grid-tied solar battery compatible.
- Works on homes without solar.
- Built in UPS for auto start during blackouts.
- Can charge with 220V 5kW gas/deisel generator.
- 10YR warranty on all batteries
- Assembled and shipped out of CA
Included in this bundle:
- 1.
WALRUS G4 Plus 16.5K INV. 23 kWh AC110/220V 96N-S (x1) - 2.
50 Amp 10 Ft RV Extension Cable-S (x2) - 3.
PV to BE175 Cable-S (x1)
| System Voltage | AC110V/220V |
| Nominal Voltage | 88 V |
| Chemistry | NMC |
| kWh Capacity | 23 kWh |
| Ah Capacity | 260 Ah |
| Charging Voltage | 97.3 V-99.6 V |
| Max Charge Voltage | 99.6 V |
| Operating Voltage Range | 72 V-99.6 V |
| Suggested Low Voltage Cutoff | 72 V-80 V |
| Cell Configuration | 24S2P |
| Max Continuous Discharge Current | 150 A |

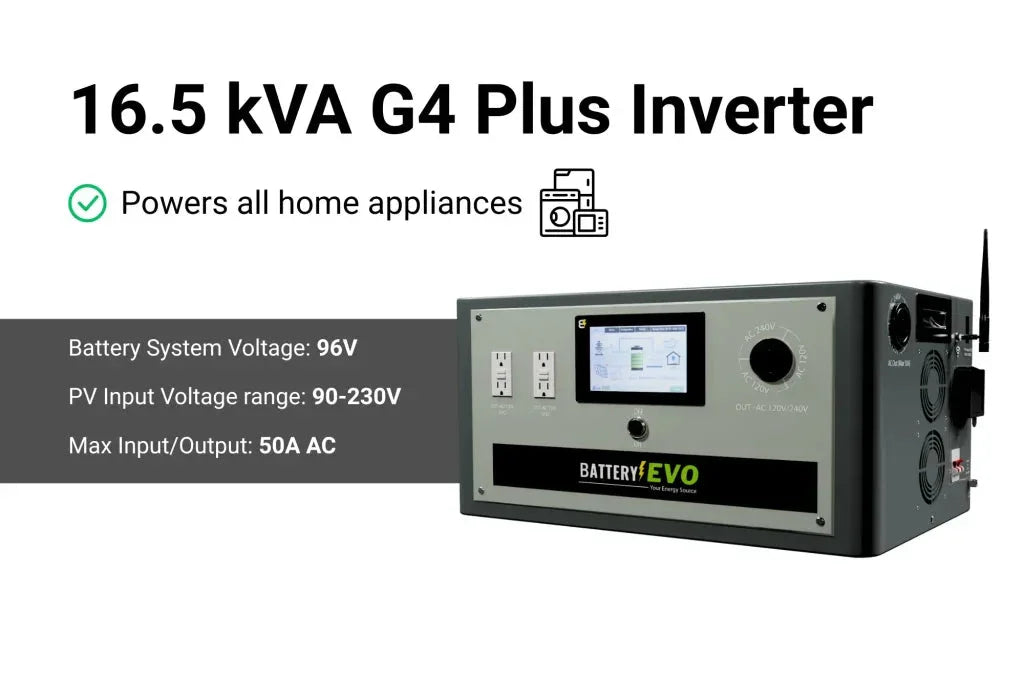

| Max Continuous Power | 16.5 kVA |
| Max Discharge Peak Current | 300 A |
| Max Charge Current | 150 A |
| MPPT Charge Controller | 8000 W |
| Charge Temperature Range | -20°C (-4°F) / 55°C (131°F) |
| Discharge Temperature Range | -20°C (-4°F) / 55°C (131°F) |
| Optimal Discharge Temperature Range | 15°C (59°F) / 35°C (95°F) |
| Storage Temperature Range | -5°C (23°F) / 35°C (95°F) (Max 6 Months) |
| Weight | 441 lb |
| Depth | 15.4 in |
| Width | 24.41 in |
| Height | 36.24 in |
