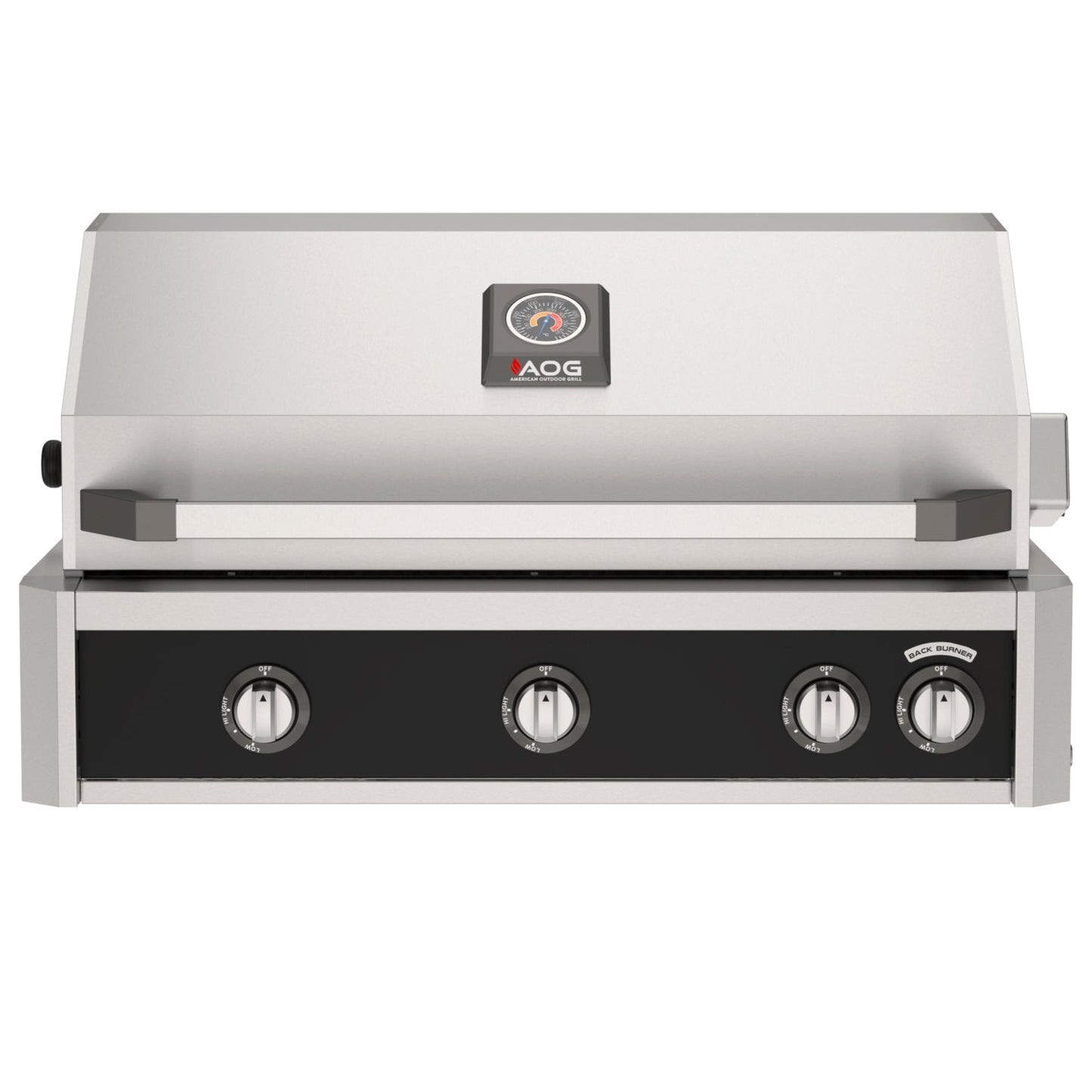

AOG 36" L-Series Built-In Grill - Propane
Product Description
The AOG 36" L-Series Built-In Gas Grill - Propane is built for outdoor kitchens that want the largest AOG L-Series cooking platform without depending on a fixed natural gas connection. This 36" model combines a broad stainless steel cooking surface with the upgraded L-Series feature set, including interior lighting, a multi-color light bar, and an infrared backburner with rotisserie support, making it a strong fit for larger islands where the grill is expected to serve as the main cooking center.
Installation Cutout: 36 3/4" W x 19 1/2" D x 8 1/2" H
Key Features
- 648 sq. in. primary cooking surface for larger outdoor cooking sessions

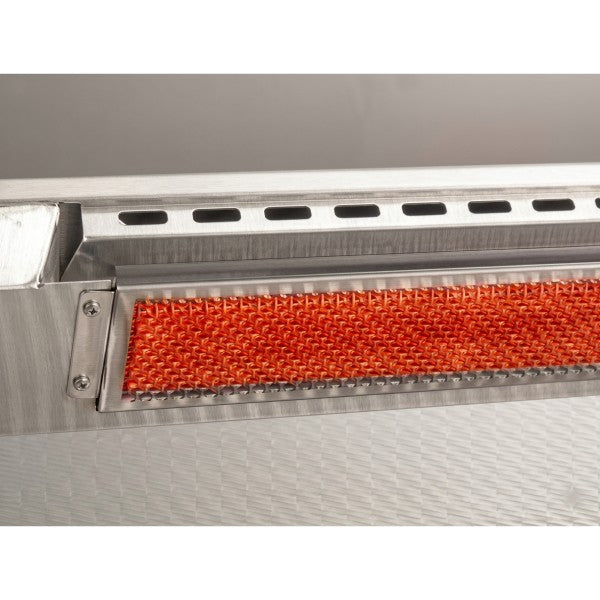

- 50,000 BTUs of primary burner output plus a 12,000 BTU infrared backburner

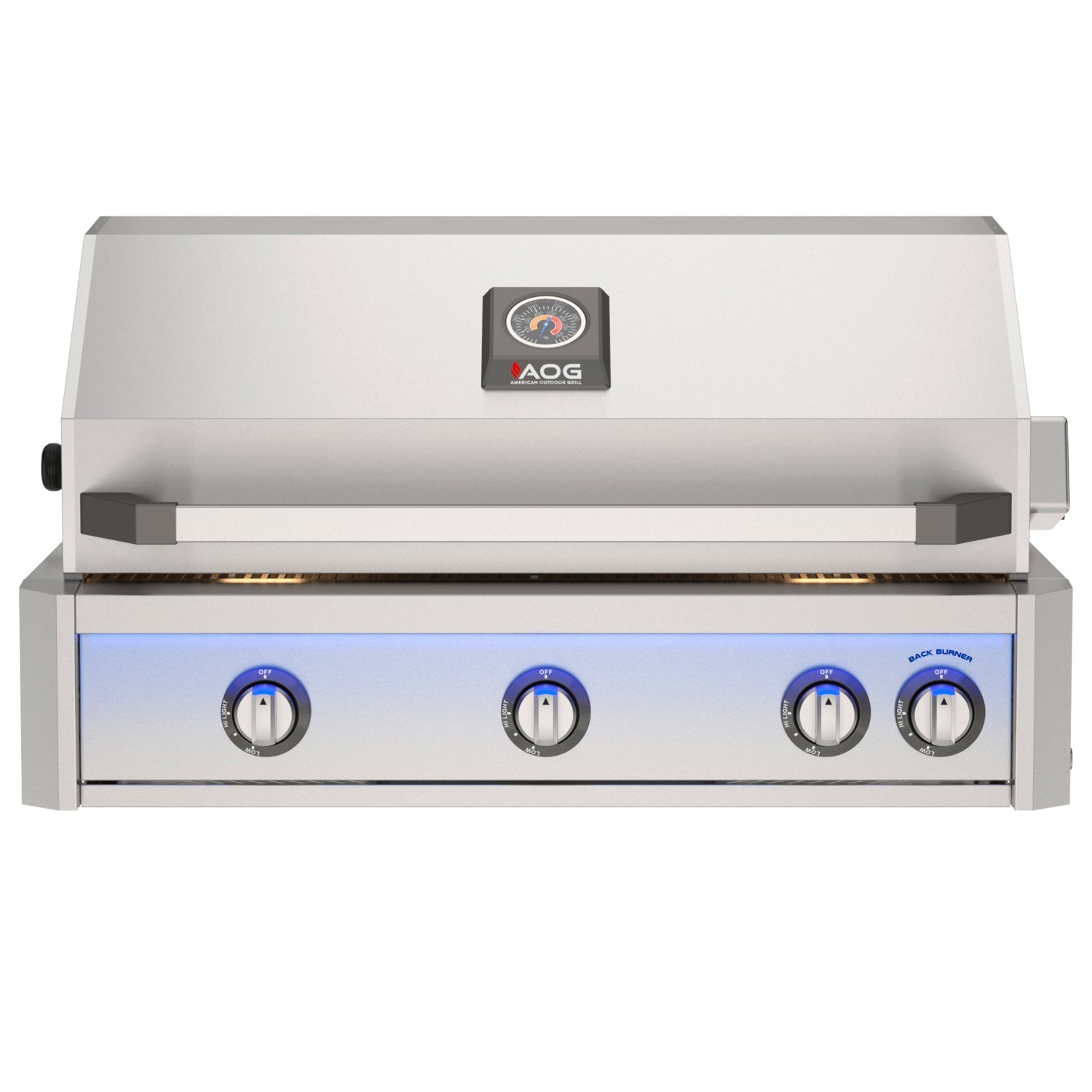

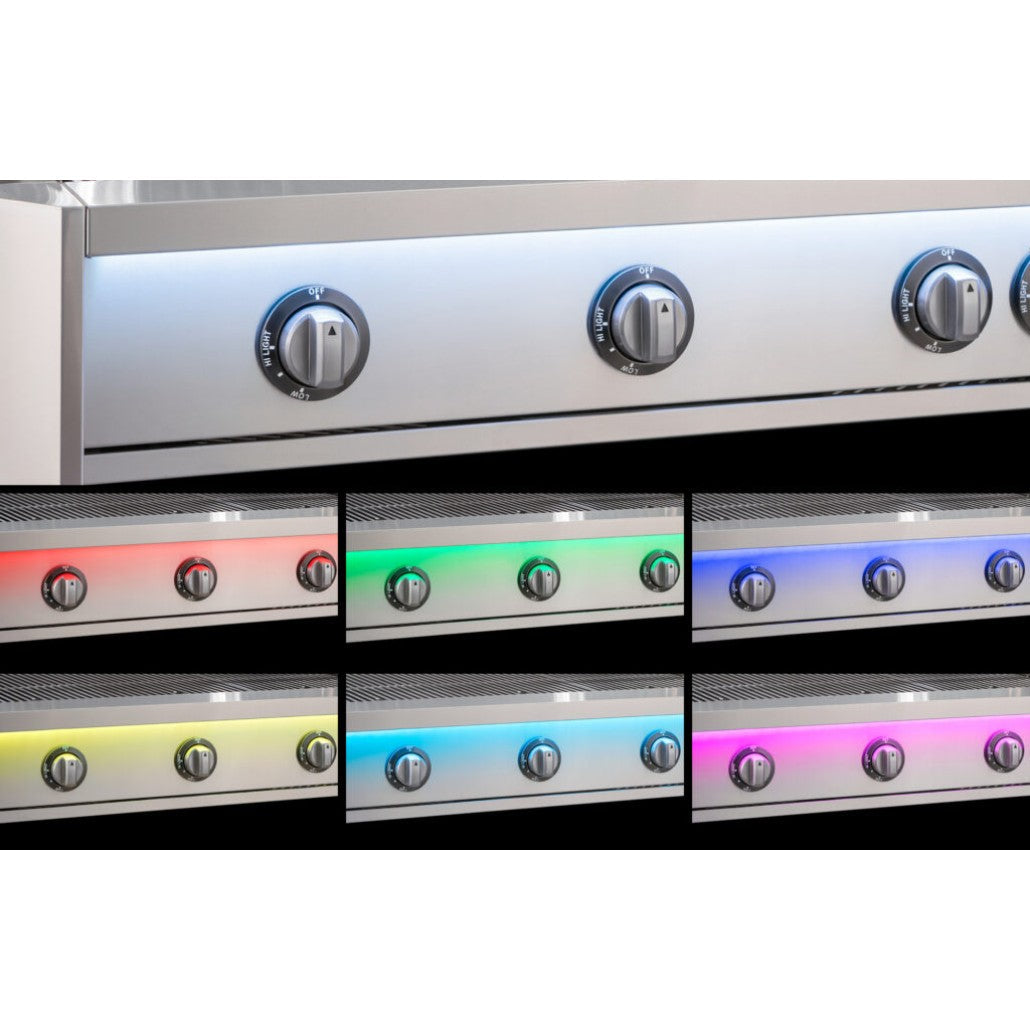

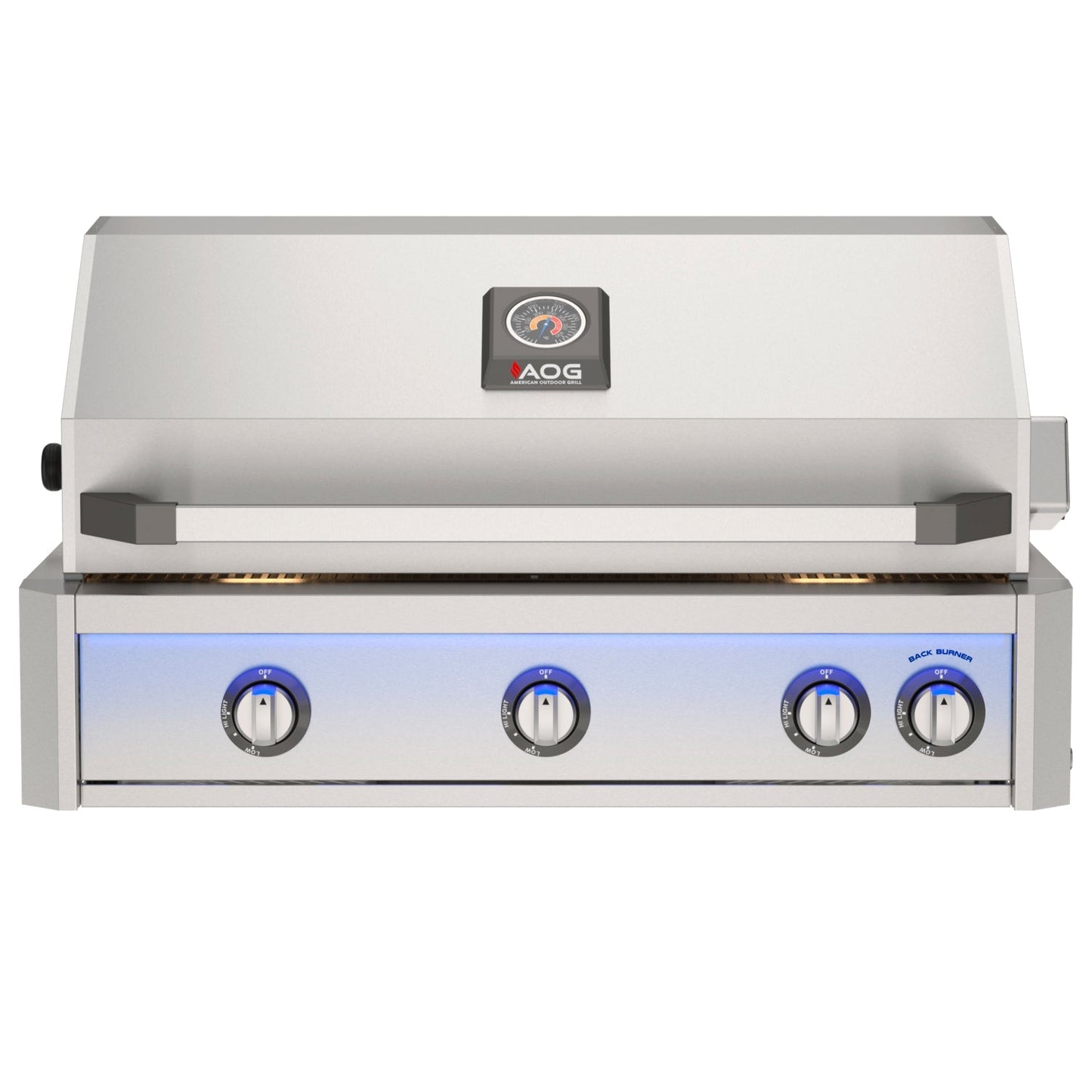

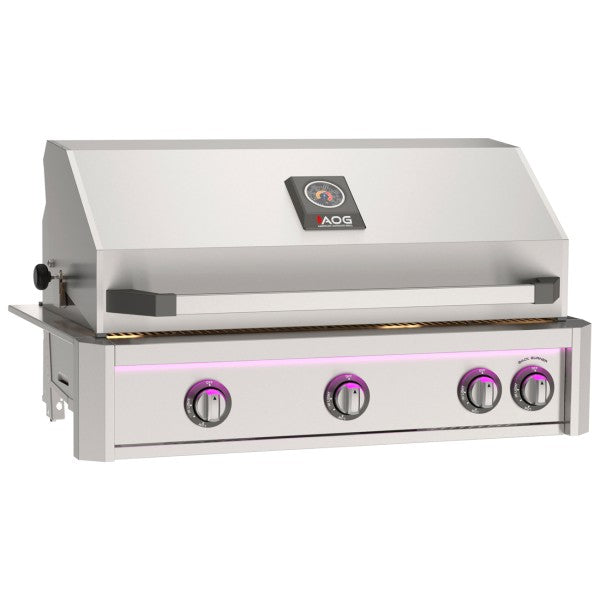

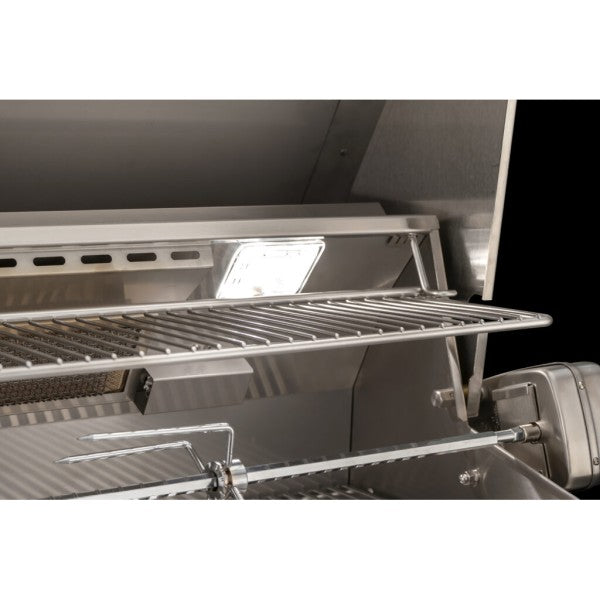

- Interior halogen lights and a multi-color light bar for better nighttime visibility

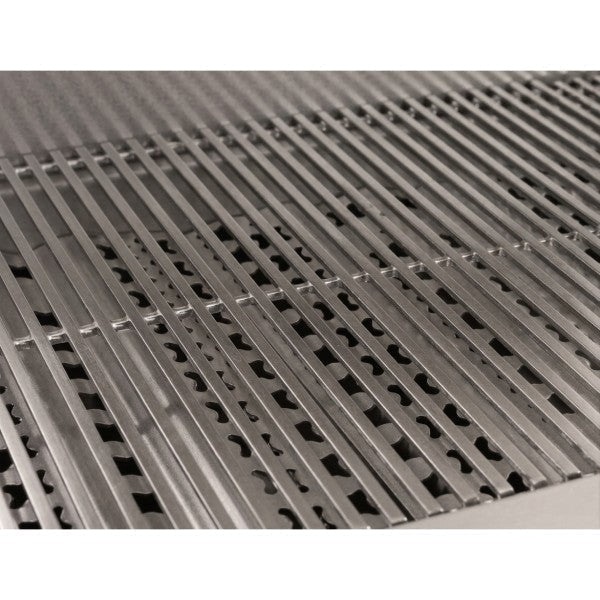

- Diamond Sear stainless steel cooking grids with stainless warming rack
- Built-in propane configuration with rotisserie-ready L-Series design

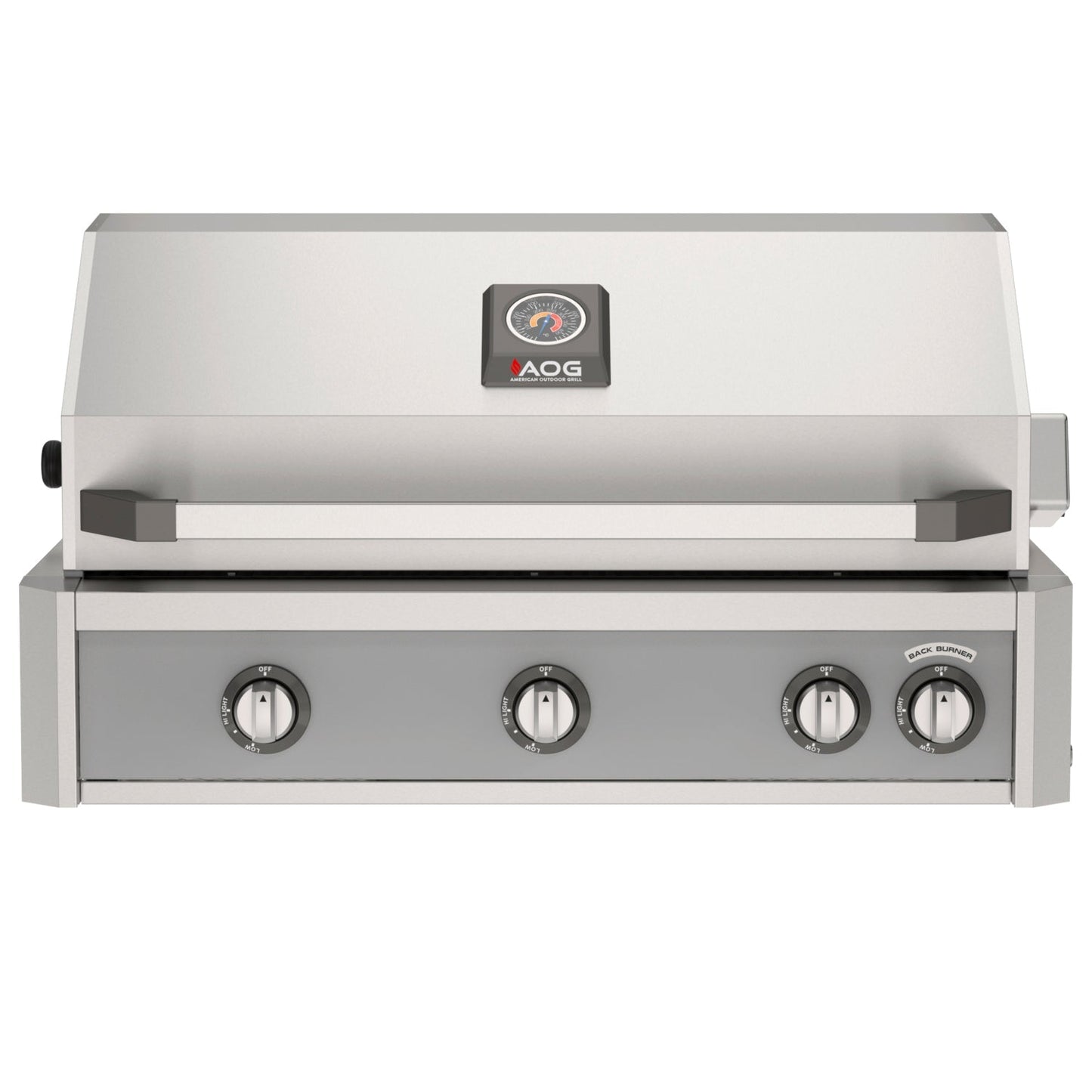

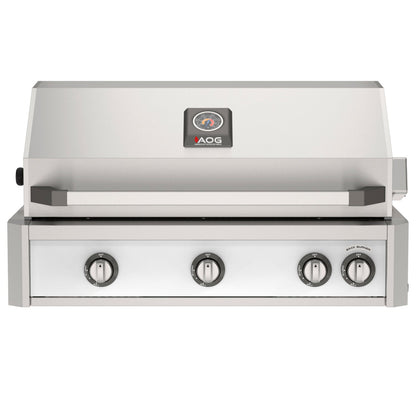

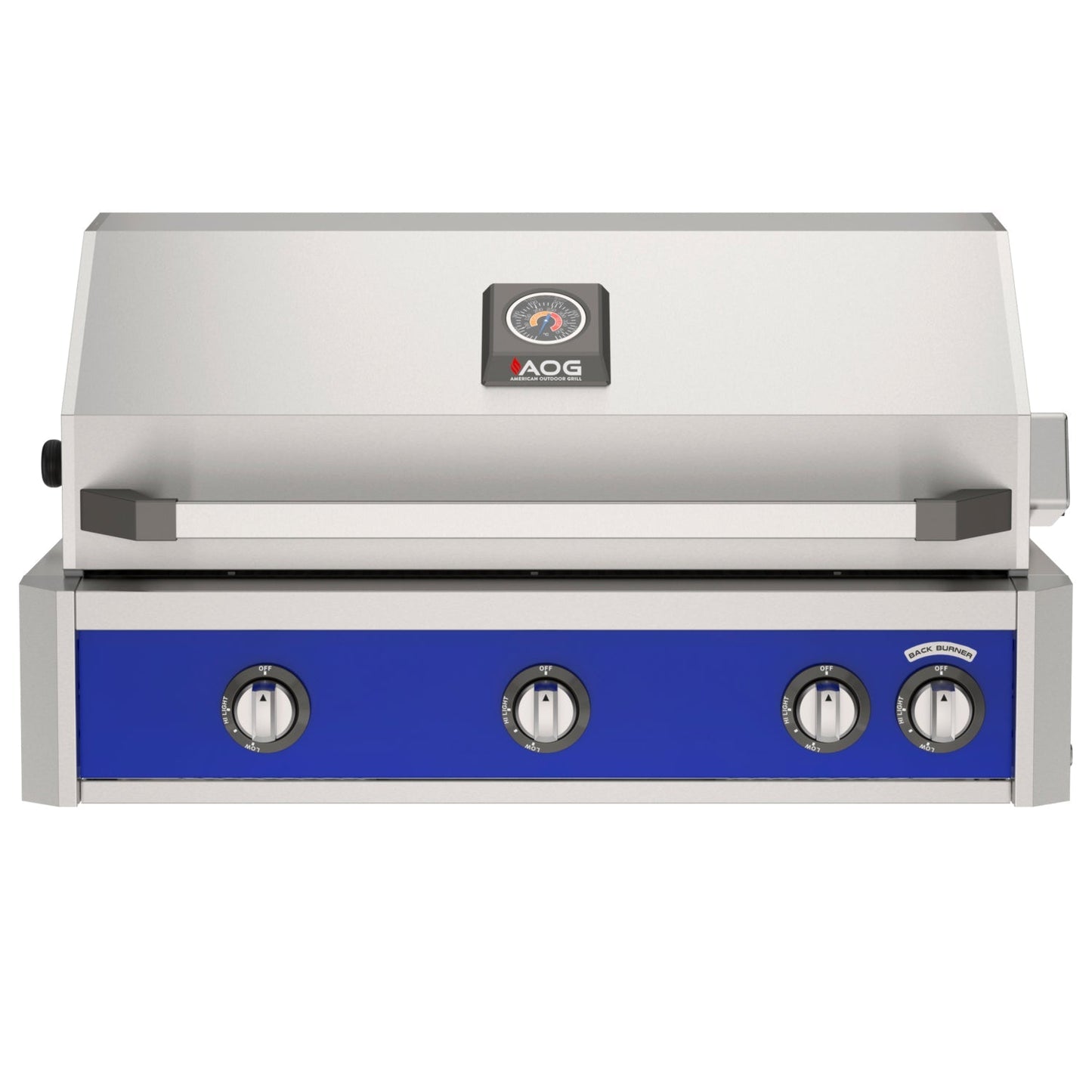

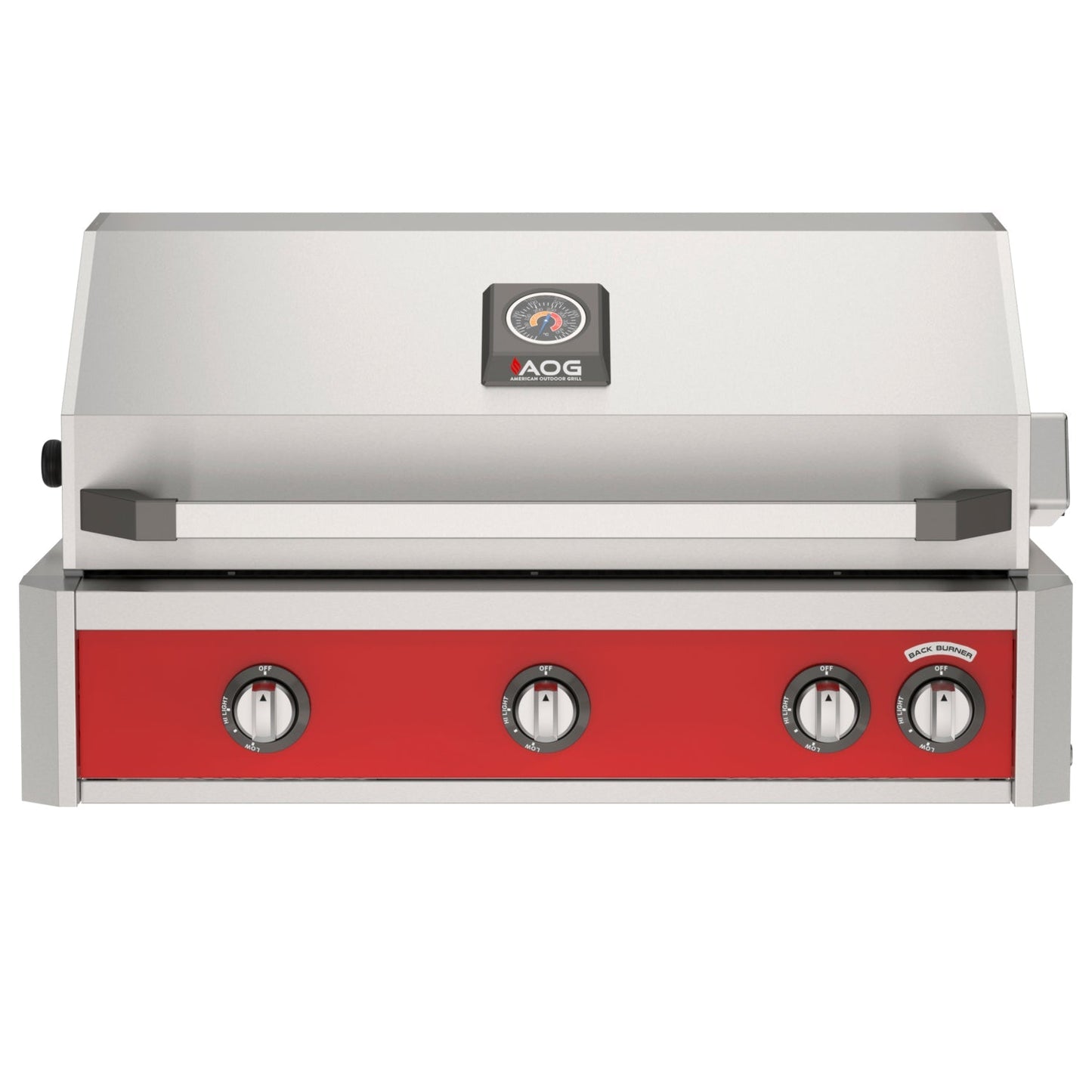

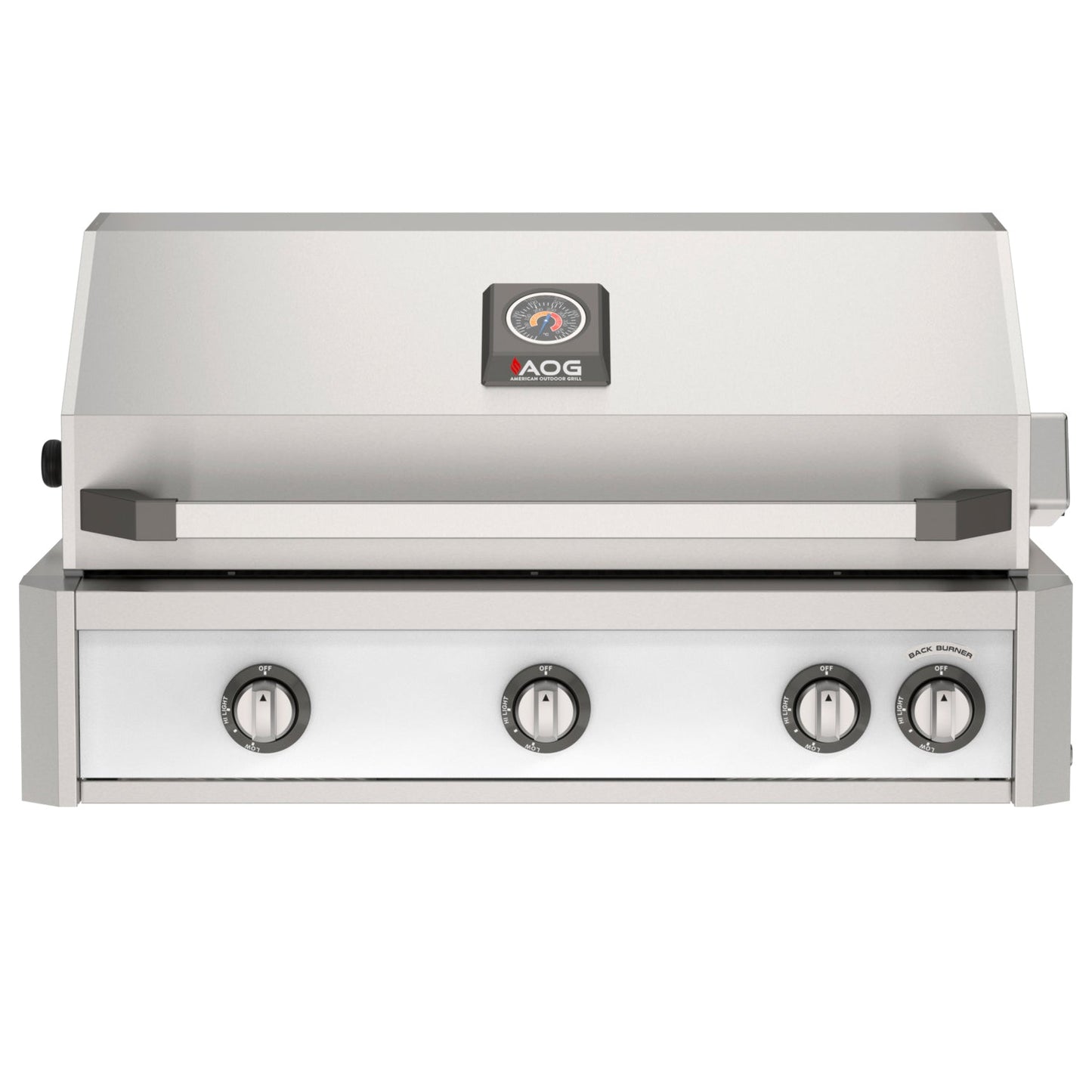

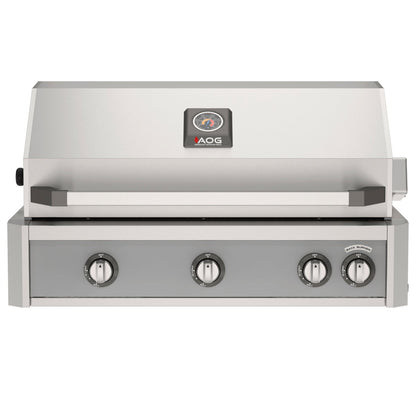

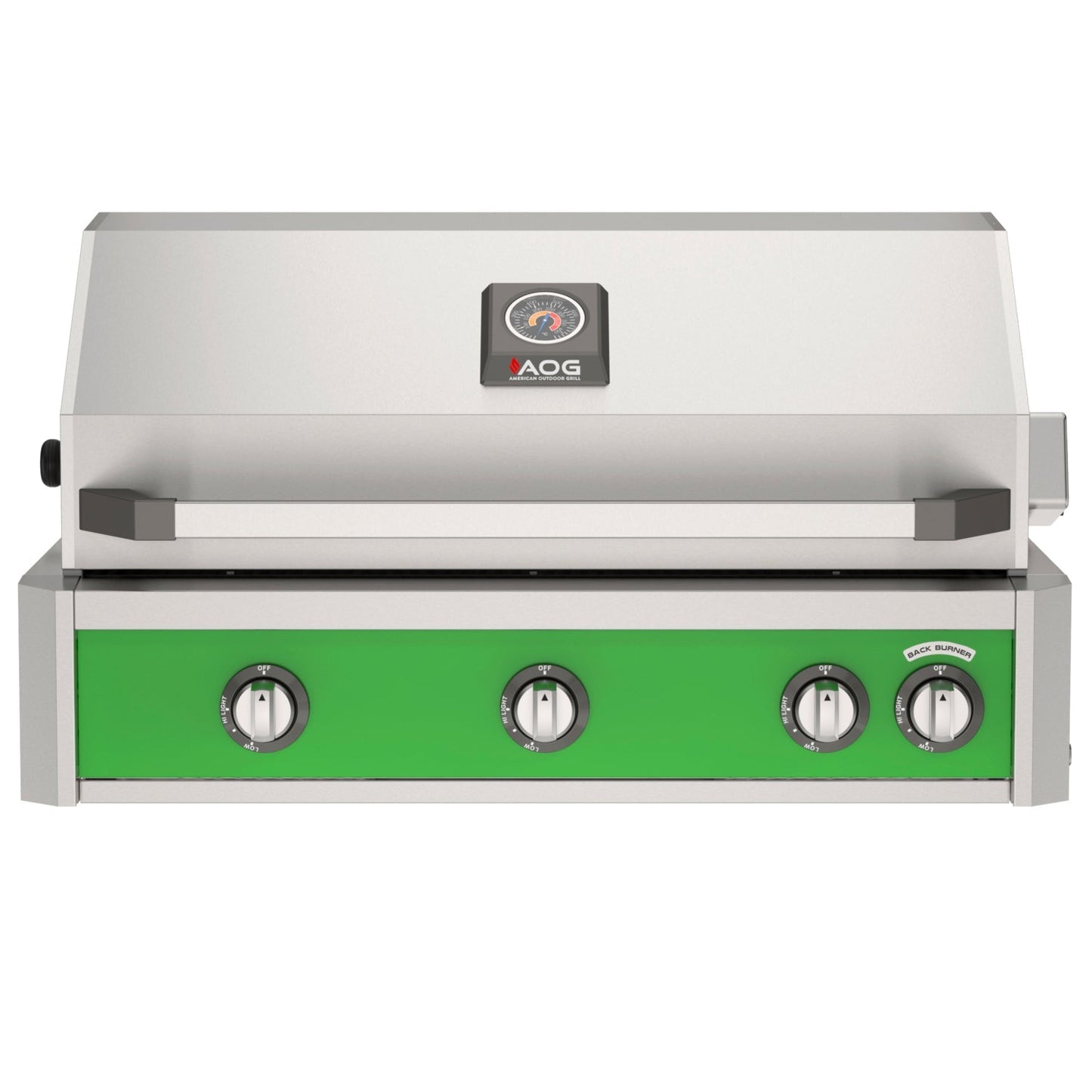

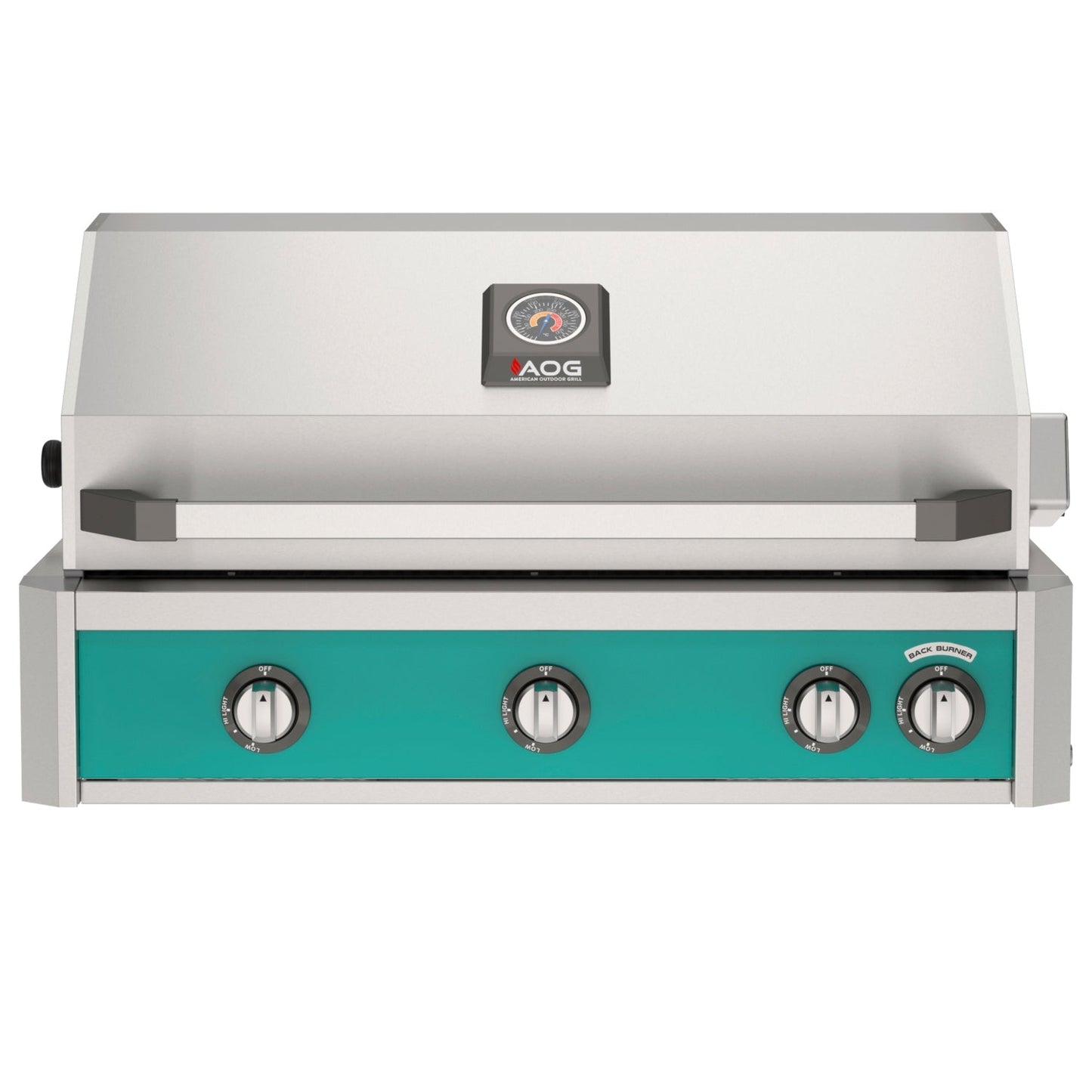

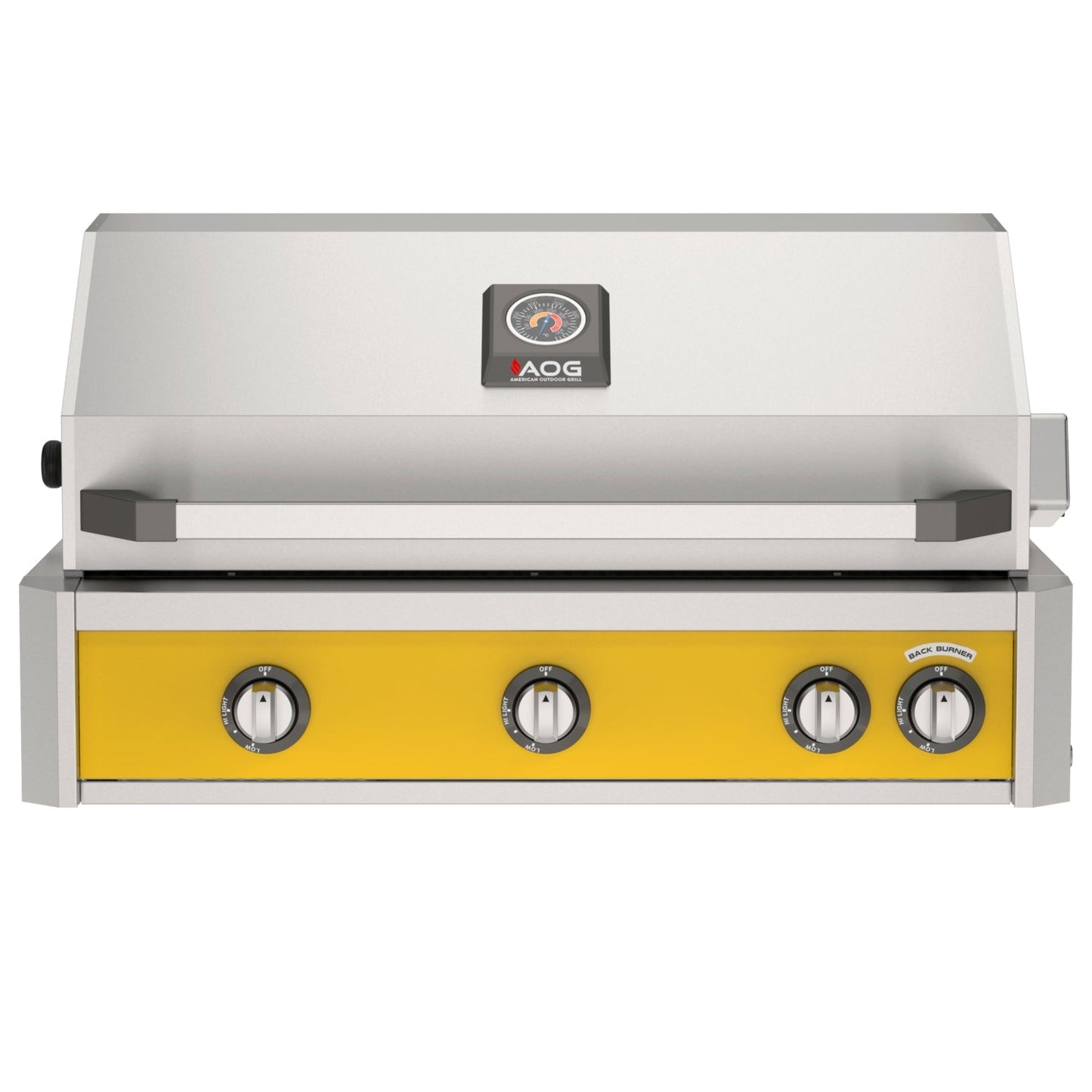

- Optional control panel colors available
For propane-based outdoor kitchens, this version is especially useful when the project needs a permanently built-in presentation but is not already plumbed for natural gas. The larger cooking area makes it better suited to bigger cook sessions, while the L-Series lighting package adds practical value for evening entertaining and after-dark grilling. Because this is an L-Series model, the enclosure should also be planned around access to 120VAC power.
Why Buy
This model is the better choice when you want the broadest AOG L-Series built-in grill, and propane is the more practical fuel source for the project. It gives a larger island more cooking capacity, stronger nighttime usability, and the flexibility to install a premium built-in grill where a natural gas line is not part of the build plan.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | AOG |
| Model Number | AOG36LP |
| Series | L-Series |
| Fuel Type | Propane |
| Configuration | 36" built-in gas grill |
| Primary Cooking Surface | 648 sq. in. |
| BTU Output | 50,000 primary + 12,000 infrared backburner |
| Cutout Dimensions | 36 3/4" W x 19 1/2" D x 8 1/2" H |
| Countertop Overhang Cutout | 40 3/4" W |
| Overall Dimensions | 40 1/8" (W) x 25 7/8" (D) x 22 1/2" (H) |
| Power Requirement | 120VAC |
Expert Installation & Performance Notes
The enclosure should be built on a hard, level surface, properly vented, and designed so that the stainless hanger and front support adjustment bolts support the grill. Because this is an L-Series model, the enclosure also needs power access within reach of a properly wired 120VAC GFCI grounded receptacle. If a solid area exists beneath the grill, the spec guide also shows a 1 1/2" diameter or square hole for electrical supply access.
